FortiAP 11C

QuickStart Guide

November 07, 2012

20-430-178439-20121107

and FortiGuard®, are registered trademarks of Fortinet, Inc., and other

Fortinet names herein may also be trademarks of Fortinet. All other

product or company names may be trademarks of their respective

owners. Performance metrics contained herein were attained in internal

lab tests under ideal conditions, and performance may vary. Network

variables, different network environments and other conditions may affect

performance results. Nothing herein represents any binding commitment by

Fortinet, and Fortinet disclaims all warranties, whether express or implied,

except to the extent Fortinet enters a binding written contract, signed by

Fortinet’s General Counsel, with a purchaser that expressly warrants that the

identiﬁed product will perform according to the performance metrics herein.

For absolute clarity, any such warranty will be limited to performance in the

same ideal conditions as in Fortinet’s internal lab tests. Fortinet disclaims in

full any guarantees. Fortinet reserves the right to change, modify, transfer,

or otherwise revise this publication without notice, and the most current

version of the publication shall be applicable.

Table of Contents

Package Contents 1

Connecting Your FortiAP Unit 2

Conﬁguring Your FortiAP Unit 3

Technical Speciﬁcations 4

LED Speciﬁcations 5

Documentation and Links 6

Cautions and Warnings 7

Product License Agreement 10

Package Contents

Fortinet’s FortiAP wireless thin access points deliver secure, identity-driven

WiFi client access that creates a fortiﬁed WLAN network that is centrally

managed by a FortiGate or FortiWiFi platform.

Your box contains the following:

FortiAP 11C

QuickStart Guide

Tools and Documentation CD

Ethernet Cable

USB Cable

Regional Power Plug

Page 1

Tools and Documentation

Tools and

Documentation

FortiAP 11C

QuickStart Guide

USB CableEthernet Cable Regional Power Plug

Page 3

Page 2

The FortiAP 11C plugs directly into an electrical outlet with the provided

regional power plug.

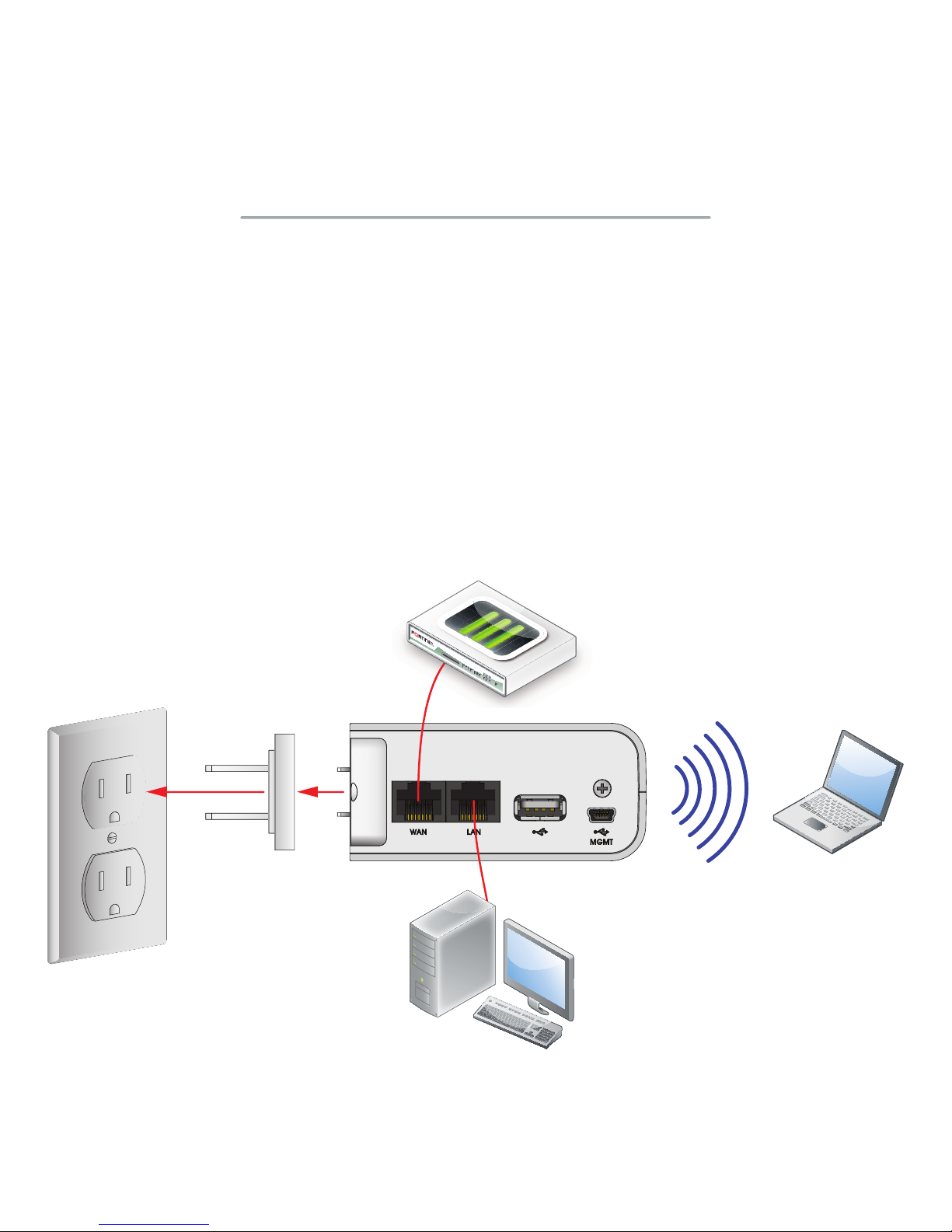

To connect the FortiAP unit:

1. Insert an Ethernet cable into the WAN port of the FortiAP unit.

2. Insert the other end of the Ethernet cable into your FortiGate or FortiWiﬁ

unit.

3. Connect the provided regional power plug and then plug the device into

an electrical outlet. The Power LED will light up.

Connecting Your FortiAP Unit

Page 3

Conﬁguring Your FortiAP Unit

The FortiAP unit is designed to require no conﬁguration in most networks. Zero

Conﬁguration mode works if the unit is directly connected to the FortiGate or

FortiWiﬁ performing the Wireless LAN Controller (WLC) functions, or on the

same layer-2 network and subnet as the FortiGate or FortiWiﬁ unit.

To enable the FortiAP using Zero Conﬁguration:

1. After connecting the FortiAP unit as described in the previous chapter, the

unit goes through its boot procedure and requests an IP address from the

DHCP server.

2. If the IP address is retrieved successfully, the FortiAP enters discovery mode

to locate a FortiGate or FortiWiﬁ wireless controller. The discovery modes are:

• Broadcast

• Multicast

• DHCP option 138

3. Verify that the FortiAP has successfully connected to the controller.

In the FortiGate Web-based Manager, go to WiFi Controller > Managed

Access Points > Managed FortiAP. A successfully discovered unit displays

an orange circle with a question mark.

4. Select the access point and click Edit.

5. In the State ﬁeld, select Authorize.

6. In the AP Proﬁle ﬁeld, select change, then select a proﬁle from the list and click

OK.

7. The conﬁguration is downloaded from the wireless controller to the FortiAP

and the WiFi LED lights up.

For more information, see the Deploying Wireless Networks Guide, available on

Fortinet’s documentation website, http://docs.fortinet.com.

Page 4Page 4

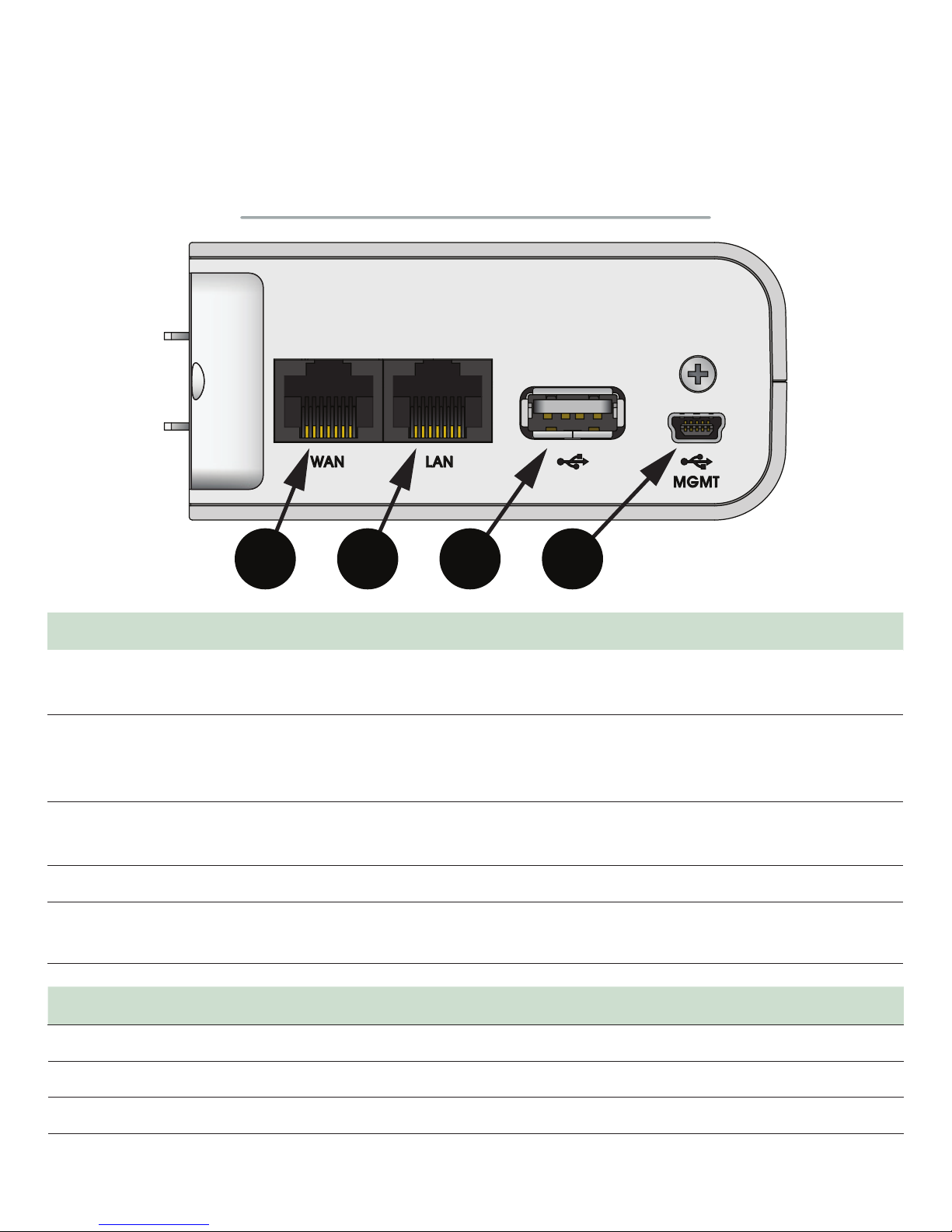

Technical Speciﬁcations

1 42 3

# Interface Type Description

1WAN RJ-45 Gigabit Ethernet port for connection to your network

and the Internet.

2 LAN RJ-45 Gigabit Ethernet port for connection to your network

and the Internet. Not currently supported; to be

supported in a future release.

3 USB USB-A USB server port for USB key, modem, or

management functions.

4 USB MGMT USB Mini-B Client port for management.

Reset Button Hold for 5 seconds to reset the FortiAP unit to its

factory defaults.

Hardware Speciﬁcation Description

WiFi Radios Refer to the product datasheet.

Memory Refer to the product datasheet.

Indoor/outdoor Deployment Indoor Only.

Page 5

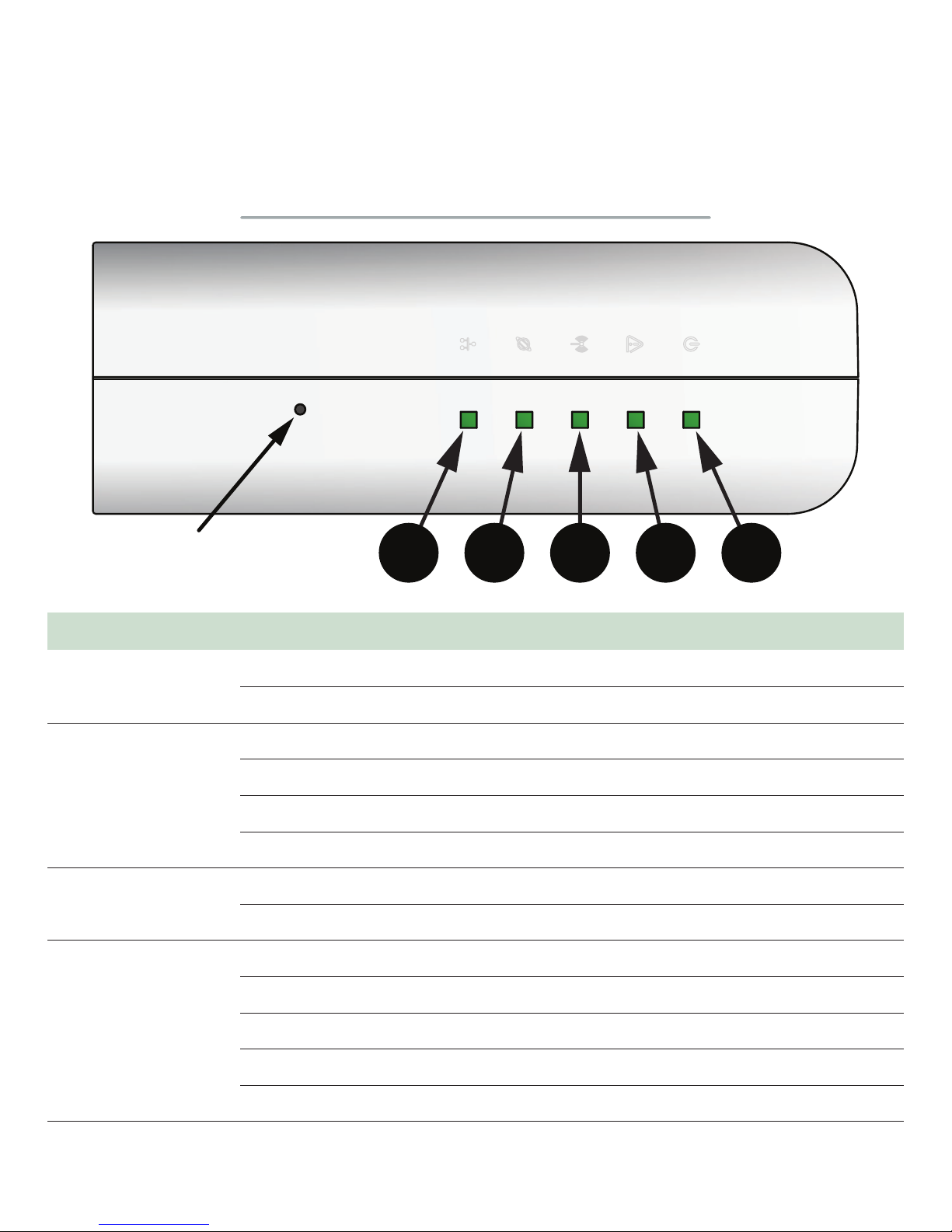

LED Speciﬁcations

# LED State Description

1 Power Green The unit is on.

Off The unit is off.

2 Status

Green The unit has successfully connected to a controller.

Flashing Green The unit is booting up.

Flashing Amber The unit is searching for a controller.

Amber The unit has a fault.

3 WiFi Flashing Green The wireless port is active.

Off The wireless interface is down.

WAN and LAN

Green Connected at 1000Mbps.

Amber Connected at 10/100Mbps.

Flashing Green Link activity at 1000Mbps.

Flashing Amber Link activity at 10/100Mbps.

Off No link established.

Reset Button 14 235

Page 6

Documentation and Links

The following Fortinet web pages provide information and resources for your Fortinet product:

1. Customer Service & Support: https://support.fortinet.com

On this page you can create a support account with Fortinet, register and manage your

products, download updates, ﬁrmware images and release notes, and create technical

support tickets.

2. Technical Documentation: http://docs.fortinet.com

This page provides the most up-to-date versions of Fortinet publications for the entire family

of Fortinet products. The following guides provide more information on the installation and

conﬁguration of your FortiAP unit:

• Deploying Wireless Networks: This guide describes how to conﬁgure wireless

networks with FortiWiFi, FortiGate, and FortiAP units.

• Wireless Starter Kit: This guide provides example conﬁgurations of FortiAP thin

wireless access points.

3. Knowledge Base: http://kb.fortinet.com

This page provides Fortinet technical documentation, such as troubleshooting, how-to

articles, example conﬁgurations , FAQs, technical notes, and more.

4. Technical Discussion Forums: https://support.fortinet.com/forum

This page allows you to communicate with other customers and Fortinet partners about

Fortinet products, services, and conﬁguration issues in a forum environment.

5. Training Services: http://training.fortinet.com

This page provides course descriptions, availability, schedules, and locations of training

programs in your area.

6. FortiGuard Threat Research and Response: http://www.fortiguard.com

This page provides up-to-date information on vulnerabilities and threats, and includes a virus

scanner, Internet Protocol (IP) signature look-up, web ﬁltering tools, and related information.

Tools and Documentation CD

The tools and documents on this CD are current as of shipping time.

Comments on Technical Documentation

Please send comments or information about any errors or omissions in this or any Fortinet

technical documents to [email protected].

Page 7

Cautions and Warnings

Please review the following cautions and warnings.

Environmental specications

Operating temperature: 32 to 104°F (0 to 40°C)

If you install your Fortinet product in a closed or multi-unit rack assembly, the operating ambient

temperature of the rack environment may be greater than room ambient temperature. Therefore,

make sure to install the equipment in an environment compatible with the manufacturer’s maximum

rated ambient temperature.

Storage temperature: -31 to 158°F (-35 to 70°C)

Humidity: 10 to 90% non-condensing

FCC Compliance

The Fortinet product has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modiﬁcations not expressly approved by the party responsible for

compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

IMPORTANT NOTE: Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for uncontrolled environments.

This equipment should be installed and operated with a minimum distance of 21cm between the

radiator and your body. This transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter. The availability of some speciﬁc channels and/or operational frequency

bands are country dependent and are ﬁrmware programmed at the factory to match the intended

destination. The ﬁrmware setting is not accessible by the end user.
