Fortinet FortiWLC-500D Manuel utilisateur

Wireless lan Controller

FortiWLC™-500D

QuickStart Guide

Table of contents

Package contents...................................................... 1

Rack mounting ........................................................ 2

Installing SFP transceivers ............................................. 3

Supported SFP transceivers ............................................ 5

Connecting to FortiWLC ............................................... 6

Shutting down ........................................................ 8

Registering your product .............................................. 9

Ports & LEDs..........................................................10

Replacing a PSU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Cautions and warnings ...............................................13

Regulatory notices ...................................................15

License agreement & warranty ........................................17

2 Power Cables Console Cable

4 Rubber Feet 8 Bracket

Sc rews

Ethernet Cable

2 Rack Mount

Ears

2 Grounding

Sc rews

FortiWLC 500D

QuickStart Guide

Quic kStart Guide

Package contents

The box should contain:

FortiWLC-500D appliance

FortiWLC-500D QuickStart Guide

2 Power cables

Console cable

Ethernet cable

4 Rubber feet

2 Grounding screws

8 Bracket screws

2 Rack mount ears

Rack mounting

FortiWLC appliances should be installed in a restricted access location

such as a locked data center to ensure their physical security, which is

fundamental to your network security. Mount the appliance in any standard

19 inch (48.3cm) rack with the rack-mount brackets.

In a rack, a FortiWLC-500D occupies 1U (1.77in/4.45 cm).

• 2-post rack: Attach the rack-mount brackets to the middle of each

side of appliance so that its weight is distributed evenly.

• 4-post rack: Attach the rack-mount brackets to the front of each side

of the appliance with anges facing outwards, towards the notches in

the rack.

Installing SFP transceivers

If not already installed, install the SFP/SFP+ transceivers that will be used

to connect your appliance to the network.

Caution: Do not install or remove SFP transceivers while ber-optic cables

are still attached. This can cause damage to the cables, cable connectors,

and optical interfaces. It may also prevent the transceiver from latching

correctly into the socket.

Note: Installing and removing SFP transceivers can shorten their life. Do

not install or remove transceivers more than is necessary.

To install the SFP transceivers

1. On the appliance’s front panel, remove the caps from SFP cage sockets.

2. Position the SFP transceiver in front of the cage socket so that the

extraction lever is level with the socket latch.

Note: SFP cage socket orientation may vary. Ensure that the SFP

transceiver module is correctly oriented.

3. Holding the sides of the SFP transceiver, gently slide it into the cage

socket.

Caution: Do not force SFP transceivers into cage sockets. Force can

cause damage. If the transceiver does not easily slide in and click into

place, it may not be aligned correctly or may be upside down. If this

happens, remove the SFP transceiver, realign or rotate it, and try again.

4. Press the transceiver rmly into the cage socket with your thumb until it

clicks, indicating that it is latched.

5. To verify that the transceiver is latched, grasp its sides and try to pull it out

without lowering the extraction lever.

If you can remove the transceiver, it was not latched correctly, and could

become accidentally dislodged. Try again.

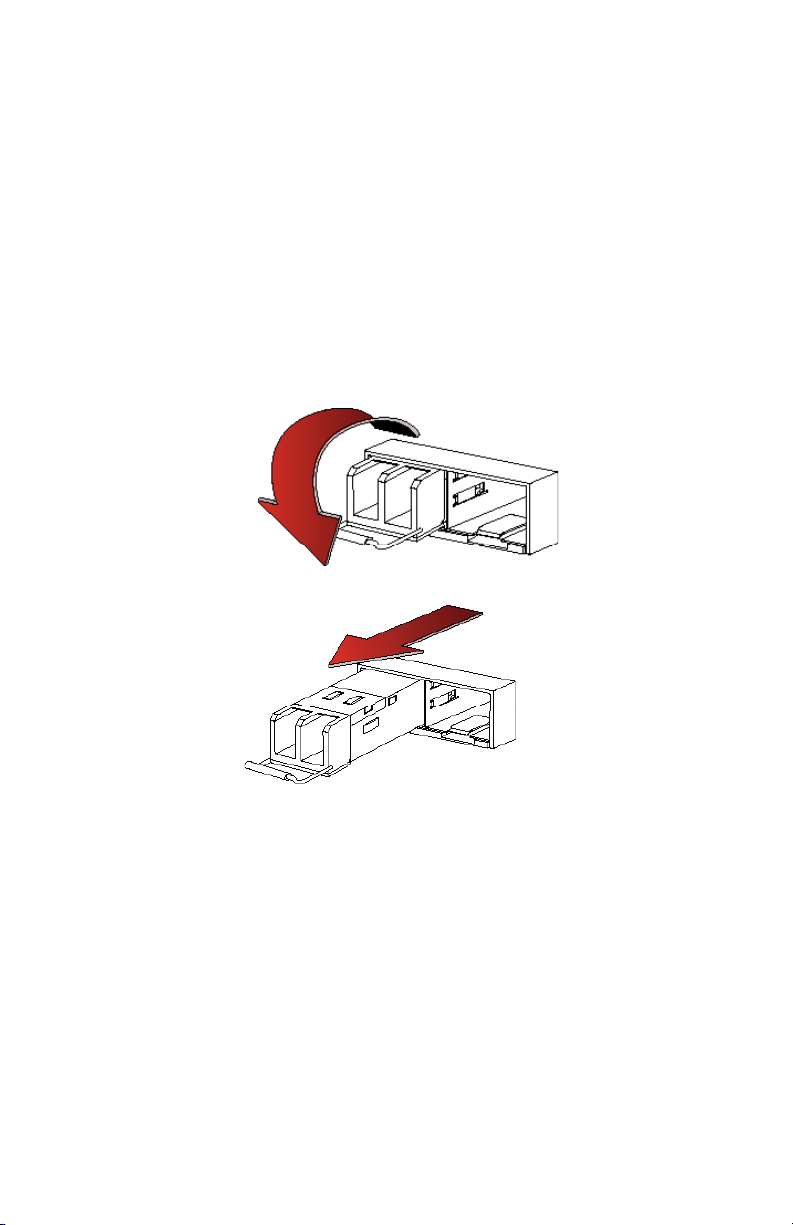

To remove the SFP transceivers

1. Disconnect the ber optic cable from the transceiver connector.

2. To prevent dust from entering the optical bores, insert clean plugs.

3. To eject the transceiver, pull the extraction lever out and down.

Tip: Instead of using your nger, try a small at-head screwdriver.

4. Hold the sides of the transceiver and carefully pull it from the cage socket.

5. Replace the cap on the SFP cage socket.

6. Put the removed SFP transceiver into an anti-static bag.

Supported SFP transceivers

These are the supported transceivers for FortiWLC-500D.

Supplier Type Part Number

Intel DUAL RATE 1G/10G SFP+ SR (bailed)* FTLX8571D3BCV-IT

Finisar SFP+ SR bailed, 10g single rate* FTLX8571D3BCL

Avago 10GBASE-SR/SW, SFP+ * AFBR-709ASMZ

Finisar DUAL RATE 1G/10G SFP+ * FTLX8571D3BCV

Finisar SFP+ SR, 10g single rate* FTLX 8574D3BCL

HP 1000BASE-SX SFP SFP SX J4858C

Axcen SFP, 1000SX AXGE-5854-0511

Dlink 1GB Copper DGS712

Finisar 1 Gbps SFP FCLF8521P2BTL

NetGear 1 Gbps SFP AGM731F

* Not supported on 1 Gbps SFP module.

Connecting to FortiWLC

If the appliance has a redundant power supply, connect each power cable

to a dierent power source.

You can congure FortiWLC for your network through a connection to

command line interface (CLI).

IMPORTANT • FortiWLC-500D is supported ONLY from System

Director 8.0-SR1 and later.

• SFP support is not available in the 8.0-SR1

release.

Connect FortiWLC only to your computer until you nish setup. (If you

place FortiWLC in your network before FortiWLC is set up, trac could

be interrupted until setup is complete.) Detailed instructions are in the

System Director User Guide.

One typical, basic network topology is shown below.

To connect to the CLI via serial console

Requires: Terminal emulator such as PuTTY, TeraTerm, or a terminal server

1. Using the console cable, connect the appliance console port to your

terminal server or computer.

2. On your computer or terminal server, start the terminal emulator.

Usethesesettings:

• Baud rate: 115200

• Data bits: 8

• Parity: None

• Stop bits: 1

• Flow control:None

3. Press Enter on your keyboard to connect to the CLI.

Shutting down

Always properly shut down the FortiWLC

appliance’s operating system before unplugging

the appliance. This causes it to nish writing

buered data, and to slow and park the harddisks.

Do not unplug the FortiWLC appliance before

halting the operating system. Failure to shut down

correctly could cause dataloss and hardware

problems.

To power o the appliance via the CLI, use the powero controller CLI

command before unplugging the power.

The command gracefully brings the controller down to a state where power

can safely be removed.
