FONESTAR SCD-600 Guide de démarrage rapide

SOFTWARE GUIDE

GUÍA DE SOFTWARE

GUIDE DU LOGICIEL

GUIDE DE SOFTWARE

SCD-600

DIGITAL CONFERENCE SYSTEM

SISTEMA DIGITAL DE CONFERENCIAS

SYSTÈME NUMÉRIQUE DE CONFÉRENCES

SISTEMA DIGITAL DE CONFERÊNCIAS

SCD-600_Software_MANUAL_(EN_ES_FR_PT)_20200211-2019.qxp_Maquetación 1 11/2/20 15:35 Página 1

INTRODUCTION

This software allows you to control the following parameters of the SCD-600 conference system:

- Volume and music control

- Individual microphone control

- Equalizer

- Control of debate and voting mode

- Camera control.

1.- DOWNLOAD SOFTWARE

Download the free SCD-600 PC application at the following web address:

http://www.fonestar.com/SCD-600

This application does not require prior installation, you only need to open the program to use it.

2.- CONNECTION

In order for your computer and the conference system to communicate, it is necessary that both devices are

connected to the same local area network, internet access is not necessary.

Note: Refer to the user's manual for the steps necessary to change the IP address of SCD-600.

-Once they are connected on the same network, open the program. To do this, go to the downloaded ﬁles

and click on the ﬁle “SCD-600 System Editor 1.2.6.”

- Select the network interface used and click OK.

- 2 -

SCD-600_Software_MANUAL_(EN_ES_FR_PT)_20200211-2019.qxp_Maquetación 1 11/2/20 15:35 Página 2

-If the connection between the two devices is successful, the program will display the following window

with the status indicator in green (in the upper left margin). In this window, in the left-hand column, all

automatically detected units (central unit and chairman and delegate microphones) are displayed. If not,

check that all connections and cables are properly connected.

If a connection cannot be made, the software will display the following message "No devices available"

and the status indicator will appear in gray. Check that both devices are physically on the same network,

that the cables are not damaged and are working properly, and ﬁnally, check the conﬁguration of your

network cards (IP, network marker and gateway). Once all of this has been veriﬁed, click on the CONNECT

button to try again.

3.- SOFWARE FEATURES

3.1 CONTROL AND CONFIGURATION OF THE SCD-600 CENTRAL UNIT

To control the central unit of the SCD-600, conference system, with the DEVICE option selected at the top

of the screen, go to the left column and click on the SCD-600 button (this button also shows the IP address

of the unit).

To the right of the column of detected devices, the rest of the information, being all the adjustments that can

be made on the SCD-600 unit, will be shown.

Each of these settings is outlined below.

- 3 -

SCD-600_Software_MANUAL_(EN_ES_FR_PT)_20200211-2019.qxp_Maquetación 1 11/2/20 15:35 Página 3

3.1.1 EQUALIZER

The software allows the output audio signal of the control panel to be equalized. To do this, click on the

EQUALIZER button in the DISPLAY section in the center column. This software allows you to combine

different equalizer modes:

- represented graphically, with the graph on the top (1).

-enhancement or attenuation of speciﬁc frequencies (2) conﬁguring the following parameters: center

frequency of the ﬁlter, quality factor of the equalization band (Q Factor), gain of the equalization band

level, type of ﬁlter for the equalization band, deactivate an equalization band (OMIT button), subtract

the curve (PLANE button), deactivate all equalization bands (OMIT ALL button). It is also possible to

save a conﬁguration in a ﬁle and then load it with the SAVE and LOAD buttons respectively.

-generic ﬁlters: high pass and low pass (3). Allows you to select the center frequency and ﬁlter type for

each band.

- 4 -

SCD-600_Software_MANUAL_(EN_ES_FR_PT)_20200211-2019.qxp_Maquetación 1 11/2/20 15:35 Página 4

3.1.2 USERS

The software allows you to mute or activate each of the microphones connected to the central unit. To do

this, click on the USERS button in the DISPLAY section in the center column and all connected microphones

will appear on the right panel. The president microphone will appear in orange and the delegates'

microphones in white. Click on each one to change its status.

3.1.3 DEBATE MODE

In order to conﬁgure the microphone settings in debate mode, click on the arrow in the DEBATE MODE,

opening the conﬁguration menu. This menu allows you to conﬁgure the following items:

-Set the maximum number of microphones that can be simultaneously active (1, 3, 6, 9 or all). Click on the

option you wish to select.

- Allows you to conﬁgure the microphone settings when the maximum number of users is reached.

-FIFO: this setting will deactivate the microphone that has been active the longest when the maximum

number of active microphones is exceeded.

-LIMIT: when the maximum number of active microphones is exceeded, this setting prevents other

microphones from being activated until a microphone is deactivated.

-Activates/deactivates the priority that the president microphone has over delegate microphones. If

deactivated, the president microphone will be treated by the system as another delegate microphone.

-Blocking the microphones of all delegates. The SCD-620D delegate microphones will be disabled and will

not be able to cast any votes. To restore the microphones to operation, press the button a second time.

This action has no effect on the status of the chairman microphone.

- DISABLE ALL: disables all delegate microphones.

- DISABLE: disables a microphone individually by clicking on the desired microphone.

- 5 -

SCD-600_Software_MANUAL_(EN_ES_FR_PT)_20200211-2019.qxp_Maquetación 1 11/2/20 15:35 Página 5

3.1.4 VOLUME CONTROL

-Speakers: control of the overall volume of the SCD-600 outputs.

-Monitor: volume control of the speakers in the base of the microphones.

3.1.5 SIC CONTROL

The software allows you to control the USB storage device connected to the front

panel of the central unit. This option allows you to control audio ﬁle playback and

audio ﬁle recording with the standard controls of a player: play, pause, stop,

previous track, next track and playback mode.

- 6 -

SCD-600_Software_MANUAL_(EN_ES_FR_PT)_20200211-2019.qxp_Maquetación 1 11/2/20 15:35 Página 6

3.2 MICROPHONE CONTROL AND CONFIGURATION

The software allows you to conﬁgure the delegate and president microphones. To do this, click on the

microphone you wish to conﬁgure in the left hand column.

3.2.1. COMPRESSOR AND EQUALIZER

Allows you to individually conﬁgure the compressor and equalizer of the microphones.

The parameters to conﬁgure the compressor are:

-Threshold: sets the threshold above which the compressor will apply the selected attenuation.

-Ratio: sets the attenuation that is applied to the signal when it exceeds the threshold.

-Attack: the period of time needed to apply compression to the signal when the threshold is exceeded.

-Release: the period of time needed to stop compressing the signal when the threshold is exceeded.

-Boost: increase in the signal level of the microphone.

-Volume: general volume of the microphone.

-Reset: resets the compressor parameters.

-Omit: deactivates the compressor.

The parameters to conﬁgure the equalizer are:

-Frequency: central frequency of the ﬁlter.

-Q factor: quality factor of the equalization band. This changes the bandwidth of the equalization.

-Gain: gain of the equalization band level.

-Type: type of ﬁlter for the equalization band.

-Omit: disables the equalization band.

-Reset: resets the equalizer parameters.

Note: if you want to conﬁgure all microphones the same way, click SAVE and select a path to save the

microphone's conﬁguration, then select the next microphone to be conﬁgured and click LOAD and select the

previously saved ﬁ.

- 7 -

SCD-600_Software_MANUAL_(EN_ES_FR_PT)_20200211-2019.qxp_Maquetación 1 11/2/20 15:35 Página 7

3.3. VOTING

The conference system software allows you to start, manage, ﬁnalize and view voting results.

To enter voting mode via the software, click on the VOTING tab in the top menu.

- Before voting begins, select the length of time the vote will last, in minutes.

-To start voting click on the START VOTING button. Voting will ﬁnalize automatically when the indicated

time is up or if you click the STOP VOTING button.

- 8 -

SCD-600_Software_MANUAL_(EN_ES_FR_PT)_20200211-2019.qxp_Maquetación 1 11/2/20 15:35 Página 8

When the voting is over, the software will display the voting result in the following format:

3.4. CAMERA CONTROL

This conference system allows you to control the camera connected to the central unit via the RS485 port,

as indicated in the user manual. To control the camera using the software, execute the conﬁgurations required

for RS485 connection and communication and click on the CAMERA tab.

- 9 -

SCD-600_Software_MANUAL_(EN_ES_FR_PT)_20200211-2019.qxp_Maquetación 1 11/2/20 15:35 Página 9

3.5. SYSTEM LOCKING

It is also possible to lock and unlock the system so that unauthorized personnel do not modify the parameters

when the system is unattended. This is done by means of a password and it is possible to lock and unlock

the SCD-600 center on the device itself, or via the software.

To lock the conference system from the central unit, press and hold the SPEAKER button on the front panel

for 3 seconds.

To block the conference system from the software, click on the LOCK icon at the top of the screen as you

can see in the image below.

To unlock the conference system from the central unit, press any button and the system will ask for the

password. Change the password using the MONITOR control, and select the password using the SPEAKER

control. Press the SPEAKER control to conﬁrm.

To unlock the conference system from the software, click on the UNLOCK icon located at the top of the

screen as you can see in the following image.

- 10 -

SCD-600_Software_MANUAL_(EN_ES_FR_PT)_20200211-2019.qxp_Maquetación 1 11/2/20 15:35 Página 10

Autres manuels pour SCD-600

Table des matières

Langues :

Autres manuels FONESTAR Système de conférence

FONESTAR

FONESTAR SCD-600 Manuel utilisateur

FONESTAR

FONESTAR SCD-600 Manuel utilisateur

FONESTAR

FONESTAR SCF-500 Manuel utilisateur

FONESTAR

FONESTAR SCF-550 Manuel utilisateur

FONESTAR

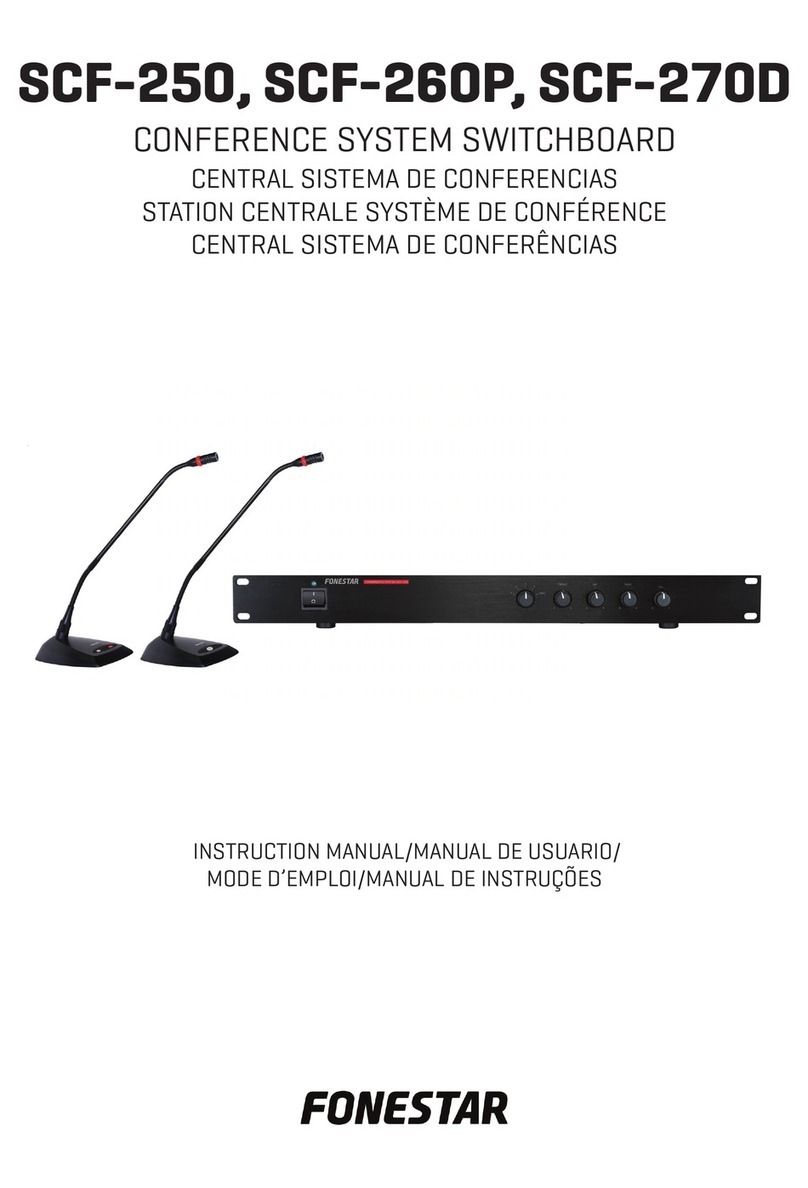

FONESTAR SCF-250 Manuel utilisateur

FONESTAR

FONESTAR SCF-250 Manuel utilisateur

FONESTAR

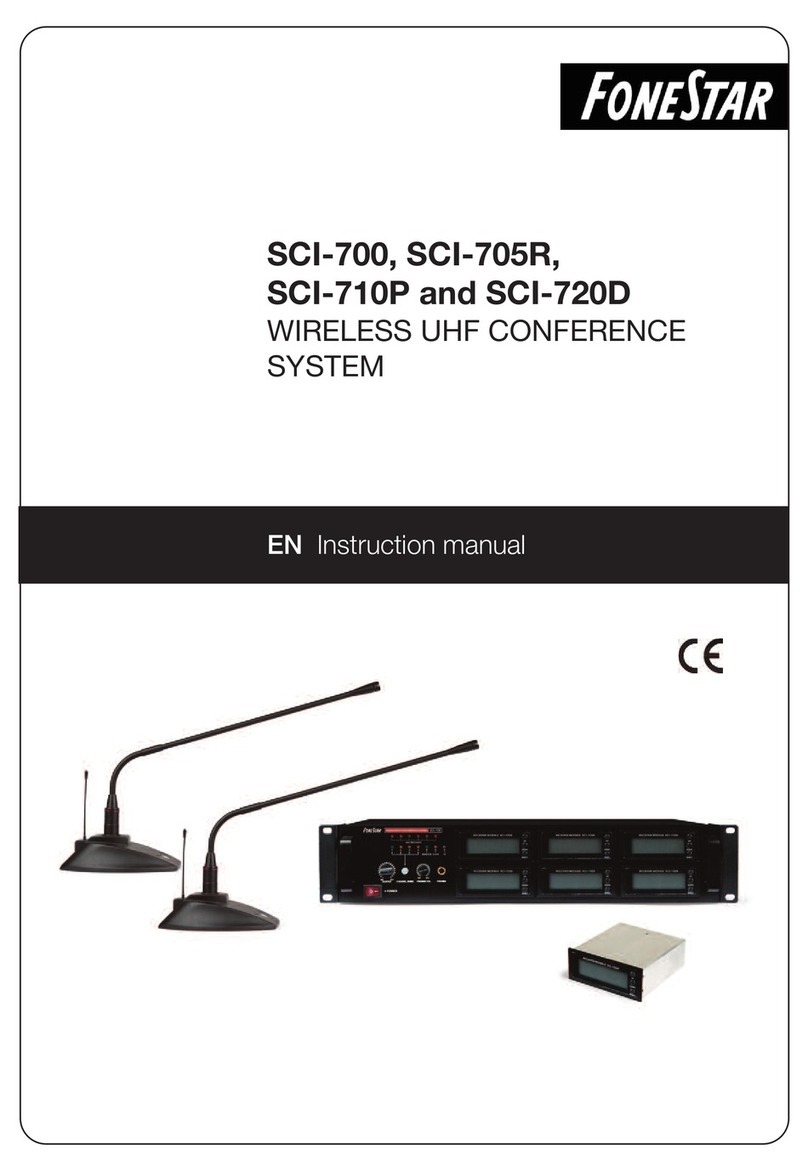

FONESTAR SCI-705R Manuel utilisateur
