Horizon™Icemaker Installation Instructions

for Vision™Satellite-ll™Applications

208264

StockModule Identification Plate

ServiceNo.

ModuleNo.

Product

REFRIGERANT

MODEL

MOTORCOMPRESSORTHERMALLYPROTECTED

EastonPennsylvania

FULLLOADAMPS

MAX.BRANCHCIRCUITFUSESIZE

MIN.BRANCHCIRCUITAMPACITY

DESIGNPRESSUREHIGHSIDE

AMPS

VOLTS

CORPORATION

SERIALNO

PHASE

SINGLE

CHARGE

LOWSIDE

PARTNO

PSIG

THEUSA

MADEIN

NSF

HCD1000RVS, HCD1400RVS, HCD1000NVS, HCD1400NVS,

(See model number congurator on page 2 for details.)

00159988R03

801 Church Lane • Easton, PA 18040, USA

Toll free (877) 612-5086 • +1 (610) 252-7301

www.follettice.com

remote condensing

2remote condensing VISION • SATELLITE-FILL

Horizon Series Icemaker Model Number Configurations

A Air-cooled, self-contained

W Water-cooled, self-contained

R Air-cooled, remote condensing unit

N Air-cooled, no condensing unit for

connection to parallel rack system

A V SC 1400HC

HC Horizon

Chewblet

HM Horizon

MINI

Chewblet

C 208-230/60/1

(self-contained only)

D Low side 115/60/1

Condensing unit

208-230/60/1

(remote condensing only)

E 230/50/1

(self-contained only)

Icemaker Voltage Series Condenser

V Vision™

H Harmony™

B Ice storage

bin

J Drop-in

M Ice Manager†

diverter valve

system

1000 up to

1036 lbs

(471kg)

1400 up to

1450 lbs

(658kg)

S Satellite-fill™

T Top-mount

Application Configuration

† Ice Manager Diverter Valve Systems can be used to fill any two of these bins or dispensers with a single ice machine.

VISION • SATELLITE-FILL remote condensing

Front cover

Internal connection

Ice transport tube

External connection

Louvered docking assembly

Dispenser preparation

Site preparation

Unpack

Read and complete the following 8 installation steps

4remote condensing VISION • SATELLITE-FILL

Carefully unpack and inspect the contents of your Follett icemaker. 1

Unpack

1/2"

➊➋

➌➍

➎➏

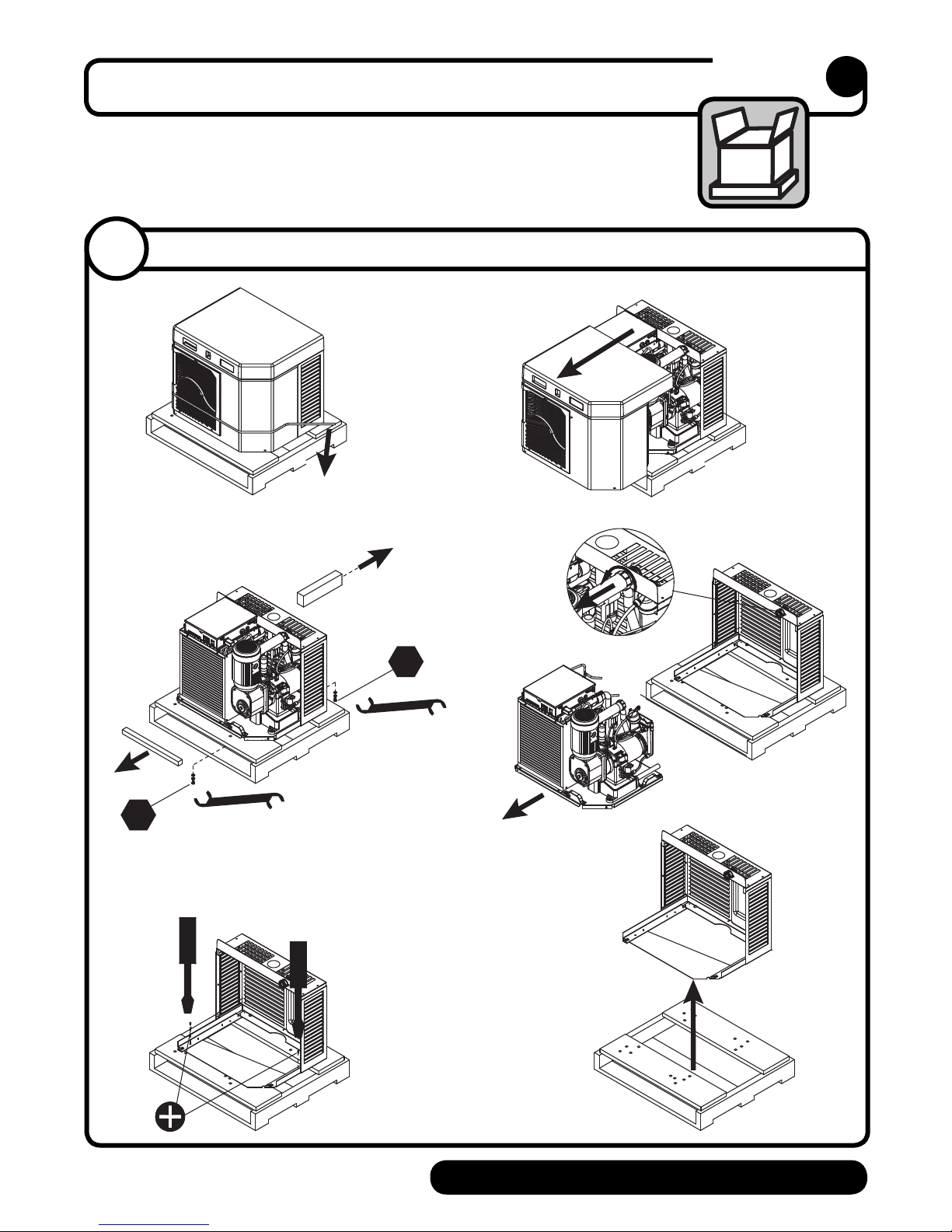

Unpack icemaker

1. 1

VISION • SATELLITE-FILL remote condensing

HCC1000R/N

HCC1400R/N

➎

➍5/8"∅ (15,8mm)

3/8" ∅ (9,5mm)

NEMA

5-15

➋

➊

➋

1/4"

➌

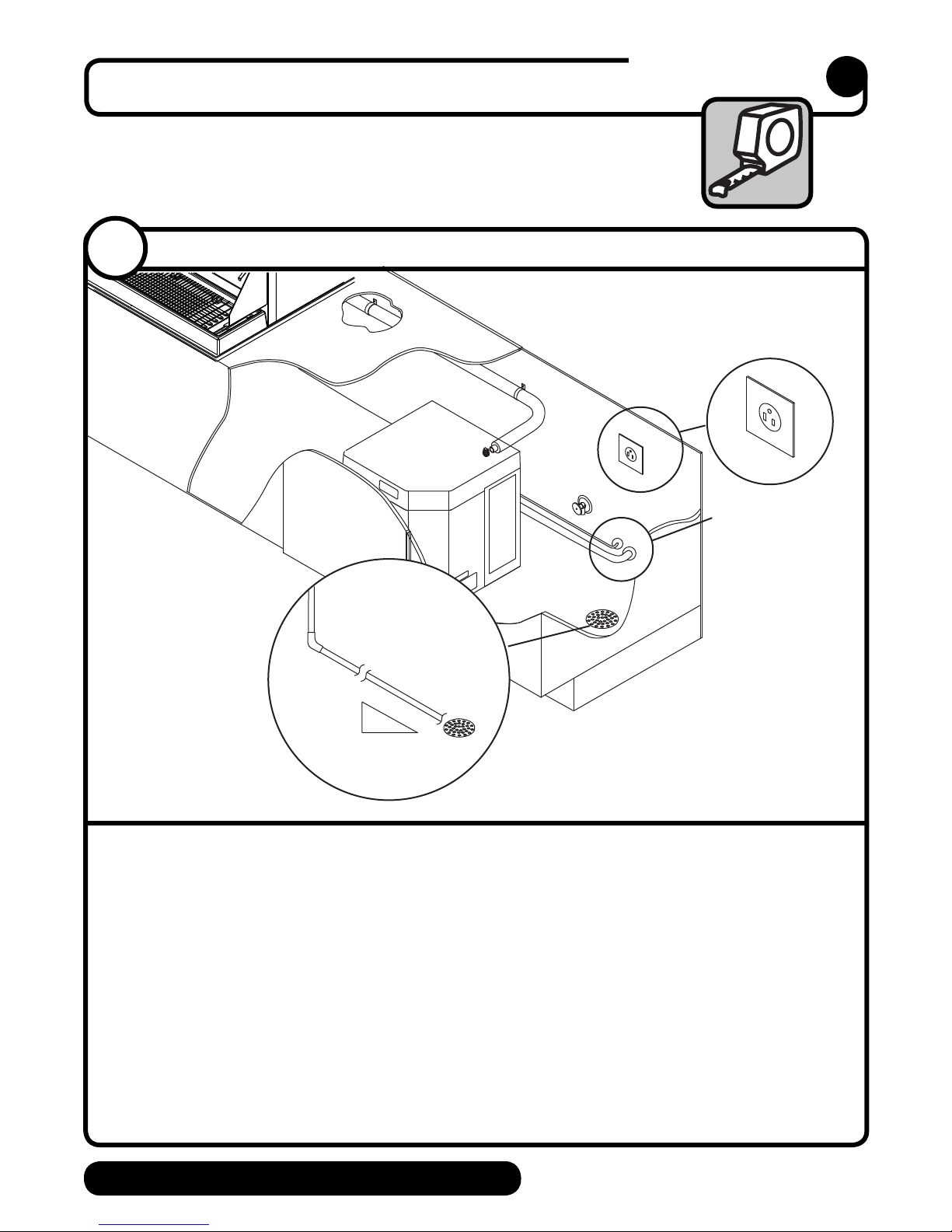

Prepare the installation site. 2

Site preparation

2.1

Provide drainage, water supply and electrical power to within 6 feet (2m) of

icemaker in accordance with local and national codes. Outdoor installation of

low side is not recommended and will void warranty.

Electrical ➊

• HCC1000(R/N)VS 120/60/1-6 amps

• HCC1400(R/N)VS 120/60/1-6 amps

Potable water supply ➋

• 10-70 psi (69-483kpa)

• 45-90 F (7-32 C)

• Follett recommends the use of an in-line water filtration system (item# 00130286)

Drain ➌

• The drain line from the icemaker must have at least 1/4" per foot pitch (6,4mm/0,3m)

Refrigeration lines ➍

• 5/8" (15,8mm) diameter suction (insulated) ➍

• 3/8" (9,5mm) liquid ➎

Installation site requirements

2.1

6remote condensing VISION • SATELLITE-FILL

Prepare the dispenser. 3

Dispenser preparation

Ground

24"

(610 mm)

➎

➏

➍

➌

➋

➊

➏

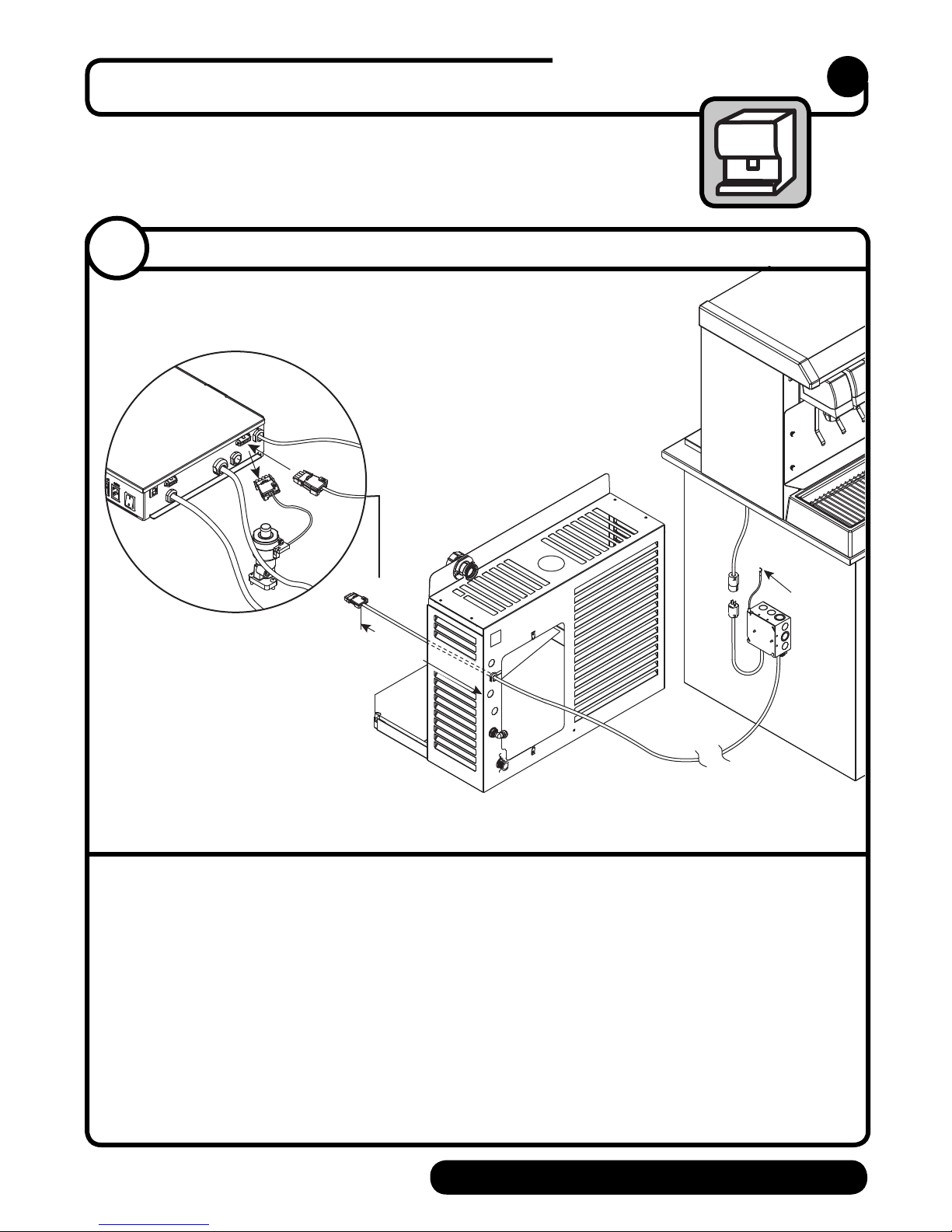

• Mount the electrical box to the side of the Vision dispenser ➊to establish a ground

connection.

Note: If a 4 x 4 box is mounted to a non-grounded surface, connect ground wire at an

appropriate ground.

• Connect the bin signal plug on the electrical box to the bin signal cord on the bin ➋

• Insert 24" (609,6mm) of the long bin signal cable ➌into the hole in the back of the louvered

docking station ➍and secure in place with strain relief provided.

• After sliding the icemaker module into the louvered docking station, disconnect the shuttle

plug ➎from the icemaker control box.

• Complete normal installation procedure for the icemaker using the installation manual that

shipped with the icemaker.

• Connect the bin signal plug ➏into the icemaker control box.

2.1 Bin Signal Installation

3.1

VISION • SATELLITE-FILL remote condensing

➊

1" (25,4mm)

Stub Typ

3" (76mm)

1-3/4" (44,5mm)

5/8˝ ∅

low pressure

line

3" (76mm)

3/8˝ ∅

high pressure

line

➋

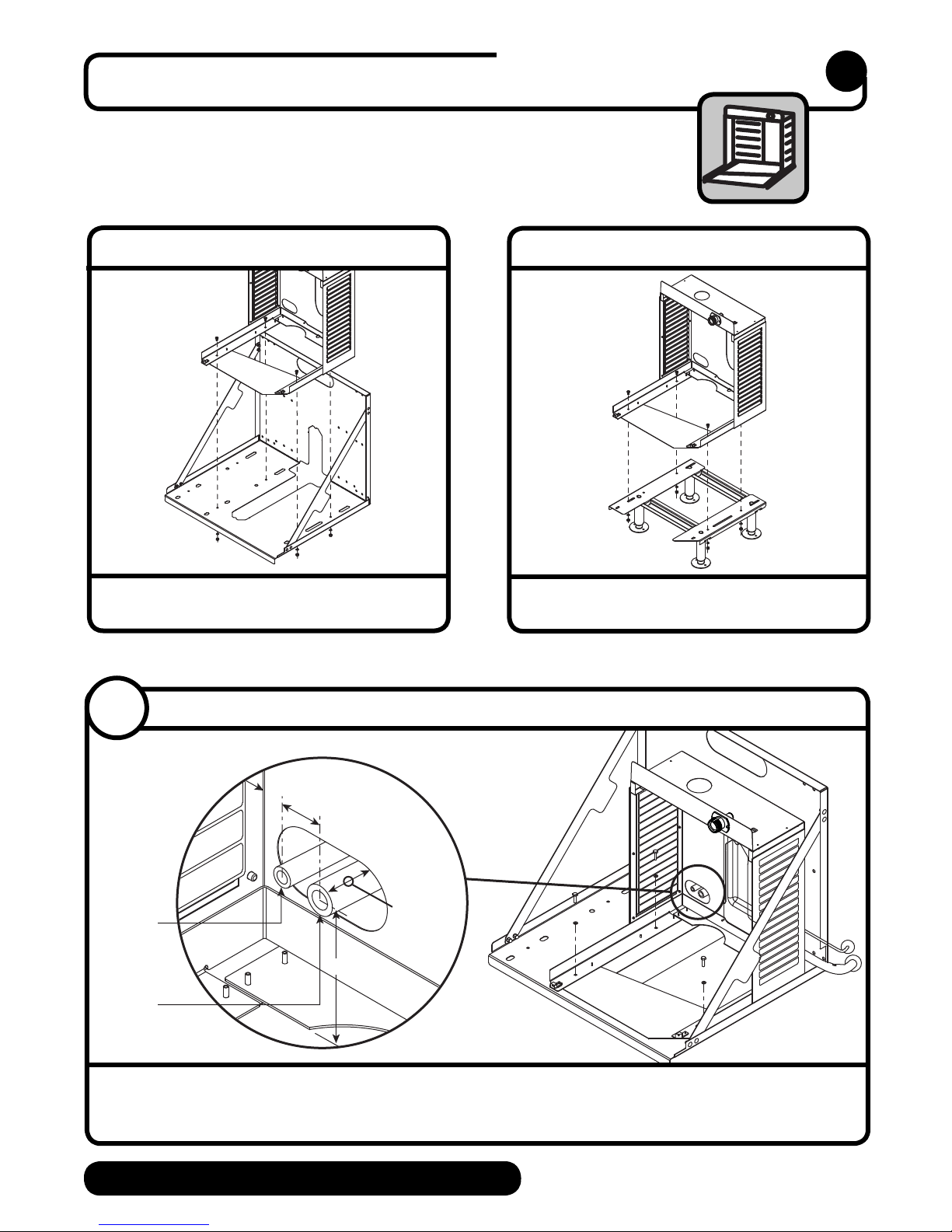

Install the louvered docking assembly.

Louvered docking assembly 4

• Mount louvered docking assembly ➊

• “Rough-in” the refrigerant piping ➋

2.1 Louvered docking assembly

4.1

• Mount louvered docking assembly to wall

bracket accessory

• Mount louvered docking assembly to

machine stand accessory

Wall bracket accessory Machine stand accessory

8remote condensing VISION • SATELLITE-FILL

CROSSBRACE

21" min.

(534mm

24.5" min.

(623mm)

No Lip

➋

Top View

Access panel/

door on counter

1.75" (45mm) min.

➊

➌

DOCKING STATION

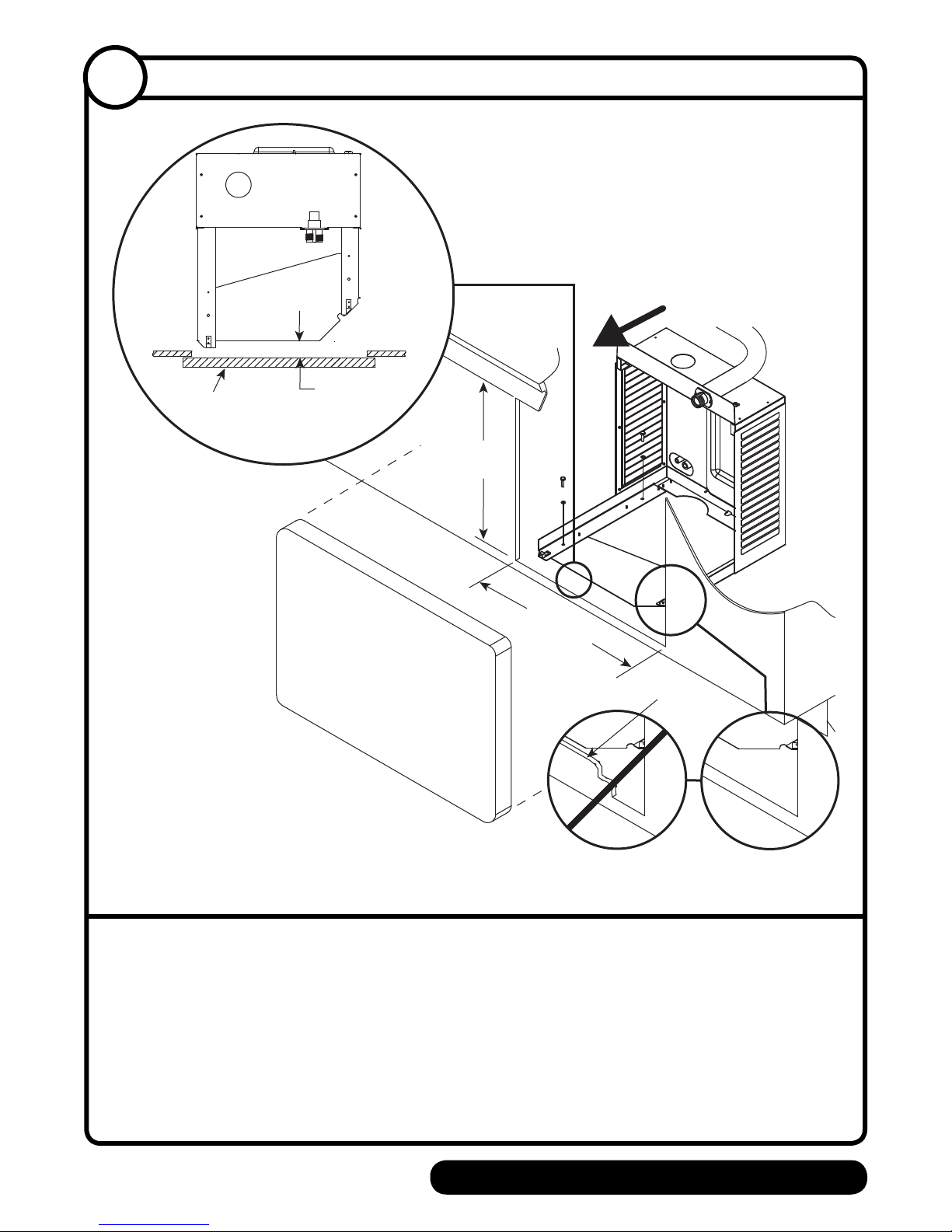

• Position and screw louvered docking assembly to the bottom of counter inside of access

panel/door min. of 1.75" (45mm) from the front edge of the cross brace ➊

• The mounting surface for the louvered docking assembly must be solid.

Do not mount directly onto runners or channels.

• There must be no lip or edge that would hinder the icemaker from sliding in or out of the

louvered docking station ➋

• Icemaker must be installed facing forward as shown for service accessibility ➌

Undercounter installation requirements Horizon 1000 & 1400 series

4.1

VISION • SATELLITE-FILL remote condensing

Transport tube

Install the ice transport tube. 5

Dispenser ice transport tube installation

5.1

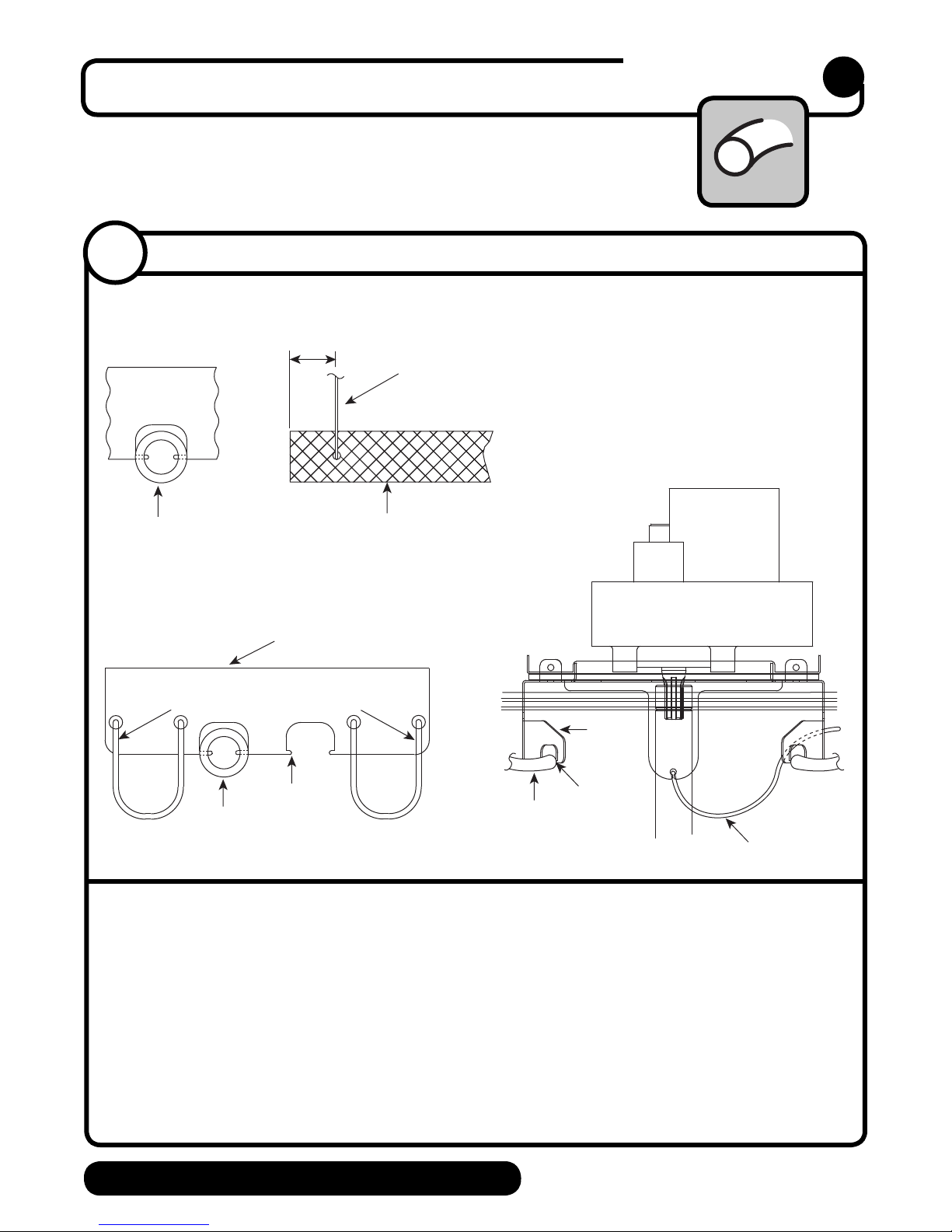

• Push one end of ice transport tube(s) through hole(s) provided in side of dispenser

• Route tube into ice tube bracket inside dispenser and engage bracket tabs in holes located

in end of ice transport tube(s) ➊

• Verify bin thermostat capillary tube is mounted correctly ➋

Front View

VU155

Ice tube retainer bracket

Front View

VU300

thermostat thermostat

thermostat

ice tube

retaining

bracket

ice tube

retaining

bracket

ice tube ice tube

tabs in ice tube

retainer bracket

engage holes in ice

tube and hold tube

in place

tabs in ice tube

retainer bracket

engage holes in ice

tube and hold tube

in place

1" (25mm)

ice tube

retaining

bracket

ice tube

➋

➊

➋

➊

➋

➊

10 remote condensing VISION • SATELLITE-FILL

1/4"

➍

➏

➐

➎

➊

➋

➌

Hot Water

160 F (71 C)

Ice transport tube tips

• Insulate entire length of ice transport tube ➊

• Secure ice transport tube ➋as needed to prevent dips and traps from forming.

For long tube runs see guide on page 15.

• Pitch ice transport tube at least 1/4" per foot (6,4mm/.3m) ➌

• Ice transport tube must drain towards icemaker

Ice transport tube to Icemaker

• Be sure tube ends are square ➍

• Heat end of transport tube in cup of 160 F (71 C) hot water to soften and spread with pliers

➎before making connection to ease assembly

• Push ice transport tube onto icemaker nipple ➏

• Install hose clamp ➐

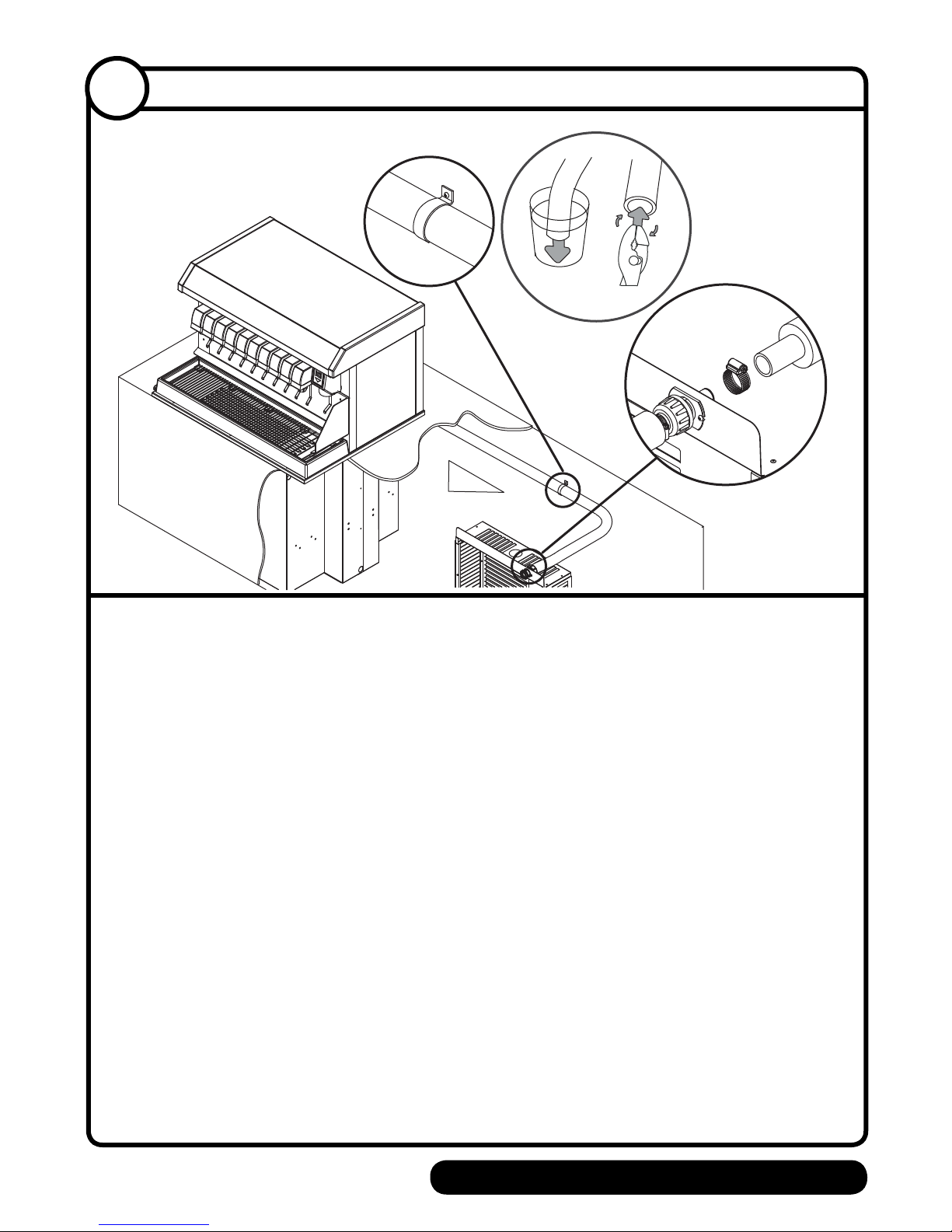

Ice transport tube installation.

5.2
