Horizon Elite™Ice Machine Installation Instructions

for Harmony™Top-mount Applications

HCD/HMD710AHT, HCC1010AHT, HCC1410AHT, HCC1010WHT, HCC1410WHT,

HMC1010AHT, HMC1410AHT, HMC1010WHT, HMC1410WHT,

HCE1010AHT, HCE1410AHT, HCE1010WHT, HCE1410WHT

HME1010AHT, HME1410AHT, HME1010WHT, HME1410WHT

(See model number congurator on page 2 for details.)

self-contained

Horizon top-mount ice machines

t most countertop dispensers manufactured by

Cornelius • Lancer • SerVend

801 Church Lane • Easton, PA 18040, USA

Toll free (877) 612-5086 • +1 (610) 252-7301

www.follettice.com

self-contained

2self-contained HARMONY • TOP-MOUNT

CAUTION!

• This appliance should be connected by a qualied person in accordance with applicable codes.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied

persons in order to avoid a hazard.

• Connect to potable water supply only.

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory,

or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved. Children should be

supervised to ensure that they do not play with the appliance.

• This appliance is intended to be used for household and similar applications such as staff kitchen areas

in shops, offices and other working environments; farm houses and by clients in hotels, motels and

other residential type environments; bed and breakfast type environments; catering and similar non-retail

applications.

• WARNING! To avoid a hazard due to instability of the appliance, it must be xed in accordance with the

instructions.

ConfigurationApplication

S RIDE™

(RIDE remote

ice delivery

equipment)

T Top-mount

425 up to

425 lbs

(193 kg)

710 up to

675 lbs

(306 kg)

1010 up to

1061 lbs

(482 kg)

1410 up to

1466 lbs

(665 kg)

1810 up to

1790 lbs

(812 kg)

2110 up to

2039 lbs

(925 kg)

V Vision™

H Harmony™

B Ice storage bin

J Drop-in

M Ice Manager

diverter valve

system

P Cornelius Profile

PR150

CondenserSeriesVoltageIcemaker

C 208-230/60/1 (icemaking head)

Self-contained only.

D 115/60/1 (icemaking head)

Self-contained and remote. If remote

unit, high side is 208-230/60/1.

E 230/50/1 (icemaking head)

Self-contained only.

F 115/60/1 (icemaking head)

Remote only. High side is

208-230/60/3.

MC Maestro™

Chewblet®

(425 Series)

HC Horizon

Chewblet

(710, 1010,

1410, 1810,

2110 Series)

HM Horizon

Micro Chewblet

HC 1810D SVA

A Air-cooled, self-contained

W Water-cooled, self-contained

R Air-cooled, remote condensing unit

N Air-cooled, no condensing unit for

connection to parallel rack system

Chewblet®Ice Machine Model Number Configurations

HARMONY • TOP-MOUNT self-contained 3

5 6

Read and complete the following 8 installation steps

Front coverInternal connection

External connection

Louvered docking assembly

Bin preparation

Site preparationUnpack

Ice transport tube

4self-contained HARMONY • TOP-MOUNT

Carefully unpack and inspect the contents of your Follett ice machine. 1

Unpack

7/16"

➊➋➌

➍➎

➏➐

DO NOT TILT ICE MACHINE

TO ACCESS BOLTS!

COMPRESSOR DAMAGE

WILL RESULT

Unpack ice machine

1. 1

HARMONY • TOP-MOUNT self-contained 5

Prepare the installation site. 2

H_C1410A/W

NEMA

6-20

H_C1010A/W

NEMA

6-15

➍

➋➌➊

H_D710A

NEMA

5-15

1' (0,3 m)

1/4" (6,4 mm)

H_E1010A/W‡

H_E1410A/W‡

requires 15A circuit,

1.50 mm2wire

requires 20A circuit,

4.00 mm2wire

1" Stand pipe/Drain

3/4" MPT x 1" slip

➍

3/4" barb x 3/4" FPT

2 ft. x 1" OD

silicone tubing

Minimum 8"

radius

➌

Site preparation

2.1

Provide drainage, water supply and electrical power to within 6 feet (2m) of ice

machine in accordance with local and national codes. Outdoor installation is

not recommended and will void warranty.

Electrical ➊

• H_C1010/1410(A/W)HT 208-230/60 • H_D710AHT 115/60

• H_E1010/1410(A/W)HT 230/50‡Requires dedicated 15A circuit.

(H_E1010A/W requires 15A dedicated circuit 1.50 mm2wire, H_E1410A/W requires 20A dedicated circuit 4.00 mm2wire)

‡ Plug must be provided by end user & must conform to standard EN 60 335-2-24 of the end destination.

Potable water supply ➋ (3/8” push-in internal connection, 3/8” OD tubing required)

• 10-70 psi (69-483kpa)

• 45 to 90 F (7 to 32 C)

• Follett recommends the use of an in-line water ltration system (item# 00130286)

• This equipment is to be installed with adequate backow protection to comply with applicable

federal, state, and local codes

Condenser water supply for water-cooled systems ➌ (1/4” FPT inlet, 1/4” FPT outlet)

• 10 psi min.; 150 psi max. (69kpa min.; 1034kpa max.)

• 45 to 90 F (7 to 32 C)

• 1.5 gallons per minute (5.68 liters per minute)

Drain ➌ (3/4” Barb)

• Minimum 8” radius on silicone drain line. Drain line from the ice machine must have at least

1/4” per foot pitch (6,4mm/0,3m).

Installation site requirements

2.1

6self-contained HARMONY • TOP-MOUNT

Prepare the dispenser. 3

Dispenser preparation

➊

All models

• Remove protective tape from gaskets ➊

Top preparation – ALL

3.1

➋

➊

➌

➊

• Apply gaskets ➊.

• Install coupling ➋ through bottom of

dispenser top and secure with locking nut

➌

Top preparation – ALL

3.2

Note: The instructions below only apply to 22" & 30" wide dispensers.

44" wide dispenser instructions may be found with the top kit.

➋

➊

Cornelius models only

• Remove protective tape ➊

• Apply gasket ➋

Top preparation – CORNELIUS

3.4

➋

➊

• Screw 4" (102mm) extension ➊ into

bottom of shuttle actuator ➋

Top preparation – ALL

3.3

HARMONY • TOP-MOUNT self-contained 7

➊

➋

Lancer models only

• Remove protective tape ➊

• Apply gaskets ➋

Top preparation – LANCER

3.5

PRESS IN ON

THIS SIDE TO

TURN SWITCH

ON.

SWITCH

OFF

PRESS IN ON

THIS SIDE TO

TURN SWITCH

OFF.

ROCKER

SWITCHES

(VIEW LOOKING

DOWN)

SIDE VIEW

12345678

OFF

SWITCH

NUMBER

AGITATION FREQUENCY

NO AGITATION

10 MINUTES

20 MINUTES

30 MINUTES

40 MINUTES

50 MINUTES

60 MINUTES

70 MINUTES

80 MINUTES

90 MINUTES

100 MINUTES

110 MINUTES

120 MINUTES

130 MINUTES

140 MINUTES

150 MINUTES

SWITCH

NUMBER

AGITATION TIME

1 SECOND

2 SECONDS

3 SECONDS

4 SECONDS

X = ON

O = OFF

Lancer 4500 series only

Adjust the agitation time to 1 second, and the agitation frequency to 150 minutes. See Lancer

manual for more information.

Agitation adjustments – LANCER 4500 SERIES

3.7

OFF

Cornelius models ED, DB, DF, IDC and

FLAVOR FUSION

Adjust the agitation timer located on the Cornelius

PC board to 1 second on, 1 hour off. Note: See

Cornelius manual for more information.

Agitation adjust. – CORNELIUS

3.6

Agitation adjustments – LANCER Sensation and Touchpoint

3.8

No agitation adjustment required

8self-contained HARMONY • TOP-MOUNT

Major/Minor

FS-16 Setup

Config Bonus Key

Soda/Plain Water

Config Dispense Only

PC Mode

PC Time

Ice Stir Off

Ice Stir On

Sold Out

Carb Sensors

Ice Bin Sensors

Valve Code Version

Number Of Valves

Reset Defaults No Ye s

Reload Defaults?

1 2 3 4

12 0.104 0.104

1000

Ice Bin Optic

Upper Lower

Sold Out #1

Selection Sold Out

05000

On Time (MSEC)

Off On

Set PC Mode Menu

V:1 B1 DLY1

Dispense Delay

V:2 1:S 2:W 3:S 4:W

V:1 T:F M:S B:W

Bonus Key Setup

Brands Per Side

V:1 L:2 R:1

FS-16 Setup

Soda/Plain Water

OFF Time (MIN)

00150

On Time (MSEC)

01000

1000 500

34 0.104 0.104

On On On On

V:1 B:1

Sold Out #1

Off

Sold Out #1

Ver. 0.200

Lancer FS-16

Sub-CatagoryMain Menu

Initialization Screen

2nd Sub-Catagory

(Boot Up Only)

Cancel Enter

Scrolls through Main Menu

Press "Enter" to enter sub-catagory

Moves curser to right or left

Changes value (number/letter)

Press "Enter" to enter save changes

Press "Cancel" to exit menu

➊

Lancer FS series only

• Hold down “cancel” and “left button” to get to hidden menu ➊

• Type in code 6655

• Type in 150 minutes of off time and 1010 milliseconds (1 second of time) as the preferred

setting

Note: See Lancer manual for more information

Agitation adjustments – LANCER FS SERIES

3.9

Agitation adjustments – SERVEND

3.10

SerVend models only

No agitation adjustment required.

HARMONY • TOP-MOUNT self-contained 9

P/N 307277 — Diverter plate

(single agitator Cornelius

dispensers and left-hand

dispense chute on dual-agitator

Cornelius dispensers)

P/N 307277 — Diverter plate

(single agitator Cornelius

dispensers and left-hand

dispense chute on dual-agitator

Cornelius dispensers)

Single Agitator

Dual Agitator

P/N 00996207 — Diverter plate

(right-hand dispense chute on

dual-agitator dispensers)

Dispenser diverter plate overview (Installation on next page)

3.11

10 self-contained HARMONY • TOP-MOUNT

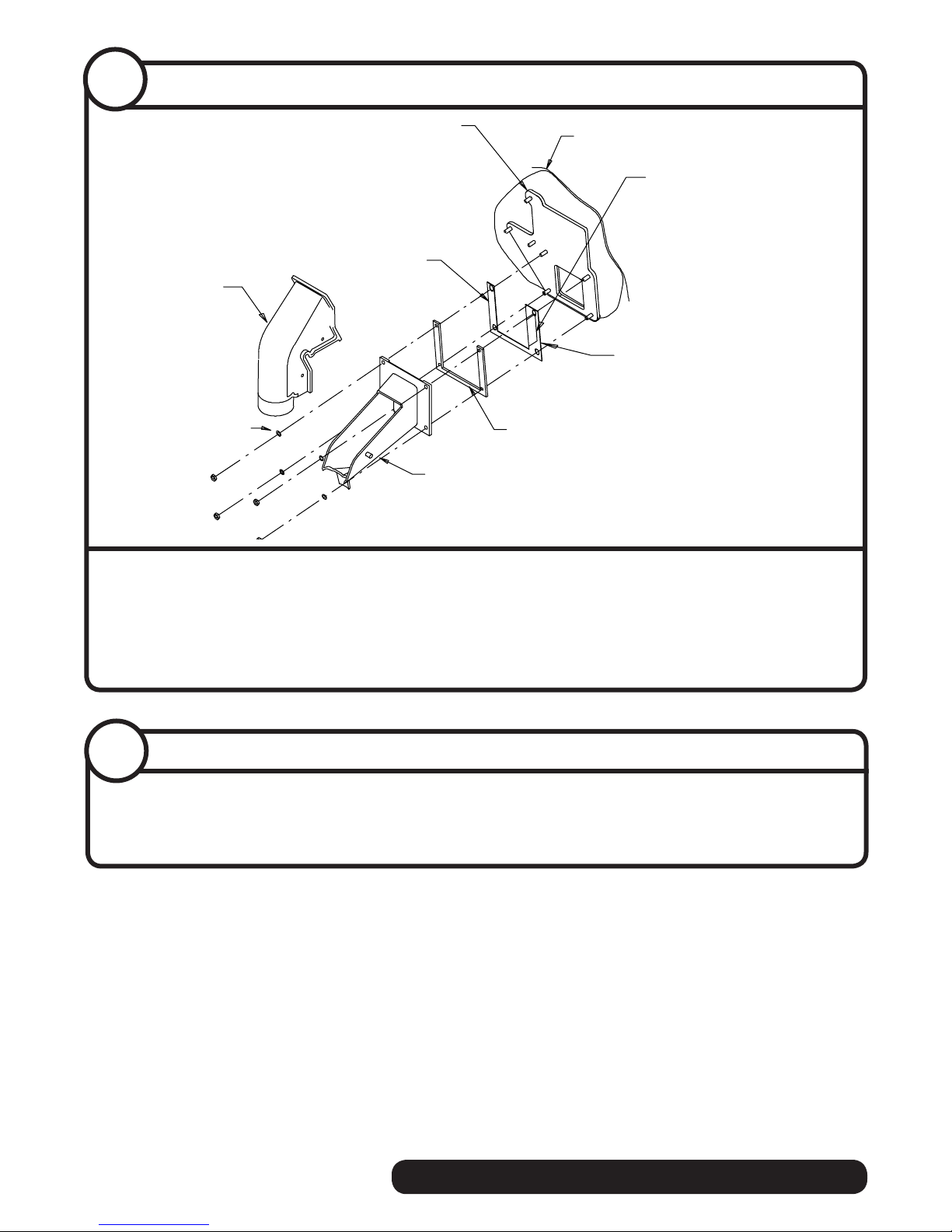

ICE CHUTE

GATE MOUNTING PLATE

GASKET

STORAGE HOPPER

ICE DIVERTER

10-32 WASHER

10-32 NUT

FLANGE EXTENDS INTO

STORAGE HOPPER

THROUGH GATE

OPENING

APPLY RTV TO THIS

SURFACE TO SEAL

TO HOPPER GATE

MOUNTING PLATE

ICE CHUTE

COVER

Cornelius ED, DF and DB series only

These dispensers require the installation of an ice diverter at the dispenser opening.

• Disassemble chute assembly

• Discard factory restrictor plate

• Replace with alternate diverter plate (supplied)

Dispenser diverter plate installation – CORNELIUS ED, DF and DB SERIES

3.12

Agitation adjustments – Cornelius IDC and Flavor Fusion

3.13

These dispensers require modications for compatibility with Chewblet ice. Agitation

times must be set to 1 second ON, 1 hour OFF and the ice restrictor plate must

be adjusted to the fully open position. See your beverage supplier for these

modications.

Autres manuels pour Horizon Elite series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Follett Machine à glaçons

Follett

Follett C20001 Manuel d'utilisation

Follett

Follett Horizon HCD700RHT Manuel utilisateur

Follett

Follett Maestro Manuel utilisateur

Follett

Follett HCC1000A Manuel d'utilisation

Follett

Follett Maestro Plus MC-425A/W, Maestro Plus MF-425A/W, Maestro Plus... Guide de configuration

Follett

Follett Horizon Elite Chewblet HCF1010RMS Manuel utilisateur

Follett

Follett HCE/HME700A Manuel

Follett

Follett Horizon Elite 1400 Series Manuel d'utilisation

Follett

Follett 25CI425A Guide de configuration

Follett

Follett 230V 50Hz Supplément

Follett

Follett Horizon HME1000ABT Manuel utilisateur

Follett

Follett Horizon Elite HCD1010R/N Manuel d'utilisation

Follett

Follett D17617 Guide de configuration

Follett

Follett MC 414A Series Manuel utilisateur

Follett

Follett ER400A Manuel

Follett

Follett MCC400A Guide de configuration

Follett

Follett Horizon Elite Chewblet HCD1010RVS Manuel utilisateur

Follett

Follett HMF1400R Manuel d'utilisation

Follett

Follett Horizon Elite H D710ABT Series Manuel utilisateur

Follett

Follett HCC1000AHS Manuel utilisateur

Follett

Follett L60417 Manuel d'utilisation

Follett

Follett 110 Series Supplément

Follett

Follett HCC1000ABS Manuel utilisateur

Follett

Follett Horizon Elite 2110 Series Manuel utilisateur

Manuels Machine à glaçons populaires d'autres marques

Hoshizaki

Hoshizaki KMD-460MWJ Manuel utilisateur

Sub-Zero

Sub-Zero 315I Instructions d'utilisation

Unold

Unold 48945 Manuel utilisateur

Kenmore

Kenmore 2217402A Manuel utilisateur

Cornelius

Cornelius WM600 Mode d'emploi

GE XPIO43SCSS Manuel utilisateur

Hoshizaki

Hoshizaki KMD-901MAH Manuel utilisateur

Whynter

Whynter FIM-450HA Manuel utilisateur

U-Line

U-Line UMCR014-SC01A Manuel d'installation

Andrew James

Andrew James AJ000522 Manuel utilisateur

Scotsman

Scotsman CME1356 Manuel utilisateur

Scotsman

Scotsman ACM 25 Manuel utilisateur

Kärcher

Kärcher IP 120 Manuel utilisateur

U-Line

U-Line SS1095 Manuel utilisateur

Maytag

Maytag MIM1554WRS - Ice Maker Manuel utilisateur

Hoshizaki

Hoshizaki KM-630MAH Manuel utilisateur

Princess

Princess Yonanas Manuel utilisateur

Unold

Unold 48946 Manuel utilisateur
