Horizon Elite™Ice Machine Models with RIDE™Technology

Installation Instructions for Ice Storage Bins

HCD/HMD/HCF/HMF1810RBS, HCD/HMD/HCF/HMF2110RBS

HCD/HMD1810NBS, HCD/HMD2110NBS

(See model number congurator on page 2 for details.)

remote condensing

01157874R01

801 Church Lane • Easton, PA 18040, USA

Toll free (877) 612-5086 • +1 (610) 252-7301

www.follettice.com

2self-contained BIN • RIDE Technology

CAUTION!

• This appliance should be connected by a qualied person in accordance with applicable codes.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied

persons in order to avoid a hazard.

• Connect to potable water supply only.

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory,

or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved. Children should be

supervised to ensure that they do not play with the appliance.

• This appliance is intended to be used for household and similar applications such as staff kitchen areas

in shops, offices and other working environments; farm houses and by clients in hotels, motels and

other residential type environments; bed and breakfast type environments; catering and similar non-retail

applications.

• WARNING! To avoid a hazard due to instability of the appliance, it must be xed in accordance with the

instructions.

ConfigurationApplication

S RIDE™

(RIDE remote

ice delivery

equipment)

T Top-mount

425 up to

425 lbs

(193 kg)

710 up to

675 lbs

(306 kg)

1010 up to

1061 lbs

(482 kg)

1410 up to

1466 lbs

(665 kg)

1810 up to

1790 lbs

(812 kg)

2110 up to

2039 lbs

(925 kg)

V Vision™

H Harmony™

B Ice storage bin

J Drop-in

M Ice Manager

diverter valve

system

P Cornelius Profile

PR150

CondenserSeriesVoltageIcemaker

C 208-230/60/1 (icemaking head)

Self-contained only.

D 115/60/1 (icemaking head)

Self-contained and remote. If remote

unit, high side is 208-230/60/1.

E 230/50/1 (icemaking head)

Self-contained only.

F 115/60/1 (icemaking head)

Remote only. High side is

208-230/60/3.

MC Maestro™

Chewblet®

(425 Series)

HC Horizon

Chewblet

(710, 1010,

1410, 1810,

2110 Series)

HM Horizon

Micro Chewblet

HC 1810D SVA

A Air-cooled, self-contained

W Water-cooled, self-contained

R Air-cooled, remote condensing unit

N Air-cooled, no condensing unit for

connection to parallel rack system

Chewblet®Ice Machine Model Number Configurations

BIN • RIDE Technology self-contained

Front cover

Internal connection

Ice transport tube

External connection

Docking assembly

Bin preparation

Site preparation

Unpack

Read and complete the following 8 installation steps

4self-contained BIN • RIDE Technology

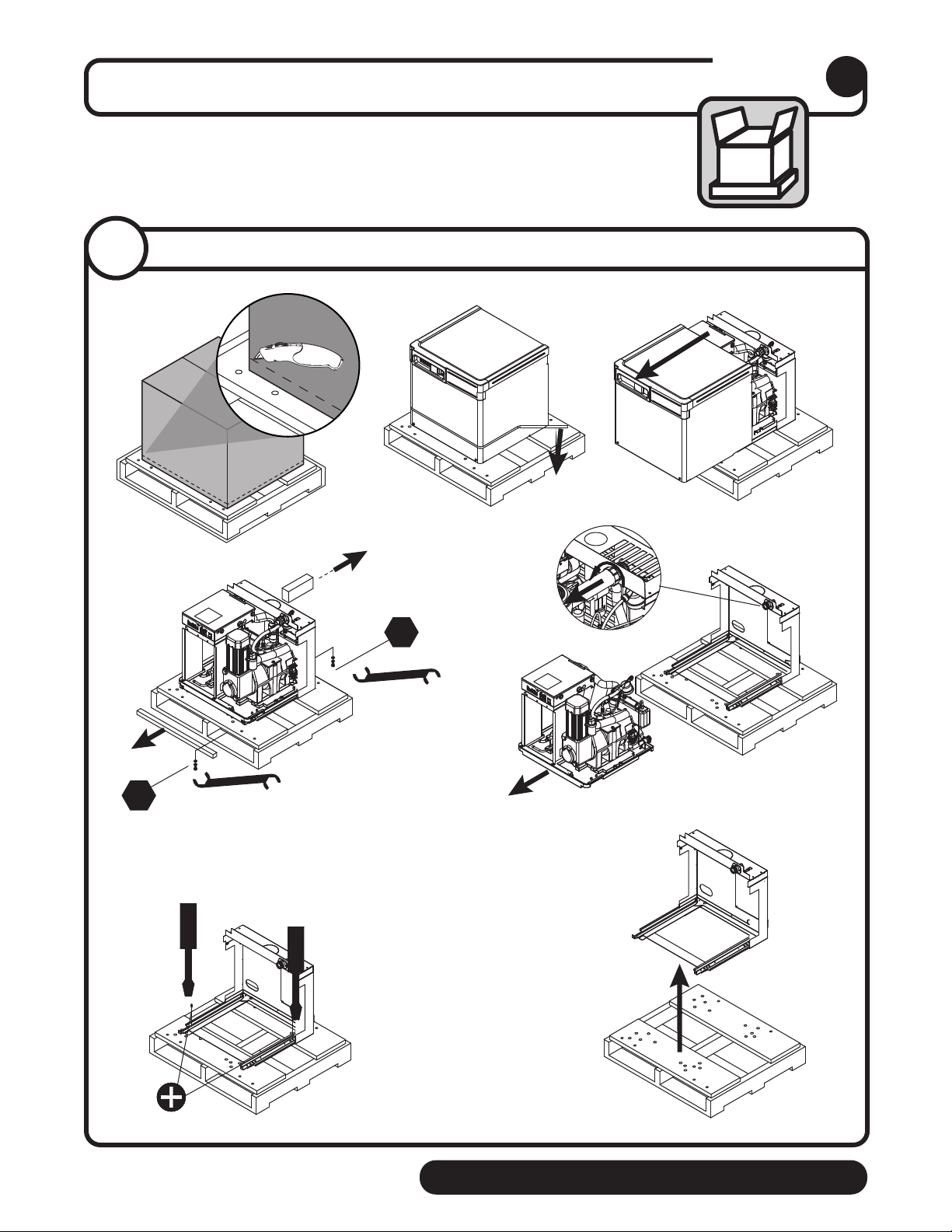

Carefully unpack and inspect the contents of your Follett ice machine. 1

Unpack

7/16"

➊➋➌

➍➎

➏➐

DO NOT TILT ICE MACHINE

TO ACCESS BOLTS!

COMPRESSOR DAMAGE

WILL RESULT

Unpack ice machine

1. 1

BIN • RIDE Technology self-contained

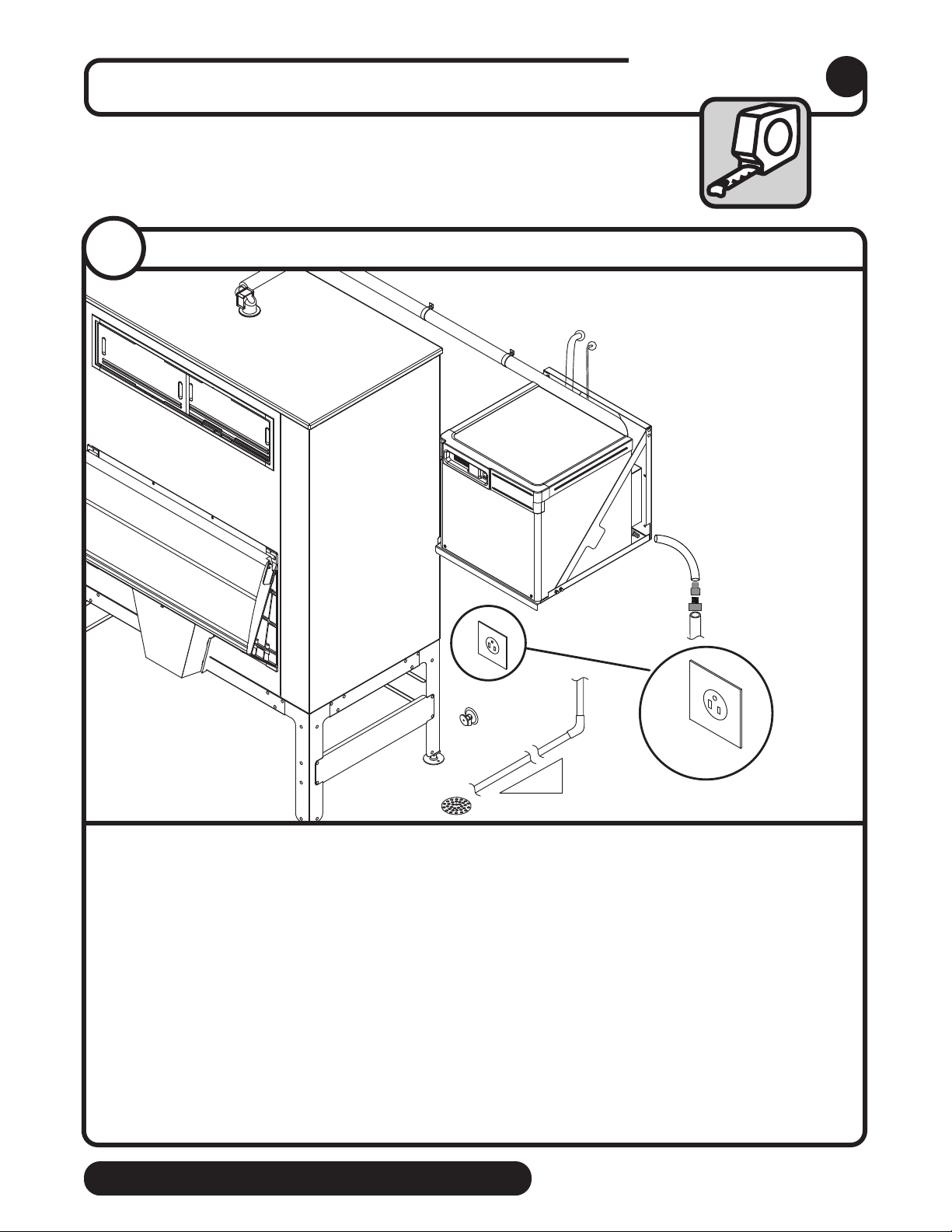

Prepare the installation site. 2

➊

NEMA

5-15

➋

➌

1/4" per foot

(6,4 mm per 0,3 m)

7/8" ∅ (22,4mm)

➎3/8" ∅ (9,5mm)

➍

2 ft. x 1" OD

silicone tubing

and ttings

provided

3/8" chassis

drain must be

used

➌

Site preparation

Electrical ➊

• 120/60/1-5 amps

Potable water supply ➋ (3/8" push-in connection, 3/8" OD tubing required)

• 10-70 psi (69-483kpa)

• 45-90 F (7-32 C)

• Follett recommends the use of an in-line water ltration system (item# 00130286)

• This equipment is to be installed with adequate backow protection to comply with applicable

federal, state, and local codes

Drains: ➌ 3/4” Barb for silicone drain, 3/8” push-to-connect for chassis drain

• Minimum 8” radius on silicone drain line. Drain line from the ice machine must have at least

1/4” per foot pitch (6,4mm/0,3m).

Refrigeration lines ➍

• 7/8" ∅ (22,4 mm) diameter suction line (insulated) ➍

• 3/8" ∅ (9,5 mm) liquid line ➎

2.1

Provide drainage, water supply and electrical power to within 6 feet (2m) of

ice machine in accordance with local and national codes. Outdoor installation

of low side is not recommended and will void warranty.

Installation site requirements

2.1

6self-contained BIN • RIDE Technology

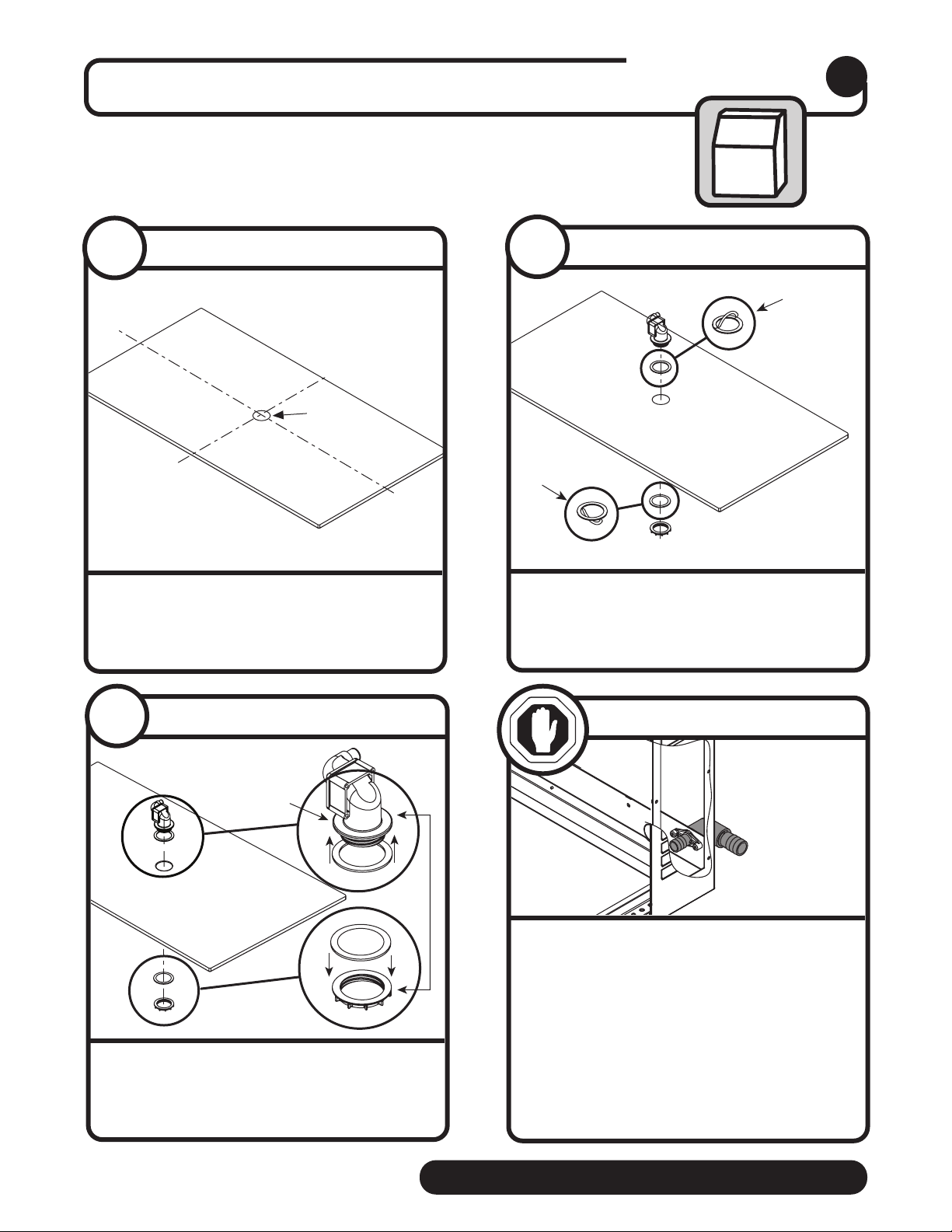

Prepare the bin. 3

Bin preparation

3" ∅

(76,2mm)

• Locate center of bin top

• Cut 3" (77,2mm) diameter hole in bin top

Bin top preparation

3.1

• Remove protective tape from

gaskets

Bin top preparation

3.2

➋

➊

➌

• Apply gaskets ➊

• Install shuttle actuator ➋through top of

bin and secure with locking nut ➌

Bin top preparation

3.3

Prior to installing the docking assembly,

ensure that the drain tting is oriented (right

or left) correctly for your installation. An

optional straight drain tting is also supplied.

You may need to remove the back panel of

the docking assembly in order to re-orient or

change the drain tting. Replace back panel

prior to mounting the docking assembly.

BEFORE PROCEEDING

BIN • RIDE Technology self-contained

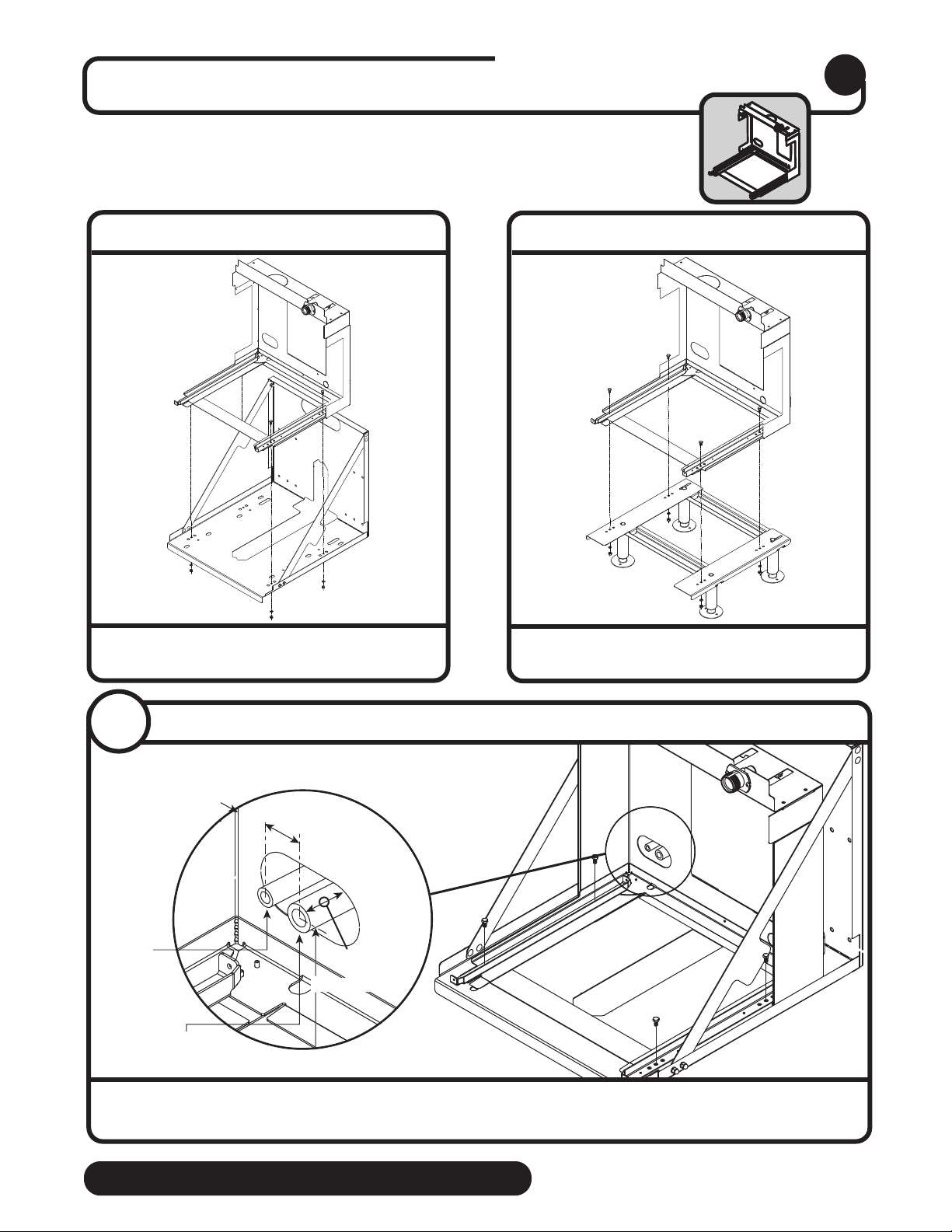

Install the docking assembly.

Docking assembly 4

Machine stand accessory

Wall bracket accessory

➊

3/8˝ ∅

high pressure

line

7/8" ∅ low pressure line

2" (50,8 mm)

Stub Typ

1.81" (46 mm)

3.75" (95.3 mm)

2" (50,8 mm)

➋

• Mount docking assembly ➊

• ”Rough-in” the refrigerant piping ➋

2.1 Docking assembly

4.1

• Mount docking assembly to wall bracket

accessory

• Mount docking assembly to machine

stand accessory

8self-contained BIN • RIDE Technology

Transport tube

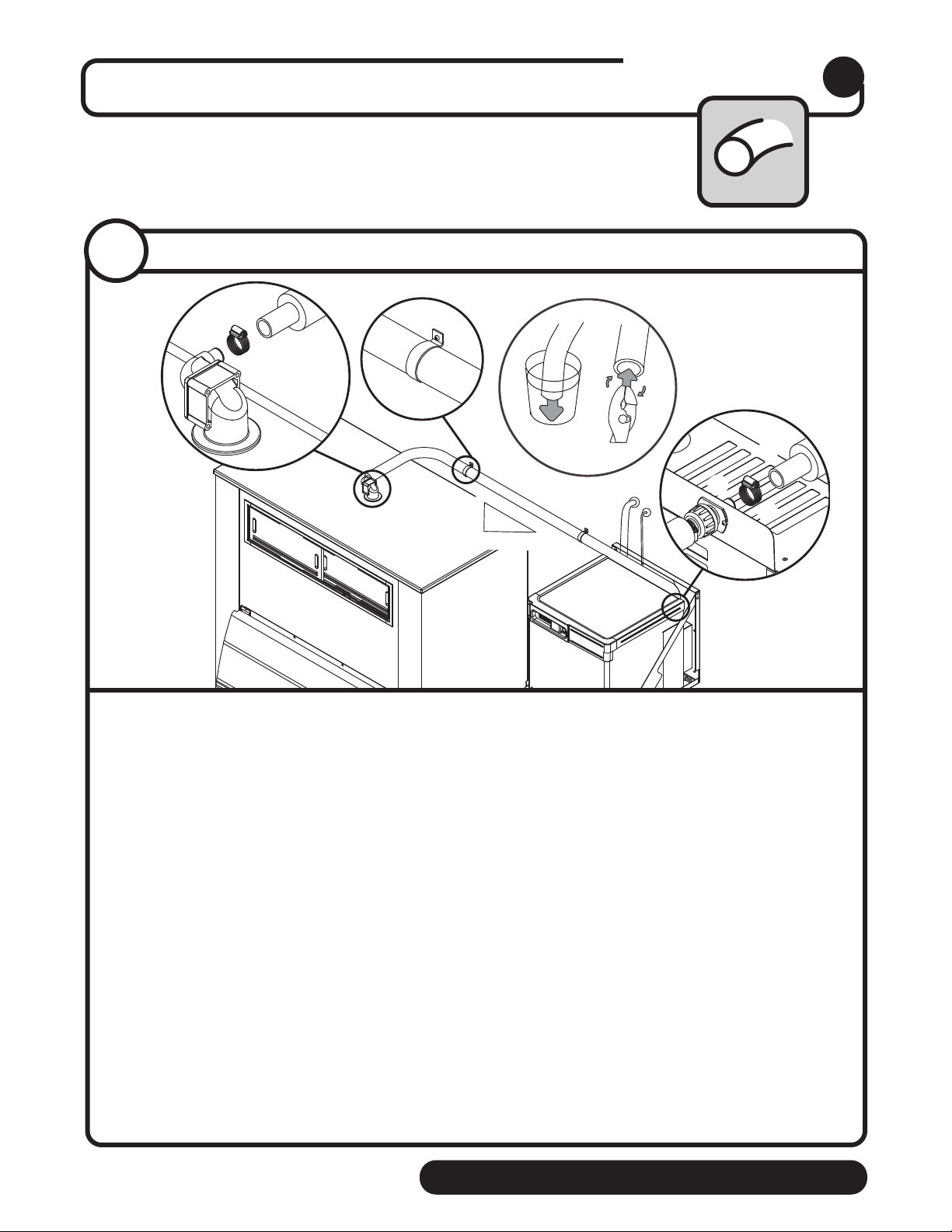

Install the ice transport tube. 5

1/4"

➌

➍

➏

➐

➎

➋

➑

➒

➓

➊

Hot Water

160 F (71 C)

Ice transport tube tips

• Insulate entire length of ice transport tube ➊

• Secure ice transport tube ➋as needed to prevent dips and traps from forming.

For long tube runs see guide on page 13.

• Pitch ice transport tube at least 1/4" per foot (6,4mm/.3m) ➌

• Ice transport tube must drain towards ice machine

Ice transport tube to bin

• Be sure tube ends are square ➍

• Heat end of transport tube in cup of 160 F (71 C) hot water to soften and spread with pliers ➎

before making connection to ease assembly

• Push ice transport tube onto ice machine nipple ➏

• Install hose clamp ➐

Ice transport tube to Ice machine

• Be sure tube ends are square ➑

• Heat end of transport tube in cup of 160 F (71 C) hot water to soften and spread with pliers ➎

before making connection to ease assembly

• Push ice transport tube onto ice machine nipple ➒

• Install hose clamp ➓

Ice transport tube installation

5.1

BIN • RIDE Technology self-contained

Connect utilities to docking assembly. 6

External connections

3/4" barb x 3/4" FPT

1" Stand pipe/Drain

2 ft. x 1" OD

silicone tubing

Minimum 8"

radius

➍

3/4" MPT x 1" slip

➎

➌

➋

➊

➏

• Rough-in ice machine potable water

supply ➊. 3/8" push-in connection will be

made at included shut-off valve then at

back of docking station into solenoid.

• Remove access panel if necessary ➋.

• Connect the silicone tubing to the ice

machine 3/4" drain barb ➌.

• Assemble the 3/4" barb x 3/4" FPT to the

3/4" MPT x 1" slip. Connect the other end

of the silicone tubing to the 3/4" barb ➍.

• Connect the 1" slip tting to the 1" stand

pipe/drain ➎.

Note: Minimum 8" radius on silicone

drain line. Drain line from the ice machine

must have at least 1/4" per foot pitch

(6,4mm/0,3m).

• Apply Petrogel to barbed drain tting ➏

• Replace access panel.

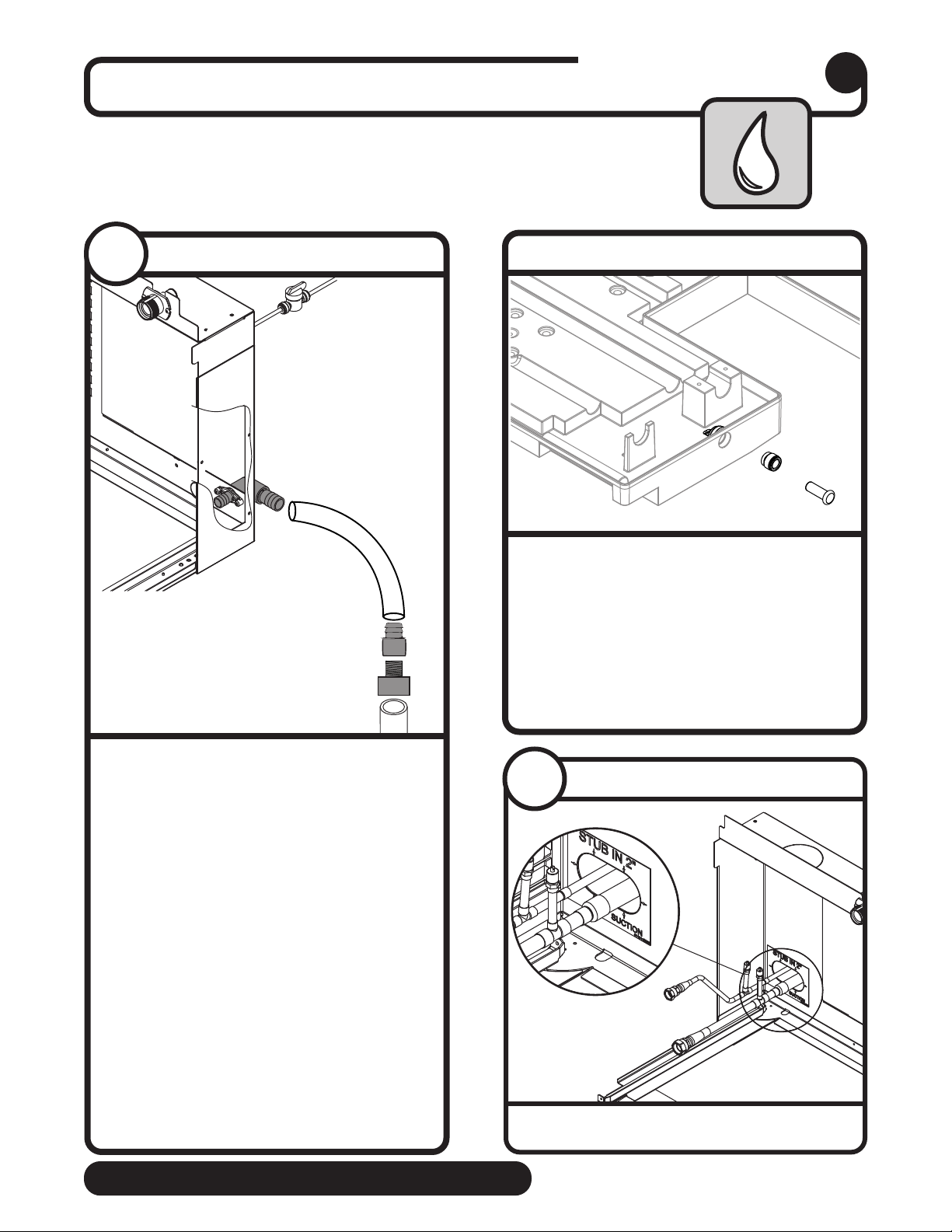

Water and drain

6.1

Refrigerant

6.2

➊

• Braze supplied quick-connect lines onto

stub-ins ➊.

• Plug must be removed from John Guest

tting.

• Route 3/8" drain tubing through knockout

in back of docking station and insert fully

into John Guest tting connection at the

rear of the machine chassis. Route other

end of 3/8" drain tubing to drain.

• Drain must slope 1/4" inch per foot (6 mm

per 30,4 cm).

Chassis drain plumbing - required

10 self-contained BIN • RIDE Technology

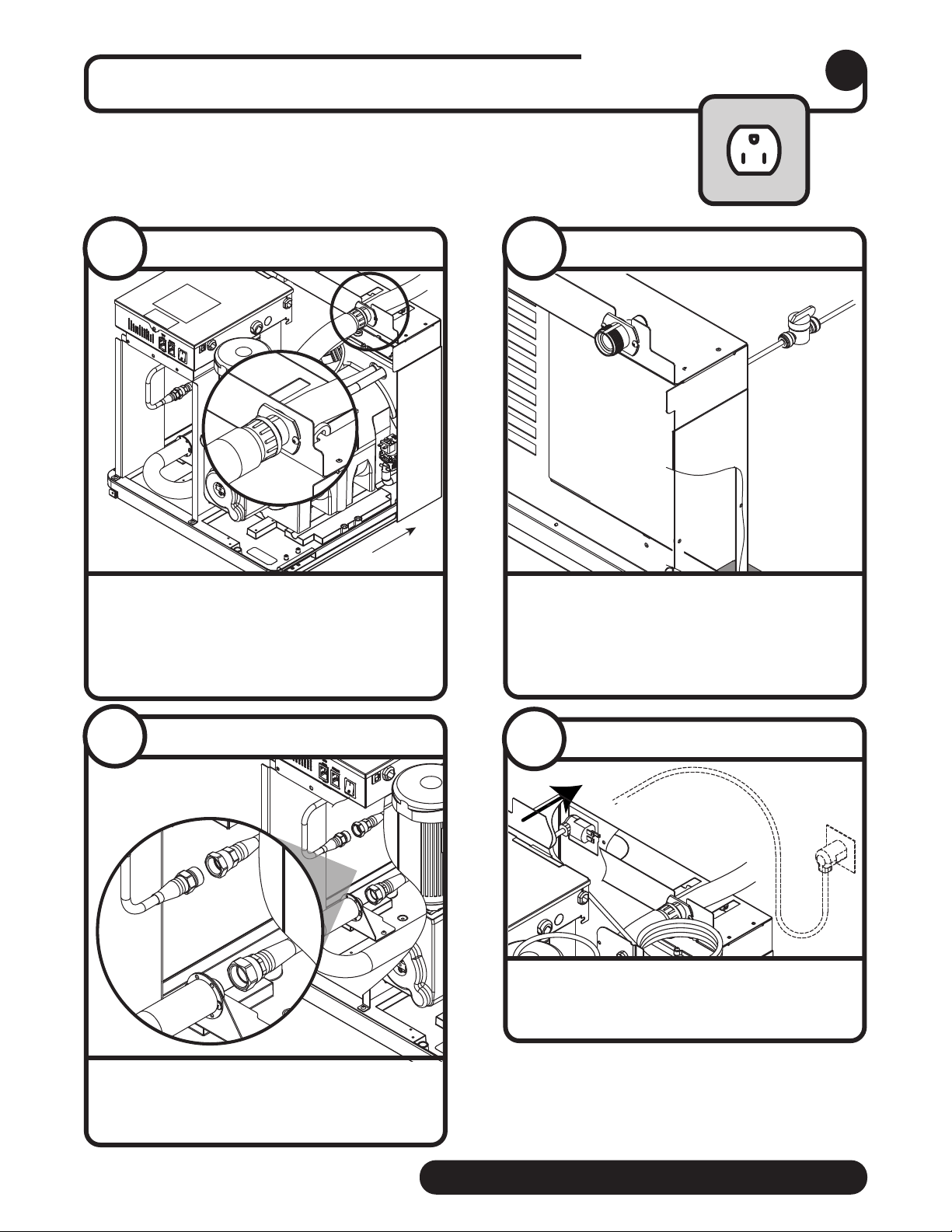

Connect docking assembly to ice machine. 7

Internal connections

➊

• Evacuate line set.

• Connect self-sealing liquid and suction

line ttings ➊

Refrigeration lines

7. 3

➊

➋

• Slide ice machine into docking assembly

ensuring that drain tube is fully seated on

barbed drain tting ➊

• Insert ice transport tube all the way into

coupling and tighten nut rmly ➋

Ice transport tube installation

7. 1

Mount water

solenoid

➌

➋

➊

• Mount water solenoid to inside rear of

docking assembly using one screw ➊

• Insert potable water line into valve ➋

• Insert into push-in connection of water

solenoid ➌

Water line

7. 2

• Remove twist tie

• Carefully pass cord thru opening and plug

into wall outlet

Power cord

7. 4
