Focal UNIVERSAL ISN Manuel utilisateur
UNIVERSAL ISN
User manual / Manuel d’utilisation
English page 3
Français page 10
UNIVERSAL ISN
User manual
Thank you for choosing Focal and for sharing our passion for the “Spirit of Sound”. Designed using the latest
technology, these speakers integrate Focal’s perfectionist believes, developing products with high power handling,
and unrivalled sound quality. To obtain the best results from this product, we recommend that you follow carefully
all the information contained in this user’s manual. If not correctly followed, any fault observed may not be covered
by the guarantee.
Warning
Continuous listening at high sound level (above 110dB) can durably damage your hearing. Listening above 130dB can
damage your hearing permanently.
Important recommendations
Before attempting any installation work, it is very important to check how much space is available to fit the speakers
into the vehicle.
Key points:
• Ensure the speaker is clean from debris and metallic particles that maybe attached (especially after drilling).
• Clean before mounting the speakers.
The Focal guarantee only applies if the enclosed guarantee card
is returned to us within 10 days of purchase.
English version

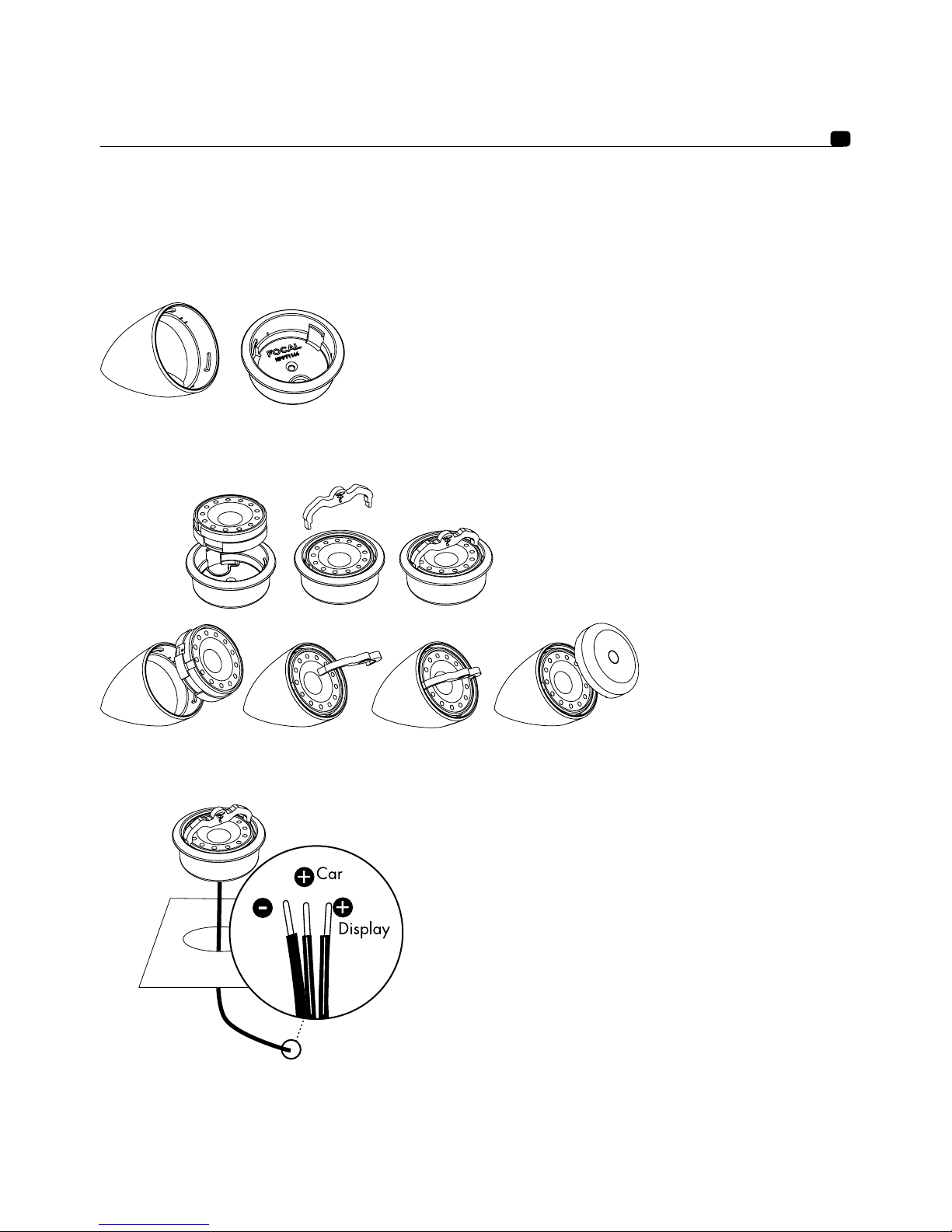

Tweeter
1/ Tweeter accessories (tilted and flush mounting)
2/ Assembling the tweeters to the mounts
3/ Connecting the tweeters
When installing on a demonstration display, connect the “display” wire.
When installing in a vehicle: connect the "car" wire.
The unmarked wire is the earth wire with both connection options.
UNIVERSAL ISN
User manual 3
UNIVERSAL ISN
User manual 4

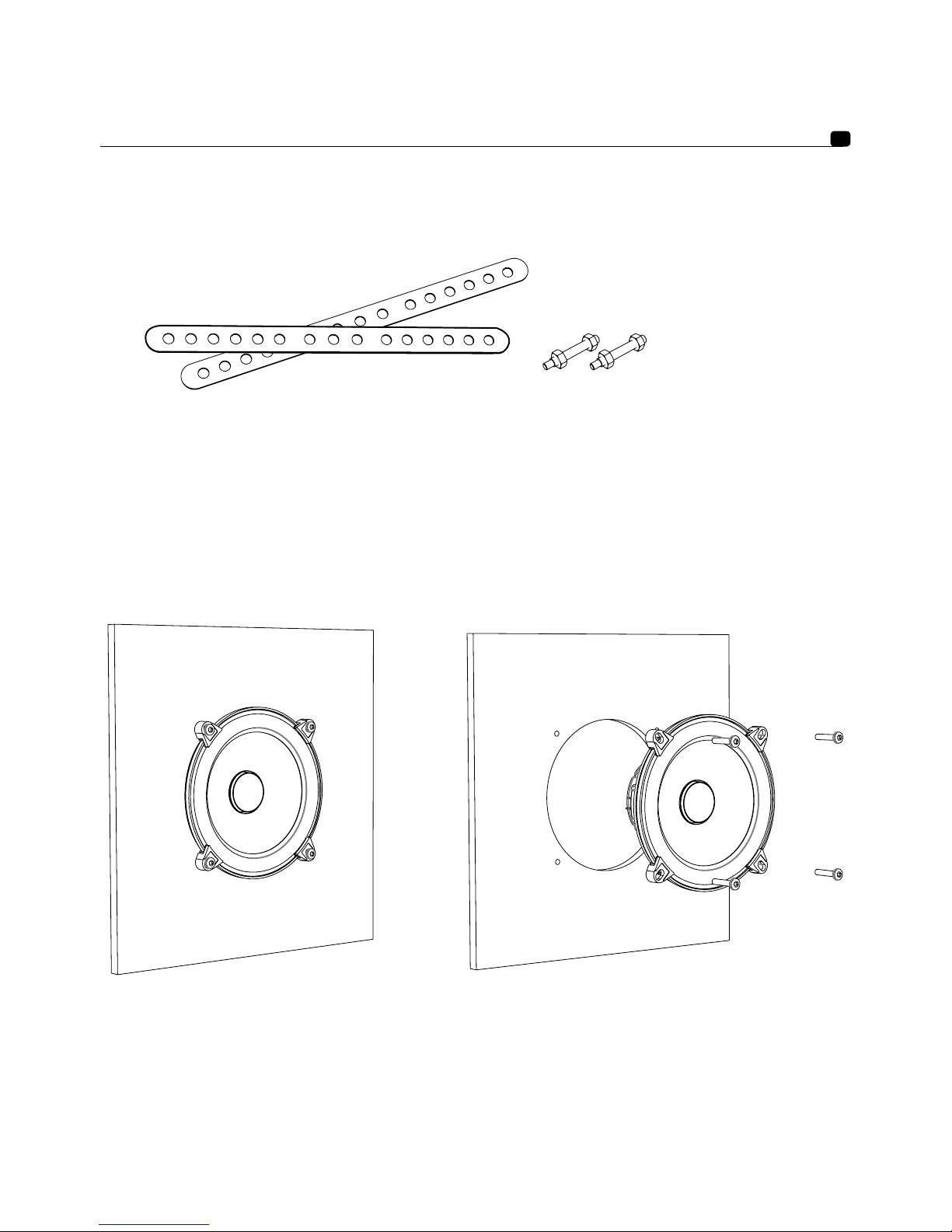

4/ Accessories to facilitate installation of the tweeters in their original location
1/ Mounting the woofer into place (without grill)
Woofer ISN 100/130/165

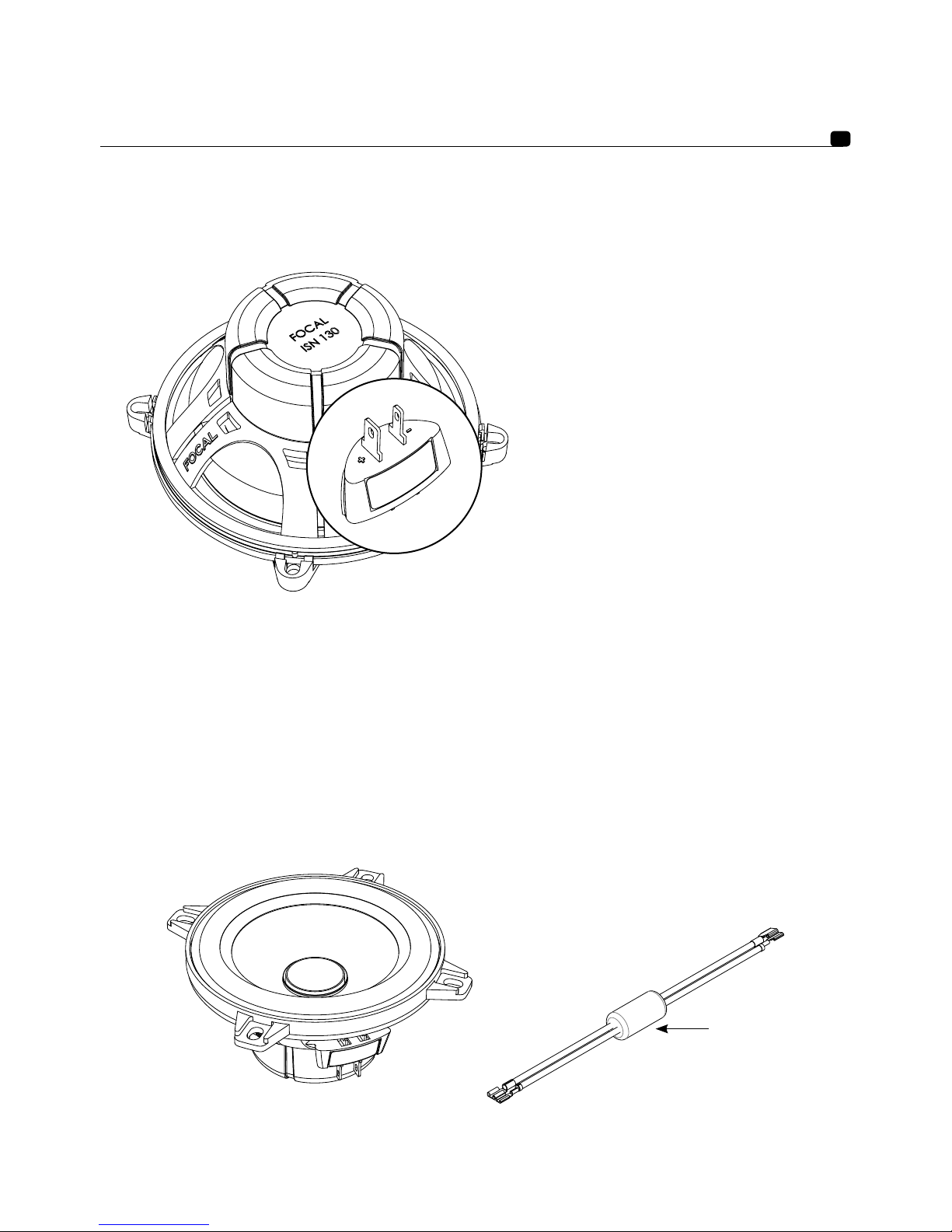

2/ Rear view of the terminal block (marked “+” and “-”)
3/ Mounting the woofer + wire / crossover: 2 mounting options
Option 1 (woofer + cable).
+
integrated crossover
UNIVERSAL ISN
User manual 5

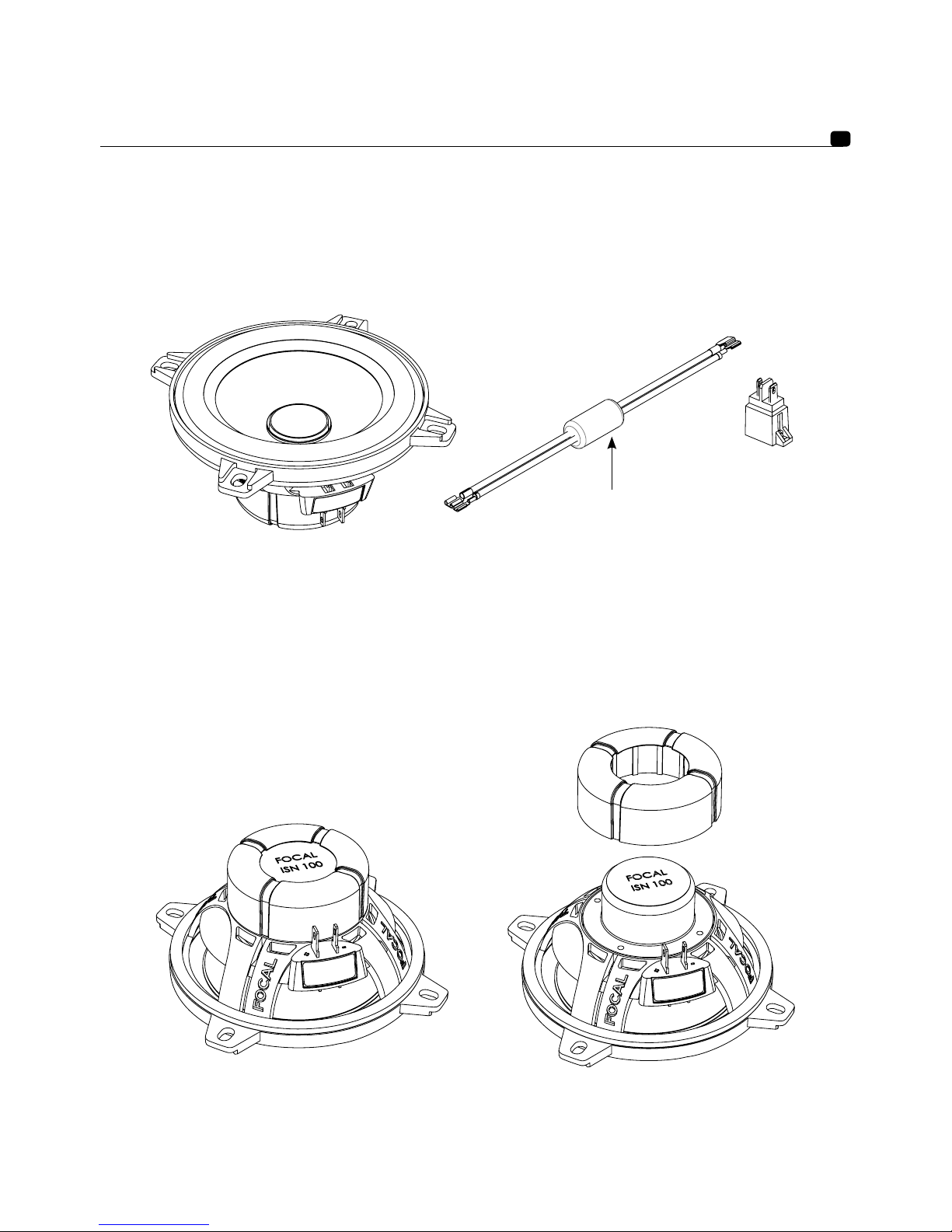

Option 2 (woofer + cable + ISO connector to ensure compatibility with certain brands of vehicles)
4/ Rear view of the driver with and without rubber cover
If mounting in very confined spaces, you can remove the molded rubber surround suspension in order to obtain the
best fit for the woofer in the original place.
++
integrated crossover
UNIVERSAL ISN
User manual 6

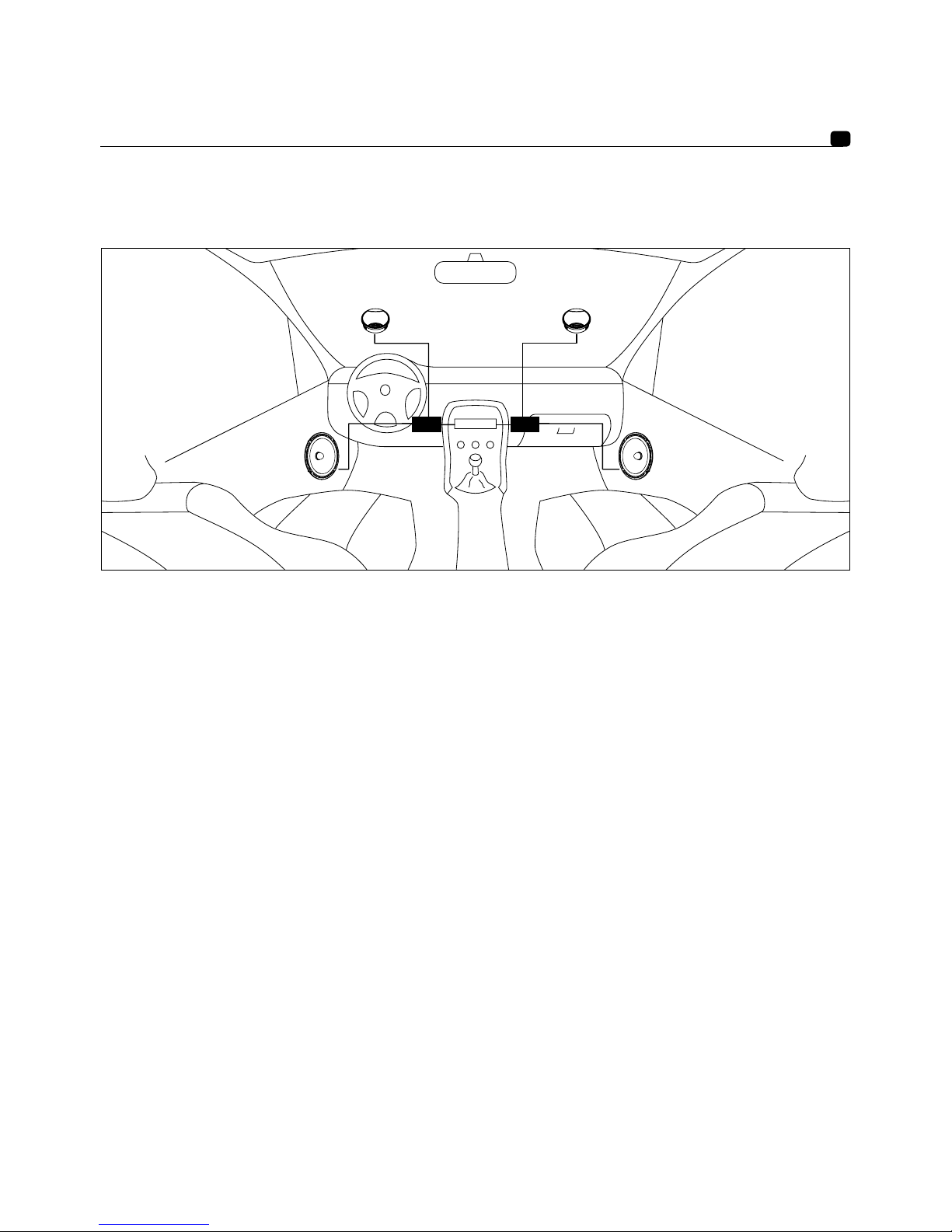

5/ View of the full installation in the vehicle
UNIVERSAL ISN
User manual 7

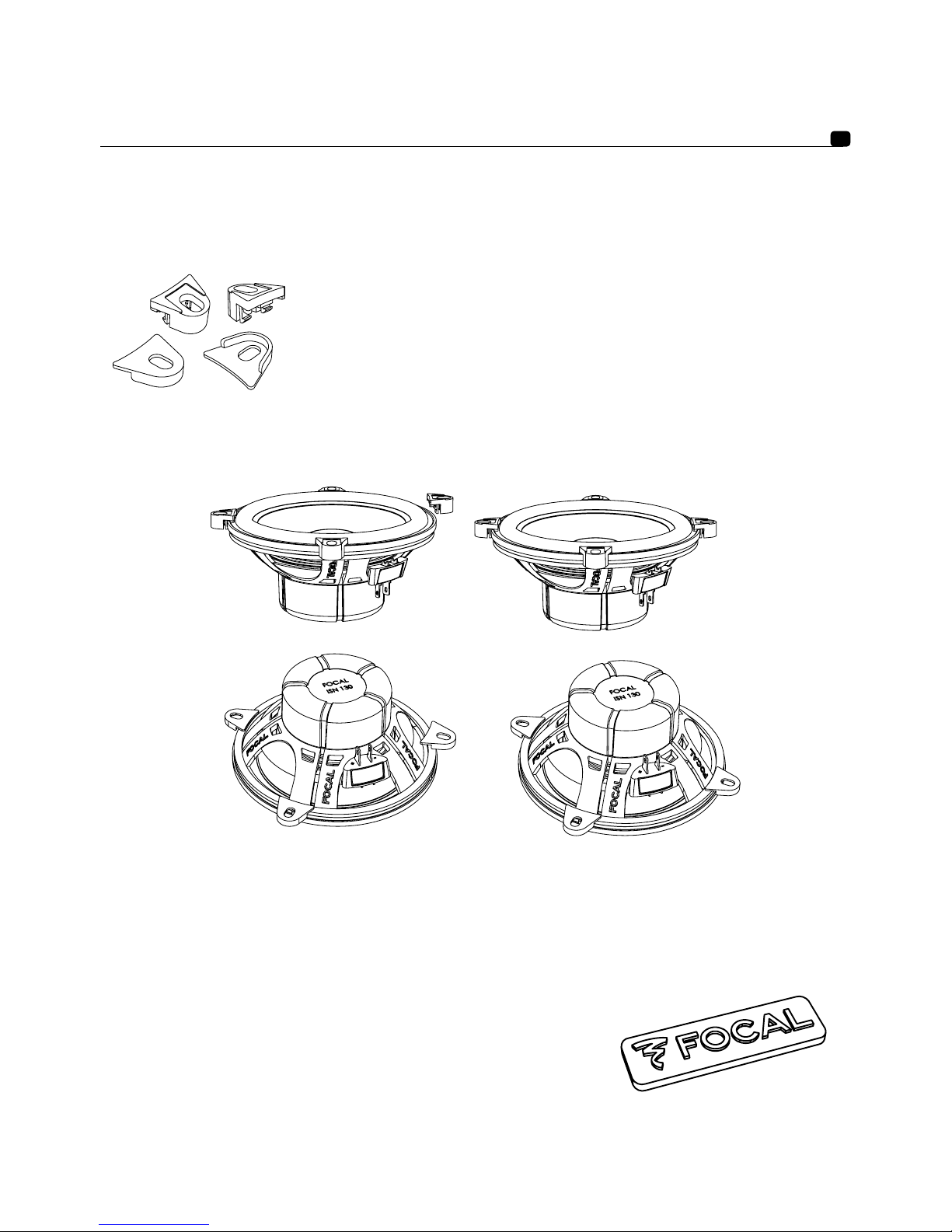

3/ Accessories
2/ Mounting fixing clips
The ISN 130 woofer comes with clips for front or rear mounting.
It some cases 2/3 fixing clips can be used (for example 2 clips at 180° on Renault® vehicles).
These kits are made to fit into the original locations more easily and are
sold without grills (mounting n the door).
A Focal signature is included in each kit (diamond-cut aluminum
support + adhesive). This signature can be fixed inside the door of your
vehicle for example.
1/ Fixing clips
Installing the ISN 130
UNIVERSAL ISN
User manual 8
UNIVERSAL ISN
User manual 9
Your Focal-JMlab product was developed and manufactured with high-quality materials and components
which can be recycled and/or re-used. This symbol indicates that electrical and electronic equipment
must be disposed of separately from normal garbage at the end of its operational lifetime.Please dispose
of this product by bringing it to your local collection point or recycling centre for such equipment. This will
help to protect the environment in which we all live.
Conditions de garantie
All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country.
Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to
that granted by the legal guarantee in force in the country where the original purchase invoice was issued.
Nous vous remercions d’avoir choisi les kits Intégration Séparés et de partager avec nous notre philosophie "the
Spirit of Sound". Ces haut-parleurs de haute technicité intègrent les ultimes perfectionnements Focal en matière
de conception de haut-parleurs pour l’obtention d’un son puissant et de très haute qualité. Afin d’exploiter toutes
leurs performances, nous vous conseillons de lire ce livret, puis de le conserver avec précaution pour pouvoir vous
y référer ultérieurement. Tout problème dû au non-respect des règles d’utilisation peut entraîner l’invalidation
de la garantie.
Avertissement
L’écoute prolongée à fort niveau au-delà de 110 dB peut détériorer durablement l’audition. Des écoutes même
brèves à plus de 130 dB peuvent provoquer des lésions auditives irrémédiables.
Pour validation de la garantie Focal,
merci de nous retourner la garantie jointe dans les 10 jours.
Recommandations importantes
Avant tout, vérifiez l’espace disponible pour l’encastrement des haut-parleurs (se reporter aux plans sur l’emballage)
puis procédez aux découpes. Dans le cas d’un montage en emplacement d’origine, vérifiez qu’il y ait un espace
suffisant entre le haut-parleur et la grille de protection.
• Tenir les haut-parleurs à l’écart des copeaux métalliques et des poussières.
• Procédez à un nettoyage soigneux avant de monter les haut-parleurs.
UNIVERSAL ISN
Manuel d'installation Version française
