LI-Po Batteries

Screwdrivers

Transmitter

3 x Propellors

Lower fusealge

motor unit

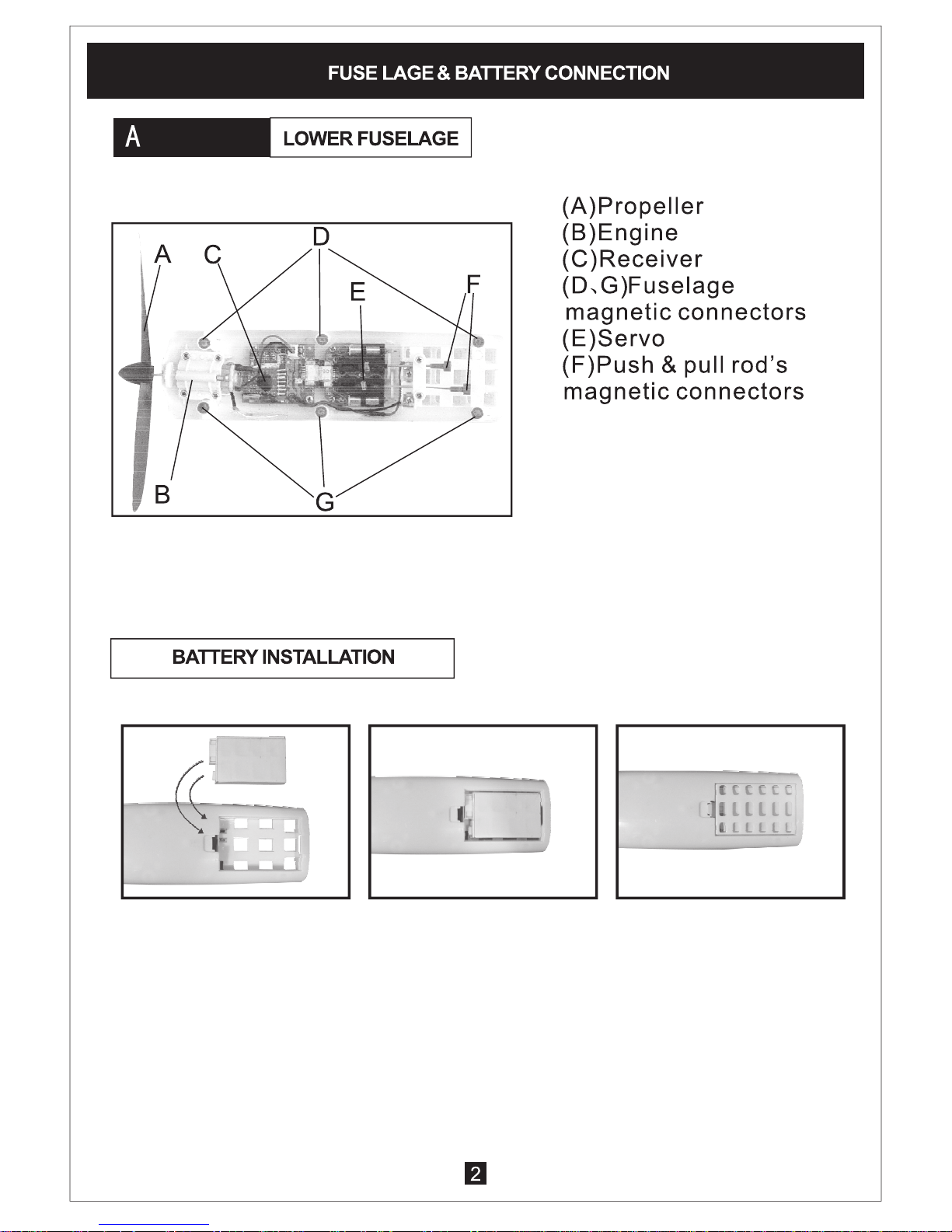

Install the battery with the correct polarity, when the red LED lights

up on the aeroplane then close the battery cover.

Connect the red & blue push rods magnetic connectors between the

upper fuselage and lower fuselage motor unit.Then connect the

fuselage magnetic connectors.

Frequency indicator light

Press the Throttle stick, then turn on the

transmitter. The buzzer will ring 3 times,

that means the transmitter is selecting a

frequency. During this time the blue LED on

the controller will be on as it searches for

the reciever.

Install the aeroplane battery in the lower fuselage motor unit. Once the

transmitter binds with the aeroplane the red LED light on the reciever will

flash. The blue LED light on the transmitter will turn off.

When connecting the aeroplane and transmitter, remember to switch on

the transmitter first and then the aeroplane battery.

To stop interference when connecting more than one aeroplane make

sure you only connect one at a time.

The connection of the aeroplane and the transmitter should take only 5

second. If it takes longer than 10 seconds retstart the process.

CHARGING THE AEROPLANE USING THE TRANSMITTER

Connect the Li-Po battery in the aeroplane to the charging socket on the

transmitter making sure it is connected using the correct polarity. Turn the

charging switch “on” on the transmitter. The green LED light will come on,

when it turns off charging is finished. Normal charging time will be around

35-45 minutes.

CHARGING THE AEROPLANE USING THE TRANSMITTER

The transmitter will beep when the batteries in it are low, replace

them ASAP.

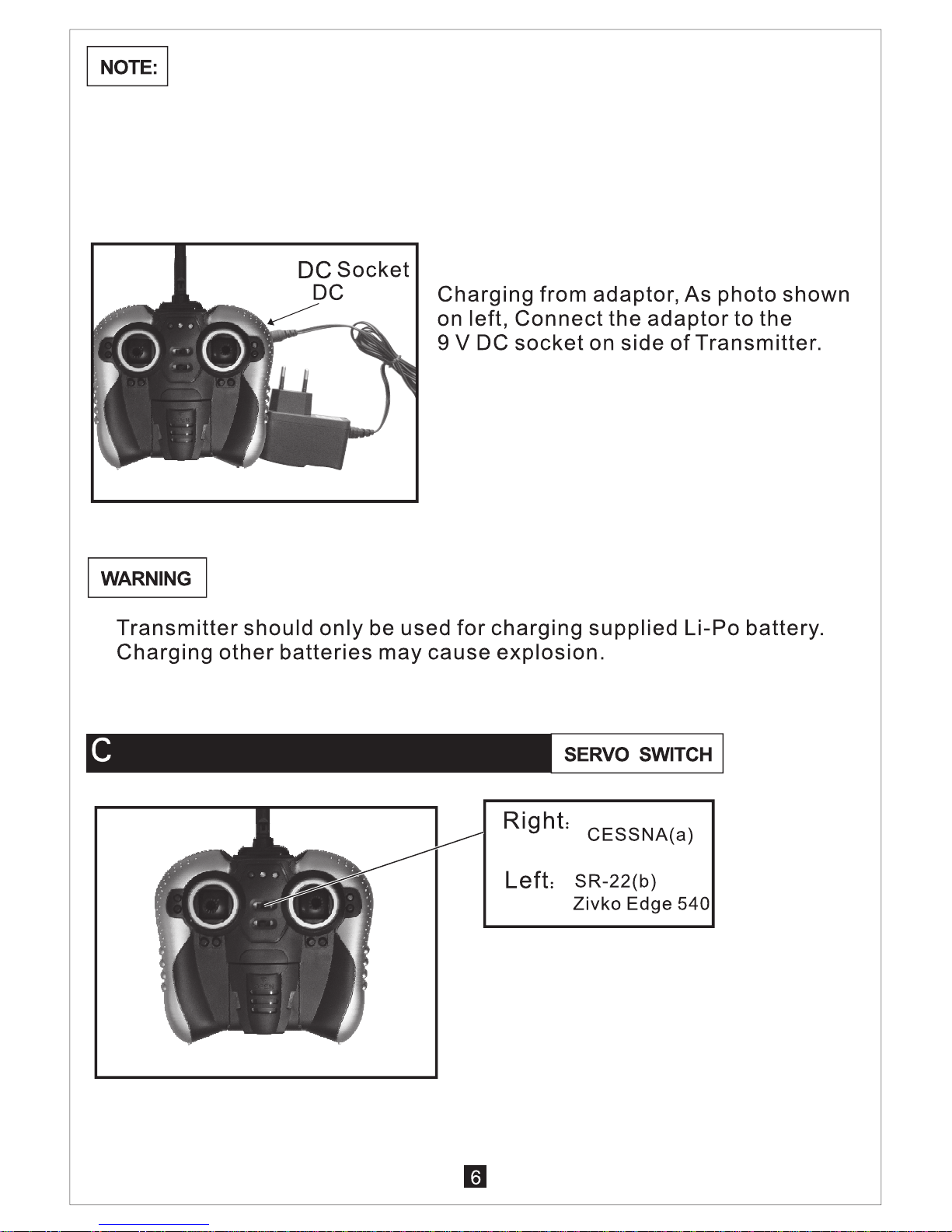

Depending on the model you

are flying, make sure that the

servo switch is in the correct

position.

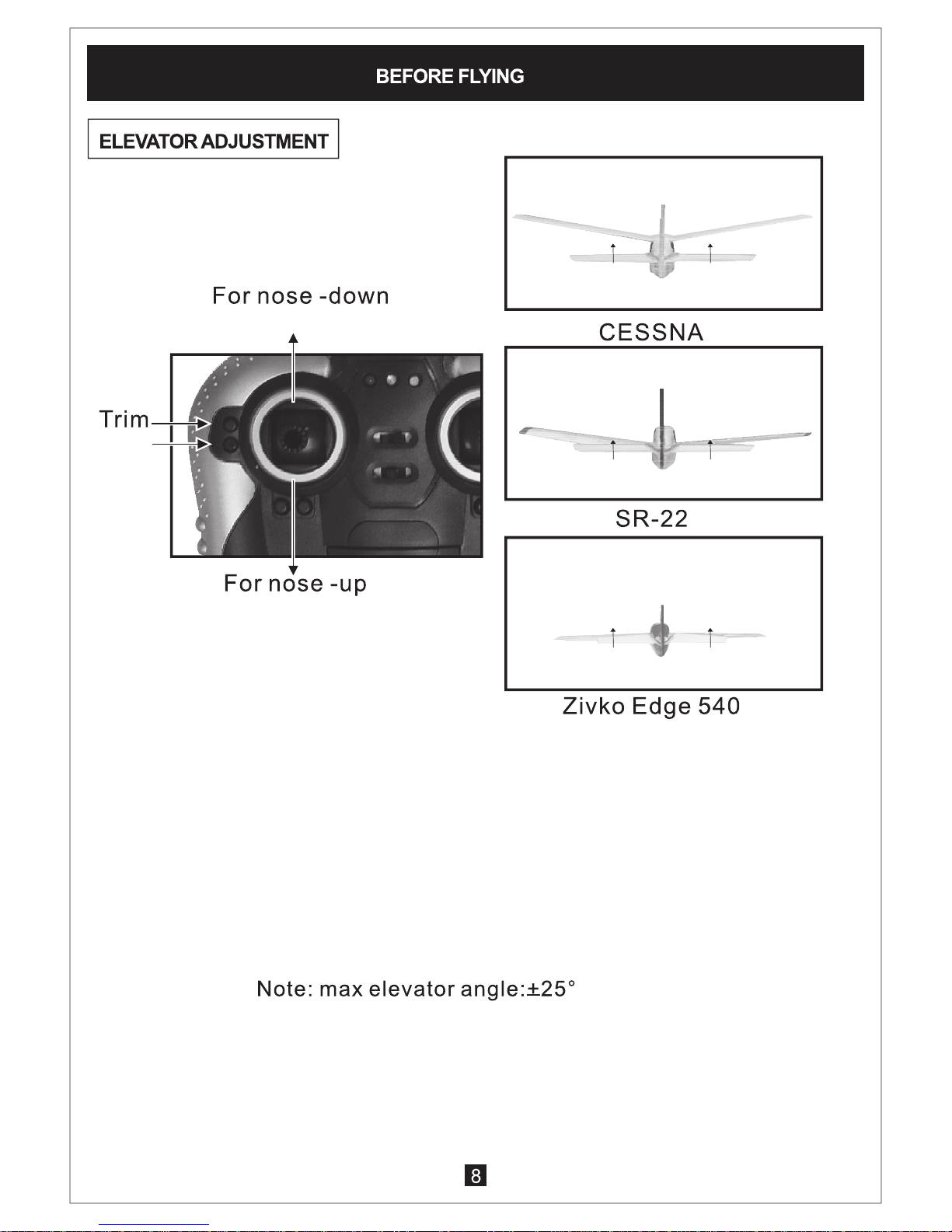

Everytime you connect the upper fuselage and lower fuselage motor

unit you need to check the elevator. The elevator should be aligned

with he horizontal stabilizer. If not you can adjust the elevator by

using the trimmer buttons on the left of the transmitter (See Pic).

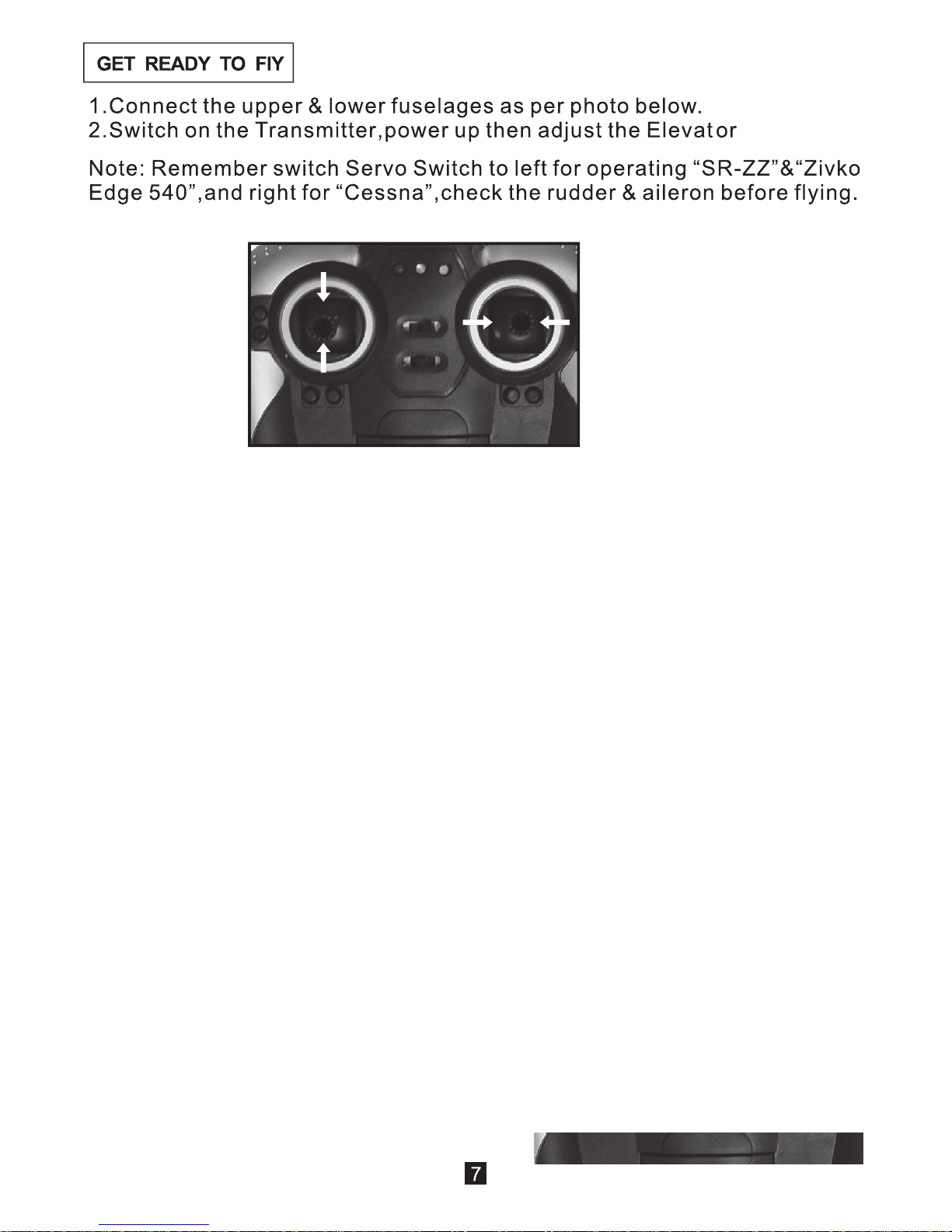

Every time you connect the upper and lower fuselages together you

need to check the rudder and elavons. The rudder should be in line

with the vertical stabilizer. The elavons should be in line with the

trailing edge of the wing and parallel to the horizontal stabilizer.
