DS106D service manual

Fly DS106D Service Manual

CAUTIONS

Please refer to the phone’s user’s guide for instructions relating to operation, care, and maintenance, which include important safety

information.

Servicing and alignment must be undertaken by qualified personnel only.

Ensure all work is carried out at an anti-static workstation and that an anti-static wrist strap is worn. Use

only approved components as specified in the parts list.

Ensure all components, modules, screws, and insulators are correctly re-fitted after servicing and alignment

Ensure all cables and wires are repositioned correctly

Electrostatic discharge can easily damage the sensitive components of electronic products. Therefore, every service supplier must

observe the precautions which mentioned above.

All manuals and user guides at all-guides.com

all-guides.com

DS106D service manual

Product Hardware Introduction

Base Chip Set

Peripheral

Configuration t

r

i

BB

PMIC

Transceiver

Camera DSP/MMP

RFPA

FM

BT

Audio CODEC&PA

Memory

TP IC

LCD

Backlight Driver

CAMERA

Memory Card

Antenna

Leakage current

Standby current

Call current as

maximum power

SC6531D

SC6531D

SC6531D

SC6531D

RF7196D

BK1080NB

SC6531D

SC6531D

SC6531D

/

1.8” ，IC：ST7735S

/

8W，IC：SP0829

TBD

PIFA antenna

0.2mA

4.5mA/double-SIM

260mA/900MHz

230mA/1800MHz

CH1 32.20 dBm

CH63 32.20 dBm

Board‐level power

Basic

Performance

Indicators

CH124 32.20 dBm

CH512 29.20 dBm

CH699 29.20 dBm

CH885 29.20 dBm

CH1 -107.00

CH63 -107.00

Board‐level receiver

CH124 -107.00

sensitivity CH512 -107.00

CH699 -107.00

CH885 -107.00

All manuals and user guides at all-guides.com

DS106D service manual

INTRODUCTION

Fly DS106D Main function

* 1.8" TFT QQVGA 128*160

*SC6531D ，32Mb+32M b

*double SIM stand by

*Camera :2MP

*BT, FM ,

*Multimedia player

*T-Flash Up to 32 GB

*MP3, ASP

Spec：

Network 2G: GSM/GPRS 900/1800MHz

Scream: 1.8" TFT QQVGA 128*160

Bluetooth：2.1 + EDR,

Camera：2MP Camera

Size：111.8*46.4*13.7mm

Battery:600mAh

All manuals and user guides at all-guides.com

DS106D service manual

SERVICE TOOLS

Iron Hot air gun

Voltage regulator Multimeter Solder wire, soldering paste

Tweezers Driver

SW

Wrist

groun

Pick Antistatic

Computer and software download cable Metal tweezers, Screw driver etc

All manuals and user guides at all-guides.com

DS106D service manual

DISASSEMBLY AND ASSEMBLY

All manuals and user guides at all-guides.com

DS106D service manual

All manuals and user guides at all-guides.com

all-guides.com

DS106D service manual

All manuals and user guides at all-guides.com

DS106D service manual

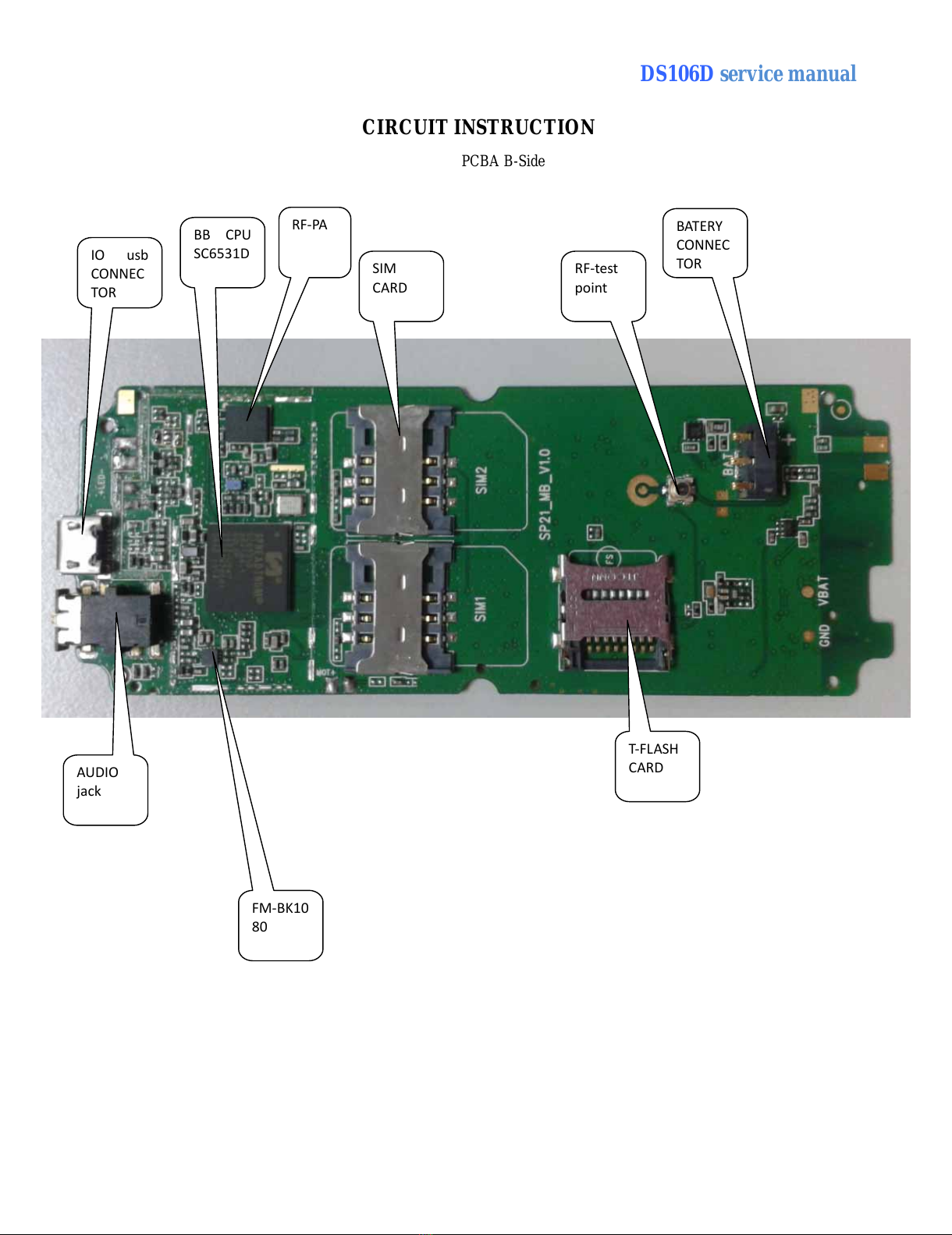

CIRCUIT INSTRUCTION

PCBA B-Side

BBCPU

SC6531D

SIM

CARD

AUDIO

jack

T‐FLASH

CARD

RF‐PA

RF‐test

point

IOusb

CONNEC

TOR

BATERY

CONNEC

TOR

FM‐BK10

80

All manuals and user guides at all-guides.com

DS106D service manual

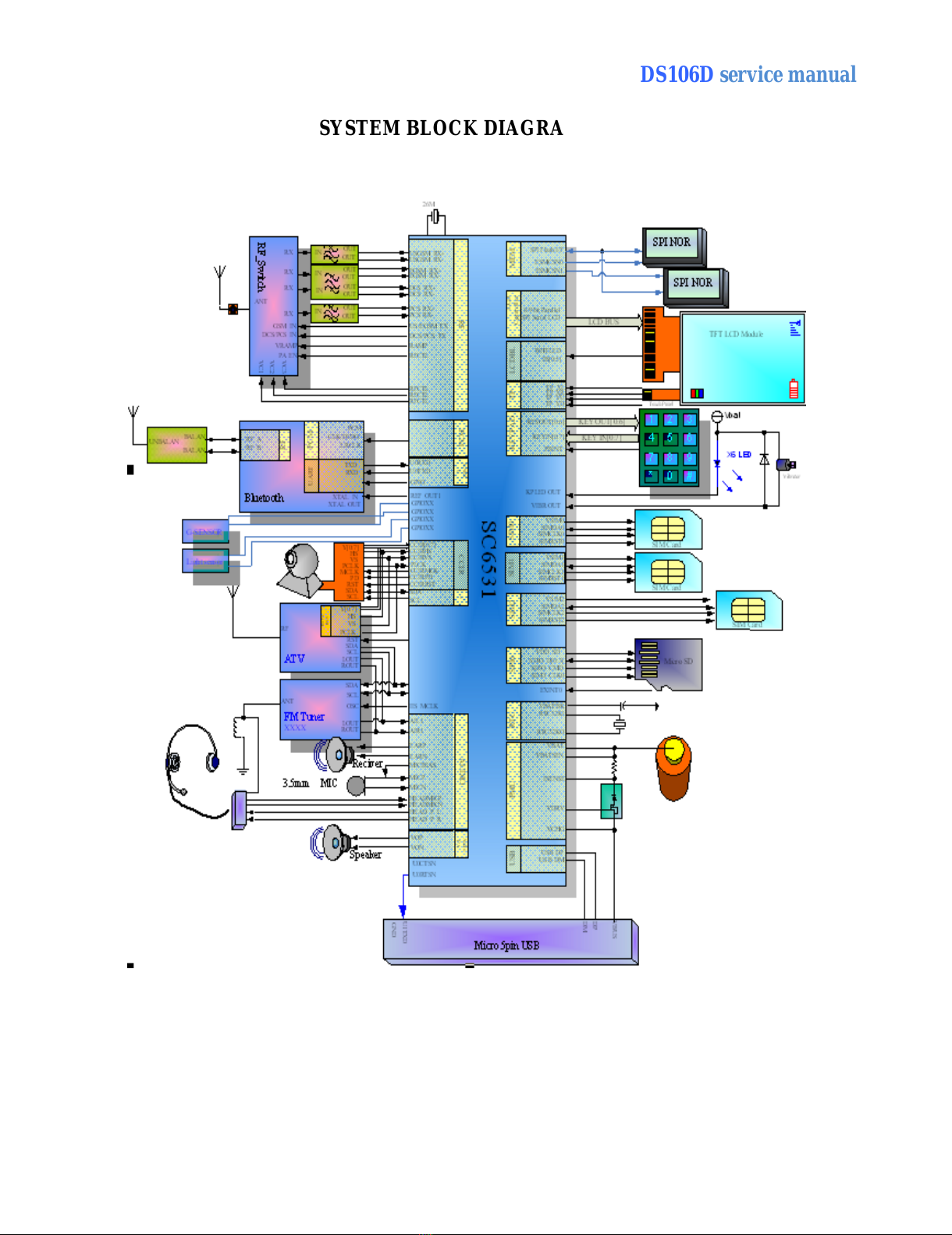

SYSTEM BLOCK DIAGRA

All manuals and user guides at all-guides.com

DS106D service manual

UNIT CIRCUIT PRINCIPLE INTRODUCTION

Baseband CPU circuit introduction for power supply
