Fly Sky Paladin PL18 EV Manuel utilisateur
PL18 EV
Quick Start Guide
PL18 EV
Precautions!
For your own safety: make sure to download and read the
Disclaimer & Warning documentation from the Flysky website
before using this product.
Flysky Website ：www.flysky-cn.com
1. For best signal quality the transmitters antenna must be
kept at least 20 cm away from all your body and must not be
juxtaposed or operated close to other transmitters. Antenna
installation instructions and transmitter operating conditions
that meet RF signal emissions must be provided to end users
and installers.
2. Hereby, [Flysky Technology co., Ltd] declares the RF
equipment [Paladin PL18 EV] to be in accordance with
RED2014/53/EU.
3. The full text of the EU DoC is available at: www.flysky-cn.
com.
Front View
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[18]
[17]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[29]
[28]
[30]
[31]
[32]
[33]
[34]
[1] Antenna [11] SW1 Button [21] SWG 2 Position Switch
[2] 320*480px Screen [12] TR3 Button [22] VRE Knob
[3] SWF 2 Position Switch [13] TR5 Trim [23] TR2 Button
[4] SWE 3 position switch [14] Speaker [24] SWC Button
[5] SWB 3 Position Switch [15] TR7 Trim [25] Transmitter Status Indicator
[6] VRD Knob [16] VRA Knob [26] Lanyard Eye
[7] TR1 Button [17] VRB Knob [27] SWL Button
[8] SWA Button [18] Power Button [28] Right Gimbal
[9] SWJ Button [19] SWD 3 Position Switch [29] SWK Button
[10] Left Gimbal [20] SWH 2 Position Switch
with Self-return [30] TR4 Button
Back View
For more information about the Paladin EV transmitter please read
the user manual.
[35]
[36]
[37]
[39]
[40]
[41]
[42]
[44]
[46]
[43]
[48]
[38] [45]
[47]
[31] TR6 Trim [40] Micro USB Port
[32] TR8 Trim [41] Trainer Port
[33] VRC Knob [42] Grip
[34] Power Button [43] FRM301 Press to release FRM301
[35] Bluetooth Module Port [44] FRM301 RF Module
[36] FRM301 Status Indicator [45] Gimbal Tension Adjustment
[37] FRM301 Button [46] Grip
[38] Gimble Tension Adjustment [47] RF Module Port
[39] Grip [48] Wireless Charging Area
Power On
1. Check to make sure that the
battery is fully charged；
2. Press both power buttons
to turn on the transmitter.
Power O
1. Power o the receiver.
2. Press and hold both power buttons until the screen turns o.
After powering o the transmitter wait for 3 seconds before
turning it on again.
Always power off the receiver before the transmitter.
Powering o the transmitter before the receiver may lead to
loss of control of the model.
If any switches are not at
their highest positions, the
system will prompt: “Switch
is not in the highest
position”. The transmitter
will show which switches
are not in the correct position by highlighting them in red on
a diagram.
[31] TR6 Trim [40] Micro USB Port
[32] TR8 Trim [41] Trainer Port
[33] VRC Knob [42] Grip
[34] Power Button [43] FRM301 Press to release FRM301
[35] Bluetooth Module Port [44] FRM301 RF Module
[36] FRM301 Status Indicator [45] Gimbal Tension Adjustment
[37] FRM301 Button [46] Grip
[38] Gimble Tension Adjustment [47] RF Module Port
[39] Grip [48] Wireless Charging Area
Main Screen Introduction
[5]
Indicates that the screen is
locked
Indicates that the screen is
unlocked
Function Disabled Function Enabled
Touch to restore functions
default settings Touch to enter function menu
Click to assign controls such
as switches Click to set the curve type
[10]
[11]
[1]
[2]
[5]
[3]
[7]
[8]
[4]
[13]
[12]
[14]
[1] Model Name [8] Left Stick Left/Right Trim
[2] Rx Signal [9] Lock/Unlock
[3] Sensor [10] Transmitter Power
[4] Voice [11] Function Menu Icon
[5] vibration [12] Channels Display
[6] Left Stick Up/Down Trim [13] Right Stick Up/Down Trim
[7] Model Type [14] Right Stick Left/Right Trim
[9]
[6]

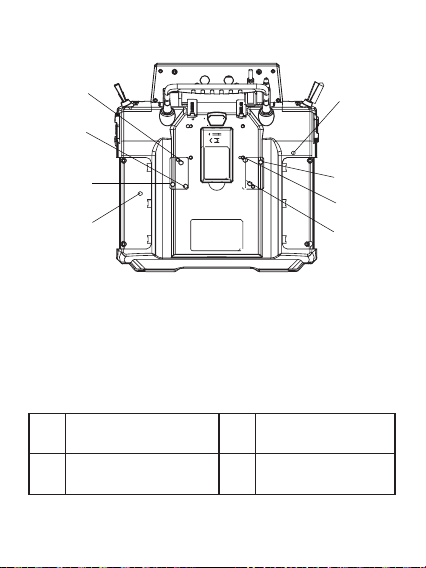

Gimbal Adjustment Instructions
Function Setup
By adjusting the tension screws on the back of the radio,
gimbal stick can be either self-centering or non self-centering,
as well as changing stick tension preference.
Available option
①
②
③
④ ⑤
⑥
⑦
⑧
①.⑤ left & right side gimbal sticks
automatic self centering ②.⑥ left & right side gimbal stick
vertical tension
③.⑦ left & right side gimbal stick
horizontal tension ④.⑧ throttle stick vertical friction
Left gimbal as example
Non Self-returning
1. Use a Phillips screwdriver to adjust the screw
① counterclockwise until the gimbal reaches its center point.
2. Adjust screw ④counterclockwise to adjust the Frictional
strength.
3. If you need to adjust the strength of the return, adjust screw
②to the middle, and strengthen the clockwise force, and vice
versa as needed.
Self-return and Non self-return
1. Use a Phillips screwdriver to adjust the screw ①clockwise so
that the gimbal is no longer at its center point.
2. Adjust the screw ④ clockwise to strengthen or reduce the
Frictional strength..
3. If you need to adjust the strength of the return, adjust screw
②to the middle, and strengthen the clockwise force, and vice
versa as needed.
Attention
When the counterclockwise adjustment is
made， entire range of movement of the screw
is about 3mm. Be cautious not to adjust it too
far or the screw will fall out.
PL18EV can be charged in two ways:
1. Plug the standard USB cable into the
charging port for charging
2. Use the wireless charging dock to
charge it (as shown in the gure)
Notes：
• Please charge it within a safe
value, （6h@5V Micro USB /7h@2A
Wireless Charging ）because
overcharging may cause damage to
the battery;
• To prolong the service life of the
battery, properly discharge the fully
charged battery before long-term
storage, and charge it regularly to
prevent over-discharging damage
during storage;
• Please use the standard charging
head of this receiver to charge it.
Improper use may cause damage
to the battery and aect its service
life.
Charging Modes
Language
This transmitter has 2 languages available:
Function Setup
Touch the function menu icon to enter the function menu,
touch [System Settings], then touch [Language Selection]. Touch
your preferred language option and touch the back icon to
save and exit.
RF Module Update
If the following prompt is displayed on start up, the RF module
needs to be updated.
Touch “yes” to enter update mode. Touch “no” to exit the
update menu. If the RF module requires and update complete
the following steps:
How To Update
Touch the function menu icon to enter the function menu,
touch [RF setup], then [RF firmware update]. When prompted
touch yes to start the update. Once the update is completed the
system will go back to the previous menu.
