A resource for Flushmate equipped toilets,

replacement systems, parts, tools, and accessories.

Contents

4 Flushmate®Systems

5 Flushmate Equipped Toilet Specications

6 504 Toilets

10 503H Toilets

12 503 Toilets

14 INTELLI-Flush™

16 Flushmate Replacement Systems

18 Replacement Parts

20 Tools

21 Upgrade Kits

22 Handle Replacement Kit

24 Handle Replacement Kit Instructions

29 Actuator Adjustments

30 Cartridge Adjustments

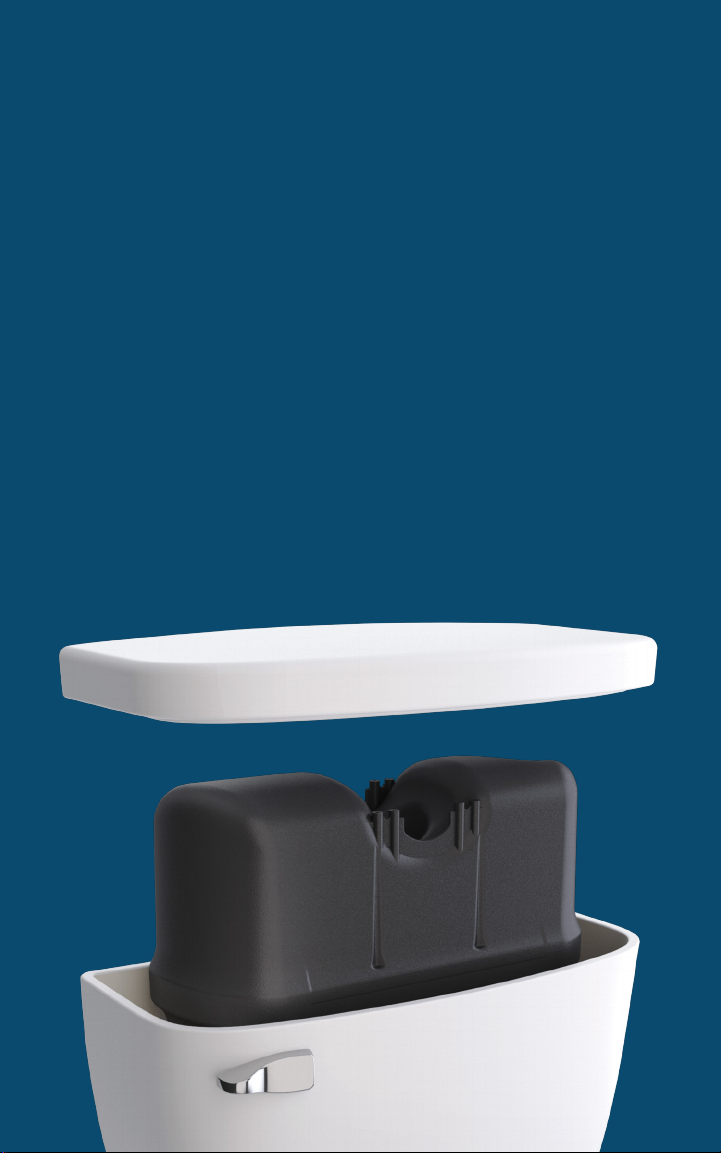

Whether specifying new toilets

with Flushmate®Systems or

locating replacement systems

or parts, this guide provides the

complete list of brands and models

that oer Flushmate pressure-

assisted technology.

IMPORTANT

Only the toilet models listed in this guide are compatible with Flushmate Systems.

See pages 6-13 for all current toilets manufactured to include Flushmate pressure-

assisted technology.

20% less water

Flushmate models

can consume 20% to

38% less water than

1.6 gpf gravity toilets

on average.

Fewer double flushes

70 gallon per minute

peak flow of Flushmate

pressure-assisted

technology clears the

bowl on the rst flush.

Water savings for life

The flush volume will

never decrease which

means water savings

are sustained for the

life of the xture.

Every drop counts

Leading toilet brands around the world are powered by

Flushmate pressure-assisted technology for single flush

performance and water-savings.

Flushmate®Systems

Flushmate pressure-assisted toilets eectively eliminate waste and

conserve water through an innovative flushing technology that

outperforms traditional gravity toilets. There are three options to choose

from, dened by flush volume (water consumption):

1.0 gpf

1 & 2 piece

Compatible toilet types

UHET

• Ultra-high-eciency

toilet

• Most water conserving

• WaterSense certied

1.28 gpf

2 piece

Compatible toilet type

HET

• High-eciency toilet

• Water conserving

• WaterSense certied

The 503H Series is a Flushmate

III 503 series systems that uses

1.28 gpf.

1.6 gpf

1 & 2 piece

Compatible toilet types

• Out performs older

models

• For environments with

limited water pressure

Flushmate IV

504 Series

Flushmate III

503H Series

Flushmate III

503 Series

Commercial A 10-story oce building with 1,000 occupants could save 1.2 million

gallons of water and up to $10,000 per year by switching to WaterSense toilets.

Residential The average family can reduce water used for toilets by 20 to 60 percent

by switching to WaterSense models.

Information courtesy of the EPA. For more information, visit: epa.gov/watersense

4For more information, visit: flushmate.com

Flushmate®Equipped Toilet

Specications

If the new toilet will be replacing an existing one, several key

specications—mounting and outlet, rough-in dimension, and

bowl shape — are included in this guide to make selection easy.

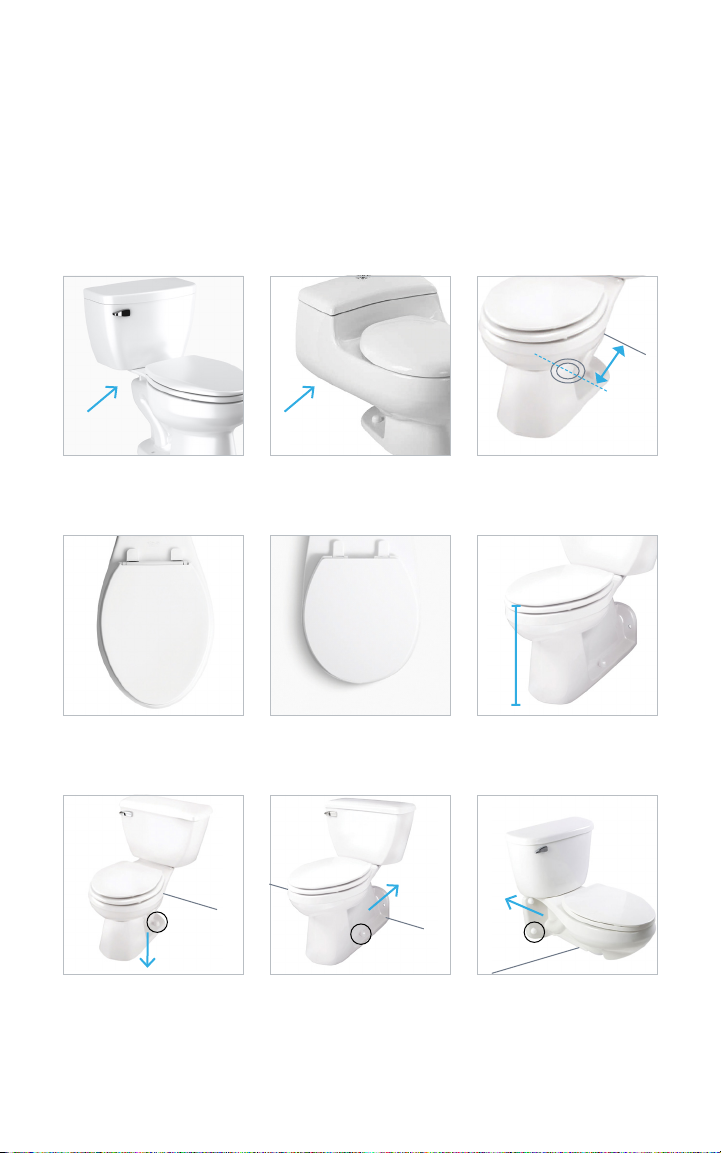

E - Elongated Bowl R - Round Bowl RR - Raised Rim

Floor

Floor Mount

Floor Outlet

Floor/Rear

Floor Mount

Rear Outlet

Wall/Rear

Wall Mount

Rear Outlet

2 pc. - Two-piece 1 pc. - One-piece Rough-in

17-19”

10”, 12”, 14”



Brand Model Name Model Tank # Bowl # Rough-in Type Bowl Mount/Outlet ADA

Contrac Chane 5721BOY 5721BOY 5722BMY Rear 2 pc. E, RR Floor/Rear 

Contrac Cleo 5722BOY 5721BOY 5722BOY 12” 2 pc. E, RR Floor 

Wineld PAT 155-100 PAK100 PAB155 12” 2 pc. E Floor

Wineld PAT 165-100 PAK100 PAB165 12” 2 pc. E, RR Floor 

Corona Cyclone Ultra 2707 14763 12271 12” 2 pc. E, RR Floor 

Corona Powermax 20801001 E21801005 E20801005 12” 1 pc. E Floor

Corona Prestigio 31636 12” 1 pc. E Floor

Exergis Acquamenos N2310RB N2310T N2310RB 2 pc. R Floor

Kohler Barrington

Pressure Lite K-3578 K-4484 K-4305 Rear 2 pc. E, RR Floor/Rear 

Kohler Highline Pressure

Lite K-3519 K-4484 K-4304 12” 2 pc. E, RR Floor 

Kohler

San Raphael

Comfort Height

Pressure Lite

K-3597 12” 1 pc. E, RR Floor 

Kohler Wellworth

Pressure Lite K-3531 K-4484 K-4303 12” 2 pc. E Floor

Koohoo T-3051 2 pc. E Floor

Koohoo T-3052C 1 pc. E Floor

Manseld Prestigio 4 704 153 12” 2 pc. E Floor

Manseld QuantumOne 144-153 153 144 Wall 2 pc. E Wall/Rear

Manseld QuantumOne 146-153 153 146 12” 2 pc. R Floor

Flushmate®Equipped Toilets

Flushmate 504 Series / 1.0 gpf

504

6For more information, visit: flushmate.com

Brand Model Name Model Tank # Bowl # Rough-in Type Bowl Mount/Outlet ADA

Contrac Chane 5721BOY 5721BOY 5722BMY Rear 2 pc. E, RR Floor/Rear 

Contrac Cleo 5722BOY 5721BOY 5722BOY 12” 2 pc. E, RR Floor 

Wineld PAT 155-100 PAK100 PAB155 12” 2 pc. E Floor

Wineld PAT 165-100 PAK100 PAB165 12” 2 pc. E, RR Floor 

Corona Cyclone Ultra 2707 14763 12271 12” 2 pc. E, RR Floor 

Corona Powermax 20801001 E21801005 E20801005 12” 1 pc. E Floor

Corona Prestigio 31636 12” 1 pc. E Floor

Exergis Acquamenos N2310RB N2310T N2310RB 2 pc. R Floor

Kohler Barrington

Pressure Lite K-3578 K-4484 K-4305 Rear 2 pc. E, RR Floor/Rear 

Kohler Highline Pressure

Lite K-3519 K-4484 K-4304 12” 2 pc. E, RR Floor 

Kohler

San Raphael

Comfort Height

Pressure Lite

K-3597 12” 1 pc. E, RR Floor 

Kohler Wellworth

Pressure Lite K-3531 K-4484 K-4303 12” 2 pc. E Floor

Koohoo T-3051 2 pc. E Floor

Koohoo T-3052C 1 pc. E Floor

Manseld Prestigio 4 704 153 12” 2 pc. E Floor

Manseld QuantumOne 144-153 153 144 Wall 2 pc. E Wall/Rear

Manseld QuantumOne 146-153 153 146 12” 2 pc. R Floor

Bowl Shape

EElongated Bowl

RRound Bowl

RR Raised Rim

Mounting/Outlet

Floor Floor Mount, Floor Outlet

Floor/Rear Floor Mount, Rear Outlet

Wall/Rear Wall Mount, Rear Outlet

IMPORTANT

Gravity-fed toilets cannot be retrotted with a Flushmate®System.

Brand Model Name Model Tank # Bowl # Rough-in Type Bowl Mount/Outlet ADA

Manseld QuantumOne 147-153 153 147 12” 2 pc. E Floor

Manseld QuantumOne 149-153 153 149 Rear 2 pc. E Floor/Rear

Manseld Quantum

Smart Height 148-153 153 148 12” 2 pc. E, RR Floor

Peerless Pottery Predator 1-606 1606 12” 2 pc. E Floor

Peerless Pottery Predator 1-608 1608 12” 2 pc. E, RR Floor 

Proflo Proflo PF1600PAWH PF1612PAWH PF1600PAWH 12” 2 pc. R Floor

Proflo Proflo PF1601PAWH PF1612PAWH PF1601PAWH 12” 2 pc. E Floor

Proflo Proflo PF1603PAWH PF1612PAWH PF1603PAWH 12” 2 pc. E, RR Floor 

Proflo Proflo PF1604PAWH PF1612PAWH PF1604PAWH Rear 2 pc. R Floor/Rear

Proflo Proflo PF1605PAWH PF1612PAWH PF1605PAWH Rear 2 pc. E Floor/Rear

Proflo Proflo PF1606PAWH PF1612PAWH PF1606PAWH Rear 2 pc. E,RR Floor/Rear 

Seasons Hawthorne 564854/564856 564854 564856 12” 2 pc. E, RR Floor 

Seasons Hawthorne 564854/564814 564854 564814 Rear 2 pc. E, RR Floor/Rear 

Sloan Sloan WETS-

8009.8016 2108016 2108009 12” 2 pc. E Floor

Sloan Sloan WETS-

8029.8016 2108016 2108029 12” 2 pc. E, RR Floor 

Western Pottery Wrangler One B422PF-1 12” 2 pc. R Floor

Western Pottery Wrangler One B432PF-1 12” 2 pc. E Floor

Western Pottery Wrangler One B472PF-1 12” 2 pc. E, RR Floor 

Flushmate®Equipped Toilets

Flushmate 504 Series / 1.0 gpf

504
