Fluidwell F126-P-EG-IA-TP Manuel utilisateur

F126-P-EG-IA-TP

FLOW COMPUTER FOR CORRECTED GAS VOLUME

Signal input flowmeter - type P: pulse, Namur and coil

Signal input pressure - type IA: (0)4-20mA

Signal input temperature - type TP: PT100 2- or 3 wire

Signal output: 0/4-20mA / 0-10V ref. corrected flowrate

Options: Intrinsically Safe, Modbus communication

F-Series - Field mounted indicators for safe and hazardous areas. More info: www.fluidwell.com/fseries

HF126PEN_EG_IA_TP_v0501_04

Page 2

SAFETY INSTRUCTIONS

Any responsibility is lapsed if the instructions and procedures as described in this

manual are not followed.

LIFE SUPPORT APPLICATIONS: The F126-P-EG is not designed for use in life support

appliances, devices, or systems where malfunction of the product can reasonably be

expected to result in a personal injury. Customers using or selling these products for use

in such applications do so at their own risk and agree to fully indemnify the manufacturer

and supplier for any damages resulting from such improper use or sale.

Electro static discharge does inflict irreparable damage to electronics! Before installing

or opening the unit, the installer has to discharge himself by touching a well-grounded

object.

This unit must be installed in accordance with the EMC guidelines (Electro Magnetic

Compatibility).

Do connect a proper grounding to the aluminum casing as indicated if the F126-P-EG has

been supplied with the 115-230V AC power-supply type PM. The green / yellow wire

between the back-casing and removable terminal-block may never be removed.

Intrinsically Safe applications: follow the instructions as mentioned in Chapter 5 and

consult “Fluidwell F1..-..-XI - Documentation for Intrinsic Safety”.

DISPOSAL

At the end of its life this product should be disposed of according to local regulations regarding

waste electronic equipment. If a battery is present in this product it should be disposed of

separately. The separate collection and recycling of your waste equipment will help to conserve

natural resources and ensure that it is recycled in a manner that protects the environment.

SAFETY RULES AND PRECAUTIONARY MEASURES

The manufacturer accepts no responsibility whatsoever if the following safety rules and

precautions instructions and the procedures as described in this manual are not followed.

Modifications of the F126-P-EG implemented without preceding written consent from the

manufacturer, will result in the immediate termination of product liability and warranty period.

Installation, use, maintenance and servicing of this equipment must be carried out by authorized

technicians.

Check the mains voltage and information on the manufacturer's plate before installing the unit.

Check all connections, settings and technical specifications of the various peripheral devices

with the F126-P-EG supplied.

Open the casing only if all leads are free of potential.

Never touch the electronic components (ESD sensitivity).

Never expose the system to heavier conditions than allowed according to the casing

classification (see manufacture's plate and chapter 4.2.).

If the operator detects errors or dangers, or disagrees with the safety precautions taken, then

inform the owner or principal responsible.

The local labor and safety laws and regulations must be adhered to.

HF126PEN_EG_IA_TP_v0501_04

Page 3

ABOUT THE OPERATION MANUAL

This operation manual is divided into two main sections:

The daily use of the unit is described in chapter 2 "Operation". These instructions are meant for

users.

The following chapters and appendices are exclusively meant for electricians/technicians. These

provide a detailed description of all software settings and hardware installation guidance.

This operation manual describes the standard unit as well as most of the options available. For

additional information, please contact your supplier.

A hazardous situation may occur if the F126-P-EG is not used for the purpose it was

designed for or is used incorrectly. Please carefully note the information in this operating

manual indicated by the pictograms:

A "warning" indicates actions or procedures which, if not performed correctly, may lead to

personal injury, a safety hazard or damage of the F126-P-EG or connected instruments.

A "caution" indicates actions or procedures which, if not performed correctly, may lead to

personal injury or incorrect functioning of the F126-P-EG or connected instruments.

A "note" indicates actions or procedures which, if not performed correctly, may indirectly

affect operation or may lead to an instrument response which is not planned.

Hardware version : 02.01.xx

Software version : 02.05.xx

Manual : HF126PEN_EG_IA_TP_v0501_04

Information in this manual is subject to change without prior notice. The

manufacturer is not responsible for mistakes in this material or for incidental

damage caused as a direct or indirect result of the delivery, performance or

use of this material.

in any form or by any means without written permission of your supplier.

HF126PEN_EG_IA_TP_v0501_04

Page 4

CONTENTS MANUAL

Safety instructions ........................................................................................................................................... 2

Disposal .................................................................................................................................................... 2

Safety rules and precautionary measures ....................................................................................................... 2

About the operation manual ............................................................................................................................ 3

1. Introduction ................................................................................................................................. 5

1.1. System description of the F126-P-EG ................................................................................... 5

2. Operational.................................................................................................................................. 7

2.1. General .................................................................................................................................. 7

2.2. Control panel.......................................................................................................................... 7

2.3. Operator information and functions ....................................................................................... 8

3. Configuration............................................................................................................................... 9

3.1. Introduction ............................................................................................................................ 9

3.2. Programming SETUP-level.................................................................................................... 9

3.2.1. General .................................................................................................................................. 9

3.2.2. Overview functions SETUP level ......................................................................................... 12

3.2.3. Explanation SETUP-functions.............................................................................................. 13

1 - Total........................................................................................................................... 13

2 - Flowrate ..................................................................................................................... 14

3 - Power management .................................................................................................. 15

4 - Flowmeter .................................................................................................................. 15

5 - Temperature .............................................................................................................. 16

6 - Pressure .................................................................................................................... 17

7 - Formula...................................................................................................................... 18

8 - Analog output............................................................................................................. 19

9 - Communication.......................................................................................................... 20

A - Others........................................................................................................................ 20

4. Installation ................................................................................................................................. 21

4.1. General directions................................................................................................................ 21

4.2. Installation / surrounding conditions .................................................................................... 21

4.3. Dimensions- Enclosure ........................................................................................................ 22

4.4. Installing the hardware......................................................................................................... 24

4.4.1. Introduction .......................................................................................................................... 24

4.4.2. Voltage selection sensor supply .......................................................................................... 25

4.4.3. Terminal connectors ............................................................................................................ 26

5. Intrinsically safe applications..................................................................................................... 33

5.1. General information and instructions ................................................................................... 33

5.2. Terminal connectors Intrinsically Safe applications ............................................................. 34

5.3 Configuration Examples....................................................................................................... 36

5.4 Battery replacement instructions.......................................................................................... 38

6.1. General directions................................................................................................................ 39

6.2. Repair................................................................................................................................... 39

Appendix A: Technical specification .............................................................................................................. 40

Appendix B: Problem solving......................................................................................................................... 44

Appendix C: Communication variables.......................................................................................................... 45

Index of this manual....................................................................................................................................... 49

List of figures in this manual .......................................................................................................................... 49

Notes .................................................................................................................................................. 50

HF126PEN_EG_IA_TP_v0501_04

Page 5

1. INTRODUCTION

1.1. SYSTEM DESCRIPTION OF THE F126-P-EG

Functions and features

The flowrate / totalizer model F126-P-EG-IA-TP is a microprocessor driven instrument designed for

the calculation of corrected gas volume using flow equations. The unit displays compensated

flowrate / total, line temperature and pressure.

This product has been designed with a focus on:

ultra-low power consumption to allow long-life battery powered applications (type PB and PC),

intrinsic safety for use in hazardous applications (type XI),

several mounting possibilities with aluminum or GRP enclosures for harsh industrial

surroundings,

ability to process all types of flowmeter signals,

transmitting possibilities with analog / pulse / alarm and communication (option) outputs.

Flowmeter and sensor inputs

For gas applications, one flowmeter, one temperature and one pressure sensor have to be

connected to the F126-P-EG-TP-IA. This manual describes the unit with a pulse signal input for the

flowmeter "-P version". Other input versions are available to process (0)4-20mA or 0-10V flowmeter

signals. The pressure sensor required is a (0)4-20mA signal; alternatively, a 0-10V sensor input can

be supplied. The temperature sensor requires a 2-wire or 3-wire PT100 element; alternatively, a

(0)4-20mA or 0-10V sensor input can be supplied.

To power the sensors, several options are available.

Standard output

Configurable linear (0)4-20mA or 0-10V analog output with 10-bits resolution mirroring the actual

flowrate at standard conditions. Flowrate levels as well as the minimum and maximum signal

output can be tuned.

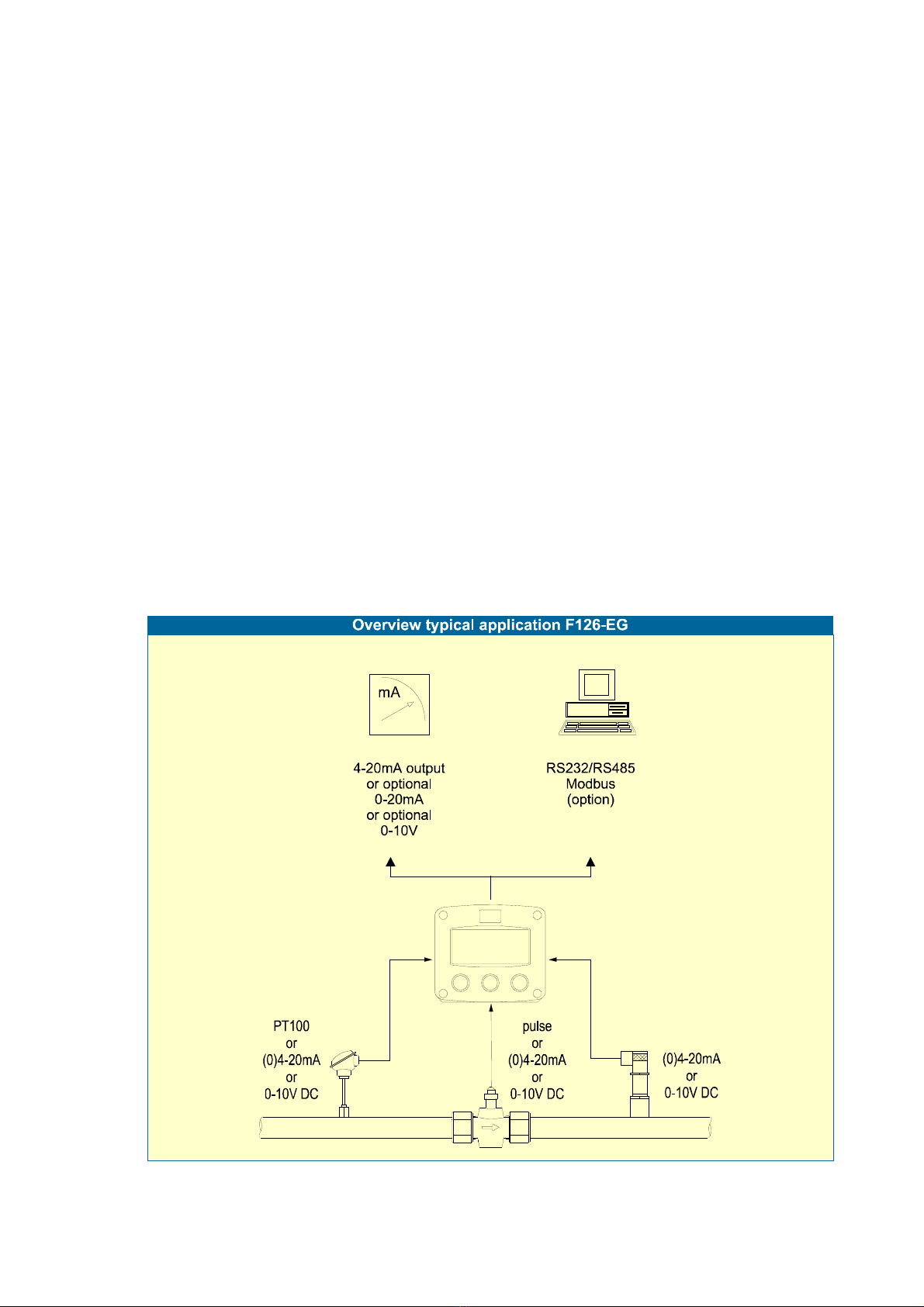

Fig. 1: Typical application for the F126-P-EG.

HF126PEN_EG_IA_TP_v0501_04

Page 6

Configuration of the unit

The F126-P-EG was designed to be implemented in many types of applications. For that reason, a

SETUP-level is available to configure your F126-P-EG according to your specific requirements.

SETUP includes several important features, such as Span, measurement units, signal selection etc.

All setting as are stored in EEPROM memory and will not get lost in case of power break-down or

empty battery.

To extend the battery-life time (option), please make use of the power-management functions as

described in chapter 3.2.3.

Display information

The unit has a large transflective LCD with all kinds of symbols and digits to display measuring units,

status information, trend-indication and key-word messages.

Flowrate and totals can be displayed either with the small 8mm digits or with the 17mm digits.

A backup of the total and accumulated total in EEPROM memory is made every minute.

Options

Following options are available: isolated or active 4-20mA / 0-10V / 0-20mA analog output, full

Modbus communication RS232/485 (also battery powered), intrinsic safety, power- and sensor-

supply options, panel-mount, wall-mount and weather-proof enclosures, flame proof enclosure.

HF126PEN_EG_IA_TP_v0501_04

Page 7

2. OPERATIONAL

2.1. GENERAL

The F126-P-EG may only be operated by personnel who are authorized and trained by

the operator of the facility. All instructions in this manual are to be observed.

Take careful notice of the " Safety rules, instructions and precautionary measures " in

the front of this manual.

This chapter describes the daily use of the F126-P-EG. This instruction is meant for users /

operators.

2.2. CONTROL PANEL

The following keys are available:

Fig. 2: Control Panel.

Functions of the keys

This key is used to program and save new values or settings.

It is also used to get access to SETUP-level; please read chapter 3.

This key is used to SELECT accumulated total.

The arrow-key is used to increase a value after PROG has been pressed

or to configure the unit; please read chapter 3.

Press this key twice to CLEAR the value for total.

The arrow-key is used to select a digit after PROG has been pressed or to

configure the unit; please read chapter 3.

HF126PEN_EG_IA_TP_v0501_04

Page 8

2.3. OPERATOR INFORMATION AND FUNCTIONS

In general, the F126-P-EG will always act function at Operator level. The information displayed is

dependant up on the SETUP-settings. The signal generated by the connected flowmeter are

measured by the F126-P-EG in the background, whichever screen refresh rate setting is chosen.

After pressing a key, the display will be updated very quickly during a 30 second period, after which

it will slow-down again.

Fig. 3: Example of display information during process.

For the Operator, the following functions are available:

Display calculated flowrate / total or calculated flowrate

This is the main display information of the F126-P-EG. After selecting any other information, it

will always return to this main display automatically.

Total is displayed at the upper-line of the display and flowrate and the bottom line.

Possibly, only flowrate will be displayed with the large 17mm digits; do press the SELECT-key

to read the total. When "-------" is shown, then the flowrate value is too high to be displayed.

The arrows indicate the increase / decrease of the flowrate trend.

Clear total

The value for total can be re-initialized. To do so, press CLEAR twice. After pressing CLEAR

once, the flashing text "PUSH CLEAR" is displayed. To avoid re-initialization in this stage,

press an other key as CLEAR or wait for 20 seconds. Re-initialization of total DOES NOT

influence the accumulated total.

Display calculated accumulated total

When the SELECT-key is pressed, total and accumulated total are displayed. The

accumulated total cannot be re-initialized. The value will count up to 99,999,999,999. The unit

and number of decimals are displayed according to the configuration settings for total.

Display line pressure

After pressing SELECT, the actual measured pressure is displayed.

Display line temperature

After pressing SELECT, the actual measured temperature is displayed.

Low-battery alarm

When the battery voltage drops, it must be replaced. At first "low-battery" will flash, but as

soon as it is displayed continuously, the battery MUST be replaced shortly after!

Only original batteries supplied by the manufacturer may be used, else the guarantee and

liability will be terminated. The remaining lifetime after the first moment of indication is

generally several days up to some weeks.

Fig. 4: Example of low-battery alarm.

Alarm 01-03

When "alarm" is displayed, please consult Appendix B: problem solving.

RUN

LOW BATTERY

RUN

HF126PEN_EG_IA_TP_v0501_04

Page 9

3. CONFIGURATION

3.1. INTRODUCTION

This and the following chapters are exclusively meant for electricians and non-operators. In these,

an extensive description of all software settings and hardware connections are provided.

Mounting, electrical installation, start-up and maintenance of the instrument may only

be carried out by trained personnel authorized by the operator of the facility. Personnel

must read and understand this Operating Manual before carrying out its instructions.

The F126-P-EG may only be operated by personnel who are authorized and trained by

the operator of the facility. All instructions in this manual are to be observed.

Ensure that the measuring system is correctly wired up according to the wiring

diagrams. The housing may only be opened by trained personnel.

Take careful notice of the " Safety rules, instructions and precautionary measures " in

the front of this manual.

3.2. PROGRAMMING SETUP-LEVEL

3.2.1. GENERAL

Configuration of the F126-P-EG is done at SETUP-level. SETUP-level is reached by pressing the

PROG/ENTER key for 7 seconds; at which time, both arrows will be displayed. In order to return

to the operator level, PROG will have to be pressed for three seconds. Alternatively, if no keys are

pressed for 2 minutes, the unit will exit SETUP automatically.

SETUP can be reached at all times while the F126-P-EG remains fully operational.

Note: A password may be required to enter SETUP. Without this password access to SETUP is

denied.

To enter SETUP-level:

HF126PEN_EG_IA_TP_v0501_04

Page 10

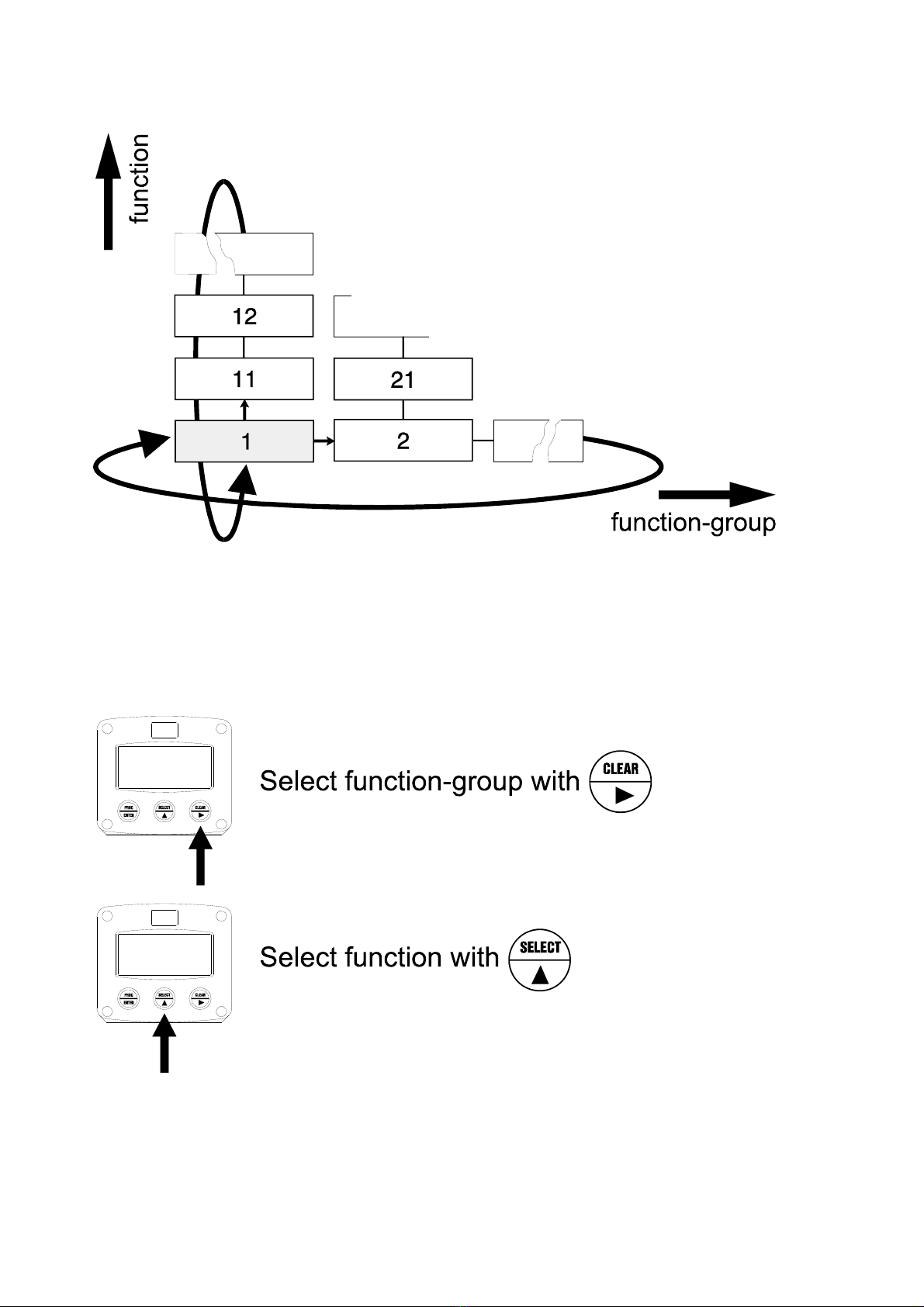

Matrix structure SETUP-level:

SCROLLING THROUGH SETUP-LEVEL

Selection function-group and function:

SETUP is divided into several function groups and functions.

Each function has a unique number, which is displayed below the word "SETUP" at the bottom of

the display. The number is a combination of two figures. The first figure indicates the function-group

and the second figure the function. Additionally, each function is expressed with a keyword.

After selecting a sub-function, the next main function is selected after scrolling through all "active"

sub-functions (e.g. 1, 11, 12, 13, 14, 1, 2, 3, 31 etc.).

Table des matières

Autres manuels Fluidwell Ordinateur de bureau

Fluidwell

Fluidwell F127-P-EL-TA Manuel utilisateur

Manuels Ordinateur de bureau populaires d'autres marques

HP m9060n - Pavilion - Elite Fiche technique

Asus

Asus E210 Series Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

HP Presario SV7000 - Desktop PC Manuel utilisateur

HP ProDesk 400 G5 Manuel

Logitech

Logitech MK320 Manuel utilisateur

Dell

Dell XPS 730 H2C Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur
