SHEET 1 OF 8

FLOE LEG EXTENSIONS

SMALL LIFTS (V2000-VSD5000 PONTOON)

LARGE LIFTS (VSD6000-VSD8000)

ASSEMBLY INSTRUCTIONS

KIT P/N 511-06005-00, 511-06006-00

INSTRUCTION P/N: 611

6005

RELEASED 7/11/19

Floe International Inc.

48473 State Hwy. 65

McGregor, MN 55760

www.floeintl.com

IMPORTANT NOTE

FOR INSTALLATION OF LEG EXTENSIONS, THE LIFT MUST BE RAISED ON ONE

END (BOTH IF INSTALLING TWO KITS). BE SURE TO PROPERLY SUPPORT THE LIFT

TO AVOID TIPOVER, WHICH MAY LEAD TO SERIOUS INJURY, DEATH, OR

DAMAGE TO LIFT AND OR LIFT COMPONENTS.

TOOLS REQUIRED

-(2) 3/4” WRENCHES/SOCKETS

-TAPE MEASURE

-TORQUE WRENCH

-HIGH LIFT JACK (OR

EQUIVALENT)

V2000

VSD5000 PONTOON (VSD5000 SHOWN)

VSD6000

8000 (VSD6500/8000 SHOWN)

*LIFT NOT INCLUDED

SHEET 2 OF 8

BILL OF MATERIALS/EXPLODED VIEW

P/N 511-06005-00 EXTENSION LEGS, V2000-VSD5000

NUMBER PART NUMBER QTY. DESCRIPTION

1 001-70218-00 2 HHCS, ½-13 x 3 ¾” 18-8 ss

2 001-76072-00 2 NUT, NYLOCK ½-13 ALUM.

3 111-00219-00 2 WELD’T, EXTENSION LEG – 27”

P/N 511-06006-00 EXTENSION LEGS, VSD6000-8000

NUMBER PART NUMBER QTY. DESCRIPTION

1 001-70224-00 2 HHCS, ½-13 x 5 ½” 18-8 ss

2 001-76072-00 2 NUT, NYLOCK ½-13 ALUM.

3 111-00220-00 2 WELD’T, EXTENSION LEG – 20.5”

SHEET 3 OF 8

PLACEMENT

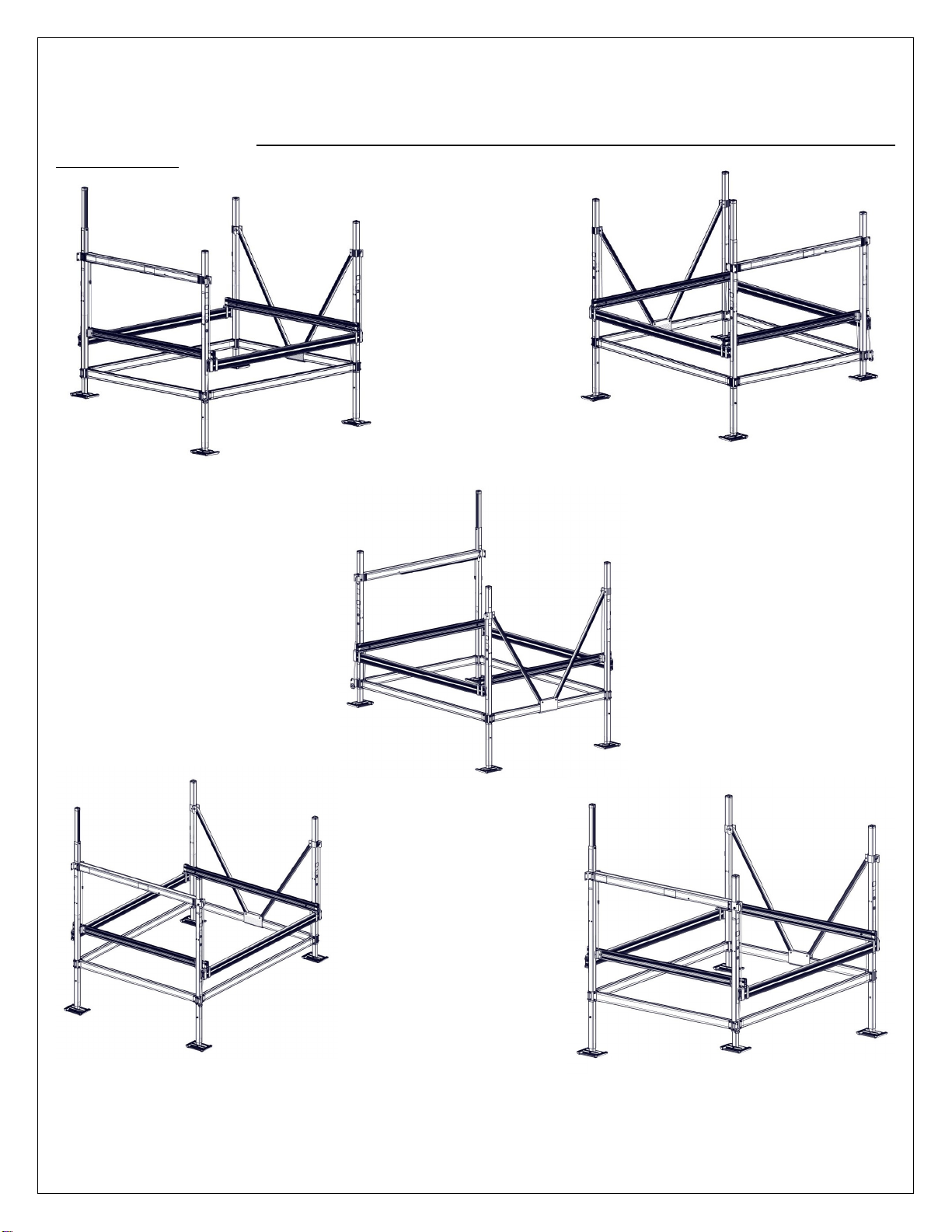

LEG EXTENSIONS CAN BE PLACED ON ANY END OR CORNER OF THE BOAT LIFT (ON CORNER POSTS

“A” & “D” OR “B” & “C”). WHEN CHOOSING A LOCATION, ENSURE THAT THE LIFT WILL BE STABLE UPON

INSTALLATION.

EXTENSIONS ON CORNER

POSTS “A” & “D”

EXTENSIONS ON CORNER

POSTS “B” & “C”

EXTENSIONS ON CORNER

POSTS “C” & “D”

EXTENSIONS ON CORNER

POSTS “A” & “B”

EXTENSIONS ON

CORNER POSTS

“B” & “D”

(CAN BE PLACED ON “A” & “C”

ALSO)

SHEET 4 OF 8

INSTALLATION

RAISE END OF LIFT WITH A HIGH LIFT JACK (OR EQUIVALENT) THAT WILL HAVE THE LEG EXTENSIONS

INSTALLED ON. FOR SMALL LIFTS, RAISE FRAME BEAM 44” ABOVE THE GROUND (FIGURE 1.1). FOR

LARGE LIFTS, RAISE FRAME BEAM 38” ABOVE THE GROUND (FIGURE 1.1A). REMOVE ½” NYLOCK NUT

AND ½” BOLT ON EACH SANDPAD, THEN REMOVE SAND PADS (FIGURE 1.2).

IMPORTANT NOTE

FOR INSTALLATION OF LEG

EXTENSIONS, THE LIFT MUST BE RAISED

ON ONE END (BOTH IF INSTALLING

TWO KITS). BE SURE TO PROPERLY

SUPPORT THE LIFT TO AVOID

TIPOVER,

FIGURE 1.1

FIGURE 1.2

FIGURE 1.1A

SHEET 5 OF 8

LOWER INNER LEGS USING ADJUSTING SCREW (FIGURE 1.3). FOR SMALL LIFTS, LOWER THE INNER LEG

10” FROM THE BOTTOM OF THE INNER LEG TO THE BOTTOM OF THE CORNER POST (FIGURE 1.4). FOR

LARGE LIFTS, LOWER THE INNER LEG 10-1/8” FROM THE BOTTOM OF THE INNER LEG TO THE BOTTOM

OF THE CORNER POST (FIGURE 1.4A).

FIGURE 1.4

FIGURE 1.3

FIGURE 1.4A

SHEET 6 OF 8

SLIDE LEG EXTENSIONS ONTO INNER LEGS AND ALIGN HOLES (FIGURE 1.5: SMALL LIFTS, FIGURE 1.5A:

LARGE LIFTS). FOR SMALL LIFTS, ATTACH LEG EXTENSION TO INNER LEG USING (1) ½” X 3-3/4” BOLT

AND (1) ½” NUT (FIGURE 1.6).

FIGURE 1.5

FIGURE 1.6

SHEET 7 OF 8

FOR LARGE LIFTS, ATTACH LEG EXTENSION TO INNER LEG USING (1) ½” X 5 ½” BOLT AND (1) ½” NUT

(FIGURE 1.6A). TORQUE TO 25 FT-LBS (FIGURE 1.7). RE-ATTACH SAND PADS TO LEG EXTENSIONS

USING THE ½” BOLTS AND ½” NYLOCK NUTS THAT WERE USED TO ATTACH THEM TO THE LIFT’S INNER

LEG (FIGURE 1.8). TORQUE TO 25 FT-LBS (FIGURE 1.9).

FIGURE 1.6A

2X 2X

FIGURE 1.7

FIGURE 1.8 FIGURE 1.9

SHEET 8 OF 8
