PTZ-35x140 User’s Guide 427-0011-00-10 Version 100

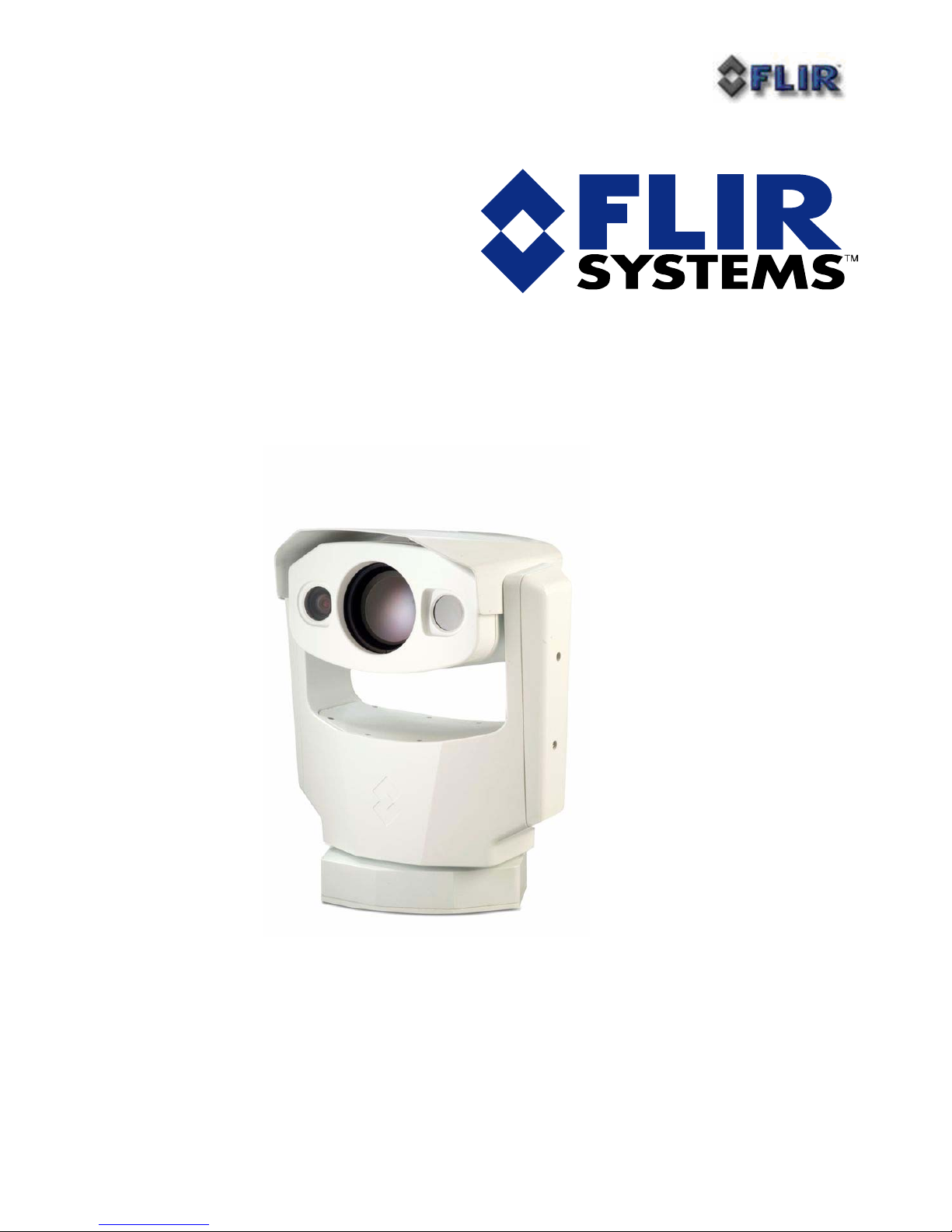

PTZ-35x140™with Foveus™

Users Guide

427-0011-00-10

Version 100

PTZ-35x140 User’s Guide 427-0011-00-10 Version 100

Cautions and Warnings:

•Do not disassemble the PTZ-35x140™ enclosure. Disassembly can cause permanent

damage and will void the warranty.

•Operating PTZ-35x140™ outside of its specified operating temperature range or voltage

range can cause permanent damage and will void the warranty.

•Avoid pointing the device directly at extremely high-intensity radiation sources, such as the

sun, lasers, arc welders, etc. This warning applies whether or not the system is powered.

•Only clean the lens in the manner prescribed in the Appendix of this document.

•If you have questions that are not covered in this manual, or need service, contact FLIR

Support at 1-888-747-3547 for additional information.

PTZ-35x140 User’s Guide 427-0011-00-10 Version 100

TABLE OF CONTENTS

INTRODUCTION......................................................................................................................... 4

UNPACKING YOUR PTZ-35X140:........................................................................................... 4

QUICK-START INFORMATION.............................................................................................. 5

PELCO-D INTERFACE ....................................................................................................................... 6

NEXUS®CONSOLE INTERFACE .......................................................................................................... 9

PTZ-35X140™ PHYSICAL INTERFACE .............................................................................. 11

DIMENSION DRAWINGS.................................................................................................................... 11

SYSTEM INTERFACE CABLE CONNECTOR......................................................................................... 14

BREAK-OUT CONNECTOR CABLE .................................................................................................... 15

PTZ-35X140™ SPECIFICATIONS......................................................................................... 17

APPENDIX A: MAINTENANCE ............................................................................................. 19

LENS CLEANING............................................................................................................................... 19

HISTORY OF INFRARED ....................................................................................................... 20

PTZ-35x140 User’s Guide 427-0011-00-10 Version 100

INTRODUCTION

The PTZ-35x140™ is a versatile, dual field of view thermal and visible imaging system that

provides a high resolution thermal image with a 5° view nested inside a wider 20° view. This image

presentation concept derived from human vision offers excellent situational awareness and long

range threat detection, simultaneously. This advanced payload is packaged in a precision pan/tilt

enclosure that will slew up to 120° per second. The system supports stand-alone or network

operation with a Nexus® interface.

The PTZ-35x140™ incorporates the latest in visible and uncooled thermal imager performance with

both IP networked control and video connectivity for installation into sophisticated emerging

security infrastructures and serial and analog connectivity for current widely proliferated

infrastructures. The Foveus™ thermal imagery is provided as continually zoomed video from 20°

horizontal field of view to less than 1 degree horizontal field of view. The thermal imagery is

presented in a novel blending of two thermal images to provide high resolution in the critical 5°

center area while simultaneously providing medium resolution in the 20° situational awareness zone.

This presentation is an application of the design of the human eye, with the foveal region of the

retina employing higher density detectors than the peripheral area, thus the moniker Foveus™.

UNPACKING YOUR PTZ-35X140:

oPTZ-35x140 with Foveus 427-0011-XX

oBreak-Out Connector Cable (1 DB9 RS-422 and 1 DB9 Maintenance for communication, 1

BNC for composite video, 1 RJ45 Ethernet, terminal rings for power) 308-0117-00

oNexus® Console Software (unlimited copy rights)

Optional Accessories:

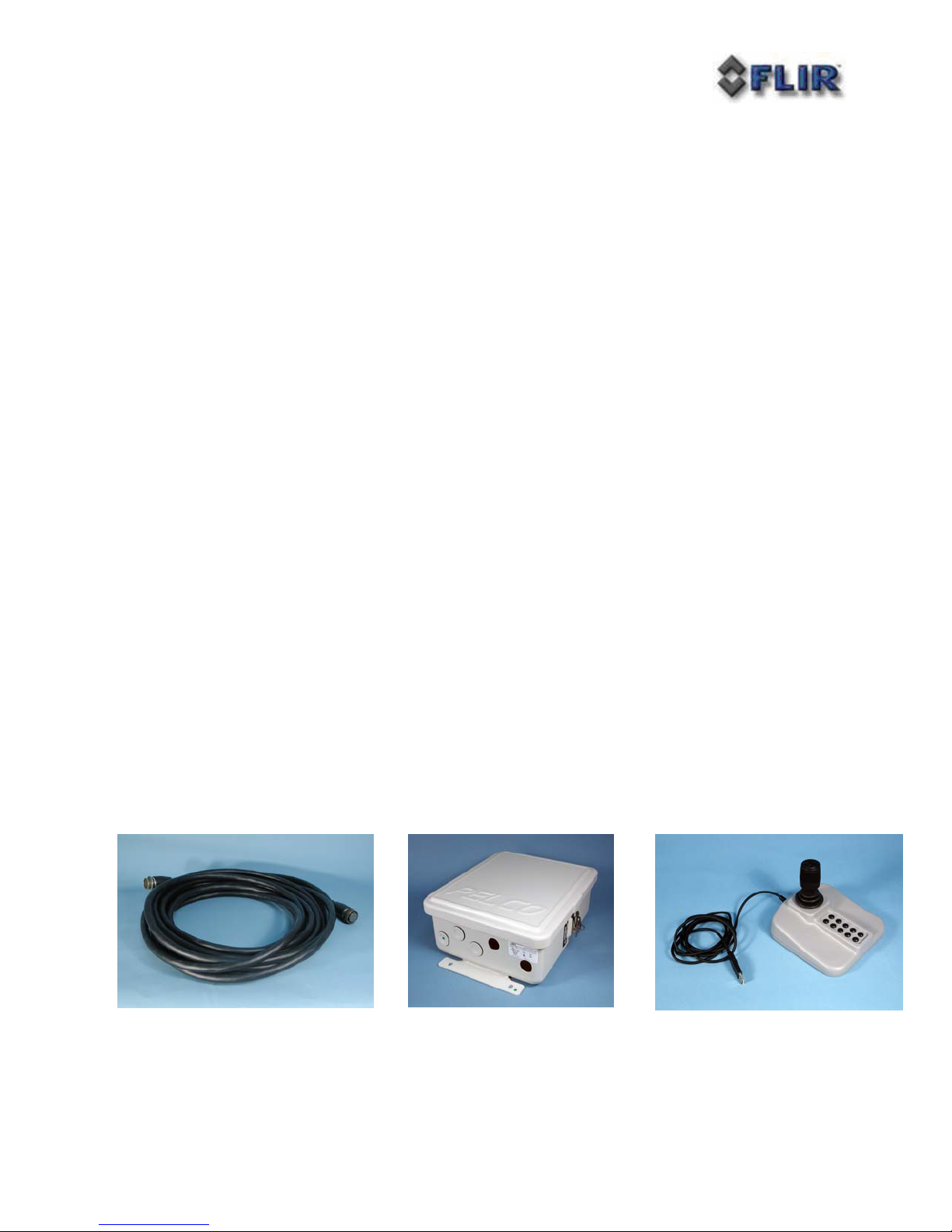

o40 ft System Cable 308-0116-02 (shown below)

o24V Power Supply 206-0004-01 (shown below)

oNexus® Console Joystick 223-0017-00 (shown below)

PTZ-35x140 User’s Guide 427-0011-00-10 Version 100

QUICK-START INFORMATION

The following instructions will get you started with basic operation of the PTZ-35x140™ with

Foveus™.

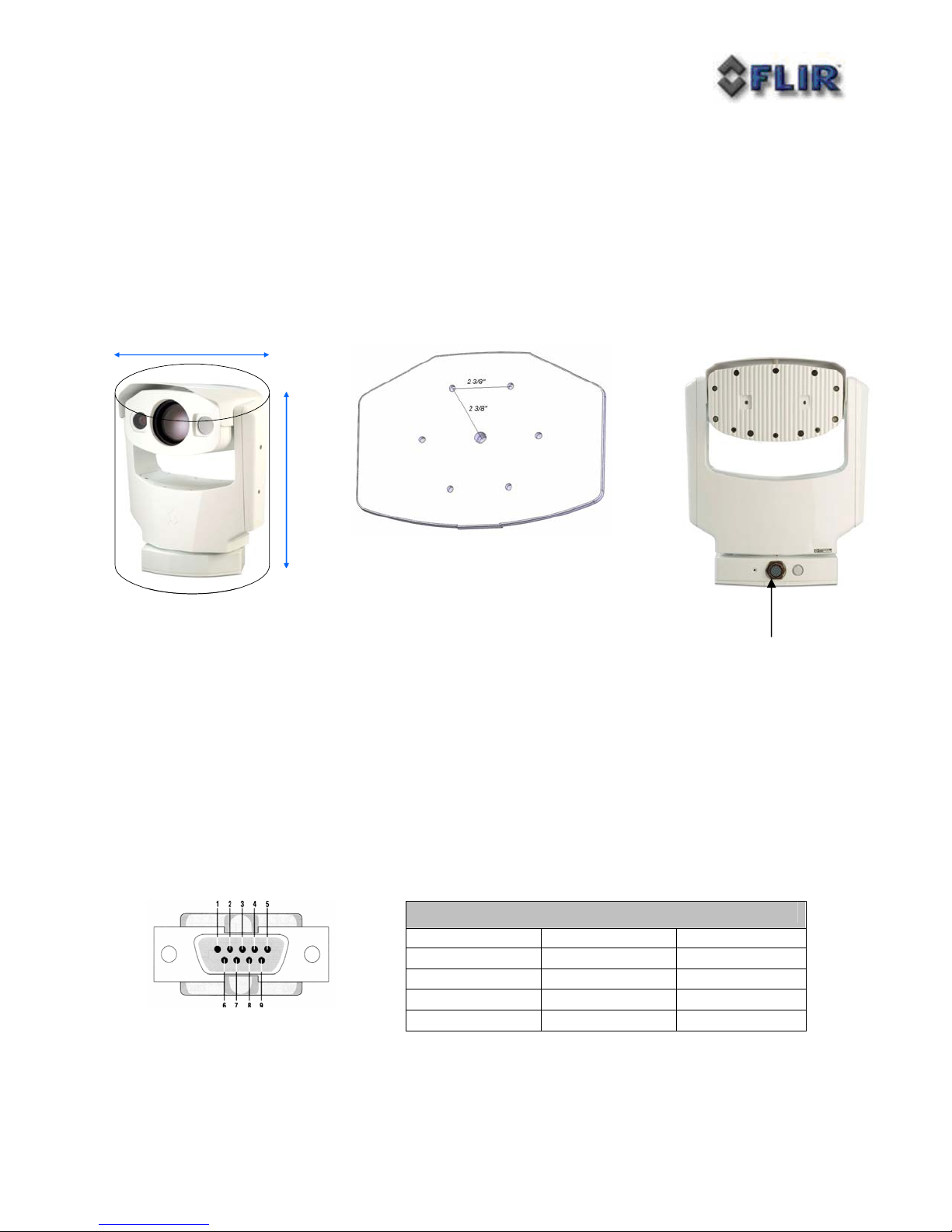

1. Firmly secure camera using mounting pattern shown below to a designated frame or

structure able to support and allow for device travel.

2. Connect System Cable into camera base shown above. Then attach the other end of the

sealed System Cable to the break-out pigtail.

3. If using the video output then plug a standard BNC cable to the connection labeled

“VIDEO P2” on the break-out pigtail.

4. If you intend to use the PELCO-D Interface for remote control of the device attach a

standard DB9 RS-422 cable to the connection labeled “USER P3” on the break-out pigtail.

Connect the other end of the RS-422 cable to an available port on remote control device

such as a KBD300. (Be sure to note that the pin settings are from the camera and must be

swapped on the controller device!) Pin settings are shown here below:

RS-422 DB9 Pin or “USER P3”

COM 1 Tx A (-) Signal OUT Pin 2

COM 1 Rx B (+) Signal IN Pin 3

COM GND Pin 5

COM 1 Tx B (+) Signal OUT Pin 7

COM 1 Rx A (-) Signal IN Pin 8

PTZ-35x140 User’s Guide 427-0011-00-10 Version 100

5. If you intend to use the Nexus® Console Software for both the remote control of the device

and video streaming attach a standard CAT5 cable to the connection labeled “ETHERNET

P5” on the break-out pigtail. Connect the other end to your PC.

6. Plug in either 24+/-10% VAC rms (50/60Hz) or 24+/-10% VDC directly to the connections

labeled “PTPWR” and “SYSPWR” on the break-out pigtail.

7. If purchased the Pelco WCS4-20 Master Power Supply will connect directly via

connections labeled “PTPWR” and “SYSPWR” on the break-out pigtail to the converter.

Connect the black leads to COM and the red leads to 24V. Next, adjust the AC Input

switch to either 115VAC (standard for US) or 230VAC (standard for Europe) and apply

power to the Pelco converter.

8. Now the PTZ-35x140™ is ready for use. Note that the device will immediately zero itself

and return back to home position upon applying power.

PELCO-D INTERFACE

The PTZ-35x140™ accommodates control via RS422. The command protocol for serial control

shall be via PELCO-D commands including the following minimum control set:

PTZ-35x140 User’s Guide 427-0011-00-10 Version 100

Table 1: Pelco D Command List

Also, refer to the User Controls for use with a Pelco KBD300A shown on the following page:

PTZ-35x140 Function KBD300 Pelco D Packet Pelco D Response

Pan/Tilt Drive Up FF 01 00 08 VV WW CK FF 01 00 CK

Down FF 01 00 10 VV WW CK FF 01 00 CK

Left FF 01 00 04 VV WW CK FF 01 00 CK

Right FF 01 00 02 VV WW CK FF 01 00 CK

UpLeft FF 01 00 0C VV WW CK FF 01 00 CK

UpRight FF 01 00 0A VV WW CK FF 01 00 CK

DownLeft FF 01 00 14 VV WW CK FF 01 00 CK

DownRight FF 01 00 12 VV WW CK FF 01 00 CK

Stop FF 01 00 00 VV WW CK FF 01 00 CK

Increments Focus closer Near button FF 01 01 00 00 00 02 FF 01 00 02

Increments Focus farther Far button FF 01 00 80 00 00 81 FF 01 00 81

Zoom In or Decreases FoV CW Joystick FF 01 00 20 00 00 21 FF 01 00 21

Zoom Out or Increases FoV CCW Joystick FF 01 00 40 00 00 41 FF 01 00 41

IR Polarity to Black Hot 1, Aux On FF 01 00 09 00 01 0B FF 01 00 0B

IR Polarity to White Hot 1, Aux Off FF 01 00 0B 00 01 0D FF 01 00 0D

Active Camera DLTV 2, Aux On FF 01 00 09 00 02 0C FF 01 00 0C

Active Camera IR 2, Aux Off FF 01 00 0B 00 02 0E FF 01 00 0E

Toggle: Plateau Values 3, Aux On FF 01 00 09 00 03 0D FF 01 00 0D

Toggle: AGC Type 3, Aux Off FF 01 00 0B 00 03 0F FF 01 00 0F

AutoFocus 4, Aux On FF 01 00 09 00 04 0E FF 01 00 0E

IR FFC 4, Aux Off FF 01 00 0B 00 04 10 FF 01 00 10

Toggle: LUT Palette 5, Aux Off FF 01 00 0B 00 05 11 FF 01 00 11

Toggle: AGC ROI 6, Aux On FF 01 00 09 00 06 10 FF 01 00 10

Toggle: Max Gain Value 7, Aux Off FF 01 00 0B 00 07 11 FF 01 00 11

PTZ-35x140 User’s Guide 427-0011-00-10 Version 100

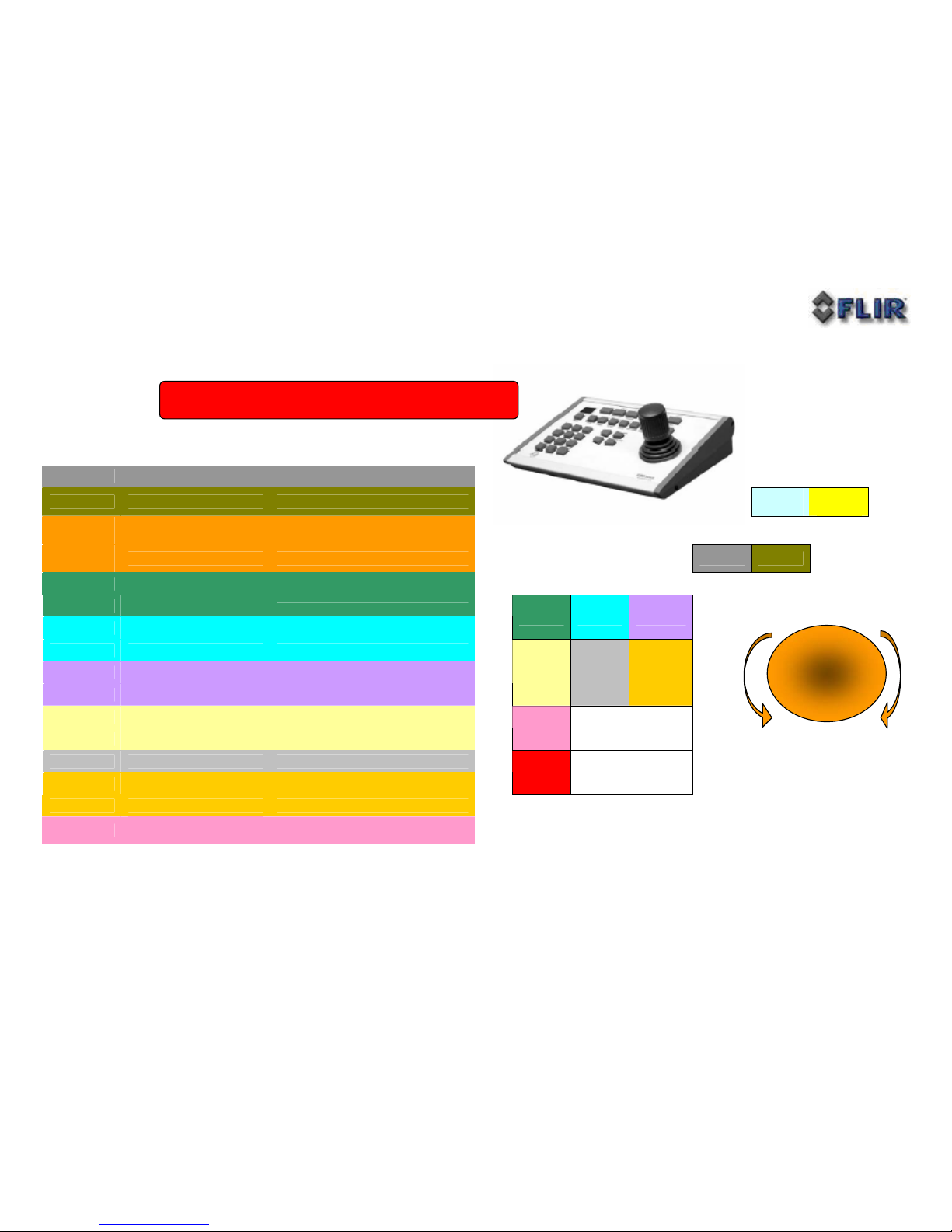

User Controls for KBD300A

Keystrokes Function Toggle Values (default to first value)

Near button Focus Near

Far button Focus Far

AUX

OFF

Joystick Zoom In Increments from Wide to Tele

CCW

Joystick Zoom Out Increments from Tele to Wide NEAR FAR

1, Aux On IR Polarity to Black Hot

1, Aux Off IR Polarity to White Hot

2, Aux On Set DLTV as active For both commands and video

1 2 3

2, Aux Off Set IR as active For both commands and video

3, Aux On Toggle: Plateau Values

3, Aux Off Toggle: AGC Type

4 5 6

4, Aux On Autofocus One shot Autofocus

4, Aux Off IR FFC Internal calibration

7 8 9

5, Aux Off Toggle: LUT Palette White, Black

6, Aux On Toggle: DDE Gain Dynamic Detail Enhancement

CAM 0 CLEAR

6, Aux Off Toggle: AGC ROI Full, Horizon, Sky, Ground, Center

7, Aux Off Toggle: Max Gain

Values

Note: Must have the appropriate active camera to use associated camera functions.

To start type the Pelco Address (9,9) then CAM

PTZ-35x140 User’s Guide 427-0011-00-10 Version 100

NEXUS®CONSOLE INTERFACE

First install the Nexus®Console Software on your PC. The software installation procedure along

with PC hardware requirements is described in the README provided on the CD.

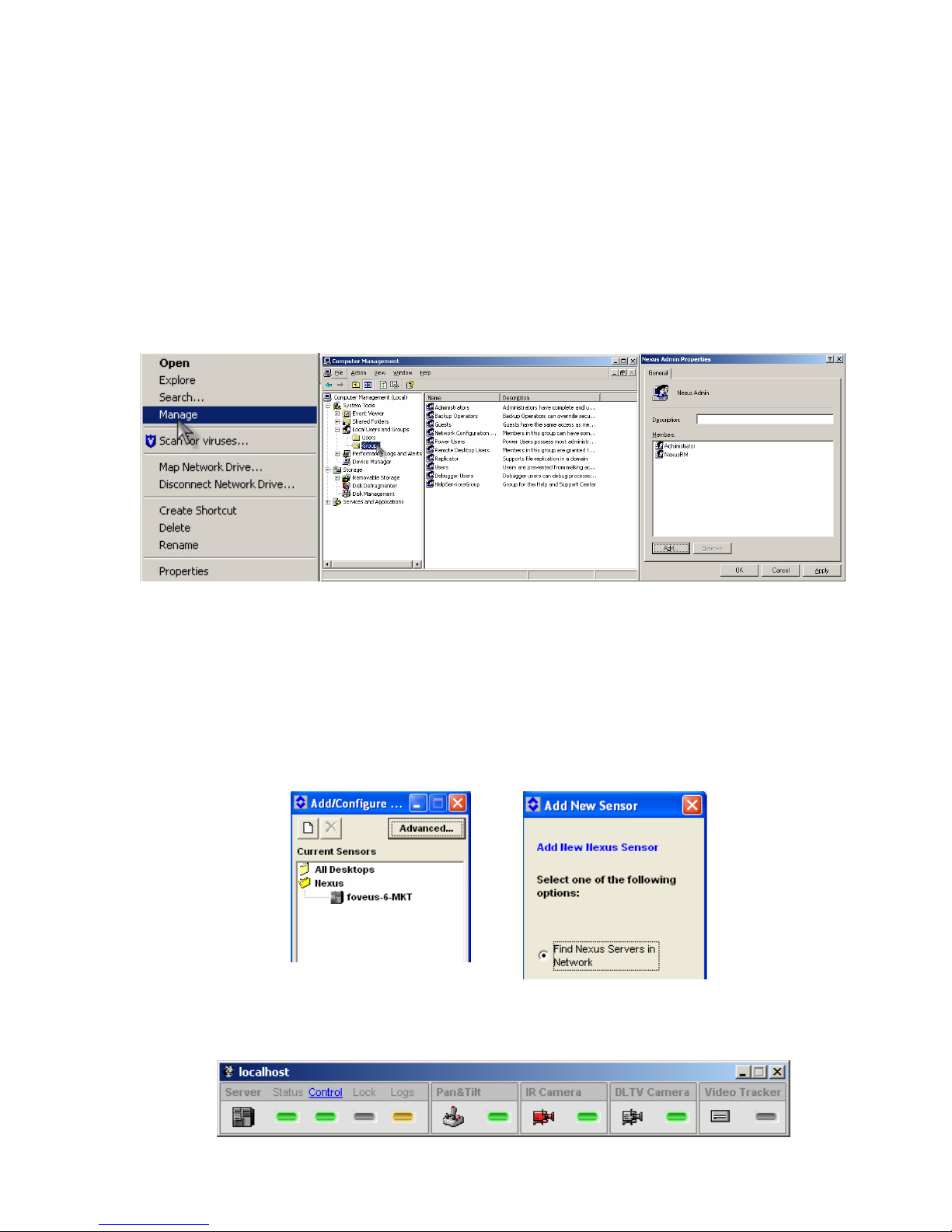

Next, create the proper Windows LOCAL User Group called Nexus Admin then assign the

group to the User you have logged in as (NOTE: Be sure to login and setup as LOCAL account

User versus a Guest setup for a domain or contact your System Administrator.) This is shown

below:

Below are the steps to remote control and stream video using the Nexus®Console:

1. Double click on Nexus®Icon on desktop and launch Nexus®.

2. Be sure to verify the IP address of the camera (Default is 192.168.250.116) and that your

PC and the camera are on the same subnet or have been routed correctly.

3. Select from the top menu pull-down Sensors->Add/Configure->Nexus Sensors.

4. Choose the white icon to “Add New Server Connection” then follow the options as

shown here below then select “ACCEPT”.

5. Once you have selected the corrected device then you can open the camera from the top

menu pull-down Sensors->Nexus->Open->”Camera Name” to view the following:

PTZ-35x140 User’s Guide 427-0011-00-10 Version 100

6. Be sure to select the “Control” (highlighted above) to establish control.

7. Next assign the joystick by selecting the Server Icon and right-click to “Assign Joystick”.

A orange rectangle box will appear on the Server Icon as shown below.

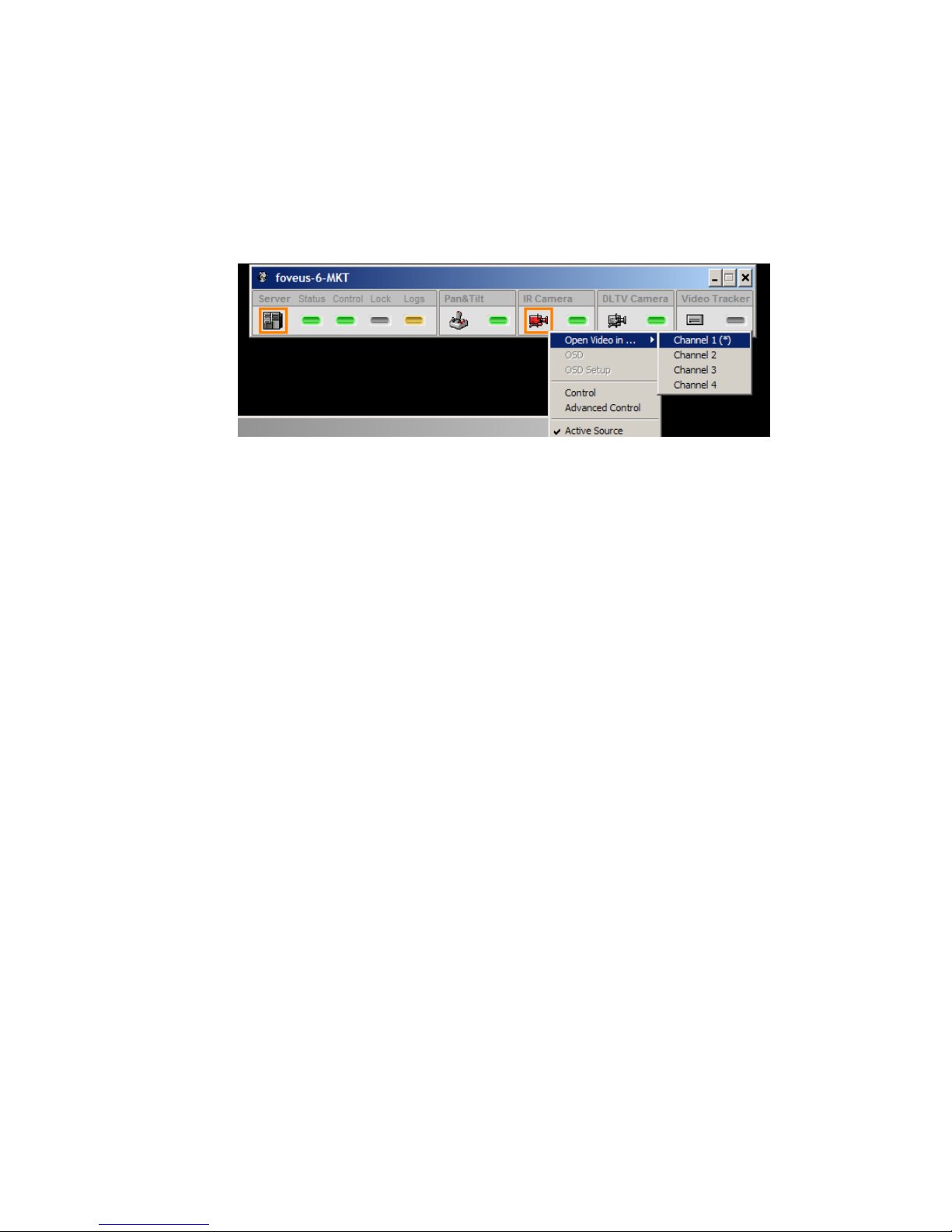

8. Next open a video channel by selecting the IR Camera Icon and right-click to open

Channel 1 for thermal as shown here:

9. Next do the same for DLTV Camera to open Channel 2 for daylight.

10. Now you are ready to use the PTZ-35x140 with the Nexus®Console!

You have now completed the basic steps for setup of the PTZ-35x140. However, it is

recommended that you read the rest of this User’s Guide.

For further instructions on Nexus® please refer to the Nexus®User’s Guide (Doc#428-0004-00-

10) or contact FLIR Support at 1-888-747-3547.
