FlexOptic FBVAD1000 Series Manuel utilisateur
FBVAD1000 Series 1-64 Channels
Video Audio Data Optical
Transmitter/Receiver User Manual
(Version 1.2)
FlexOptic
1-64ch Video Audio Data Optical
Transmitter Receiver user manual
Page 1
FlexOptic
http://www.flexopticnetworks.com
Table of Contents
1. O
VERVIEW
..................................................................3
2. F
EATURES
...................................................................3
3. T
YPICAL
A
PPLICATION
..................................................4
4. S
PECIFICATION
............................................................4
4.1. Power ........................................................................4
4.2. Video .........................................................................4
4.3. Audio .........................................................................5
4.4. Data...........................................................................5
4.5. Ethernet .....................................................................5
4.6. E1 Port.......................................................................5
4.7. Optical Port ................................................................6
4.8. Size ...........................................................................6
4.9. Environment...............................................................6
5. A
PPEARANCE
..............................................................6
5.1. Front panel of 1~16 channel transmitter .....................7
5.2. Rear panel of 1~16 channel transmitter......................7
5.3. Front panel of 1~16 channel receiver .........................7
5.4. Rear panel of 1~16 channel receiver..........................8
5.5. Front panel of 4U chassis for 17~64 channel .............8
5.6. Rear panel for 4U chassis ..........................................8
5.7. Panel of the Module ...................................................9
5.8. CWDM device............................................................9
5.9. LED Indictor ...............................................................9
6. I
NSTALLATION
&
M
AINTENANCE
..................................10
6.1. Preparation ..............................................................10
6.2. Installation Steps......................................................13
1-64ch Video Audio Data Optical
Transmitter Receiver user manual
Page 2
FlexOptic
http://www.flexopticnetworks.com
6.3. Maintenance ............................................................13
7. O
RDER
I
NFORMATION
.................................................15
7.1. Model.......................................................................15
7.2. Part Number (P/N) ...................................................15
1-64ch Video Audio Data Optical
Transmitter Receiver user manual
Page 3
FlexOptic
http://www.flexopticnetworks.com
1. Overview
FBVAD1000 series Video Audio Data Optical Transmitter
and Receiver bases on the latest optic communication
technology, provides 1-64CH video, 1-32CH bi-dir audio,
1-32CH bi-dir data RS232/RS485/RS422, 4 E1 and 100M
Ethernet over a fiber optic cable. This device is compatible
with NTSC, PAL and SECAM video, and can transmit high
quality image and real-time signal up to 40KM. The device is
widely used in CCTV, video surveillance, national defense,
and etc.
For 1-16 channel video devices, we provide two types,
one is stand-alone device, and the other is chassis. For 17-64
channel video devices, there is only chassis provided. Front
panel for the transmitter has “Video Transmitter” sign, for the
receiver has “Video Receiver” sign.
2. Features
Transports 1-64 channels of High quality video, 1-32
channels Bi-dir audio and 1-32 Bi-dir data over one
optical fiber cable
Provide optional 10/100Mbps Ethernet or 4E1 ports
Exceed RS250C Medium Haul Specification standard
8MHz video bandwidth, Compatible with NTSC, PAL and
SECAM
Uncompressed video, 8/10 Bit digital encoding/decoding
Easy installation and adjustment
1-64ch Video Audio Data Optical
Transmitter Receiver user manual
Page 4
FlexOptic
http://www.flexopticnetworks.com
Stand alone or mount in 4U height chassis
3. Typical Application
The above figure describes stand-alone device to make up of
point-to-point topology, you can change the stand-alone to a
chassis to make up of star topology.
4. Specification
4.1. Power
Stand-alone: 220VAC /-48VDC
Chassis: 220VAC/-48VDC double hot backup powers
4.2. Video
Channel: 1~64
Format: PAL/NTSC/SECAM
Signal:1Vp-p, 75Ω
Digitization: 8bits/10bits digital encoding，16M sampling
Bandwidth: 8MHz
1-64ch Video Audio Data Optical
Transmitter Receiver user manual
Page 5
FlexOptic
http://www.flexopticnetworks.com
DG: <1%
DP: <1°
SNR: >65dB
Connector: BNC
4.3. Audio
Channel: 1~32
Audio input: line input, unbalanced 600Ohms
Digitization: 16bit
Frequency: 10Hz to 20KHz
SNR: >70dB
Connector: RJ45. See the chapter 6.1.3 for the detail.
4.4. Data
Channel: 1~32
Rate: 0~23.04Kbps
Connector: RJ45. See 6.1.3 chapter for the detail.
RS232/485/422 Mode Selection: a jumper inside the machine.
For RS485/422, user can use 4-wire full-duplex mode or
2-wire single duplex mode.
4.5. Ethernet
Rate: 10/100Mbps
Double: Auto-negotiation with half/full duplex
Connector: RJ45
4.6. E1 Port
Rate:2.048Mbps ±50ppm
Mode: Unframed 75ohm and 120ohm selectable
Connector: BNC (75ohm), RJ45 (120ohm)
1-64ch Video Audio Data Optical
Transmitter Receiver user manual
Page 6
FlexOptic
http://www.flexopticnetworks.com
4.7. Optical Port
Rate: 155Mbps, 1250Mbps
Distance: Up to 120Km
Connector: FC connector
4.8. Size
1-4 channels: 162 (W) x 239 (D) x 36 (H) (mm)*
8channel: 180(W) x 239(D) x 52 (H) (mm)
16channel: 435(W) x 237 (D) x 44 (H) (mm)
4U rack: 441(W) x 340 (D) x 180 (H) (mm)
All these dimensions don’t consist of lug and other connectors
beyond the machine.
*Notes:the dimensions of machine don’t include the machine which with
the Ethernet and E1 connectors, for which the dimensions is :
180(W) x 239(D) x 52 (H) (mm)。
4.9. Environment
Storage: -40℃~ +70℃
Operating: -40℃~ +85℃
Humidity: 0-95% Non-Condensing
5. Appearance
The panel of 1~16 channel Optical Video device is almost the
same, except the number of connector and the dimension. So
we use 4 channels as example for 1~16 channels. 17~64
channels video optical device uses rack for installation.
LED and button
indicate
see 5.10 and 5.11 chapter for
detailed description.
1-64ch Video Audio Data Optical
Transmitter Receiver user manual
Page 7
FlexOptic
http://www.flexopticnetworks.com
5.1. Front panel of 1~16 channel transmitter
5.2. Rear panel of 1~16 channel transmitter
5.3. Front panel of 1~16 channel receiver
Power Input
Audio
Data Video
Fiber
LEDs
Status
1-64ch Video Audio Data Optical
Transmitter Receiver user manual
Page 8
FlexOptic
http://www.flexopticnetworks.com
5.4. Rear panel of 1~16 channel receiver
Same with the transmitter

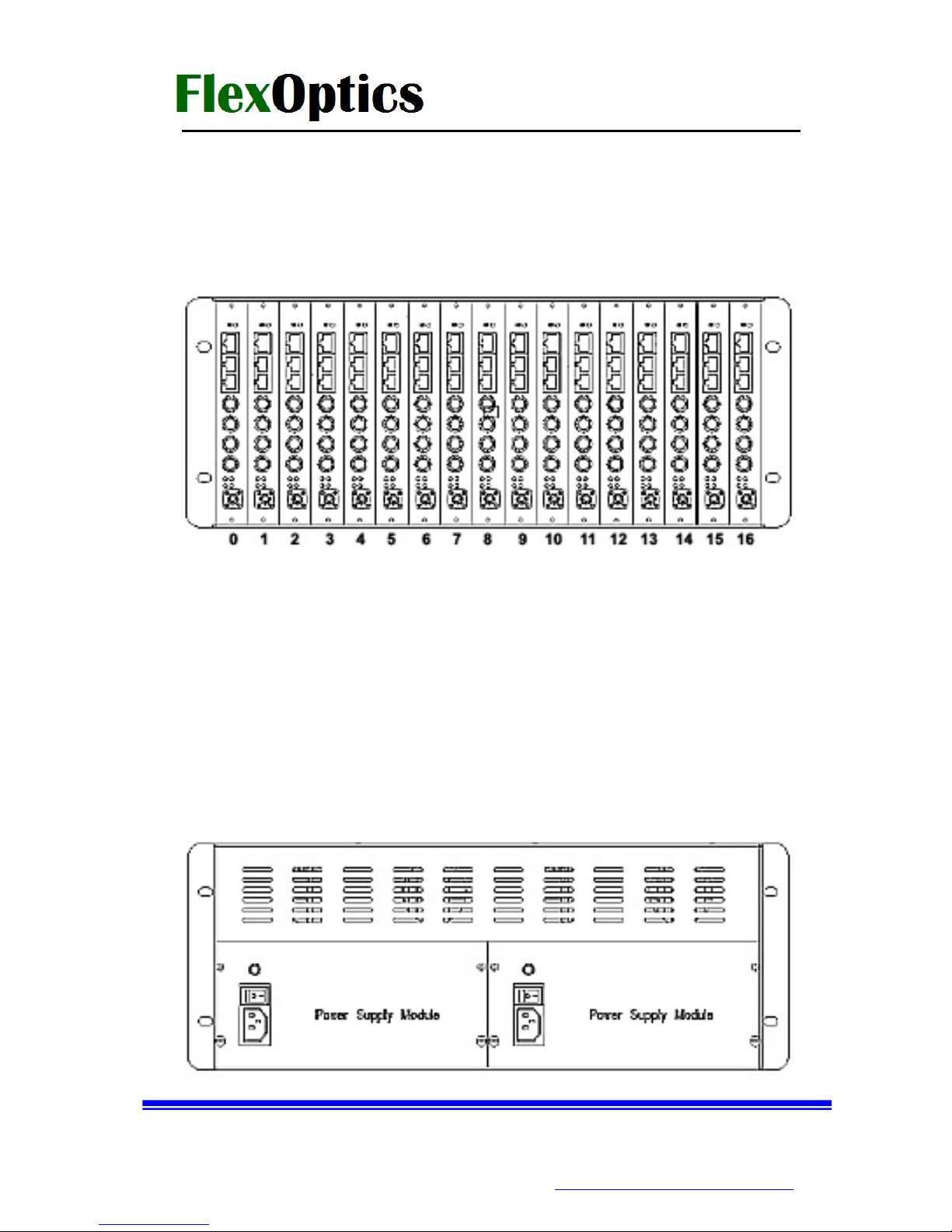

5.5. Front panel of
4U chassis for 17~64 channel
NOTE: the chassis have 17 slots. The video card, E1 Ethernet
interface card and CWDM card can be installed into any of
0～16th slots. The management card can only be installed
into 0 slots.
16-64 channel video Optical devices are made up of 1~8
channel video optical device and passive CWDM device.
5.6. Rear panel for 4U chassis
1-64ch Video Audio Data Optical
Transmitter Receiver user manual
Page 9
FlexOptic
http://www.flexopticnetworks.com
NOTE: The rear panel for 4U chassis has two power supply
modules, which support hot swap.
5.7. Panel of the Module
Panel of the Module is same with the front panel of the
stand-alone, see 5.1-5.3.
5.8. CWDM device
There two types of passive CWDM, one is module which can
be installed into any of 0～16th slots, the other is stand-alone
which can put above the chassis.
CWDM can provide up to 16 different kinds of wavelength.
The device makes it possible to transmit or receive 17~63
channels Video Audio Data in one fiber cable.
5.9. LED Indictor
Table 1 1~16 channel video transmission led indictor
LED Color Status
Description
PWR
Green ON The power supply is OK
Status
Green ON The device is running.
V1~Vx
Green ON The video transmission is ok
X : 1~16。
