Flexitron Webdyn MTX-StarWater Guide de sécurité

MTX-StarWater

Software User Guide

www.webdyn.com

contact@webdyn.com | webdyn.com

V1.0 subject to changes | Webdyn © by Flexitron Group

Index

Quick Start........................................................................................................................ 3

1. Start Up ................................................................................................................................................. 3

1.1 SIM Placement ......................................................................................................................... 3

1.2 Power ........................................................................................................................................ 3

1.3 Enable/Disable LEDs............................................................................................................... 3

1.4 Bus Connection ........................................................................................................................ 4

1.5 Switching On............................................................................................................................. 4

2. Conguration......................................................................................................................................... 5

2.1 AT Commands........................................................................................................................... 5

2.1.1 CCLK: Set Date/Time.................................................................................................. 5

2.1.2 RESET: Equipment Reset ........................................................................................... 5

2.1.3 UPDATEFW: Running the OTAP Process..................................................................... 5

2.1.4 DELETELOGGER: Clearing the Storage Memory....................................................... 6

2.1.5 GETSTATUSAPP: Reading of the Equipment Application.......................................... 6

2.1.6 DELSTATUSAPP: Clear Application State Variables................................................... 7

2.1.7 GETSTATUSNET: Reading the Status of Network Parameters.................................. 7

2.1.8 NOREQUEST: The Platform Does Not Require More Communications ................... 8

2.1.9 DELETEWINDOWS: Clearing the Read and Send Windows ..................................... 8

2.1.10 SETREADWINDOW: Setting Up a Reading Window................................................. 8

2.1.11 SETSENDWINDOW: Send Window Settings ............................................................ 9

2.1.12 GETREADWINDOW: Reading Settings From a Reading Window............................ 9

2.1.13 GETSENDWINDOW: Reading the Conguration of a Send Window ...................... 10

2.1.14 SETMODE: Test Mode............................................................................................... 10

2.1.15 SETPARAM: Modifying Conguration Parameters .................................................. 11

2.1.16 GETPARAM: Read Conguration Parameters.......................................................... 11

2.1.17 Congurable Parameters ........................................................................................ 12

2.2 Conguration Via App .............................................................................................................. 13

Sales Contact ................................................................................................................... 14

contact@webdyn.com | webdyn.com

V1.0 subject to changes | Webdyn © by Flexitron Group

Quick Start

This document contains a series of instructions to start up the MTX-StarWater [NB/2- U-N] with UNE82326

bus.

1. Start Up

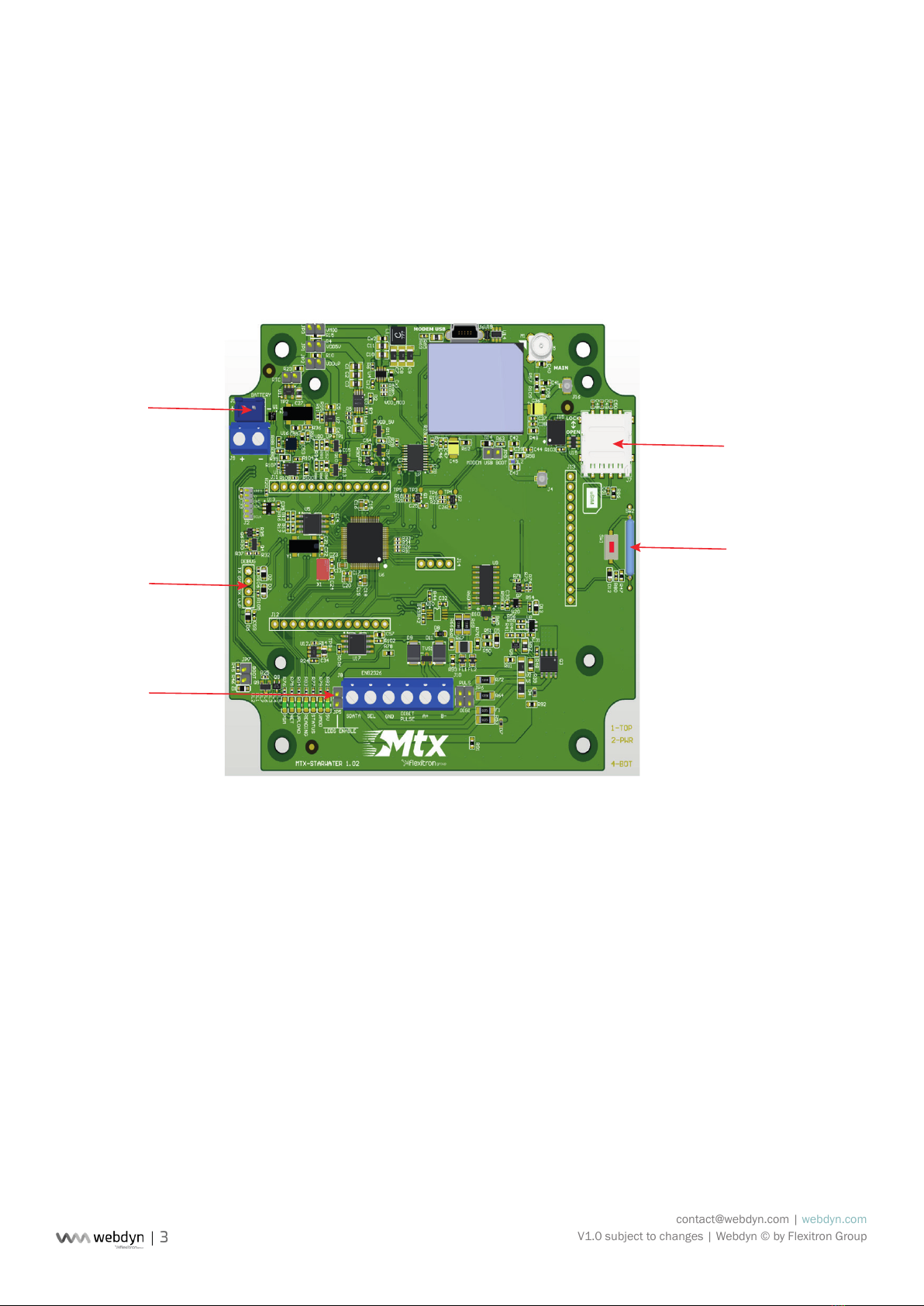

1.1

Power

Debug

LEDS

ENABLE

SIM card

socket

Magnetic

reading sensor

SIM Placement

Once the equipment is received, the rst step will be to place the SIM card in the socket. The conguration

of the SIM, if necessary, will be done with the conguration app or through the Cervello Stem platform (as

seen in the Conguration section).

1.2 Power

After inserting the SIM, the device is powered by connecting the battery to the power connector. If tests

are to be carried out, an external source with a voltage between 7v and 15v and a current of at least

500mA can be connected to avoid unnecessary battery consumption.

1.3 Enable/Disable LEDs

To increase the autonomy, the equipment has the LED indicator lights disabled by default. To enable

them, the jumper must be set to LEDS ENABLE.

contact@webdyn.com | webdyn.com

V1.0 subject to changes | Webdyn © by Flexitron Group

Once placed, you can see the status of the 5v source, the modem voltage, the status of the equipment,

whether it is performing a reading or sending of data from the meters and the status of the network and

PSM. After performing the functional checks, the jumper must be removed before closing the equipment

in order not to impair autonomy. Leaving the LEDs enabled implies a drastic decrease in the autonomy

of the equipment.

1.4 Bus Connection

To check the correct operation of the equipment, the RJ11 connector must be connected to a meter or

meter bus. This step is not necessary if you only want to congure the equipment.

1.5 Switching On

To turn on the equipment, it is necessary to pass a magnet next to the magnetic reading sensor or, if the

equipment is open, press the button labeled SW1 located next to the sensor.

Once the equipment is turned on, it will read the A/A+ frames of the meters connected to the bus and

then connect to the platform to receive several conguration parameters (such as date and time, window

conguration, etc.). After receiving the conguration parameters, the equipment will begin to send all the

frames stored in memory and will go to sleep.

Just before going to sleep, the equipment consults the read and send windows stored in memory and

congures the RTC that will wake up the equipment to carry out the pertinent operation.

If the LEDs are enabled, the Status LED will blink, indicating that the equipment is on, as well as the

Read LED while reading the meters and the Net and Upload LEDs while connecting to the platform and

sending of data.

contact@webdyn.com | webdyn.com

V1.0 subject to changes | Webdyn © by Flexitron Group

2. Conguration

Conguration can be done through the desktop application through the debug UART or through the

Cervello Stem platform.

Communication between the computer and the platform is done by executing remote AT commands

through MQTT. After establishing the connection with the platform, it must execute at least the CCLK and

NOREQUEST commands for correct operation. If you want to send several commands, you must make

sure that you always end with the NOREQUEST command, since this command is in charge of telling the

equipment that no more commands will be received. If it is not sent, the device will wait to receive it for

one minute and then restart the connection.

2.1 AT Commands

The next section will detail all the commands available up to version 7.6.

2.1.1 CCLK: Set Date/Time

The team updates the RTC with this data. The RTC will be used for the timestamp of the meter

measurements.

AT + CCLK = ”YY/MM/DD, HH: NN: SS”

OK/ERROR

Since version 5.X this command is also available:

AT^MTX=CCLK,”YY/MM/DD,HH:NN:SS”

OK/ERROR

2.1.2 RESET: Equipment Reset

The equipment will start the complete reset process (micro and modem).

AT^MTX=RESET

OK/ERROR

2.1.3 UPDATEFW: Running the OTAP Process

The equipment will start the rmware update process.

The microprocessor rmware is a *.cyacd le with x lines of text (ASCII). This le must be transmitted from

the platform to the equipment (before starting the physical rmware update process) to be stored in the

non-volatile memory of the modem (BG95-BG95).

AT^MTX=UPDATEFW

OK/ERROR

contact@webdyn.com | webdyn.com

V1.0 subject to changes | Webdyn © by Flexitron Group

Once the equipment nishes downloading the le, it will perform a reset and run in bootloader mode. The

bootloader will be in charge of reading the le and recording it line by line in the microcontroller. Once

recorded, the equipment will restart running the new rmware version.

2.1.4 DELETELOGGER: Clearing the Storage Memory

The equipment will erase all the frames stored in memory.

AT^MTX=DELETELOGGER

OK/ERROR

2.1.5 GETSTATUSAPP: Reading of the Equipment Application

The team will return a JSON with the general state of the team’s application with the accumulated

variables.

AT^MTX=GETSTATUSAPP

{ ”FW”:”<FW>”,

“LB”:<LB>,

“LA”:<LA>,

“LI”:<LI>,

“CP”:<CP>,

“NT”:<NT>,

“RO”:<RO>,

“RE”:<RE>,

“PR”:<PR>,

“VT”:<VT>,

“TA”:<TA>,

“DI”:<DI>,

“RT”:<RT>

“VBAT”:<VBAT>} OK/ERROR

Where:

<FW>: FW version of the mic

<LB>: number of bus reads executed so far

<LA>: accumulated value of the duration in seconds of the bus reading phase

<LI>: number of smart reads (activated after collisions)

contact@webdyn.com | webdyn.com

V1.0 subject to changes | Webdyn © by Flexitron Group

<CP>: number of connections to platform

<NT>: number of transmissions (packets sent)

<RO>: number of correct NB network registers

<RE>: number of bad NB network registers

<PR>: number of packets forwarded due to missing ACK

<VT>: cumulative number of transmission windows executed

<TA>: total accumulated time transmission windows

<DI>: digital input value

<RT>: medium RTT

<VBAT>: battery voltage in mV

2.1.6 DELSTATUSAPP: Clear Application State Variables

The equipment will erase the accumulated state variables.

AT^MTX=DELSTATUSAPP

OK/ERROR

2.1.7 GETSTATUSNET: Reading the Status of Network Parameters

The team will return a JSON with the parameters of the state of the network.

AT^MTX=GETSTATUSNET

{ “RSRP”:<RSRP>,

“RSRQ”:<RSRQ>,

“<SNR>”:<SNR>,

“<ECL>”:<ECL>,

“<CELLID>”:<CELLID>} OK/ERROR

Where:

<RSRP>: reference signal received power (use AT+QCSQ)

<RSRQ>: reference signal received quality (use AT+QCSQ)

<SNR>: signal to noise ratio (use AT+QCSQ)

<ECL>: Coverage Enhancement Level (AT+QCFG = ”celevel”)

<CELLID>: cell ID (use AT+QENG = ”servingcell”)

contact@webdyn.com | webdyn.com

V1.0 subject to changes | Webdyn © by Flexitron Group

2.1.8 NOREQUEST: The Platform Does Not Require More Communications

The team may decide to close the communication window with the platform, as the platform will not send

any more data. Once this command is received, if there is no data pending to be sent by the equipment,

it closes communications and goes to sleep.

AT^MTX=NOREQUEST

OK/ERROR

2.1.9 DELETEWINDOWS: Clearing the Read and Send Windows

The equipment will erase all the conguration windows for meter reading and sending windows.

AT^MTX=DELETEWINDOWS

2.1.10 SETREADWINDOW: Setting Up a Reading Window

The equipment will congure a reading window. It is exactly the same as AT ^ MTXTUNNEL = SETPARAM,

but in a single command.

AT^MTX=SETREADWINDOW,<id>,<enabled>,<start>,<end>,<period>,<mask>,<wDay>, <mDay>

Where:

id: (0… 7 indicates the reading window ID)

enabled: (0=not enabled, 1=enabled)

start: (0… 23)

end: (0… 23)

period: (300… 86400 seconds)

mask: (0… 7 type of frame to request -> 1: A/A +; 2: B; 4: C)*

wDay: (7 bits, one for each day of the week)*

mDay: (31 bits, one for each day of the month)*

* For backward compatibility, if the mask, wDay and mDay elds are set to 0, it is interpreted as a request

for A/A+ frames every day of the month and of the week.

contact@webdyn.com | webdyn.com

V1.0 subject to changes | Webdyn © by Flexitron Group

Examples:

Mask Bit 2 Bit 1 Bit 0

Type C B A/A+

I want to request frames A/A+ and B -> bits 0 and 1 have to be set to 1, leaving 0b011, so the value to

be put in “mask” is 03.

wDay Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Week day Sunday Saturday Friday Thursday Wednesday Tuesday Monday

I want to request frames on Mondays and Wednesdays -> Bits 0 and 2 have to be set to 1, leaving

0b0000101, so the value to be put in “wDay” is 05.

mDay Bit 30 Bit 29 … Bit 3 Bit 2 Bit 1 Bit 0

Day Day 31 Day 30 …Day 4 Day 3 Day 2 Day 1

I want to request frames on the 10th and 25th of each month -> Bits 9 and 24 must be set to 1, leaving

0x00100200, so the value to be set in “mDay” is 00100200.

2.1.11 SETSENDWINDOW: Send Window Settings

The team will set up a submission window. It is exactly the same as AT ^ MTXTUNNEL = SETPARAM, but

in a single command.

AT^MTX=SETSENDWINDOW,<id>,<enabled>,<start>

OK/ERROR

Where:

id: (0… 7 indicates the send window ID)

enabled: (0 = not enabled, 1 = enabled)

start: (0 … 23)

2.1.12 GETREADWINDOW: Reading Settings From a Reading Window

The team will return a JSON with the conguration of the requested reading window.

AT^MTX=GETREADWINDOW,<id>

{“data”: {

“RW”:<id>,

“EN”:<en>,

“ST”:<start>,

“ED”:<end>,

contact@webdyn.com | webdyn.com

“PR”:<period>,

“MK”:<mask>,

“WM”:<wDay>,

“MM”:<mDay>}

} OK/ERROR

The meaning of each eld is the same as that described in SETREADWINDOW.

2.1.13 GETSENDWINDOW: Reading the Conguration of a Send Window

The team will return a JSON with the conguration of the requested submission window.

AT^MTX=GETSENDWINDOW,<id>

{“data”: {

“RW”:<id>,

“EN”:<en>,

“ST”:<start>,

} OK/ERROR

The meaning of each eld is the same as that described in SETSENDWINDOW.

2.1.14 SETMODE: Test Mode

The equipment will be congured for operation mode 1 - 5.

AT^MTX=SETMODE,<mode>

Where:

<mode>: (1… 5 indicates the operating mode)

Mode 1: read/send windowless operation mode. Only congured for pushbutton operation. Check last

pages of document (test1).

Mode 2: hourly reading of 15 meters (window 0 -23 with 1 hour period). 1 transmission window per

day. Be careful that the transmission window will coincide with the reading window. Tip: if transmission

window matches reading window, suspend transmission window until reading window ends. Check last

pages of document (test2).

Autres manuels pour webdyn MTX-StarWater

Table des matières

Manuels Système de conférence populaires d'autres marques

Kramer

Kramer VIA GO Manuel utilisateur

AVT

AVT MAGIC AC1 Go Manuel utilisateur

ProSoft Technology

ProSoft Technology AN-X4-AB-DHRIO Manuel utilisateur

Sony

Sony PCS-I150 Manuel utilisateur

Middle Atlantic Products

Middle Atlantic Products VTC Series Manuel utilisateur

Prentke Romich Company

Prentke Romich Company Vanguard Plus Mode d’emploi

Speakerbus

Speakerbus iD 712 Manuel utilisateur

Trelleborg

Trelleborg SafePilot CAT PRO Manuel utilisateur

Sennheiser

Sennheiser ADN Manuel utilisateur

ADTRAN

ADTRAN NetVanta 7100 Manuel utilisateur

AINA

AINA PTT Voice Responder Manuel utilisateur

Yamaha

Yamaha ProjectPhone PJP-100H Manuel utilisateur

vissonic

vissonic VLI Series Manuel utilisateur

Panasonic

Panasonic KX-VC500 Manuel utilisateur

Poly

Poly Trio 8300 Manuel utilisateur

Crestron

Crestron Mercury CCS-UCA-SMK Dessin dimensionnel

Inmarsat

Inmarsat mini M Manuel utilisateur

Tenveo

Tenveo ALL-IN-ONE Manuel utilisateur

Flexitron webdyn MTX-StarWater Guide de sécurité

Manuels Système de conférence populaires d'autres marques
