ASSEMBLY AND USER INSTRUCTIONS

Control panel

116081EN-07

2023-02

Flexit

CI 70

Our products are subject to continuous development and we therefore reserve the right to make changes.

We also disclaim liability for any printing errors that may occur.

Flexit GO

Contents

1. Scope .............................................................................................................................4

2. Mechanical design........................................................................................................4

2.1. Mounting.......................................................................................................................... 5

3. Icon description............................................................................................................8

3.1. Status icon description:................................................................................................9

4. Sleep page & home page description..................................................................... 10

4.1. Layer consept ...............................................................................................................11

5. Settings ...................................................................................................................... 11

5.1. General description ....................................................................................................11

5.2. Adjust time date & scheduler...................................................................................12

5.3. Fan speeds ....................................................................................................................13

5.3.1. Fan speed setting page ................................................................................14

5.4. Supply air temperatures ............................................................................................15

5.4.1. Home page – mode selection .....................................................................15

5.4.2. Home page – home/away selection ..........................................................16

5.4.3. Home page – in scheduler mode...............................................................16

5.4.4. Timer functions...............................................................................................17

5.5. Information....................................................................................................................17

5.6. Alarm...............................................................................................................................18

5.6.1. Alarm mode.....................................................................................................18

5.6.2. Filter alarm.......................................................................................................19

 5HVHWȴOWHUWLPHU.............................................................................................19

 5HVHWȴOWHUDODUP..........................................................................................19

5.6.5. Filter interval....................................................................................................19

5.6.6. Acknowledge and reset A-alarm ...............................................................20

5.6.7. Acknowledge B-alarm ..................................................................................20

5.6.8. Alarm codes.....................................................................................................21

5.6.9. Alarm codes – Hardware related errors...................................................21

5.6.10. Alarm codes – Application related errors ................................................21

5.6.11. Alarm codes – Communication errors......................................................21

5.7. Expert mode .................................................................................................................22

5.7.1. Read parameter mode .................................................................................22

5.7.2. Parameter list..................................................................................................23

6. Technical data............................................................................................................ 24

6.1. Mechanical dimensions..............................................................................................24

 6SHFLȴFDWLRQ..................................................................................................................24

6.3. Maintenance .................................................................................................................26

6.4. Disposal..........................................................................................................................26

CI 70

1 Gasket for panel mounting

2 Base plate

• with screw holes for all common conduit oxes

• with gaining channels for wiring from center, up, or

bottom

3 Operator unit

1. Scope

• The CI 70 works together with all ventilation units in

the Nordic series

• The CI 70 operates control functions, such as fan and

temperature control

• The CI 70 communicates with 2-wire interface to the

controller through KNX PL-Link

2. Mechanical design

1 2 3

The subsections include important

information that is either decisive

for the sale or is essential for

engineering.

National safety regulations

Failure to comply with national

safety regulations may result in

personal injury and property

damage

• Observe national provisions and

comply with the appropriate safety

regulations.

Flexit GO

2.1. MOUNTING

150 cm

• The devices are suitable for wall mounting and panel

mounting.

•5HFRPPHQGHG KHLJKW P DERYH WKH ȵRRU

• Do not mount the devices in recesses, shelves, behind

curtains or doors, or above or near heat sources.

• Avoid direct solar radiation and drafts.

• Seal the conduit box or the installation tube if any, as

DLU FXUUHQWV FDQ D΋HFW VHQVRU UHDGLQJV

• Adhere to designated ambient conditions.

The cable to the control panel is laid between the

ventilation unit and the control panel.

The control panel is designed for concealed installation

above the wallbox.

The included cable is 12 meters. If you need a longer

signal cable, order our 24 m cable. Art.no. 118258.

The cable to the CI 70 control panel

must be at least 30 cm from the

230 V cable (including dimmers,

thermostats, etc.). Power cables

must cross the CI 70 signal cable

at a right angle. For concealed

installation, the cable is laid in 16

mm cable tubes.

When you have installed the signal

cable, pull out all cable at the CI

70 panel to avoid surplus signal

cable at the ventilation unit. A roll

of cable at the unit may cause

disruption. Cut the signal cable to

the right length before the next

step.

CI 70 control panel must be

connected to the ventilation unit

before powered ON.

After power ON it takes approx.

3 min before the control panel

is in operation.

CI 70

A6V10733771M03

SEAL

Min. 3 mm screwdriver

Flexit GO

A6V10733771M05

h>20 mm

81.4

2- 52

111.4

2- 121.2

A6V10733771M09

[mm]

Connector Pin Description

+ KNX PL-Link (positive)

- KNX PL-Link (negative)

+ brown cord

- white cord

NOTICE! Installer can choose either pair of the pins to connect.

A6V10733771M07

Wires are NOT interchangeable!

The device is protected against faulty

wiring, but communications does

not work on interchanged wires.

CI 70

3. Icon description

AUTO MODE

HOME PAGE

AWAY MODE

HOME MODE

HIGH MODE

FIRE PLACE MODE

COOKER HOOD MODE

SUPPLY AIR

EXHAUST AIR

FAN SPEED SETTINGS

ROOM TEMPERATURE

GENERAL SETTINGS

CONFIRM

CANCEL

TIMER MODE

ELECTRICAL HEATER ENABLED

ELECTRICAL HEATER DISABLED

GO BACK

ALARM

ALARM – NOT ACKNOWLEDGED

ALARM – ACKNOWLEDGED

NORMAL - ACKNOWLEDGED

SERVICE REQUEST

SERVICE – NOT ACKNOWLEDGED

SERVICE – ACKNOWLEDEGED

READ PARAMETER MODE

CONFIRM ALARM

INDICATES AN OPERABLE ELEMENT

HOME

20°C

selection icons

info icons

mode descriptions

page description

Only as examplary picture. Not a spec reference.

selection icons

set point

page description

selection icons

status icons max 3 icons

at one time

Flexit GO

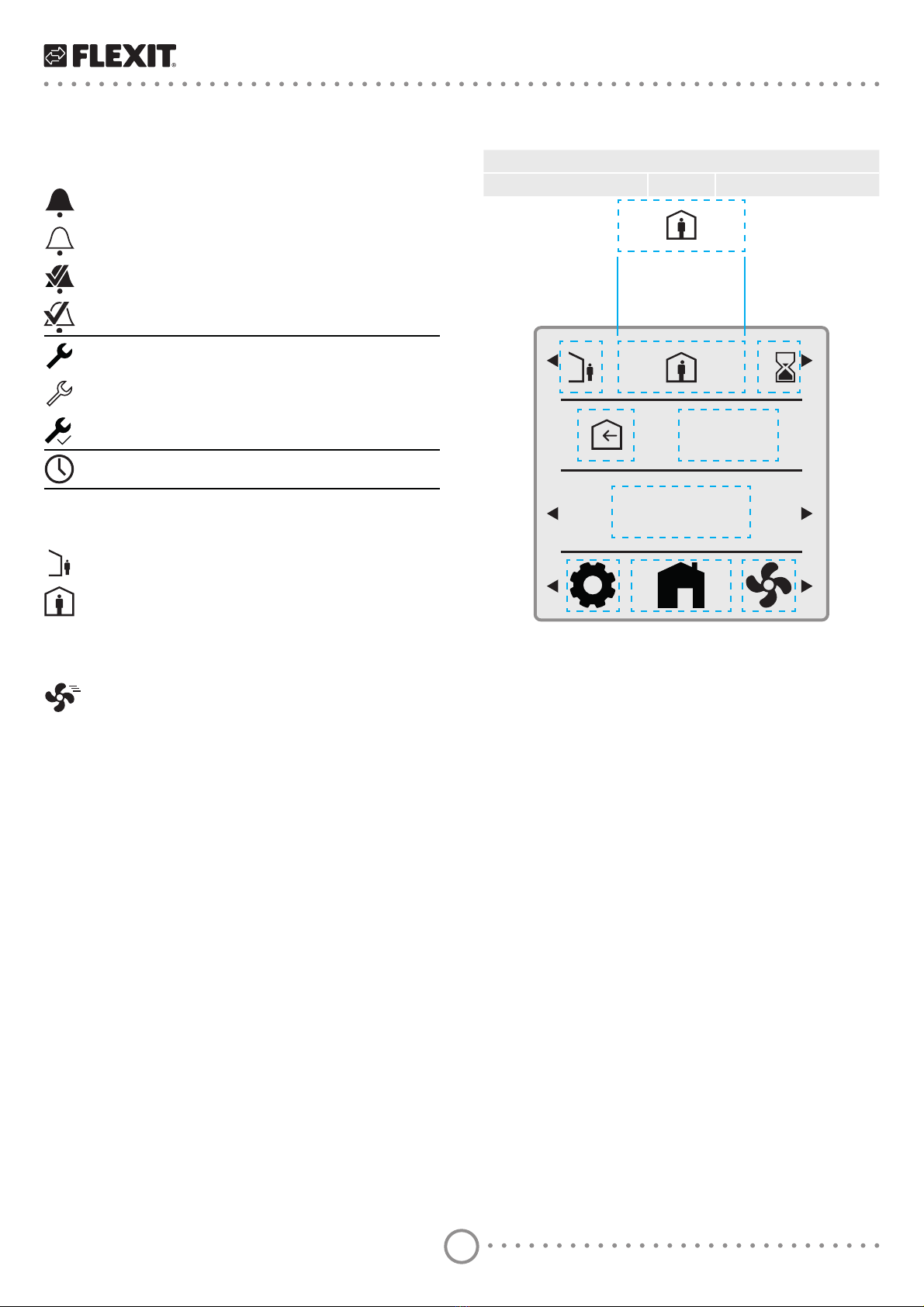

3.1. STATUS ICON DESCRIPTION:

Position 1

ALARM

ALARM – NOT ACKNOWLEDGED

ALARM – ACKNOWLEDGED

NORMAL - ACKNOWLEDGED BUT NOT RESETED

SERVICE REQUEST

SERVICE – NOT ACKNOWLEDGED

SERVICE – ACKNOWLEDEGED

AUTO MODE

Position 2

AWAY MODE

HOME MODE

Position 3

HIGH MODE

Status icons max 3 icons at one time

Icon position

123

HOME

20°C

Only as examplary picture. Not a spec reference.

CI 70

4. Sleep page & home page description

20.1°C

16:25

Sleep page

18.1°C

HOME

Home page

20.1°C

16:25

B-alarm

See section 5.6

Displays the room temperature at the panel. NB. If the panel is

LQVWDOOHGLQDFROGURRPWKHWHPSHUDWXUHPD\GL΋HUIURPWKH

indoor temperature elsewhere.

Display actual time.

%DFNOLJKWVZLWFKHVR΋DIWHUQRXVDJHLQPLQ

Display returns to sleep page after no usage in 4,0 min.

Display supply air temperature setpoint according to

operating mode.

Display actual W mode.

6HOHFWLRQRIGL΋HUHQWPRGHVSRVVLEOH

Select settings pages.

A-alarm

See section 5.6

Error code

(blinking

backlight)

(blinking

backlight)
