Flebi Swan Manuel utilisateur
User’s Manual
Index
Unpacking and assembly
1. Contents of the box
2. Introduction of the handlebar assembly
3. Packed in original box
Start-up
4. Handlebar adjustment
5. Saddle adjustment
6. Brake adjustment
7. Tyre inflation
Electrical operation
8. Recharging the battery
9. Operation of the EN067 display
Folded & unfolded
10. Unfolding the ebike
11. Folding the ebike
12. Opening and closing the frame
13. Folding and unfolding the pedals
14. Handlebar folding mechanism
Unpacking and assembly
Contents of the box
The assembly of your Flebi Swan 24" is very
easy and fast!
Flebi Swan 24" is powered by a 36V / 250W
motor and has a top speed of 25 km/h.
-Take your Swan 24" out of the box
-Remove the guards
-Unfold the bike
-Insert the handlebar assembly
-Fit the seat post to the frame
Check the contents of the box:
-Flebi Swan 24" bike with battery integrated in
the frame
-Battery charger
1Video: https://youtu.be/_jXV-JIlNy4
Unpacking and assembly

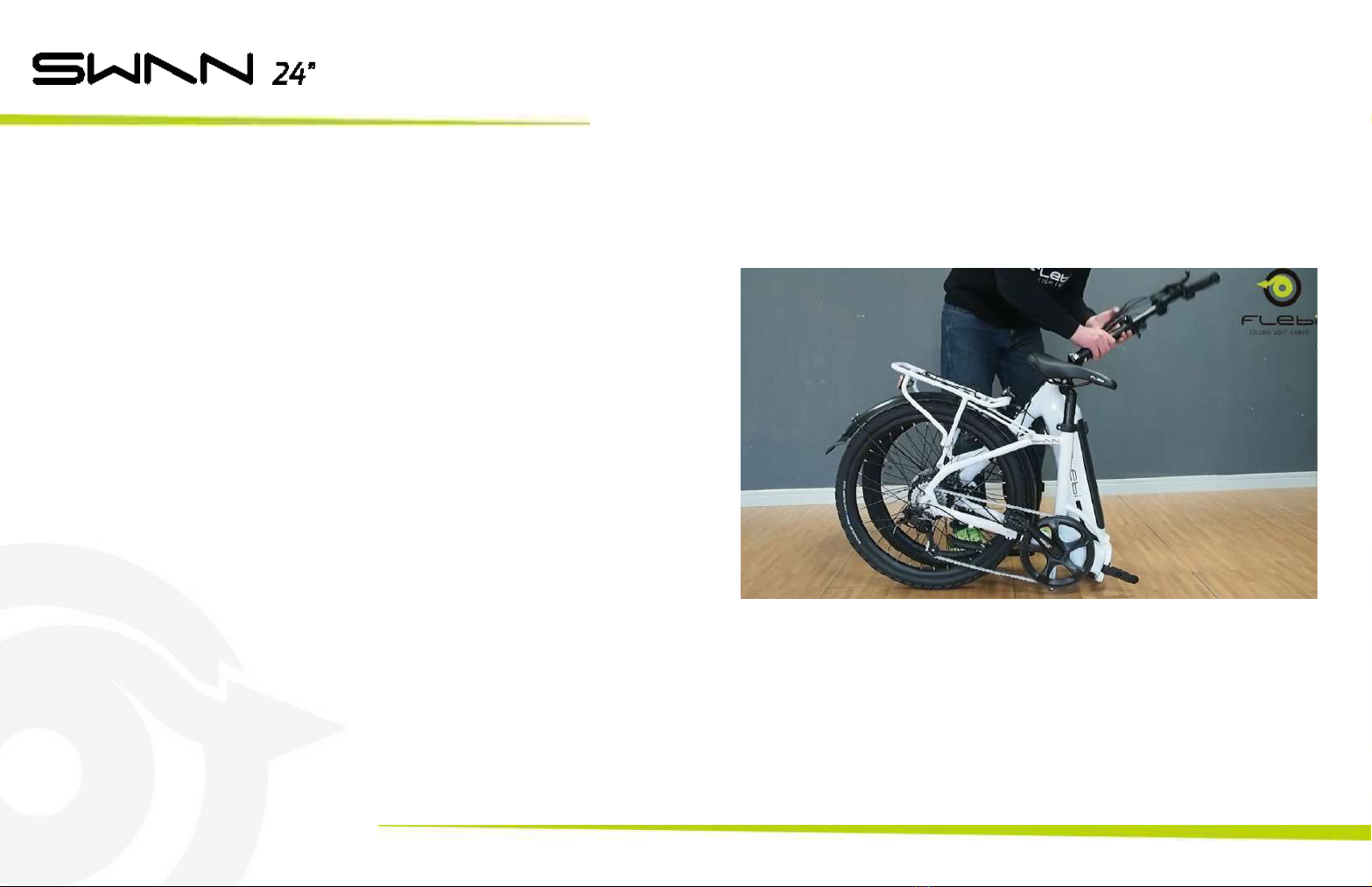

Introduction of the handlebar
assembly
To install the handlebar and telescopic
seatpost assembly that allows you to
adjust the height, you must insert it into
the stem before placing it in its natural
position, following the guides that you
will find.
Check that the cables go down cleanly
and remember to tighten the locking key
firmly.
2Video: https://youtu.be/i_O8EZp8d0M
Unpacking and assembly
Packed in original box
If you need to repack your bike in its
original box to send it to Flebi service,
we recommend that you follow the
steps below:
- Cover the parts with protection
- Remove the seat post
- Remove the handlebar assembly
- Fold the bike
- Put it in the box
- Place the cork fixing the front wheel
- Place the pedal on a guard
- Place the front folding lever inwards
- Insert the rest of the accessories and
seal the box.
3Video: https://youtu.be/_jXV-JIlNy4
Start-up
Handlebar adjustment
You can adjust the height of the
handlebars to suit your height. To do
this, open the telescopic lock and place
the seat post in the desired position,
taking care not to exceed the safety
mark. Then tighten the lock firmly so
that it does not move.
You can also use this same adjustment
to correct slight deviations in the
direction of the bike. Open the lock, turn
the handlebars to the left or right to find
the correct alignment, and retighten the
lock.
4Video: https://youtu.be/_jXV-JIlNy4
Start-up
Saddle adjustment
You can also adjust the saddle height to
suit your height. To adjust the hardness
you must tighten the thread according
to your taste. Make sure it is not too
loose or the seat post will move.
To change the angle of the saddle, you
can use a number 13 spanner to set the
saddle angle. Remember to tighten it
well.
5Video: https://youtu.be/_jXV-JIlNy4
Start-up
Brake adjustment
CAUTION: The brakes on all Flebi bikes are fully
adjusted at the factory and no adjustment is
necessary unless they become loose with use.
If you need to adjust the brake calipers on your
Flebi Swan 24", you have two types of
adjustment: for brake force and alignment.
To adjust the force, the pad on the outer face is
adjusted by cable tension. For the inner side,
you have to access from the opposite side to
bring the pad closer.
Ideally, this should be done a little at a time, to
test if it brakes cleanly.
6Video: https://youtu.be/11USSkCEYho
Start-up
Tyre inflation
To check the amount of air in the tyres,
remember that the Swan 24" carries
between 2.5 and 4.8 bar of pressure, so
it is advisable to use an inflator with a
pressure gauge.
The pressure will vary depending on the
terrain you are riding on.
7Video: https://youtu.be/KiF1wsHKZIc
Electrical operation
Recharging the battery
The battery of Swan 24" is inside the
frame but can be removed from the
frame for convenient charging.
The charging point is located on the left
side of the frame, under a rubber cover
that must be removed to access the
connector.
The LED light on the charger will turn
red indicating that it is charging, until it is
fully charged (about 4 hours), when it
will turn green, indicating that you can
disconnect.
8Video: https://youtu.be/JQFv-0pWaec
