Flat Display Technology LOF104Sxx Manuel utilisateur
FLAT DISPLAY TECHNOLOGY
LOF104Sxx V0.0
add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978
This technical specification is subject to change without notice.
1
FLAT DISPLAY TECHNOLOGY
This product is RoHS compliant
SPEC No.: SAS-1004004
Version: 0.0
Issue Date: June 25, 2010
1. Introduction:
1.1 About the Product
The LOF104Sxx 10.4” Open Frame Monitor series are rugged, high performance Industrial LCD Monitors,
designed for commercial and industrial applications, such as kiosks, arcade games, ATM Machines,
aviation simulators, military, medical, marine, security, industrial equipment, and instrumentation
equipment. This product can provide high brightness and contrast to achieve better viewing effect.
1.2 Features
10.4 inch SVGA Active Matrix Color TFT LCD Monitor
High Brightness 1200 nits
High Contrast 600:1 Typical
Recommend resolution:800600(SVGA)
OSD controls: Allow on-screen adjustments of Brightness, Contrast, RGB Auto Color Balance,
H-Position, V-position
Multi system Video Input
Signal loss backlight will be off / signal feed again backlight will be on
Quick and easy integrations for Client solutions
Universal AC Power input and auto detection video system.
Touch screen
10.4” Open Frame Monitor
Model Number: LOF104Sxx
FLAT DISPLAY TECHNOLOGY
LOF104Sxx V0.0
add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978
This technical specification is subject to change without notice.
2
2. Contents
Contents Index Page
1. Introduction…………………………………………………………………………………………………
…
1
1.1 About the product 1
1.2 Features 1
2. Contents.……………………………….…………………………………………………………………….. 2
3. Specifications………….……….………………………………………..…………………………………… 3
4. Ordering Information…………………………………………………………………………………….…. 4
5. VGA Input Format…………………………………………………………………….…………………….. 5
6. Mechanical Drawing…………………………………………………………………………………….….. 6-16
6.1 LOF104S00-K0ZR 6
6.2 LOF104S5A-K0ZR 7
6.3 LOF104S5B-K0ZR 8
6.4 LOF104S00-K1ZR 9
6.5 LOF104S5A-K1ZR 10
6.6 LOF104S5B-K1ZR 11
6.7 LOF104S03-K0ZR 12
6.8 LOF104S03-K1ZR 13
6.9 LOF104S5A-03ZR 14
6.10 LOF104S5L-K4ZR 15
6.11 LOF104S5M-K4ZR 16
7. Packing List……………………………………………………………………………….……………….… 17
8. Installing the Monitor………………...……………………………………………….……………………. 18
8.1 Power Cable Connection 18
8.2 VGA Signal Cable Connection 18
8.3 Video / S-Video Cable Connection 18
8.4 Switch On The Power 18
9. OSD Control…...…………………………………………………………………….…………………….… 16-22
9.1 Menu Operation 19-21
9.2 Operations 22
10.Trouble Shooting…………...……………………………………………………..……….………………... 23
11. Panel Mount Installation ( Mount Clamp and Screw )(Option)………………………………………….. 24
FLAT DISPLAY TECHNOLOGY
LOF104Sxx V0.0
add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978
This technical specification is subject to change without notice.
3
3. Specifications
Parameter Specifications Unit Remark
Model Name LOF104Sxx
Screen Size 10.4” (diagonal) inch
Display Format 800 x (R.G.B) x 600 dot
Display Color 262,144 colors
TFT-LCD Active Area 211.2 (H) x 158.4 (V) mm
Pixel Pitch 0.264 (H) x 0.264 (V) mm
Contrast Ratio 600:1(Typ.)
Brightness 1200(Typ.) Cd/m³
Viewing Angle -75~75(H); -50~60(V)(Typ.) deg
Input/Output Interface
Video and S-video /
D-Sub 15 pin female for VGA /
USB (A Type)or RS-232 (DB9 Female) for Touch Screen Driver
(Option)
Power Source 100-240VAC 50-60Hz, Universal / +12VDC @ 3A
Power Consumption < 16 W
Touch Screen Controller 5 wire Resistive Driver USB/ RS232 (Option)
Operating Temperature -20~70 (With 5W Touch -10~+70) ʚ
Storage Temperature -20~80 ʚ
LED Life Time 30000(Typ) hr
FLAT DISPLAY TECHNOLOGY
LOF104Sxx V0.0
add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978
This technical specification is subject to change without notice.
4
4. Ordering Information
Parameter LOF104S00-K0ZR LOF104S5A-K0ZR LOF104S5B-K0ZR Unit
CVBS 1 1 1
S-Video 1 1 1
VGA SVGA (800x600) SVGA (800x600) SVGA (800x600)
Touch Panel Type - 5W Resistive 5W Resistive
Touch Screen Interface - USB RS232
Outline Dimension 270W) x 216(H) x 35.5(D) 270W) x 216(H) x 35.5(D) 270W) x 216(H) x 35.5(D)
Weight (Include Accessory) 1.5(2.3) 1.6(2.4) 1.6(2.4)
Kg
Frame Material (Color) Iron Iron Iron
Note: Weight
10%
Parameter LOF104S00-K1ZR LOF104S5A-K1ZR LOF104S5B-K1ZR Unit
CVBS ---
S-Video ---
VGA SVGA (800x600) SVGA (800x600) SVGA (800x600)
Touch Panel Type - 5W Resistive 5W Resistive
Touch Screen Interface - USB RS232
Outline Dimension 270W) x 216(H) x 35.5(D) 270W) x 216(H) x 35.5(D) 270W) x 216(H) x 35.5(D)
Weight (Include Accessory) 1.5(2.3) 1.6(2.4) 1.6(2.4)
Kg
Frame Material (Color) Iron Iron Iron
Note: Weight
10%
Parameter LOF104S03-K0ZR LOF104S03-K1ZR Unit
CVBS 1 -
S-Video 1 -
VGA SVGA (800x600) SVGA (800x600)
PMMA
Ɉ
Ɉ
Touch Panel Type - -
Touch Screen Interface - -
Outline Dimension 270W) x 216(H) x 35.5(D) 270W) x 216(H) x 35.5(D)
Weight (Include Accessory) 1.6(2.4) 1.6(2.4) Kg
Frame Material (Color) Iron Iron
Note: Weight
10%
FLAT DISPLAY TECHNOLOGY
LOF104Sxx V0.0
add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978
This technical specification is subject to change without notice.
5
Parameter LOF104S5A-03ZR LOF104S5L-K4ZR LOF104S5M-K4ZR Unit
CVBS 1--
S-Video 1--
VGA SVGA (800x600) SVGA (800x600) SVGA (800x600)
Touch Panel Type 5W Resistive (Low Refection) 5W Resistive (Low Refection) 5W Resistive (Low Refection)
Touch Screen Interface USB USB RS232
Optical Bonding
Ɉ Ɉ Ɉ
Outline Dimension 270W) x 216(H) x 35.5(D) 270W) x 216(H) x 35.5(D) 270W) x 216(H) x 35.5(D)
Weight (Include Accessory) 1.6(2.4) 1.6(2.4) 1.6(2.4) Kg
Frame Material (Color) Iron Iron Iron
Note: Weight
10%
5. VGA Input Format
Mode Family Resolution H-Freq. (KHz) V-Freq. (KHz)
1 Mode 3 PC 640x480 31.47 (
Ё
)59.9 (
Ё
)
2 Mode 4 VESA 640x480 37.86 (
Ё
)72.8 (
Ё
)
3 Mode 5 VESA 640x480 37.50 (
Ё
)75.0 (
Ё
)
4 Mode 6 VESA 800x600 35.16 (
Ѐ
)56.3 (
Ѐ
)
5 Mode 7 VESA 800x600 37.88 (
Ѐ
)60.3 (
Ѐ
)
6 Mode 8 VESA 800x600 48.08 (
Ѐ
)72.2 (
Ѐ
)
7 Mode 9 VESA 800x600 46.88 (
Ѐ
)75.0 (
Ѐ
)
8 Mode 10 VESA 1024x768 48.36 (
Ё
)60.0 (
Ё
)
9 Mode 11 VESA 1024x768 56.48 (
Ё
)70.1 (
Ё
)
10 Mode 12 VESA 1024x768 60.02 (
Ѐ
)75.0 (
Ѐ
)
11 Mode 13 VESA 1280x1024 63.98 (
Ѐ
)60.0 (
Ѐ
)
FLAT DISPLAY TECHNOLOGY
LOF104Sxx V0.0
add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978
This technical specification is subject to change without notice.
6
6. Mechanical Drawing
6.1 LOF104S00-K0ZR
FLAT DISPLAY TECHNOLOGY
LOF104Sxx V0.0
add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978
This technical specification is subject to change without notice.
7
6.2 LOF104S5A-K0ZR
FLAT DISPLAY TECHNOLOGY
LOF104Sxx V0.0
add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978
This technical specification is subject to change without notice.
8

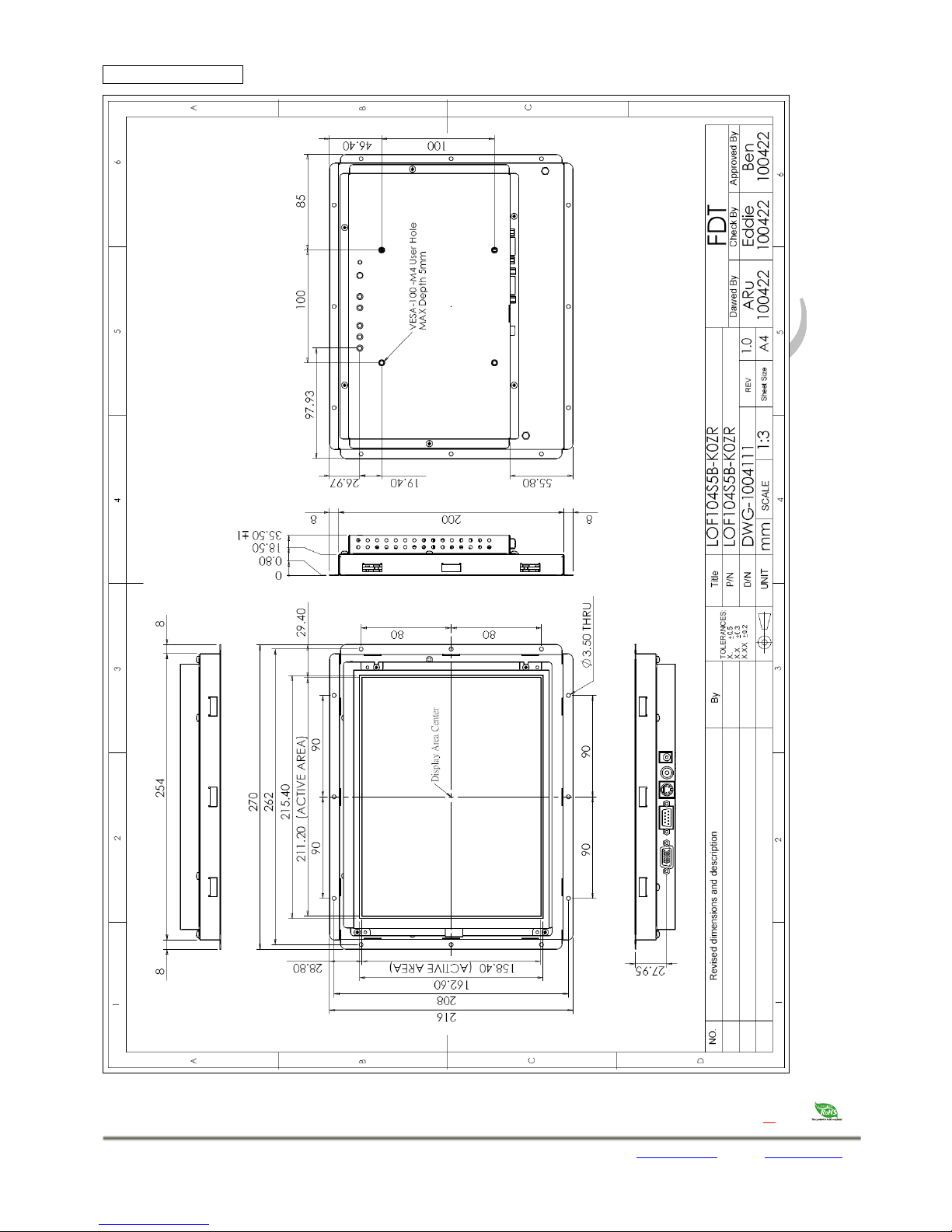

6.3 LOF104S5B-K0ZR
FLAT DISPLAY TECHNOLOGY
LOF104Sxx V0.0
add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978
This technical specification is subject to change without notice.
9
6.4 LOF104S00-K1ZR
FLAT DISPLAY TECHNOLOGY
LOF104Sxx V0.0
add: NO.85, FuHsing Road, Sec.1,South Dist., TaiChung City 402 TAIWAN R.O.C Tel: 886-4-22619577 Fax: 886-4-22623978
This technical specification is subject to change without notice.
10
6.5 LOF104S5A-K1ZR
