Fishman POWERCHIP Guide de sécurité

Powerchip

PPiieezzoo//MMaaggnneettiiccOOnnbbooaarrddMMiixxiinnggPPrreeaammpp

OWNER’S MANUAL • INSTALLATION GUIDE

PPiieezzoo//MMaaggnneettiicc

OOnnbbooaarrddMMiixxiinnggPPrreeaammpp

Thank you for purchasing this Fishman Powerbridge accessory. We are con-

fident that the Powerchip will significantly enhance the performance of your

Powerbridge system. If you have any questions or comments, please con-

tact our Customer Service Line at 978-988-9665.

Warning

Installation of the Powerchip may require structural modification to the gui-

tar. We strongly recommend that any modifications be performed by a com-

petent repair person. Fishman Transducers will be in no way responsible for

damages to the guitar, incurred as a result of improper installation.

Description and Features

The Powerchip is a miniature onboard Piezo/Magnetic pickup mixing pre-

amp, dedicated to the Fishman Powerbridge system. The preamp, mounted

to the underside of a volume pot, allows guitarists to combine or split Piezo

and Magnetic pickups without any additional outboard signal routing elec-

tronics.

The Powerchip features an independent Piezo volume control, and internal

“set it and forget it” Phase and Piezo Trim controls. A “smart” electronic

switch in the Powerchip circuit automatically routes Piezo and Magnetic

pickup signals to either stereo or mono signal paths.

Powerchip

Piezo/Magnetic Outboard Mixing Preamp

Mono Operation

Plug a standard mono instrument cable into the output of the Powerchip

equipped guitar and combine the Magnetic and Piezo signals into a single

buffered composite, suitable for any available instrument level audio input.

Powerchip

Stereo Operation

Plug a stereo “Y” cable into the output of the Powerchip equipped guitar and

split the Magnetic and Piezo pickup signals to separate destinations. Send

the buffered Piezo signal (Ring) to any instrument level audio input, such as

an acoustic instrument amplifier or PA system. Send the unbuffered,

“immaculate” Magnetic pickup signal (Tip) to a traditional electric guitar

amplifier, with no added coloration or signal treatment between the Magnetic

pickup and the amplifier.

Piezo/Magnetic Outboard Mixing Preamp

Piezo Trim and Phase

Adjust the small rotary trim pot on the backside of the Powerchip to match

Piezo and Magnetic pickup levels.

Move the Phase jumper on the backside of the Powerchip to eliminate phase

cancellation between the Piezo and Magnetic pickups.

Prepare the Instrument

TELECASTERTM

STYLE GUITARS

File or sand down the corners of

the 9-Pin Jack to fit the standard

TelecasterTM mounting hole.

STRATOCASTERTM STYLE GUITARS

You will need to drill out the back wall of the jack cavity to accommodate the

supplied 9-Pin Jack. Remove the output jack from the jack plate, then

replace the jack plate on the guitar. Use a pencil through the jackplate to

mark the center where your drill will enter the back of the jack cavity. Use a

3/4” (19mm) spade bit to drill out the back of the jack cavity.

Powerchip

Piezo/Magnetic Outboard Mixing Preamp

Installation and Connections

WARNING:

The solder pad terminals and the adjacent components on the

Powerchip circuit board are quite fragile and can be easily overheated. Use

only a low wattage soldering iron (30 watts max) to make your wire connec-

tions. To best utilize the space inside the guitar, solder the wires to the cir-

cuit board so that they exit toward the volume pot terminals.

1. Strip 3/32” (2.4 mm) and tin the wire ends of the pickups

2. Solder the Piezo pickup wire to the circuit board

The pads are located on the side of the board opposite the volume pot. The

Piezo hot wire goes to the pad on the right edge of the board, directly under

and to the right of the little white trimmer pot. Solder the Piezo ground wire

(which should be left with the braid intact), to the pad labeled “G” on the

right edge of the board, directly under the Piezo hot wire.

Powerchip

Installation Continued

3. Solder the Magnetic pickup hot wire to the circuit board

The pad for the hot wire is located on the same side of the board as the vol-

ume pot. This pad, labeled “M”, is on the left edge of the board, 3/4”

(19mm) from the bottom of the board. A common system ground is located

on the opposite side of the board, on a second pad marked “G”, adjacent to

the Piezo ground. Since there is room for only one wire on this pad, we sug-

gest that you tie all grounds to the body of the Magnetic volume pot, and

run a jumper wire to the ground pad on the circuit board.

NOTE:

If you install The Powerchip with active magnetic pickups (such as

EMG), the Powerchip and the active pickups will share the same battery.

Connect the positive battery wire from the magnetics to the +9V pad on the

Powerchip. Connect the negative battery wire from the magnetics to termi-

nal #1 on the nine pin jack.

4. Solder the 9-Pin jack to the system

A prewired output cable from the Powerchip is to be soldered to the provided

9-Pin Jack. Prepare the jack by soldering a jumper wire between the sleeve

terminal,located on the business end of the jack, and terminal #2, directly

below.

Solder the jack as follows:

a. Solder the shield from the output cable to terminal #2.

b. Solder the red wire from the output cable to terminal #4.

c. Solder the white wire from the output cable the terminal #8.

d. Solder the black battery wire (negative) to terminal #1.

Piezo/Magnetic Outboard Mixing Preamp

Powerchip

Optional Accessories

•

Piezo-Magnetic Pickup Selector Switch

A three position switch for

selecting between Piezo and Magnetic pickup combinations.

•

Battery Compartment - A flush mounted, pivoting compartment allows

easy access and quick battery changes.

Autres manuels pour POWERCHIP

Table des matières

Autres manuels Fishman Amplificateur

Fishman

Fishman Fishman Isys III Manuel utilisateur

Fishman

Fishman PRESYS BLEND ONBOARD PREAMP Manuel utilisateur

Fishman

Fishman Loudbox Performer Manuel du propriétaire

Fishman

Fishman PRESYS PLUS Manuel utilisateur

Fishman

Fishman PREFIX PREMIUM BLEND Manuel utilisateur

Fishman

Fishman PREFIX PREMIUM BLEND Manuel utilisateur

Fishman

Fishman PRESYS I Manuel utilisateur

Fishman

Fishman MATRIX INFINITY - Manuel utilisateur

Fishman

Fishman LOUDBOX ARTIST Manuel utilisateur

Fishman

Fishman PRESYS PLUS Manuel utilisateur

Fishman

Fishman PREFIX PRO Manuel utilisateur

Fishman

Fishman Aura Manuel utilisateur

Fishman

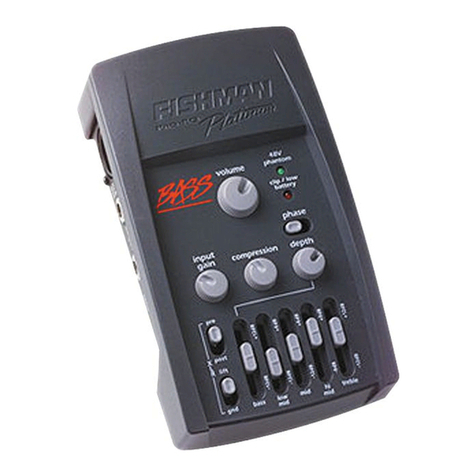

Fishman PRO-EQ Manuel utilisateur
