User Manual

Hotplate Stirrer

HPS RT2 Basic

Operation Manual 9240-11-011

Thermo Scientific

MANUAL NUMBER 9240-11-011

0 -- 11/15/13 Original ccs

REV ECR/ECN DATE DESCRIPTION By

Preface

Hotplate Stirrer i

Important Before using this product, read this entire operation manual carefully. Users should

follow all of the operational guidelines contained in this manual and take all necessary safety

precautions while using this product. Failure to follow these guidelines could result in potentially

irreparable bodily harm and/or property damage. ▲

Caution All internal adjustments and maintenance must be performed by qualified service personnel. ▲

Material in this manual is for information purposes only. Thermo Fisher Scientific is committed to a continuing

program of product development and improvement, and reserves the right to change information, such as

specifications, appearance, and dimensions, described in this document without notice. Thermo makes no

representations or warranties with respect to this manual. In no event shall Thermo be held liable for any

damages, direct or incidental, arising out of or related to the use of this manual.

No part of this manual may be reproduced or transmitted in any form or by any means, including

photocopying, recording, or using information storage and retrieval systems, for any purpose other than the

purchaser's own use, without the express written permission of the manufacturer.

Any other product names and services identified in this manual are trademarks or registered trademarks of their

respective owners. No such use, or the use of any trade name, is intended to convey endorsement or other

affiliation with Thermo Fisher Scientific.

Thermo Scientificii Hotplate Stirrer

Preface

This manual contains important safety and operation information. You must carefully read, understand, and

follow all the instructions in this manual prior to operating this instrument. Keep this manual in a safe place

nearby for reference and make it easily available to all users.

1) This manual highlights DANGER/WARNING/CAUTION/NOTICE alerts to prevent injury or property

damage and also to achieve optimum performance of your instrument.

(2) These alerts are classified into four types in this manual depending on the importance and the risk levels as

described below:

3) The claim which is out of the quality guarantee published by the Manufacturer is out of Manufacturer’s

responsibility.

4) The damage which is from unexpected fault or damage of user by Acts of God is out of Manufacturer’s

responsibility.

Symbols Meaning

Indicates a hazardous situation which, if not avoided, will result in

death or serious injury.

Ignoring this warning could cause serious injury or even death.

Ignoring this caution could cause injury or property damage.

Ignoring this notice could cause operational problems.

Thermo Scientific Hotplate Stirrer iii

Preface

Do You Need Information or Assistance on

Thermo Scientific Products?

If you do, please contact us 8:00 a.m. to 6:00 p.m. (Eastern Time) at:

1-740-373-4763 Direct

1-800-438-4851 Toll Free, U.S. and Canada

1-877-213-8051 FAX

http://www.thermoscientific.com Internet Worldwide Web Home Page

service.led.marietta@thermofisher.com Tech Support Email Address

Certified Service Web Page

Thermo Fisher Scientific

401 Millcreek Road, Box 649

Marietta, OH 45750

Our staff can provide information on pricing and give you quotations. We can

take your order and provide delivery information on major equipment items or make

arrangements to have your local sales representative contact you. Our products are listed on the

Internet and we can be contacted through our Internet home page.

Our staff can supply technical information about proper setup, operation or

troubleshooting of your equipment. We can fill your needs for spare or replacement parts or

provide you with on-site service. We can also provide you with a quotation on our Extended

Warranty for your Thermo Scientific products.

Whatever Thermo Scientific products you need or use, we will be happy to discuss your

applications. If you are experiencing technical problems, working together, we will help you

locate the problem and, chances are, correct it yourself...over the telephone without a service

call.

When more extensive service is necessary, we will assist you with direct factory trained

technicians or a qualified service organization for on-the-spot repair. If your service need is

covered by the warranty, we will arrange for the unit to be repaired at our expense and to your

satisfaction.

Regardless of your needs, our professional telephone technicians are available to assist you

Monday through Friday from 8:00 a.m. to 6:00 p.m. Eastern Time. Please contact us by

telephone or fax. If you wish to write, our mailing address is:

International customers, please contact your local Thermo Scientific distributor.

Sales Support

Service Support

www.unitylabservices.com

Hotplate Stirrer ivThermo Scientific

Table of Contents

Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1

General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2

Ease of Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3

Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4

Durability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4

Unpacking and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

Installation Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

Connecting to Main Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2

Location Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1

Heater Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2

Stirrer Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1

Cleaning Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1

Relocation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2

Keeping Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1

Support Rod Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1

Transparent Shield & Heating Bath Assy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-2

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1

Disposing of the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-2

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-1

Section 1

Section 2

Section 3

Section 4

Section 5

Section 6

Section 8

Section 7

Section 9

Hotplate Stirrer 1-1Thermo Scientific

Section 1 Warnings and Cautions

Ignoring the following warnings could cause serious injuries or even fatal

accidents.

Always wear proper protective gear (such as goggles, gloves, masks or an

apron) when using this instrument.

Never install or use this instrument in explosive atmospheres.

Never use the instrument to heat flammable liquids.

Never install this instrument near to hazardous or flammable substances.

Never immerse this instrument in water or operate it under water

Never reach for this instrument if it has fallen into water.

Check electrical requirements described in this operation manual or on the

ID plate of this instrument before use. Connect this instrument to a

dedicated power outlet nearby.

Make sure to connect this instrument only to properly grounded power

outlets to protect you and your instrument. Do not ground to gas

pipes or water pipes.

Do not install this instrument closer than 30 cm (12 inches) to a wall of

combustible material. And observe the minimum distances (in general,

30 cm) from other devices.

If you observe a strange smoke, odor or noise from the instrument, unplug

the power cord immediately and turn off the main power switch. After

the smoke or odor disappears, contact your dealer or Thermo Scientific

if any repair is required.

Do not disassemble, repair, or modify this instrument on your own. Doing

so will void your warranty and may result in injuries or product

damages.

1-2 Hotplate Stirrer Thermo Scientific

Section 1

Section title

Ignoring the following cautions could cause injuries or property damages..

Do not touch the top plate or any object near it even when the heater is

turned off. You may get burned due to residual heat.

After using this equipment, make sure to turn off the main power switch

and also to disconnect the power cord from the power outlet for the

safety of other users.

Do not place heavy objects, including this equipment, on top of the

power cord and do not strip, scratch, bend, twist, pull, or heat the

power cord. A damaged power cord is a fire and electrical shock hazard.

Do not allow moisture or water to get into the instrument. Fire or electri-

cal shock may result.

Beware of the effects of the magnetic field generated by this instrument.

Magnetic field can affect certain devices such as cardiac pacemaker, data

storage media, and so on.

Make sure to set up your instrument on a flat, stable, clean, non-slip, dry,

and fireproof surface inside a lab with proper safety measures.

Do not place any device which can be affected by the motor vibrations

near this equipment.

Do not touch the power outlet, power socket, or power cord with wet

hands. And make sure to connect the power cord directly and firmly to

the power outlet and power socket.

Do not put or insert any objects (especially if conductive or flammable)

inside this equipment.

Beware that mechanical shock or vibration can damage this equipment

and pay extra attention while moving it. Damages caused by mechanical

shock or vibration may result in injury or fire.

Do not impact the heat sink. You can damage the equipment or get

injured.

Do not install this equipment near any device that generates high fre-

quency noise such as high frequency welding machines, high frequency

sewing machines, or SCR power controllers.

Before cleaning, make sure to unplug the power cord to avoid electric

shock or fire.

Do not use chlorine bleach, ammonia-based cleaners, abrasives, ammonia,

or metal scouring pads. Wipe with a soft damped cloth or a sponge

soaked in water or diluted neutral detergent.

Hotplate Stirrer 2-1Thermo Scientific

Section 2 General Description

Congratulations of your purchase of a Thermo Scientific hotplate which is

specially designed to provide maximum benefit for your investment with

respect to performance, safety, ease of use, and durability.

HPS RT2 Basic model boasts fast heat up time (with 600W heating

capacity), fast and precise stirring speed (up to 2000 rpm), and big stirring

capacity (up to 20 liter in case of water).

Item/Model HP RT2 Basic

Dimension (W x D x H, mm) 161 x 290 x 100

Top plate dimension (Ø) 140 mm (5.5”)

Maximum heating capacity 600W

Current consumption (230V) 3A

Current consumption (120V) 5A

2-2 Hotplate Stirrer Thermo Scientific

Section 2

General Description

Performance Features

• Virtually No Decoupling of Stir Bars - By adopting a special magnet

with exceptionally strong magnetic coupling power as well as smooth-

start stirring mechanism, you will experience virtually no decoupling of

magnetic stir bars even with viscous media or at high speeds.

• Quick Heat Up Time - High heat transfer rate of the tightly integrated

structure of heater and ceramic-coated aluminum alloy top plate allows

quick heat up (up to 350°C).

• Fast and precise stirring speed - Fast and precise stirring speed (up to

2,000 rpm) even at high temperatures is made possible thanks to the

combination of a powerful and precise brushless DC (BLDC) motor

and a special magnet with extremely strong magnetic coupling power.

• Big Stirring Capacity - The BLDC motor and the special magnet also

provide big stirring capacity (up to 20 liter in case of water).

• Constant Stirring Speed - The feedback control design of this

instrument allows you to have constant stirring speed even when the

viscosity of the media changes during operation.

• Instant Halt of the Stirring Operation - Due to the exceptionally fast

response characteristics of the BLDC motor, the stirring operation

stops instantly when the stirrer is turned off.

Safety Features

• High Temperature Safety Limit of the Heating Plate - The default

setting of the temperature limit of the heating plate is 350°C to protect

you and your media.

• Multiple Overheat Prevention Measures - Built-in overheat prevention

circuit will turn off the heater if the top plate temperature reaches

450°C for any reason. In addition, if the temperature of the main body

exceeds 85°C, the overheat prevention circuit stops heating to protect

the motor and the PCB.

• Hot Top Warning Indicator - The top plate temperature can remain

very hot for some time even after the heater is turned off. To prevent

injury or fire under such circumstances, this instrument has a hot top

warning indicator on the control panel. This indicator will illuminate if

the top plate temperature is over 50°C. Even so, do not rely on this

indicator alone for your safety.

Features

Safety Features (continued)

• Heating Bath (Patent Pending) (optional) - A specially designed non-

slip heating bath shown below is available as an option. To prevent

unintentional slips of the bath during operation, this bath has concavo-

convex bottom shown below so that it fits snugly on top of the top

plate.

• Transparent Shield (optional) - A transparent shield is also available to

allow you to monitor your operations more safely by shielding you

against decoupled stir bars or liquid splashes.

• Two large digital displays show top plate temperature, heating level,

stirring speed as well as the set time and the remaining time for the

timer operation.

• When setting the timer, stirring time and heating time can be set

independently or even together, if needed.

• With two separate knobs for heat and speed control, you can set

heating level and/or stirring speed fast and with ease.

• You can easily set your own temperature limit at any value between 50

and 350°C.

• Up to two support rods (optional) can be attached to hold various

kinds of devices such as temperature sensors, thermometers, laboratory

glassware, and so on.

Hotplate Stirrer 2-3Thermo Scientific

Section 2

General Description

Features (continued)

Ease of Use

Table des matières

Autres manuels Fisher Scientific Équipement de laboratoire

Fisher Scientific

Fisher Scientific Fisherbrand Isotemp FBG Series Manuel du propriétaire

Fisher Scientific

Fisher Scientific Fisherbrand accuSpin Micro Series Manuel utilisateur

Fisher Scientific

Fisher Scientific accumet AR50 Manuel utilisateur

Fisher Scientific

Fisher Scientific 106146 Manuel utilisateur

Fisher Scientific

Fisher Scientific 88861021 Manuel utilisateur

Fisher Scientific

Fisher Scientific Fisherbrand 88861027 Manuel utilisateur

Fisher Scientific

Fisher Scientific 11-718 Manuel utilisateur

Fisher Scientific

Fisher Scientific Isotemp Plus 13-986-142A Manuel utilisateur

Fisher Scientific

Fisher Scientific 280A Manuel utilisateur

Fisher Scientific

Fisher Scientific Finnpipette II Manuel utilisateur

Fisher Scientific

Fisher Scientific MARATHON 3000 Manuel d'installation

Fisher Scientific

Fisher Scientific 150 Homogenizer Manuel utilisateur

Fisher Scientific

Fisher Scientific FB-705 Manuel utilisateur

Fisher Scientific

Fisher Scientific Isotemp Plus 13-986-120 Manuel utilisateur

Fisher Scientific

Fisher Scientific Bead Mill 24 Manuel utilisateur

Fisher Scientific

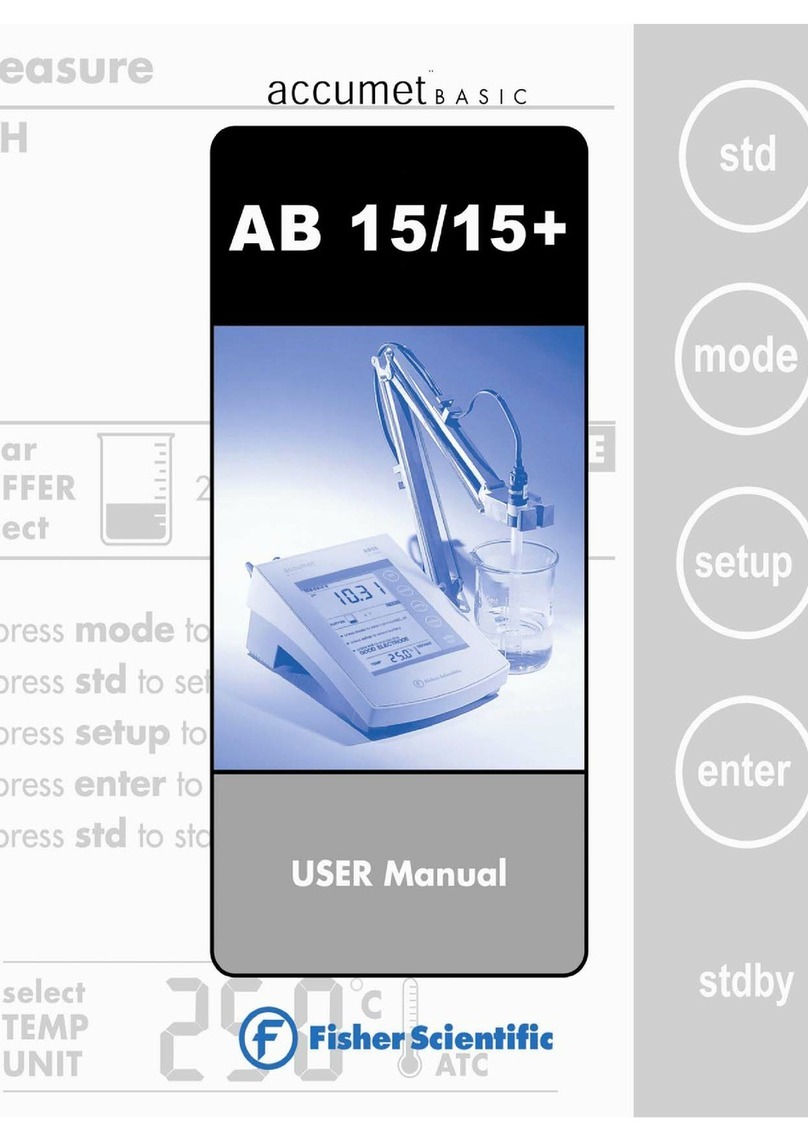

Fisher Scientific accumet BASIC AB 15 Manuel utilisateur

Fisher Scientific

Fisher Scientific 15212985 Manuel utilisateur

Fisher Scientific

Fisher Scientific 88861041 Manuel utilisateur

Fisher Scientific

Fisher Scientific Isotemp 11-800-49S/.57A Manuel utilisateur

Fisher Scientific

Fisher Scientific Isotemp Plus 13-986-120A Manuel utilisateur

Fisher Scientific

Fisher Scientific Fisherbrand GT2 Manuel utilisateur

Fisher Scientific

Fisher Scientific Finnpipette Manuel utilisateur

Fisher Scientific

Fisher Scientific accuSpin 1R Manuel utilisateur

Fisher Scientific

Fisher Scientific Isotemp Manuel utilisateur

Manuels Équipement de laboratoire populaires d'autres marques

Qiagen

Qiagen DML 3000 Manuel utilisateur

Queensgate

Queensgate NANOSCAN OP400 Manuel de programmation

Conviron

Conviron GEN1000-GE Manuel utilisateur

Parr Instrument

Parr Instrument 4560 Mode d’emploi

IKA

IKA IC control Manuel utilisateur

Integra

Integra DOSE IT Manuel utilisateur

Agilent Technologies

Agilent Technologies 5800 ICP-OES Manuel utilisateur

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Manuel utilisateur

NI PXI-5422 Manuel

Collomix

Collomix Aqix Manuel utilisateur

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Manuel utilisateur

Ocean Insight

Ocean Insight FLAME-NIR+ Manuel utilisateur

Parker

Parker ALIGN-MG-NA Manuel utilisateur

BD 644787 Manuel utilisateur

DENTAURUM

DENTAURUM Compact Megaplus Manuel utilisateur

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Manuel utilisateur

VWR

VWR SAS Super IAQ Manuel utilisateur

illumina

illumina MiSeqDx Manuel utilisateur
