PHYSICAL LEARNING ARCADE SYSTEM
TM
2
Get up. Get smart. Get going!
It’s a stationary bike, a learning center, and an arcade game
system – all rolled into one! Smart Cycle™plugs right into your
TV, ready to take kids on learning adventures like no other.
As they pedal, favorite character friends guide them through
learning discoveries, games, and even exciting races.
Drive
Pedal, steer and learn at your own pace – visit Math Mountain,
Shape Lake, Number Fields, Letter Creek and other stops
along the way.
Learn
Stop and rest, but don’t stop
learning! Use the joystick to rein-
force important learning skills with
plenty of games and activities – with
different levels for growing kids.
Race
Put the pedal to the metal as you race
with cars on-screen, against the clock,
or with another player!
Learning Adventure Game Cartridge
with Key Ring
2 Pedals
(Left and Right)
Assembly Tool
Note: Tighten and loosen all screws with a Phillips screwdriver. Do not over-tighten screws.
#8 x 1" Screws – 6
Shown Actual Size
#10 x 11/2" Screws – 4
3

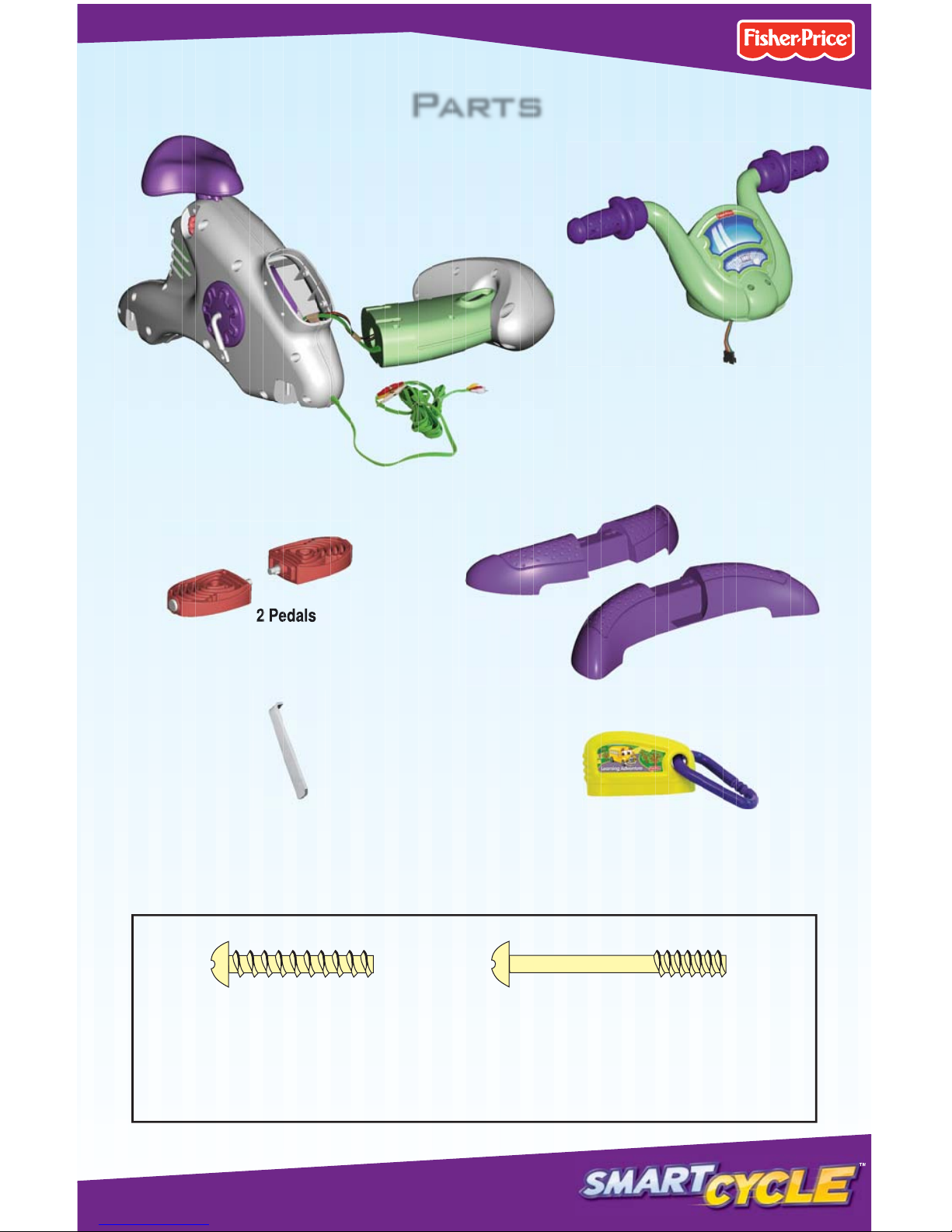

Parts
Back Base
(Narrow)
Handlebar
Front Base
(Wide)
Frame
with Console
and Plug-and-Play Cord
Adult assembly is required. Tools needed for assembly:
Phillips screwdriver (not included) and assembly tool (included).
TM

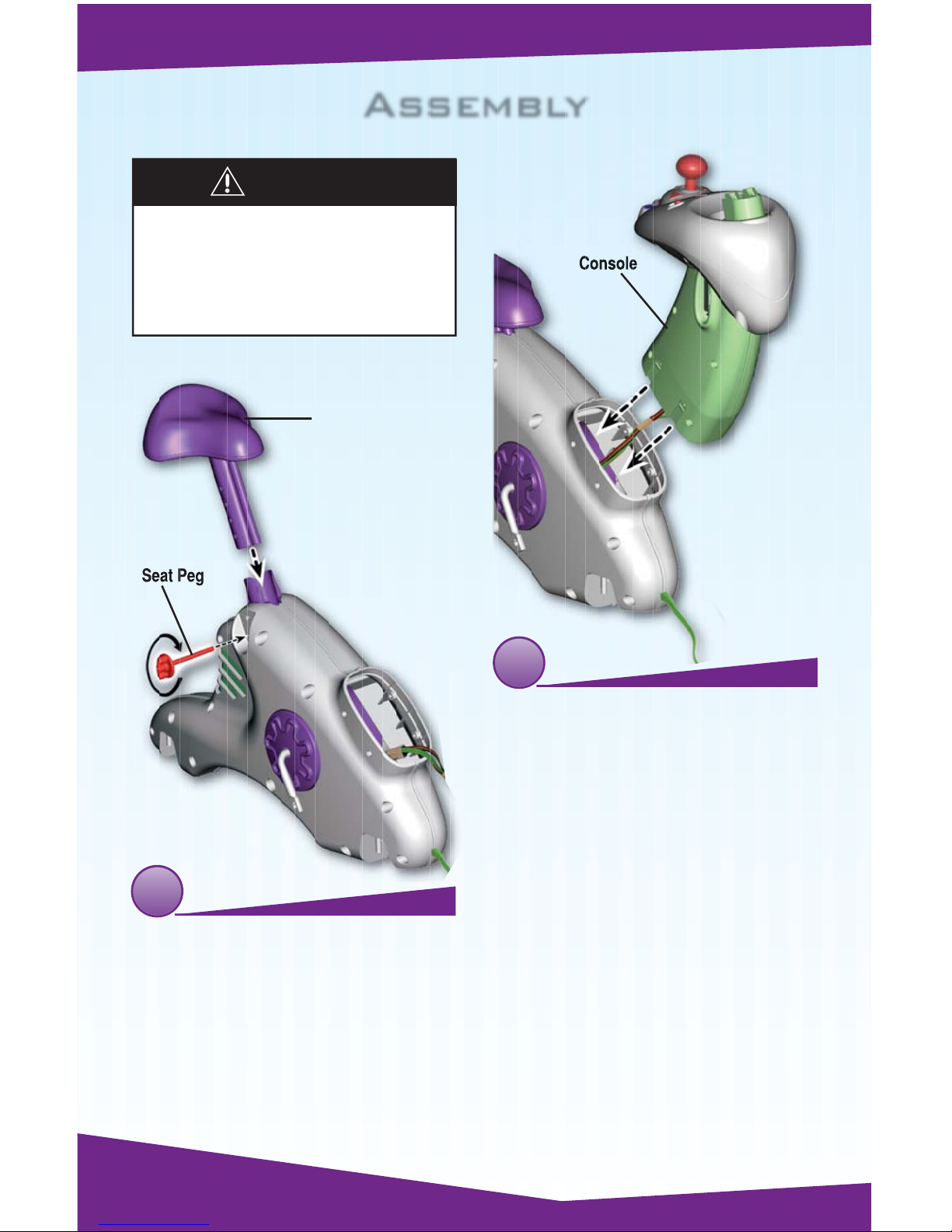

• Turn to remove the seat peg from the frame.
• Insert the seat into the slot in the frame.
• Replace the seat peg and turn to secure.
Hint: You can adjust the seat height (higher
or lower) for your child's comfort. Simply
remove the seat peg and lift or lower the seat.
Replace the seat peg to secure the seat.
Seat
Seat Peg
Console
• While tucking the wires into the frame, fit
the console into the frame.
Assembly
1
4
2
This product contains
small parts in its
unassembled state. Adult
assembly is required.
CAUTION

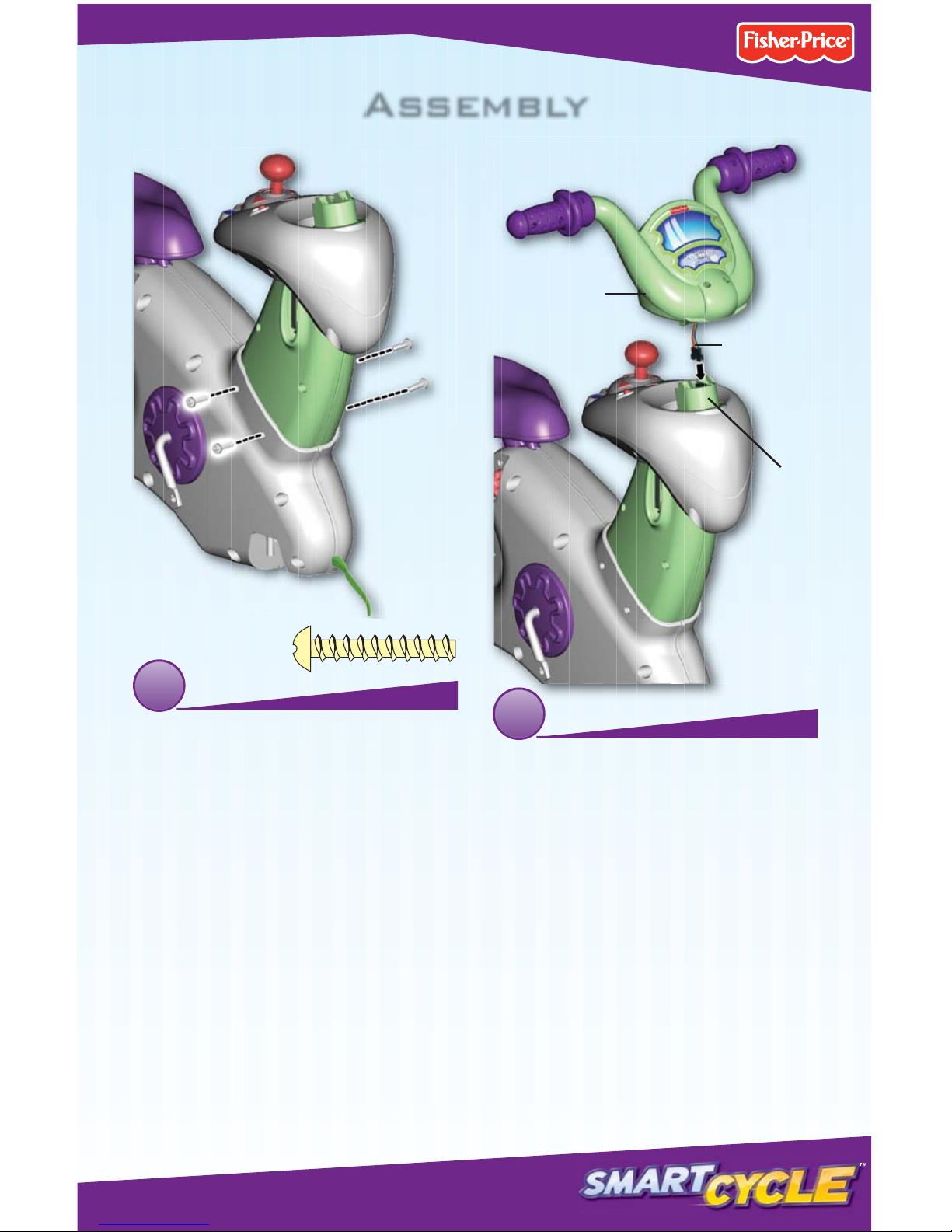

• Align the screw holes in the frame and
console. Insert four #8 x 1" screws
through the frame and into the console.
• Tighten the screws.
• First, plug the handlebar connector into
the socket in the console.
Hint: The connector will only fit one way into
the socket. If it does not seem to fit, turn it
around and try again!
Handlebar
Connector
Assembly
5
34
Post
TM

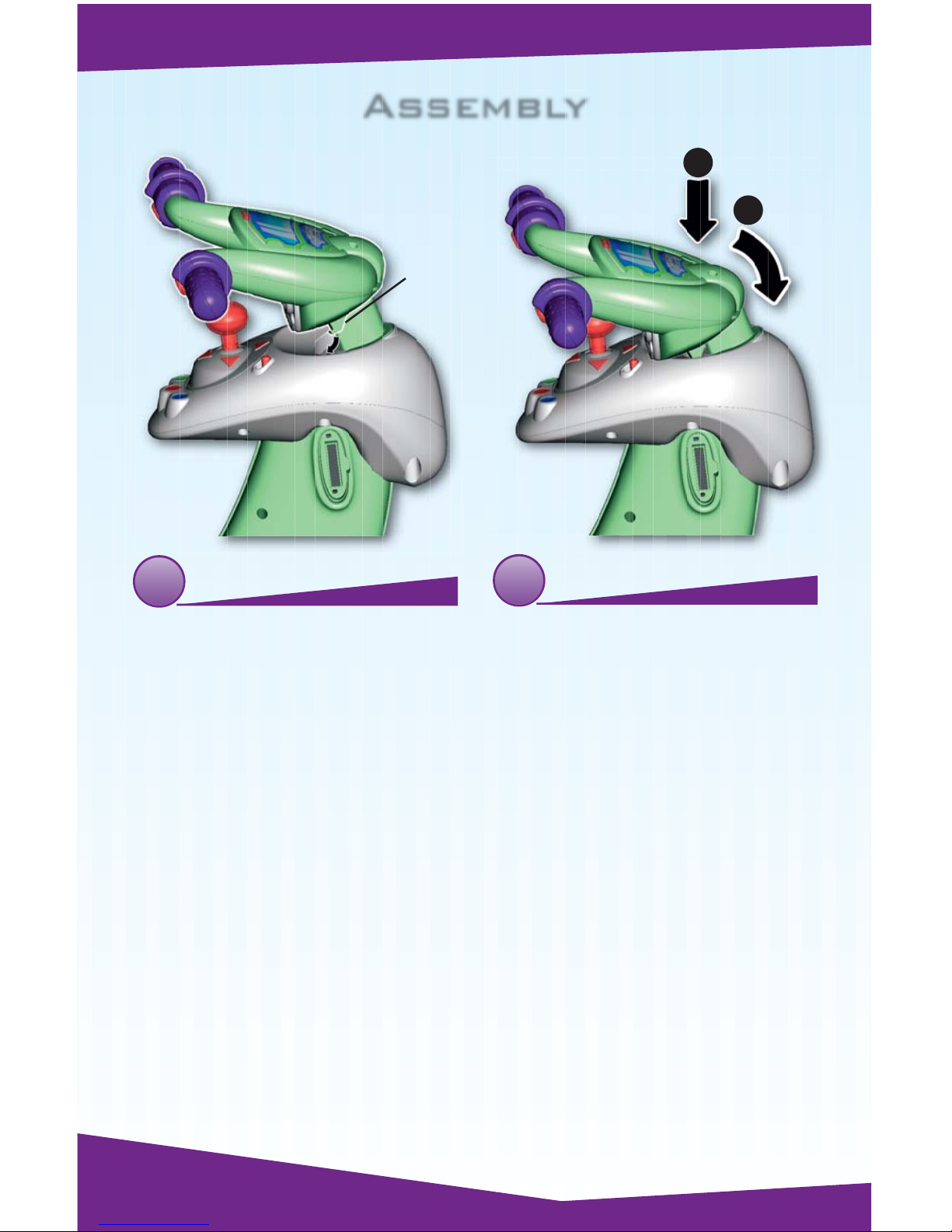

• Fit the handlebar onto the top of the post.
• At an angle, insert the tab on the back of
the handlebar into the slot in the console.
• Next, rock the handlebar forward and
down to "snap" it in place. Make sure
you hear a "snap".
6
Assembly
56
A
B
Tab
7
TM

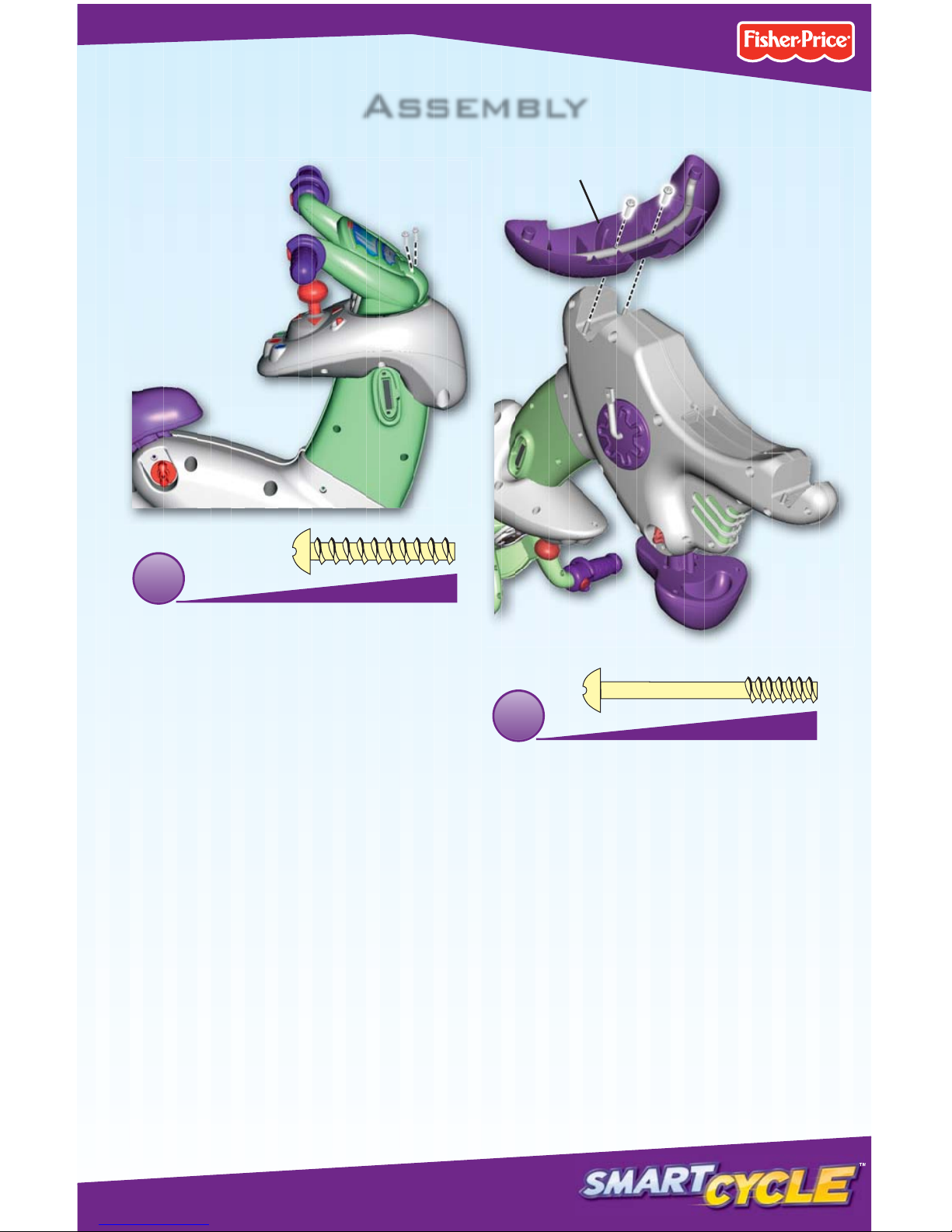

• Insert two #8 x 1" screws into the handle-
bar and tighten.
• Turn the cycle upside down.
• Fit the front base (wide) into the groove in
the front of the frame.
• Insert two #10 x 11/2" screws through the
tube in the front base and tighten.
Front Base (wide)
Assembly
7
8
8

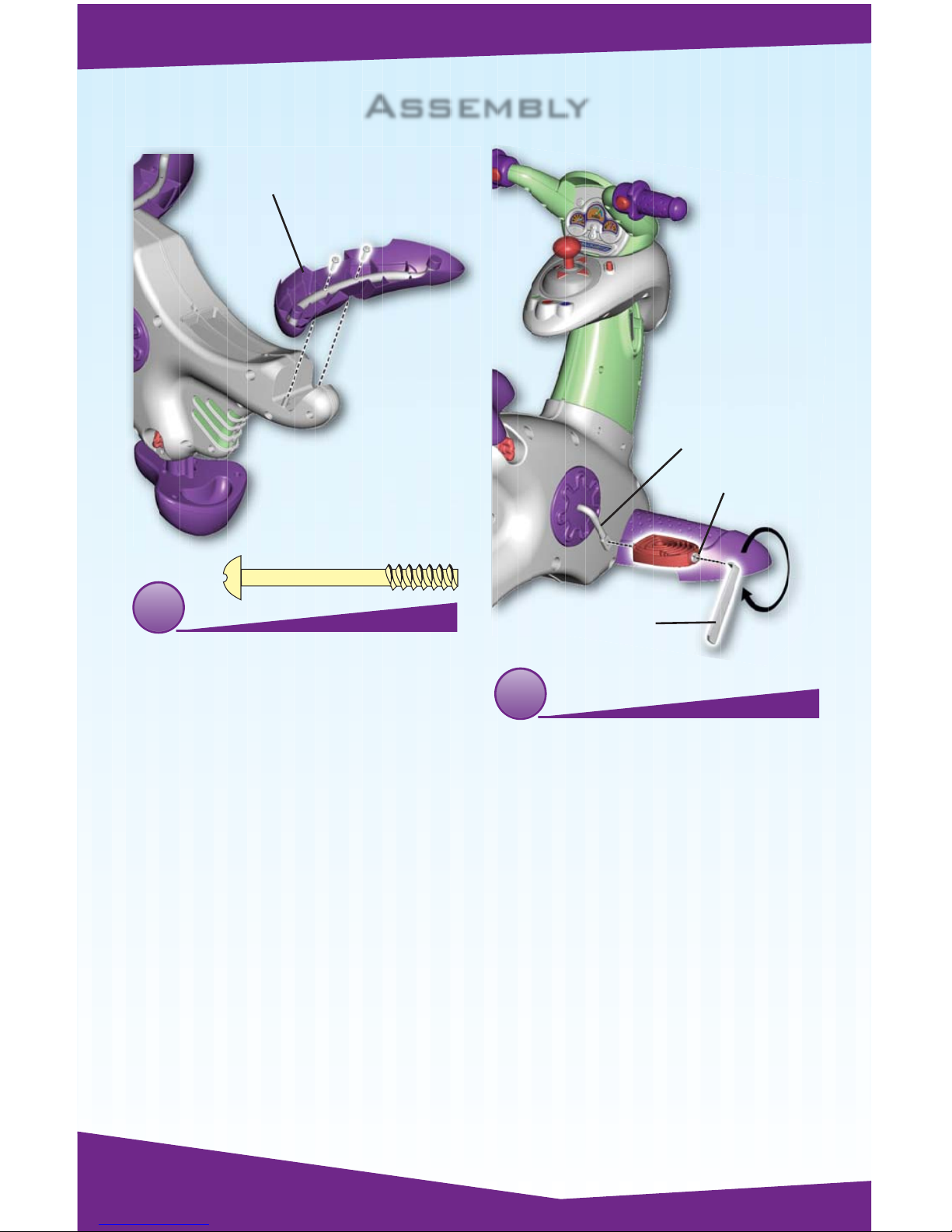

• Fit the rear base (narrow) into the groove
in the rear of the frame.
• Insert two #10 x 11/2" screws through the
tube in the rear base and tighten.
• Set the cycle upright.
Rear Base (narrow)
• Locate the right pedal marked with an R
on the outside end.
• Now, find the pedal axle marked with an R.
• Fit the threaded end of the right pedal into
the hole in the right pedal axle.
• Hand-tighten the pedal by turning
it clockwise.
• Then, fit the assembly tool to the end of the
pedal. Turn it clockwise to fully tighten.
Hint: You will not be able to tighten the pedal
if you have tried to attach the left pedal. If you
cannot tighten the pedal, remove it and try
the other. Be sure to match the letters Ror L
on each part.
Assembly
9
10
Right Pedal (R)
Assembly Tool
Right Pedal
Axle (R)
Right Pedal
Right Pedal
Tighten
Tighten
Clockwise
Clockwise

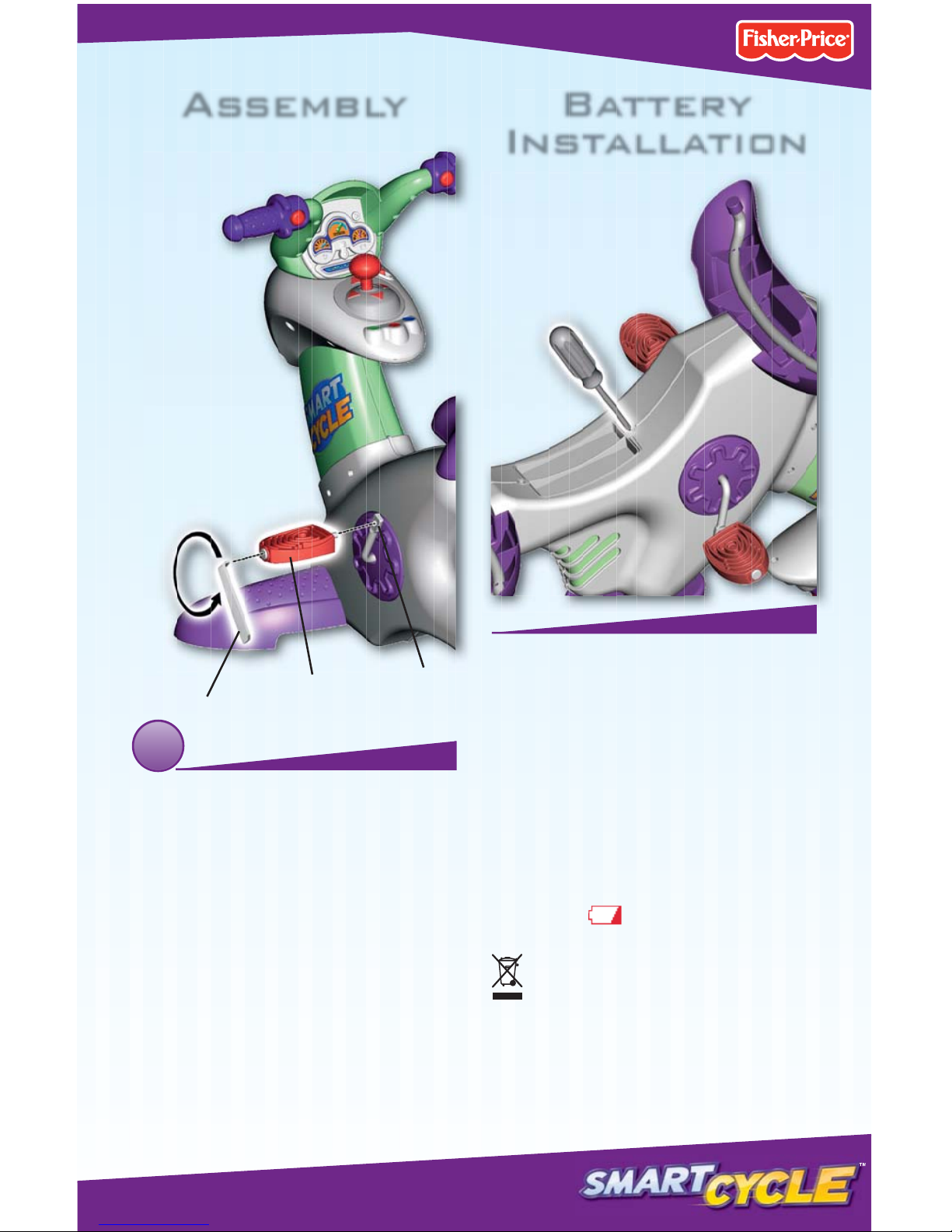

• Fit the threaded end of the left pedal
(marked with an L) into the hole in the left
pedal axle.
• Hand-tighten the pedal by turning
it counter-clockwise.
• Then, fit the assembly tool to the end
of the pedal. Turn it counter-clockwise
to fully tighten.
Pedal Left (L)
Assembly Tool
Left Pedal
Axle (L)
• Locate the battery compartment on
underside of the frame.
• Loosen the screws in the battery
compartment door and remove the door.
• Insert four “D” (LR20) alkaline batteries.
Hint: We recommend using alkaline
batteries for longer battery life.
• Replace the battery compartment door
and tighten the screws.
• When function is erratic or stops, or
you see a low battery symbol on your
TV screen , it’s time for an adult to
change the batteries!
• Protect the environment by not
disposing of this product with house-
hold waste (2002/96/EC). Check
your local authority for recycling
advice and facilities.
9
11
Assembly Battery
Installation
Left Pedal
Left Pedal
Tighten
Tighten
Counter-Clockwise
Counter-Clockwise
TM
10
In exceptional circumstances, batteries
may leak fluids that can cause a chemical
burn injury or ruin your toy. To avoid
battery leakage:
• Do not mix old and new batteries or
batteries of different types: alkaline,
standard (carbon-zinc) or rechargeable
(nickel-cadmium).
• Insert batteries as indicated inside the
battery compartment.
• Remove batteries during long periods
of non-use. Always remove exhausted
batteries from the toy. Dispose of batteries
safely. Do not dispose of the product in
a fire. The batteries inside may explode
or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or
equivalent type, as recommended.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the
toy before charging.
• If removable, rechargeable batteries are
used, they are only to be charged under
adult supervision.
1.5V x 4
“D” (LR20)
Battery Safety Information
