• Please keep this instruction sheet for future reference, as it

contains important information.

• Tools required for assembly: Phillips screwdriver (not included)

and wrench (included).

• Adult assembly is required.

•

Adult supervision is required.

•

For children ages 12 - 36 months.

•

Weight limit: 40 lbs (18 kg).

•

Periodically inspect the pony for damage or wear.

•

Before each use check to make sure all fasteners are

securely tightened.

Consumer Information

Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. N1416pr-0920

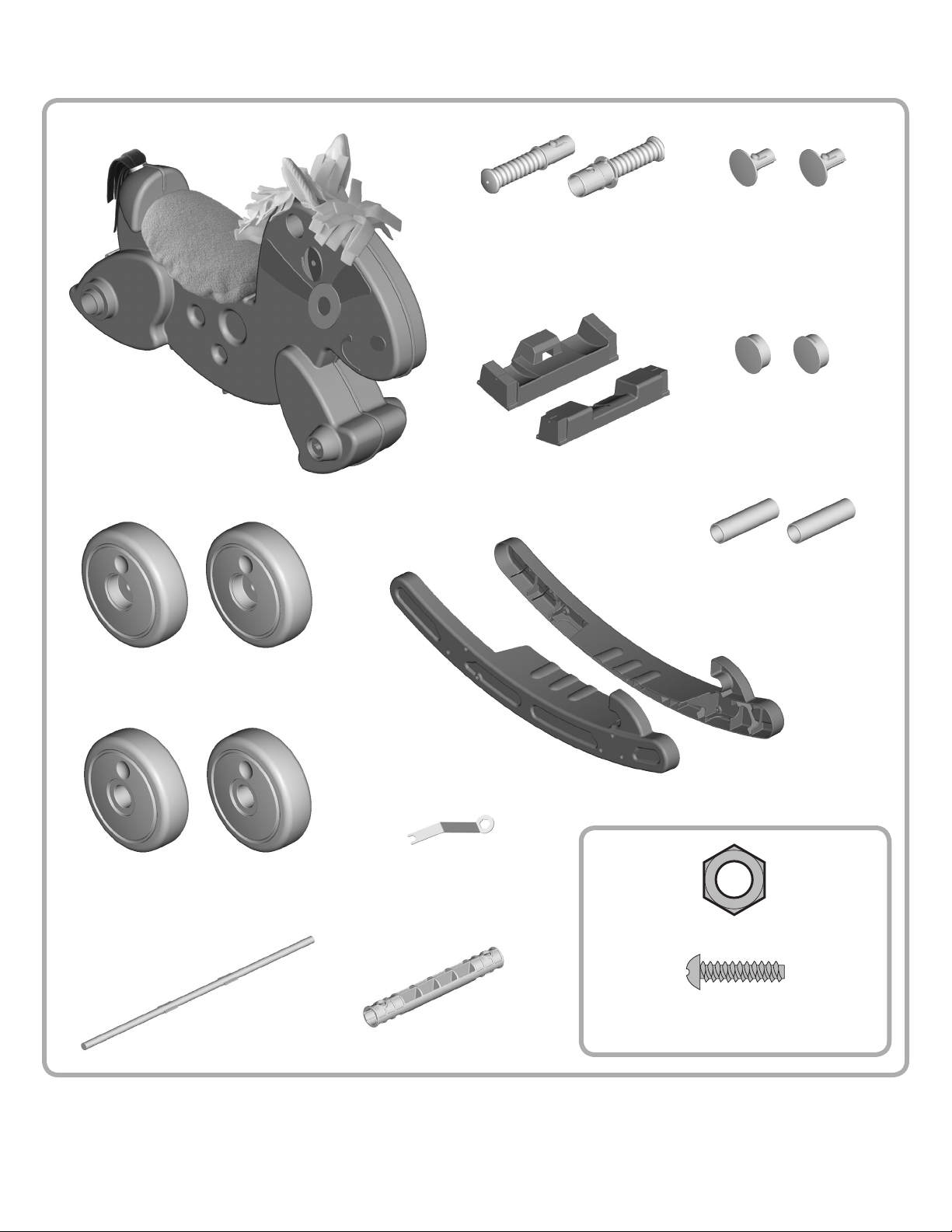

Parts

Pony

2 Rails

2 Front Hubcaps

2 Front Wheels

2 Rear Wheels

2 Handlebars

2 Spacers

Front Axle Rear Axle

2 Crossbars

2 Rear Hubcaps

Wrench

#8 x ¾” Screws - 12

Lock Nuts - 2

Fasteners Shown Actual Size

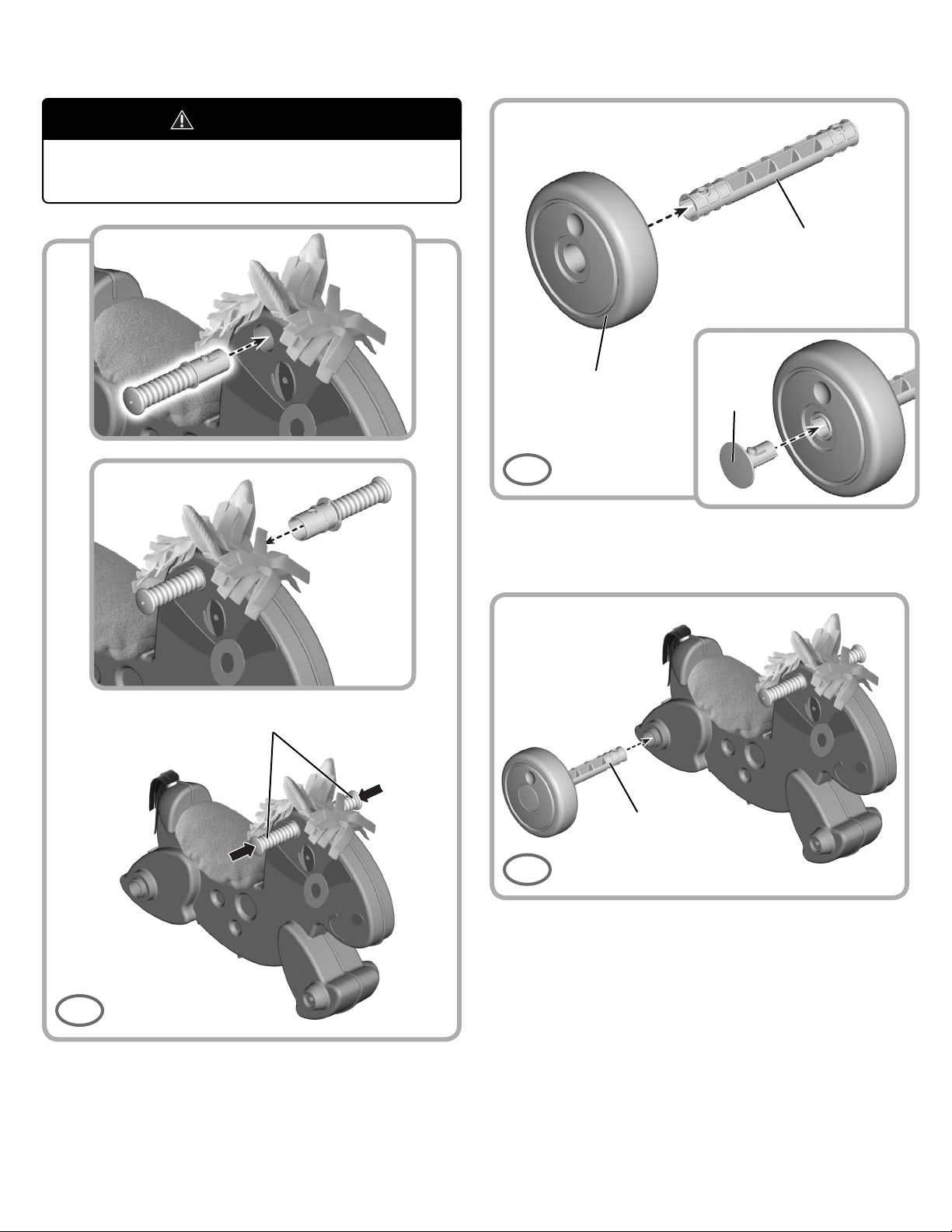

Pony Assembly

• Slide a rear wheel onto the rear axle.

Note: The indented side of the rear wheel should be facing out.

• “Snap” a rear hubcap into the rear wheel.

• Slide the rear axle through hole in the pony's back legs.

• Insert a handlebar into the hole on the pony head.

• Insert the other handlebar on the other side of the pony head.

• Push to “snap” the handlebars together.

This product contains small parts in its

unassembled state. Adult assembly is required.

CAUTION

Rear Axle

Rear

Hubcap

Handlebars

Rear Wheel

Rear Axle

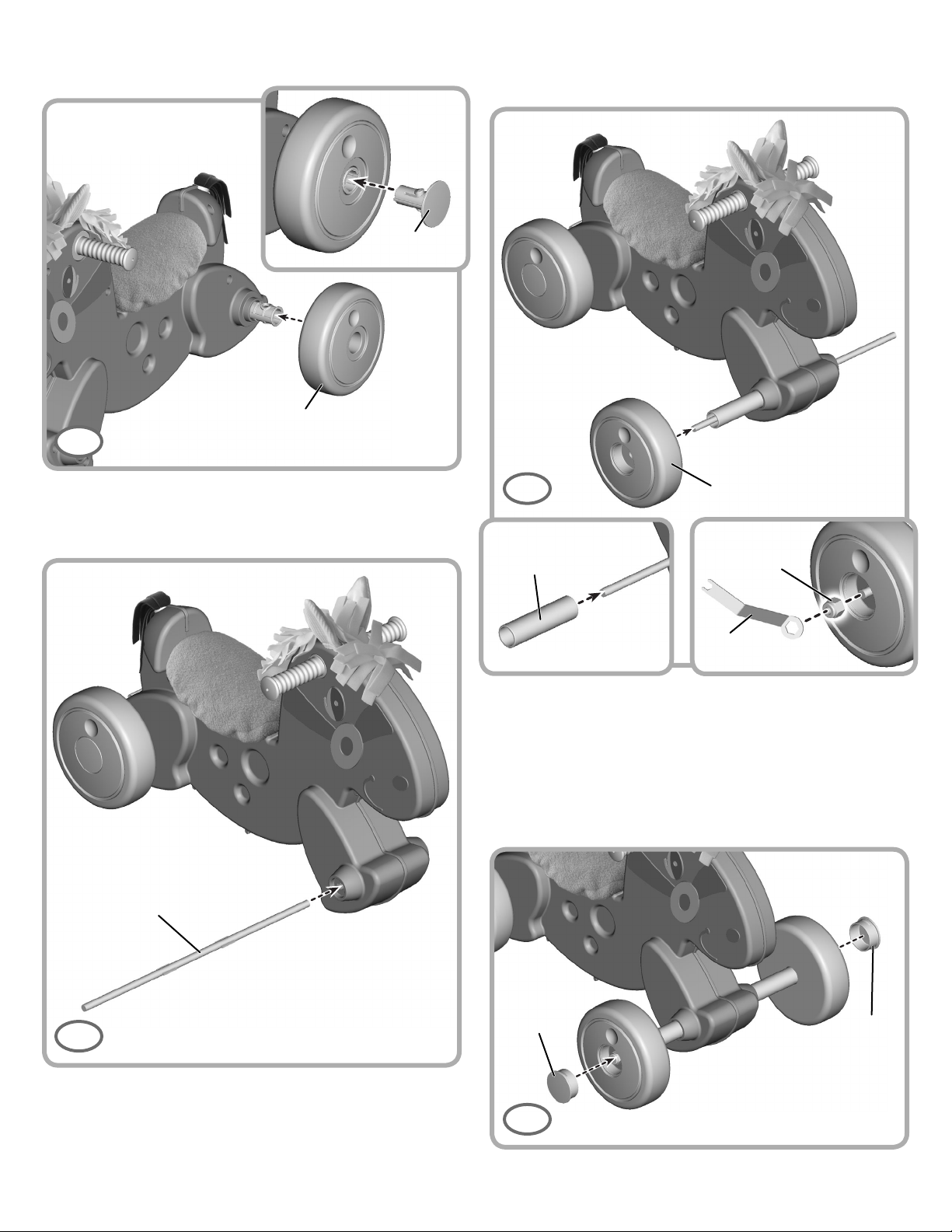

• Slide the other rear wheel onto the rear axle.

Note: The indented side of the rear wheel should be facing out.

• “Snap” the remaining rear hubcap into the rear wheel.

• Slide the front axle through the pony’s front legs.

• Slide a spacer onto one side of the front axle.

• Slide a front wheel onto the front axle.

Note: The indented side of the front wheel should be facing out.

• Fit a lock nut onto the end of the front axle. Make sure the

rounded side of the lock nut is facing out. Tighten with the

wrench (included).

• Repeat this procedure to assemble the remaining spacer,

front wheel and lock nut.

Front Wheel

Spacer

Wrench

• “Snap” the front hubcaps into each front wheel.

Lock Nut

Pony Assembly

Rear Wheel

Front Axle

Rear

Hubcap

Front

Hubcap Front

Hubcap

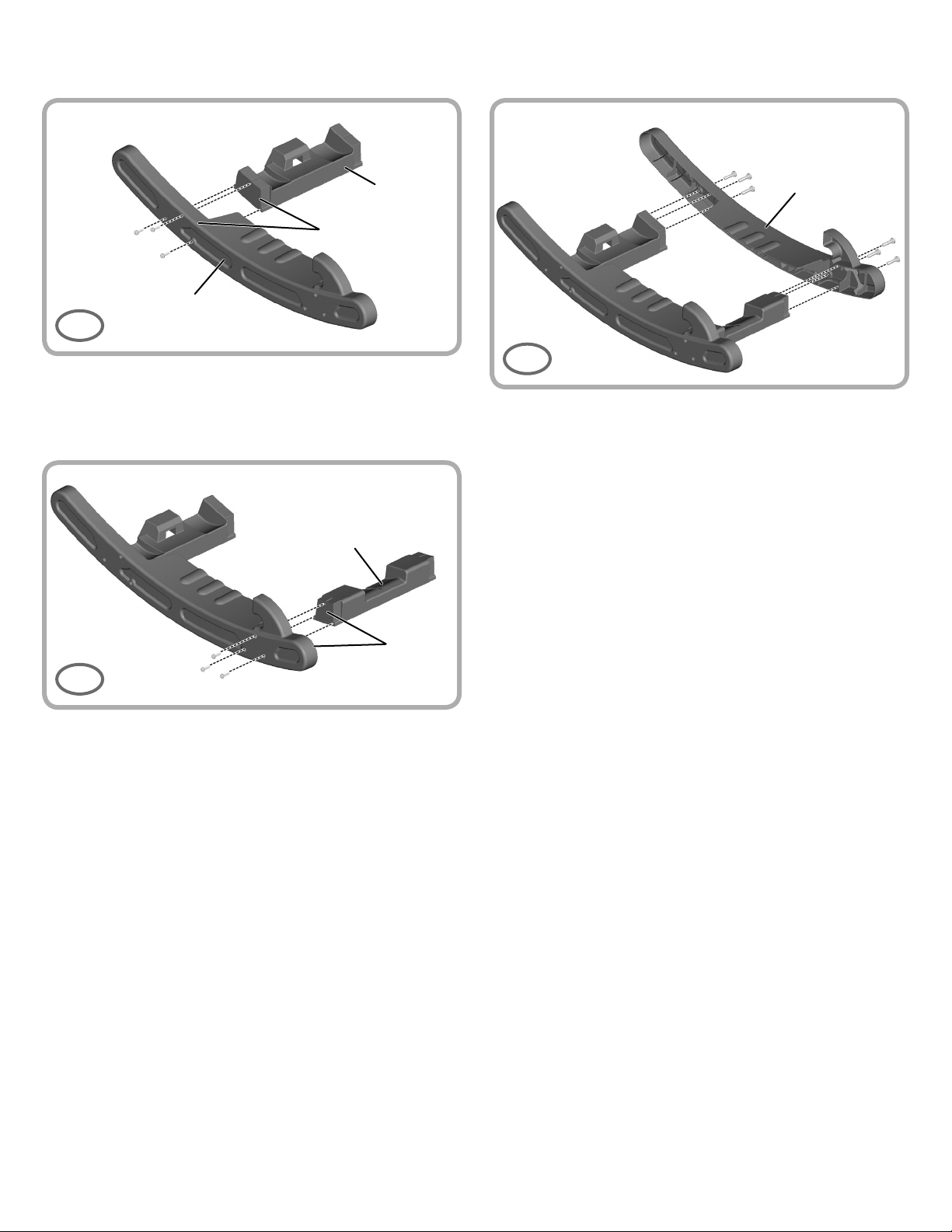

Rocker Assembly

• Match the end of the crossbar labeled 4 into the end of the

rail labeled 4.

• Insert three screws into the holes in the outside of the rail and

tighten with a Phillips screwdriver.

• Match the end of the other crossbar labeled 3 into the end of

the rail labeled 3.

• Insert three screws into the holes in the outside of the rail and

tighten with a Phillips screwdriver.

• Fit the remaining rail onto the ends of the crossbars.

Note: The ends of the rail are labeled 1 and 2. Match these

numbers to the ends of the crossbars labeled 1 and 2.

• Insert six screws into the rail and tighten with

a Phillips screwdriver.

Crossbar

Rail

Crossbar

Rail

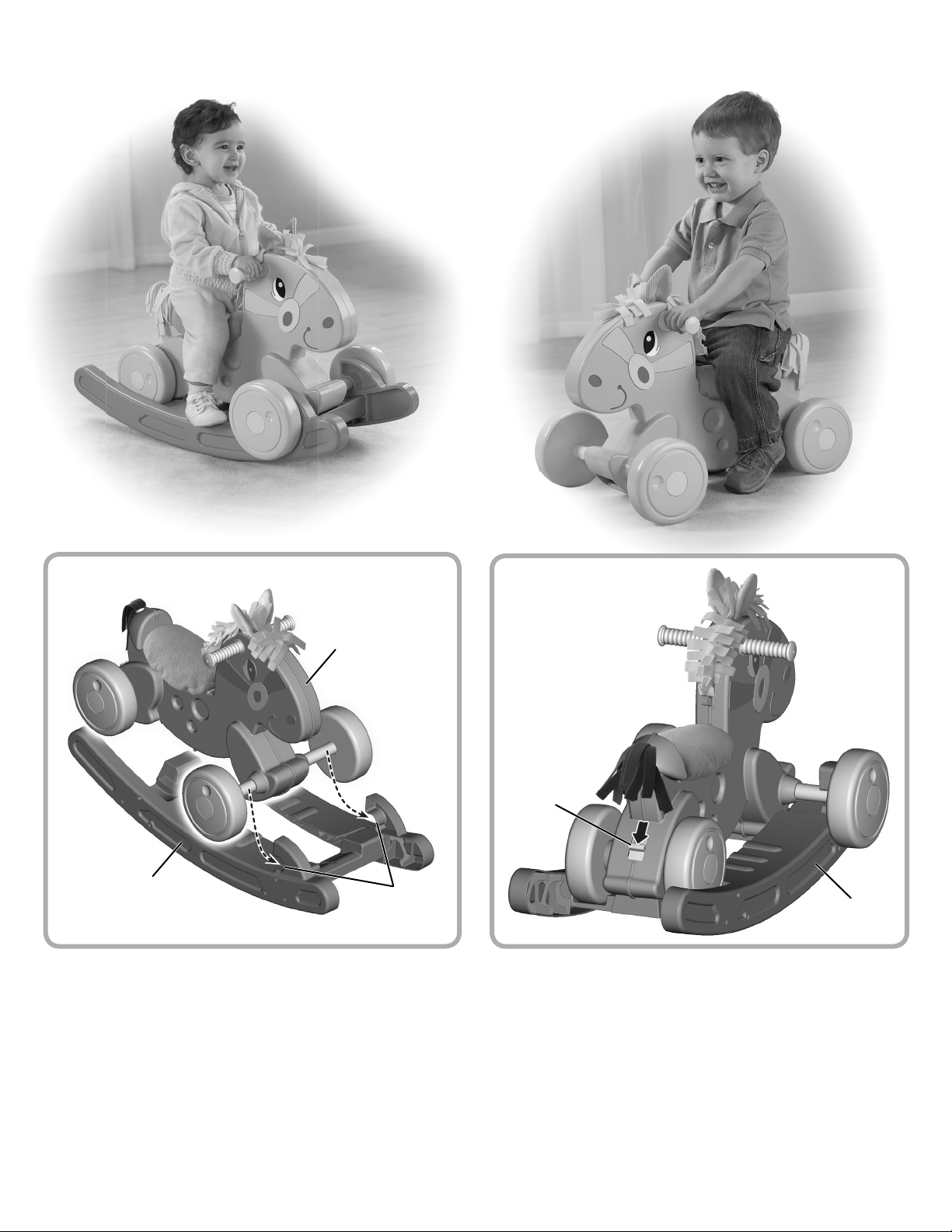

Rock ‘n Ride

• Fit the front axle on the pony into the grooves on the

rocker assembly.

• Push the pony to "snap" it into place.

Rock ‘n Roll

• Push the latch on the back of the pony.

• Lift the pony off the rocker assembly.

• Store the rocker assembly for future use.

Pony

Rocker

Assembly

Latch

Rocker

Assembly

Grooves

Mane and Seat Pad

• Push the tab on the back of the pony’s head and slide the

mane up and off of the pony.

• To re-attach the mane, fit the end of the mane into the top of

the slot in the pony head. Pull the mane down into place.

• Remove the seat pad from the pony.

• Machine wash the mane and seat pad in cold water on the

gentle cycle. Tumble dry on low heat. Do not use bleach.

Care

Pony and Rocker Assembly

• Wipe with a clean cloth dampened in a mild soap and water

solution. Do not use bleach.

• The ears and tail are surface washable.

Tab

Mane

Seat Pad
