Please keep this instruction sheet for future reference,

as it contains important information.

Requires three AAA (LR03) alkaline batteries (not included) for operation.

Battery installation is required.

Adult assembly is required. Tool required: Phillips screwdriver (not included).

CGK05

Consumer Information

PRINTED IN CHINA CGK05pr-0920

©Disney

® and ™ designate U.S. trademarks of Mattel, except as noted.

Care

• Wipe this toy with a clean, damp cloth. Do not immerse.

• This toy has no consumer serviceable parts. Do not take apart.

MER A

TAN

1-800-432-5437 (US & Canada)

1300 135 312 (Australia)

Fisher-Price, Inc., 636 Girard Avenue, East Aurora, NY 14052.

Hearing-impaired consumers: 1-800-382-7470.

Outside the United States:

Canada: Mattel Canada Inc., 6155 Freemont Blvd.,

Mississauga, Ontario L5R 3W2; www.service.mattel.com.

Great Britain: Mattel UK Ltd, Vanwall Business Park,

Maidenhead SL6 4UB. Helpline: 01628 500303.

www.service.mattel.com/uk

Mattel Europa B.V., Gondel 1, 1186 MJ Amstelveen, Nederland.

Australia: Mattel Australia Pty. Ltd., 658 Church Street,

Locked Bag #870, Richmond, Victoria 3121 Australia.

New Zealand: 16-18 William Pickering Drive,

Albany 1331, Auckland.

Battery Installation

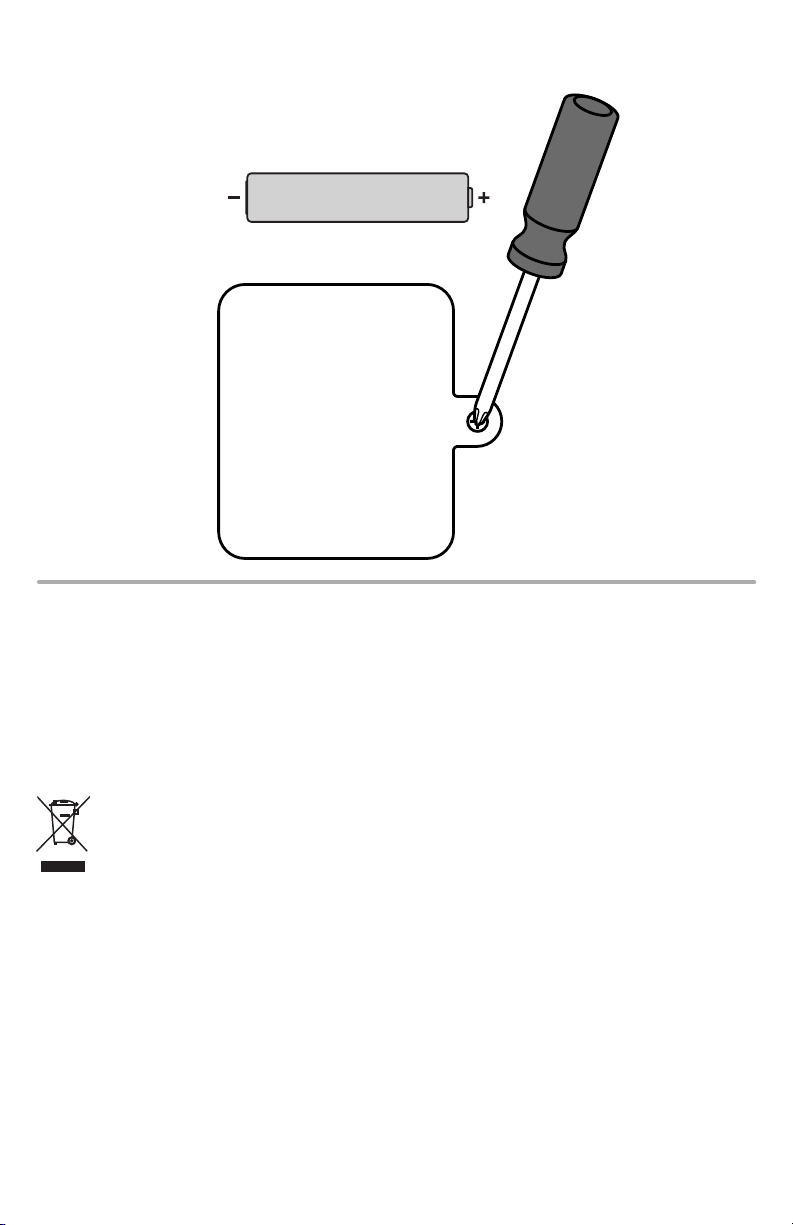

• Loosen the screw in the battery compartment door with a Phillips screwdriver and

remove the door.

• Insert three AAA (LR03) alkaline batteries.

Hint: We recommend using alkaline batteries for longer battery life.

• Replace the battery compartment door and tighten the screw. Do not over-tighten.

• If this toy begins to operate erratically, you may need to reset the electronics. Slide the

power/volume switch off and then back on.

• When sounds become faint or stop, it’s time for an adult to change the batteries.

• Protect the environment by not disposing of this product with household waste

(2002/96/EC). Check your local authority for recycling advice and facilities.

1,5V x 3

AAA (LR03)

Battery Safety Information

In exceptional circumstances, batteries may leak fluids that can cause a chemical burn

injury or ruin your product. To avoid battery leakage:

• Do not mix old and new batteries or batteries of different types: alkaline, standard

(carbon-zinc) or rechargeable (nickel-cadmium).

• Insert batteries as indicated inside the battery compartment.

• Remove batteries during long periods of non-use. Always remove exhausted batteries

from the product. Dispose of batteries safely. Do not dispose of this product in a fire.

The batteries inside may explode or leak.

• Never short-circuit the battery terminals.

• Use only batteries of the same or equivalent type, as recommended.

• Do not charge non-rechargeable batteries.

• Remove rechargeable batteries from the product before charging.

• If removable, rechargeable batteries are used, they are only to be charged under

adult supervision.

Assembled Parts

This package contains small parts. For adult assembly only.

CAUTION

Balcony

Clock Tower

Short Tower

Base

Tall Tower

2 Flags

Floor

Wall

Part not shown: Label Sheet

3 mm x 15 mm Screw – 7

Shown Actual Size

Tighten and loosen all screws with

a Phillips screwdriver. Do not over-tighten.

3 mm x 15 mm Washer Head Screw – 2

Assembly

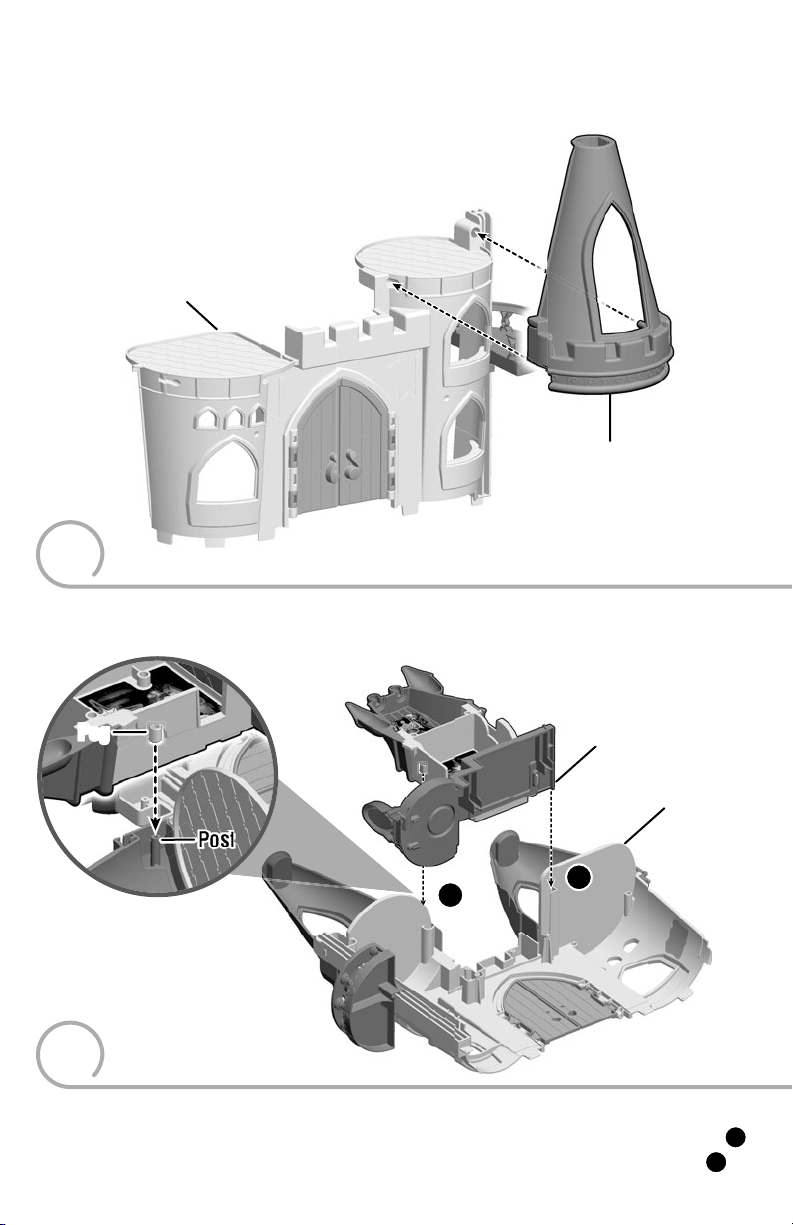

• Fit the pegs on the tall tower into the openings in the wall.

Tall Tower

Wall

• Carefully lay the wall assembly on a flat surface with the inside facing up.

• Slide the tab on front edge of the clock tower assembly into the groove in the wall assembly

• Fit the peg on the side of the clock tower assembly onto the post on the tall tower B.

SIDE VIEW

Peg Clock Tower

Assembly Tab

Wall Assembly

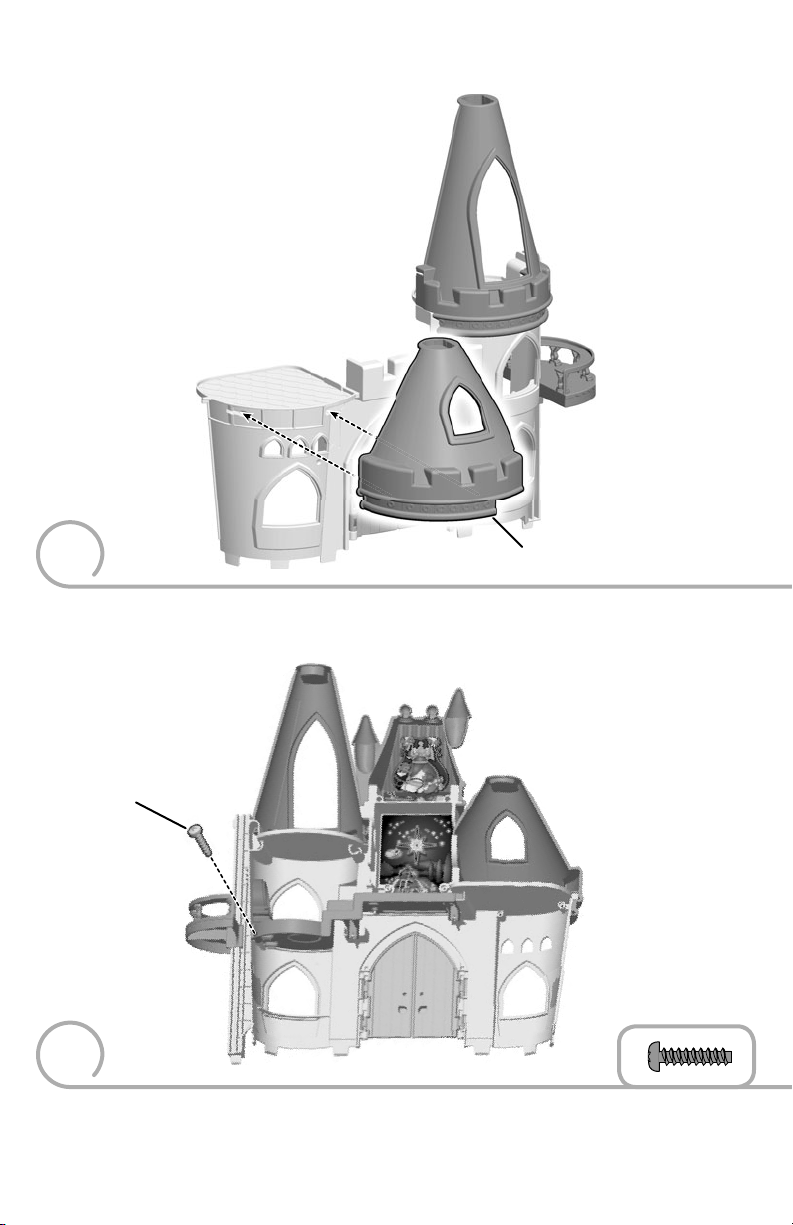

• Fit the pegs on the short tower into the openings in the wall.

Short Tower

Assembly

Screw

• Align the hole in the clock tower assembly with the post on the wall assembly. Insert

a 3 mm x 15 mm screw into the post. Tighten the screw.

• Fit the tabs on the clock tower into the slots in the floor. Push to “snap” in place.

Assembly

Floor Slots

Clock Tower Tabs

Screws

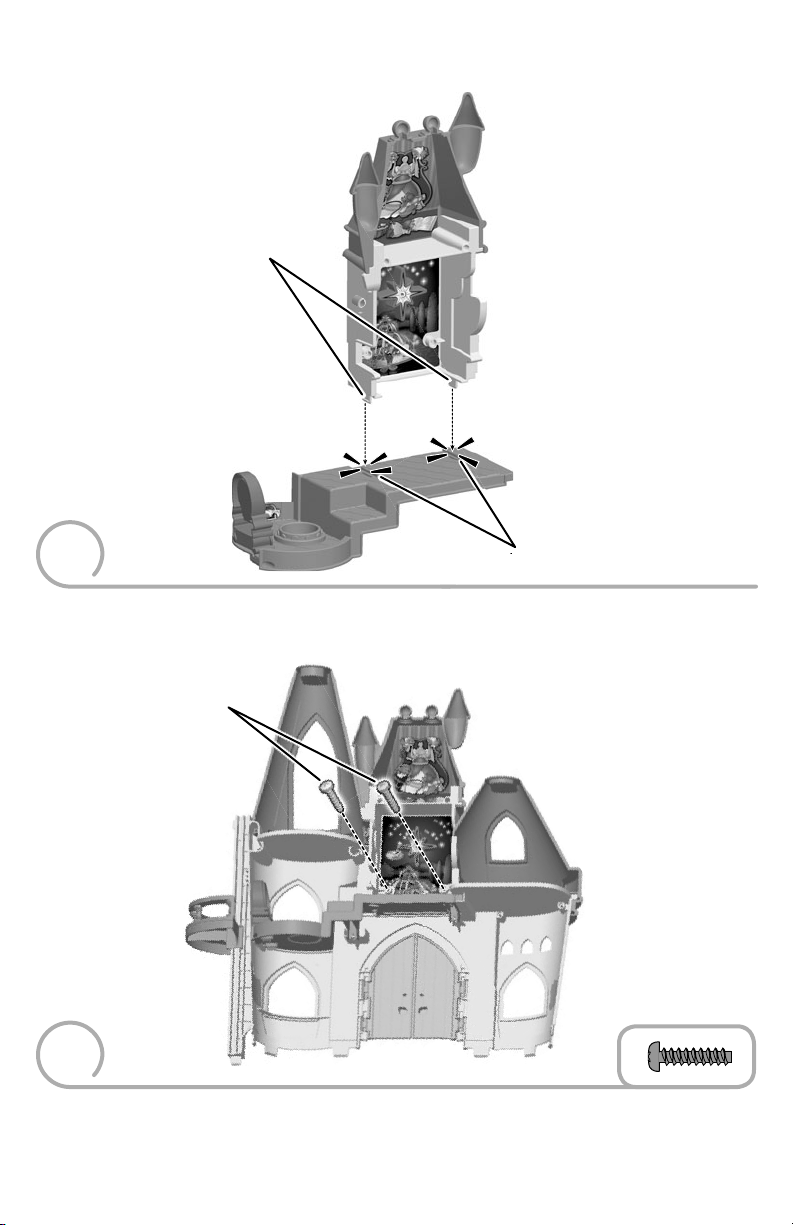

• Insert two 3 mm x 15 mm screws into the holes in the clock tower and tighten.

• Insert two 3 mm x 15 mm screws into the balcony and tighten.

Screws

Assembly

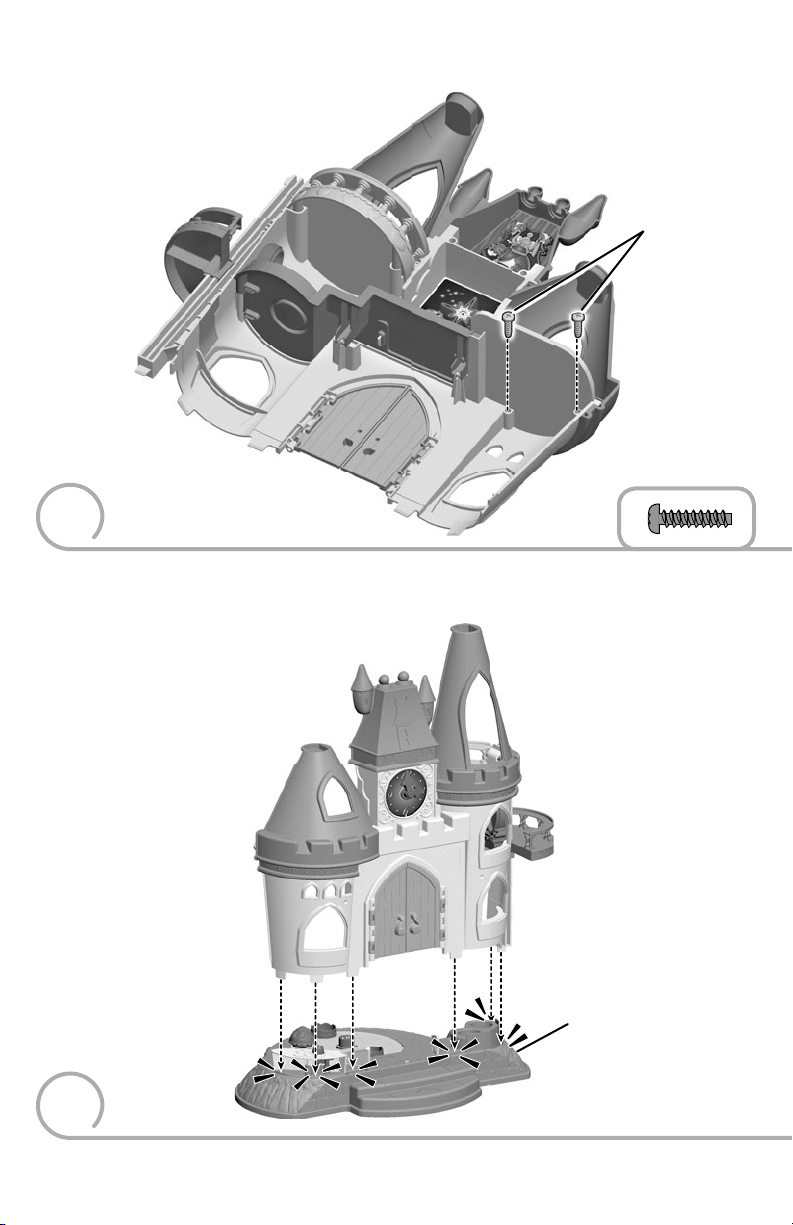

• Align the slots in the clock tower assembly with the holes in the posts in the wall

assembly. Insert two 3 mm x 15 mm washer head screws and tighten.

2 Washer Head

Screws

• Fit the tabs on the wall assembly into the slots on the base. Push to “snap” in place.

• Insert two 3 mm x 15 mm screws into the wall assembly and tighten.

Base

Screws

Assembly
