Fisher & Paykel CleanSmart WL8060P Manuel utilisateur

Installation instructions

Install the washer on a solid and level floor surface ensuring it has at least 20 mm clearance on each side. The washer

must not be installed on any textured floor coverings (eg carpets, rugs).

Product and minimum clearance dimensions

https://producthelp.fisherpaykel.com/au/Wash/Top_Loaders/CleanSmart/WL8060P1/User_Guide_WL8060P1/03_Installation_…

Updated: Fri, 14 Feb 2020 17:08:14 GMT

Product Dimensions

Property (mm) WL8060P

A. Overall height of product* (to highest point on console) 1045 – 1075

B. Overall width of product 600

C. Overall depth of product 600

D. Height of product to top of lid* (closed) 950 – 980

E. Height of lid open* (measured from bottom of product) 1350 – 1385

Standpipe height min. 850 – 1200

Minimum Clearances

Property (mm) WL8060P

F. Minimum cavity width 640

G. Minimum depth clearance (including inlet hoses, drain hose and bowed

front) 660

H. Minimum clearance to adjacent product# (dryer) 20

https://producthelp.fisherpaykel.com/au/Wash/Top_Loaders/CleanSmart/WL8060P1/User_Guide_WL8060P1/03_Installation_…

Updated: Fri, 14 Feb 2020 17:08:14 GMT

Maximum Capacity

Property (kg) WL8060P

Maximum Capacity 8.0

* Includes adjustable mounted feet and the range of movement.

# Applies either side.

Unpacking

To ensure the best performance from your new washer please follow the instructions below.

Removing the packaging

1. Remove the outer packaging.

2. Tilt the washer backwards and walk it off the base

packer one foot at a time (ensure the lid is still

taped down).

3. Remove the base packer from under the washer

by tilting the washer backwards and pulling the

packer out the front.

4. Remove the tape, lift the lid and remove the bowl

packer from the bowl.

5. Remove the hoses and accessories.

6. Keep the base packer and bowl packer in case

they are required for future transit.

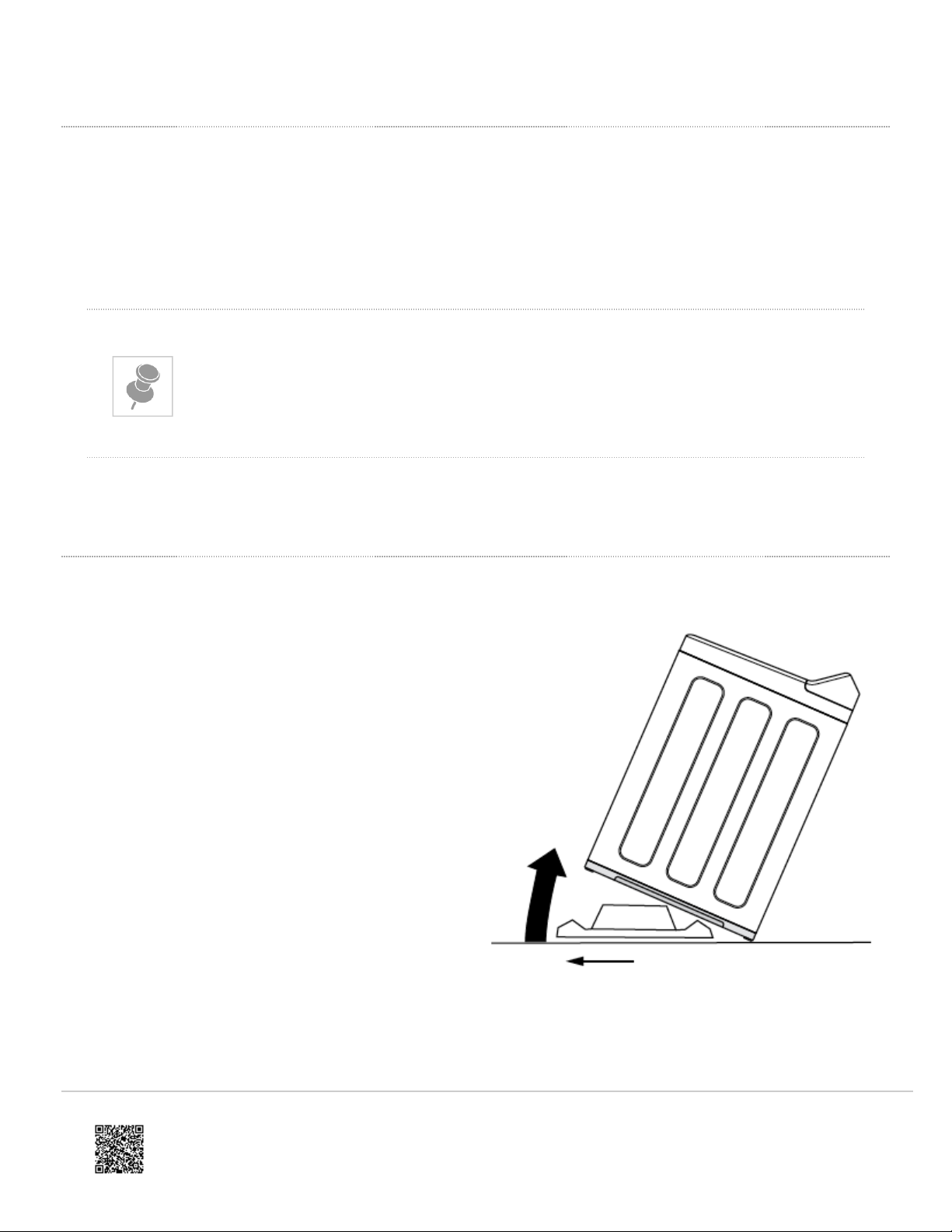

Tilt washer backwards to remove packer

https://producthelp.fisherpaykel.com/au/Wash/Top_Loaders/CleanSmart/WL8060P1/User_Guide_WL8060P1/03_Installation_…

Updated: Fri, 14 Feb 2020 17:08:14 GMT

Please ensure that the base packer has been removed BEFORE OPERATING your

washer.

Location

Install the washer on a solid and level floor surface ensuring it has at least 20 mm

clearance on each side. The washer must not be installed on any textured floor coverings

(eg carpets, rugs).

In your clothes washer you will find:

• 1 hose guide.

• 2 inlet hoses.

Drain hose

1. Carefully pull the drain hose out from the back of

the washer by pulling the exposed part of the hose

downward and outward.

2. To guide the drain hose over the tub or standpipe

the hose guide MUST be fitted to the drain hose.

To prevent siphoning the

drain hose should not

extend more than 20 mm

from the end of the guide.

The height of the standpipe

or tub should be between

850 – 1200 mm. The

drainhose can be trimmed

to length.

Fitting the drain hose guide

https://producthelp.fisherpaykel.com/au/Wash/Top_Loaders/CleanSmart/WL8060P1/User_Guide_WL8060P1/03_Installation_…

Updated: Fri, 14 Feb 2020 17:08:14 GMT

3. Place the drain hose in the tub or standpipe. Do

not fit the hose to a drain spigot. Drainage must not

be airtight in order to prevent siphoning.

Electrical connection

• This appliance must be supplied with a 220 – 240 V, 50 Hz, sinusoidal, 10 A electrical supply.

• Check the power cord for damage, making sure it is not squashed or twisted.

• A damaged power cord must be replaced by a Fisher & Paykel Authorised Repairer, in order to avoid a hazard.

The appliance must not be operated until it is repaired, as there is a risk of electric shock.

Draining

• Regularly check that your standpipe or tub is free from lint or other obstructions, which may affect how your

washer works or may cause flooding.

• In multi-storey apartments or any upper floor, the washer should be installed on a floor equipped with a drain.

• Draining must comply with local by-laws.

Water supply

Your cold water should not exceed 35°C and your hot water should not exceed 65°C.

Temperatures above these may cause the washer to fault or cause damage to the washer.

• If you have an uncontrolled water heating source (eg a wet back or solar heating system) you should fit a

tempering valve. This will ensure the hot water temperature remains within safe limits. Contact your registered

plumber to select and install the tempering valve.

• Inlet water static pressure: Max. 1 MPa (150 psi) Min. 34 KPa (5 psi)

• Inlet water flow rate at tap: Min. 6 litres/min.

• This appliance must be installed in accordance with the installation instructions before use.

• Provide accessibility of the plug or incorporate a switch in the fixed wiring in accordance with the

wiring rules to allow disconnection of the appliance from the supply after installation.

• Do not operate this washer if it has been damaged during transport. Contact your Fisher &

Paykel dealer or Fisher & Paykel Authorised Repairer.

https://producthelp.fisherpaykel.com/au/Wash/Top_Loaders/CleanSmart/WL8060P1/User_Guide_WL8060P1/03_Installation_…

Updated: Fri, 14 Feb 2020 17:08:14 GMT

Inlet hoses

Failure to adhere to the

following instructions may

result in a flood and

damage to property:

• New hose sets provided

with the washer shall be

used to connect the

washer to the water

supply.

• Old hose sets should not

be used.

• We recommend replacing

the inlet hoses every 5

years.

• Hoses should be checked

from time to time and

replaced if any wear, cuts,

bulges, kinks or leaks are

found.

1. Connect the straight ends of the inlet hoses to the

taps (there are washers fitted in both ends).

Connect the red connector hose to Hot, and the

white connector hose to Cold.

2. Connect the elbow ends of the inlet hoses to the

corresponding washer inlet valves. Inlet valves are

marked on the back of the washer. Ensure the Hot

valve is connected to the hot tap and the Cold

valve is connected to the cold tap.

H = Hot C = Cold

This clothes washer should be plumbed into both a hot

and cold water supply otherwise some cycles may not

function correctly.

Inlet hose ends

https://producthelp.fisherpaykel.com/au/Wash/Top_Loaders/CleanSmart/WL8060P1/User_Guide_WL8060P1/03_Installation_…

Updated: Fri, 14 Feb 2020 17:08:14 GMT

Your washer does not have

an internal heater to heat

water.

Levelling instructions

It is IMPORTANT to level the washer to ensure good spin performance.

A spirit level is provided with your washer. Use this to level your washer, always placing it on a clean, flat surface.

The washer is level when the bubble sits in the centre, within the two lines.

Your washer is equipped with self-locking feet at the front to ensure they do not move once you have levelled

your washer. To adjust the feet, tilt the washer back and twist to move them up or down.

After levelling, the corners of the washer should be clear of the floor and the washer must

not rock in any direction.

1. Move the washer to its final position using the top

corners to manoeuvre the product into place (do

not push on the centre front of the washer). We

recommend a minimum clearance of 20 mm each

side and 40 mm at the rear of the washer.

2. Open the lid, place the spirit level at the

centre front of the top deck forward of the lid lock

slot. Level the washer from side to side by winding

up or down the front feet (Fig.1).

3. With the lid closed, tilt the washer forward away

from the wall approximately 100 mm (Fig.2), the

self-adjusting feet will release. Gently lower the

washer back down.

4. Open the lid, place the spirit level at either the right

hand or left hand side of the top deck. Level the

washer from front to back using the front feet only

(Fig.3), winding both feet in or out equally. Tilt the

washer forward again and lower back down (Fig.2).

5. Re-check the washer is level. Move the spirit level

around to all positions once more, checking the

Fig.1 Levelling side to side

https://producthelp.fisherpaykel.com/au/Wash/Top_Loaders/CleanSmart/WL8060P1/User_Guide_WL8060P1/03_Installation_…

Updated: Fri, 14 Feb 2020 17:08:14 GMT

washer is level in all areas. Repeat step 4 if

necessary. Check the washer does not rock from

side to side, front to back, or corner to corner.

• Keep your spirit level for

the next time you move or

reposition your washer.

• If moving or transporting

your washer in the future,

ensure you tape the lid

down beforehand.

Fig.2 Tilt washer forward

Fig.3 Levelling from front to back

Completing your installation

• Turn on the water and check all hose connections for leaks. Make sure there are no kinks in the hoses. Check

the hose connections for leaks again after 24 hours.

• Uncoil power cord, remove and discard the plastic pin cover, and plug into wall socket.

• Connect the appliance to an earthed outlet protected by a fuse of suitable capacity.

Do not touch or operate the washer with wet hands or with bare feet.

https://producthelp.fisherpaykel.com/au/Wash/Top_Loaders/CleanSmart/WL8060P1/User_Guide_WL8060P1/03_Installation_…

Updated: Fri, 14 Feb 2020 17:08:14 GMT

Installation test cycle

Your washer must be correctly installed before use. Check the installation and operation of the washer using the

following procedure:

1. Touch ‘Power’

to activate your washer.

2. Touch both the

and ‘Options’ buttons at the same time, and hold for three seconds.

3. Touch

to start the installation test cycle. The display will show

4. The washer will beep to signal the end of the installation test cycle. Any faults will be displayed on the screen

(refer to the back of this user guide to help identify faults). If you need further assistance, please contact a

Fisher & Paykel Authorised Repairer or our Customer Care Centre. Refer to ‘Customer Care’ section for

contact details.

If there are no faults found, the washer will automatically turn off at the end of the

installation test cycle.

Accessories and Spare Parts

Available from your Fisher & Paykel dealer or a Fisher & Paykel Authorised Repairer.

Hose Inlet

Long (2 m) Part No. 422680P

Hose Inlet

Large Bore Part No. 426123P

Drain Hose Part No. 425627P

https://producthelp.fisherpaykel.com/au/Wash/Top_Loaders/CleanSmart/WL8060P1/User_Guide_WL8060P1/03_Installation_…

Updated: Fri, 14 Feb 2020 17:08:14 GMT

Accessories and Spare Parts

Extension

Power

Cord

If the power cord of your clothes washer is damaged it must be replaced by a Fisher & Paykel

Authorised Repairer in order to avoid a hazard, as it is not a standard power cord.

https://producthelp.fisherpaykel.com/au/Wash/Top_Loaders/CleanSmart/WL8060P1/User_Guide_WL8060P1/03_Installation_…

Updated: Fri, 14 Feb 2020 17:08:14 GMT

Autres manuels pour CleanSmart WL8060P

Table des matières

Autres manuels Fisher & Paykel Rondelle

Fisher & Paykel

Fisher & Paykel IWL-15 Manuel de service

Fisher & Paykel

Fisher & Paykel Smart Drive GWLO8 Instructions d'installation

Fisher & Paykel

Fisher & Paykel WA8560P Schéma de câblage

Fisher & Paykel

Fisher & Paykel CleanSmart WL8060P Schéma de câblage

Fisher & Paykel

Fisher & Paykel WASHSMART WA1068G Manuel utilisateur

Fisher & Paykel

Fisher & Paykel WA37T26GW2 Instructions de montage

Fisher & Paykel

Fisher & Paykel WashSmart Instructions de montage

Fisher & Paykel

Fisher & Paykel DE60FA2-96983 Guide d'installation

Fisher & Paykel

Fisher & Paykel WH1160H1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel Intuitive ECO IWL12 Instructions de montage

Fisher & Paykel

Fisher & Paykel Smart Drive GWL08 Manuel du propriétaire

Fisher & Paykel

Fisher & Paykel WA42T26GW1 Instructions de montage

Fisher & Paykel

Fisher & Paykel FabricSmart WA8060P Manuel utilisateur

Fisher & Paykel

Fisher & Paykel WashSmart Eco Schéma de câblage

Fisher & Paykel

Fisher & Paykel SMARTDRIVE PHASE 7 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel WH8560F Manuel utilisateur

Fisher & Paykel

Fisher & Paykel Ecosmart GWL15-US-96200 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel WA8560P Manuel utilisateur

Fisher & Paykel

Fisher & Paykel ecosmart GWL11 Instructions de montage

Fisher & Paykel

Fisher & Paykel WH8560F Schéma de câblage

Fisher & Paykel

Fisher & Paykel WA3927G1 Instructions de montage

Fisher & Paykel

Fisher & Paykel WA1068G1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel WA7060 Series Manuel utilisateur

Fisher & Paykel

Fisher & Paykel PHASE 6 Series 11 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
