Fisher & Paykel RS90A1 Manuel technique

PLANNING GUIDE

SLIDE-IN

FRENCH DOOR

REFRIGERATORS

—

April 2015

DRAWING

TO COME

Title

Model no:

XXXX

Dimensions

a Overall height* of product 478

B Overall width of product

895

c Depth of product front and control panel

(excludes handle and dials)

d Depth of product chassis (does not include oven front)

544

CONTENTS RS90AU1 & RS90A1

with Stainless Steel Door panels

Product & Cavity Dimensions 3

Door Opening & Clearance Dimensions 5

Cavity Preparation 11

Max Distance of Hose & Cord 12

RS90A1

with Custom Door panels

Product & Cavity Dimensions 6

Door Opening & Clearance Dimensions 7

Custom Panel Dimensions 8

Custom Panel Preparation 9

Cavity Preparation 11

Max Distance of Hose & Cord 12

DATE: 20.04.2015

IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm

(/2''). Please read the installation manual for detailed information on

installing the product. www.fisherpaykel.com

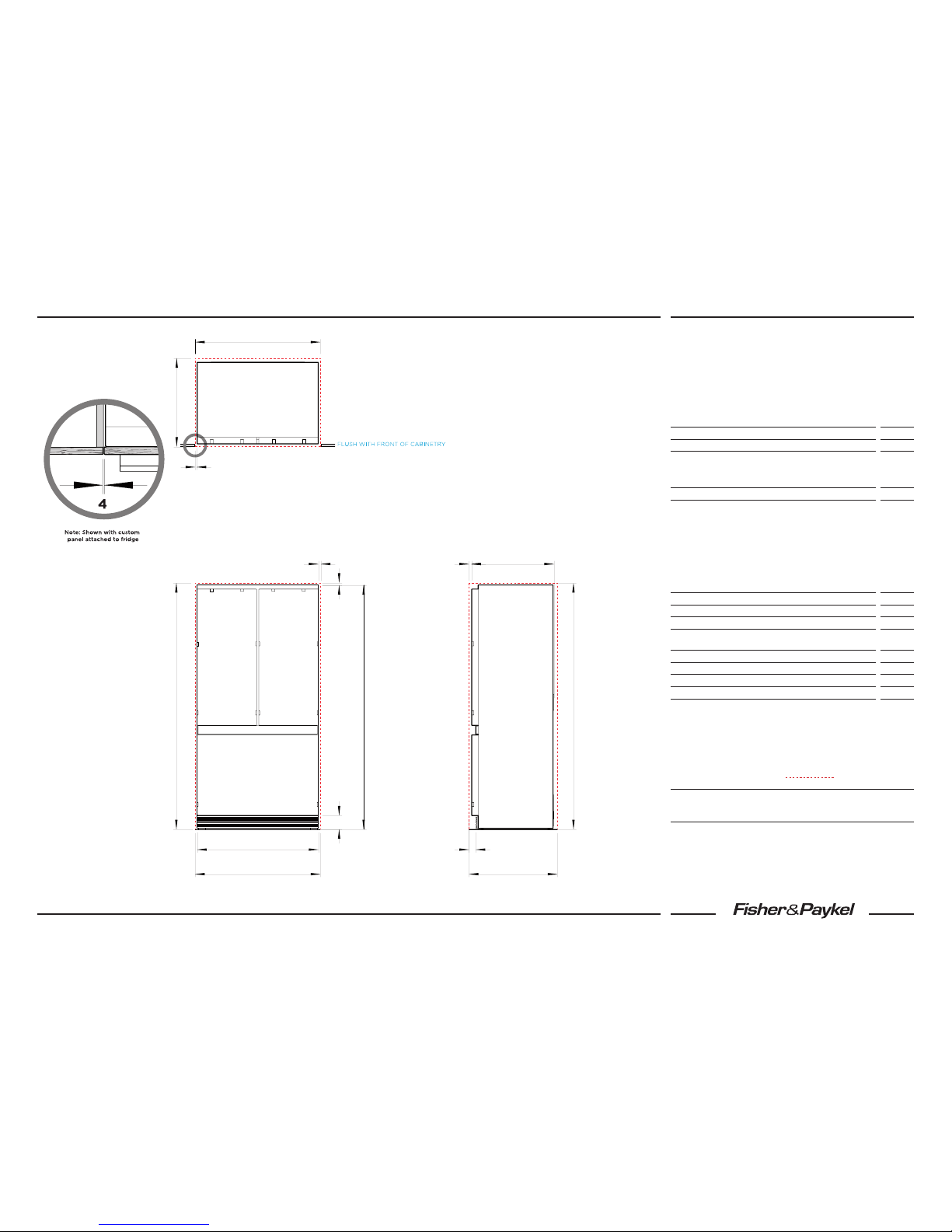

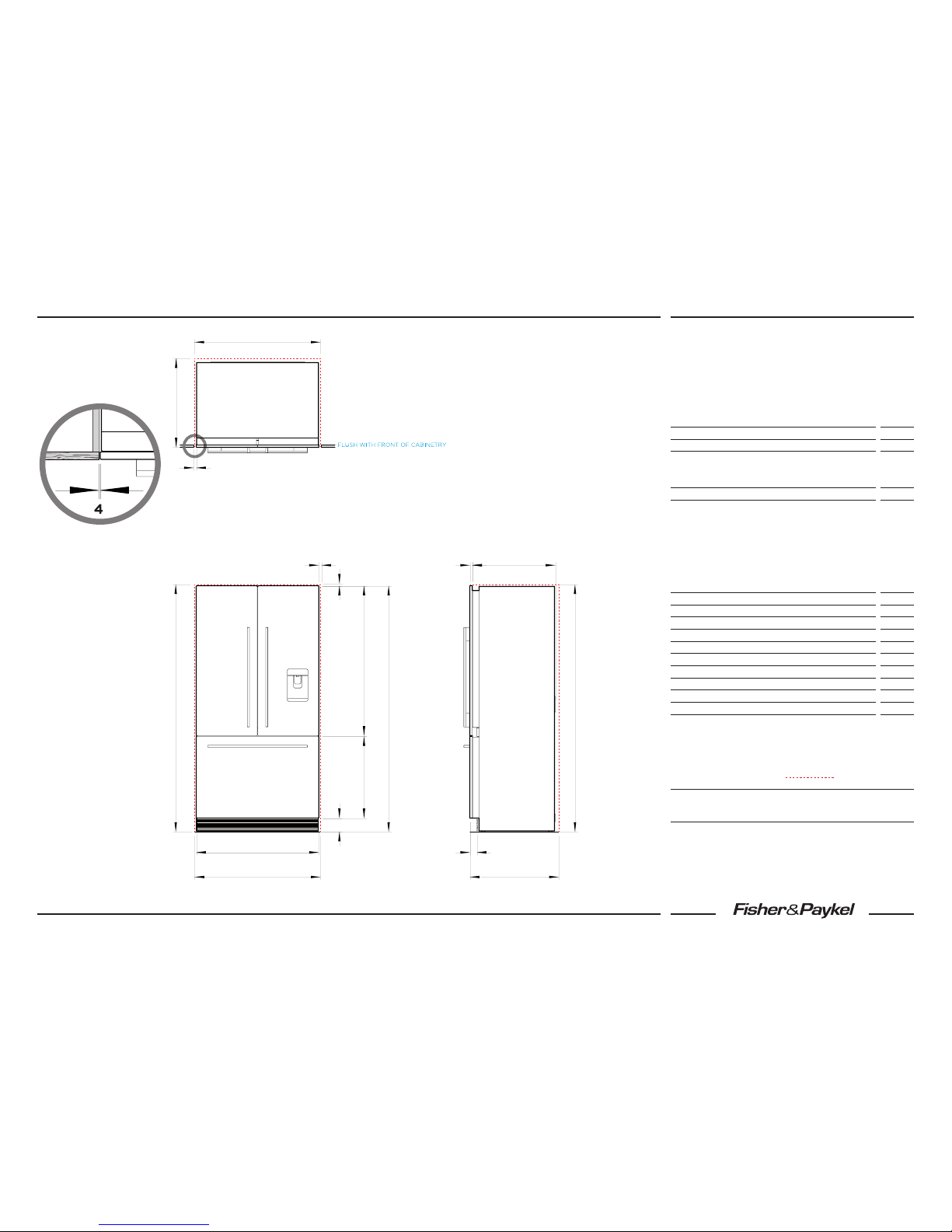

PRODUCT & CAVITY DIMENSIONS

900mm ActiveSmart™ Slide-in Refrigerator

Model no:

RS90AU1 (with Stainless Steel Door panels PART NO. RD90U)

Cavity Dimensions

a Overall height of cavity

1800

B Overall width of cavity

when adjoining cabinetry can share 4mm door gap

900

when adjoining cabinetry cannot share 4mm door gap

904

c Overall depth of cavity

650

Total front panel width with required gaps at sides = 904mm (Eproduct width

+ 2 x Fcabinetry gaps).

Total front panel height with required gap above = 1802mm (Dproduct height

+ Fcabinetry gap).

Product Dimensions

D Overall height of product*

1798

E Overall width of product

896

F Minimum cabinetry gap clearance from edge of product

G Overall depth of product (excl. front door panels)

606

H Depth of toekick (measured from front of door panels)

I Height of grill/toekick*

100

vv Height of bottom drawer panel

598

K Height of top door panels

1096

L Depth of product front panels (excludes handles)**

* Includes mounted feet.

** Optional EZKleen Stainless Steel front panels – PART NO. RD90U.

INDICATES CAVITY CLEARANCES

PLAN VIEW

FFL G

FRONT VIEW PROFILE VIEW

DATE: 20.04.2015

IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm

(/2''). Please read the installation manual for detailed information on

installing the product. www.fisherpaykel.com

PRODUCT & CAVITY DIMENSIONS

900mm ActiveSmart™ Slide-in Refrigerator

Model no:

RS90A1 (with Stainless Steel Door panels PART NO. RD90)

Cavity Dimensions

a Overall height of cavity

1800

B Overall width of cavity

when adjoining cabinetry can share 4mm door gap

900

when adjoining cabinetry cannot share 4mm door gap

904

c Overall depth of cavity

650

Total front panel width with required gaps at sides = 904mm (Eproduct width

+ 2 x Fcabinetry gaps).

Total front panel height with required gap above = 1802mm (Dproduct height

+ Fcabinetry gap).

Product Dimensions

D Overall height of product*

1798

E Overall width of product

896

F Minimum cabinetry gap clearance from edge of product

G Overall depth of product (excl. front door panels)

606

H Depth of toekick (measured from front of door panels)

I Height of grill/toekick*

100

J Height of bottom drawer panel

598

K Height of top door panels

1096

L Depth of product front panels (excludes handles)**

* Includes mounted feet.

** Optional EZKleen Stainless Steel front panels – PART NO. RD90.

INDICATES CAVITY CLEARANCES

PLAN VIEW

FFL G

FRONT VIEW PROFILE VIEW

DATE: 20.04.2015

IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm

(/2''). Please read the installation manual for detailed information on

installing the product. www.fisherpaykel.com

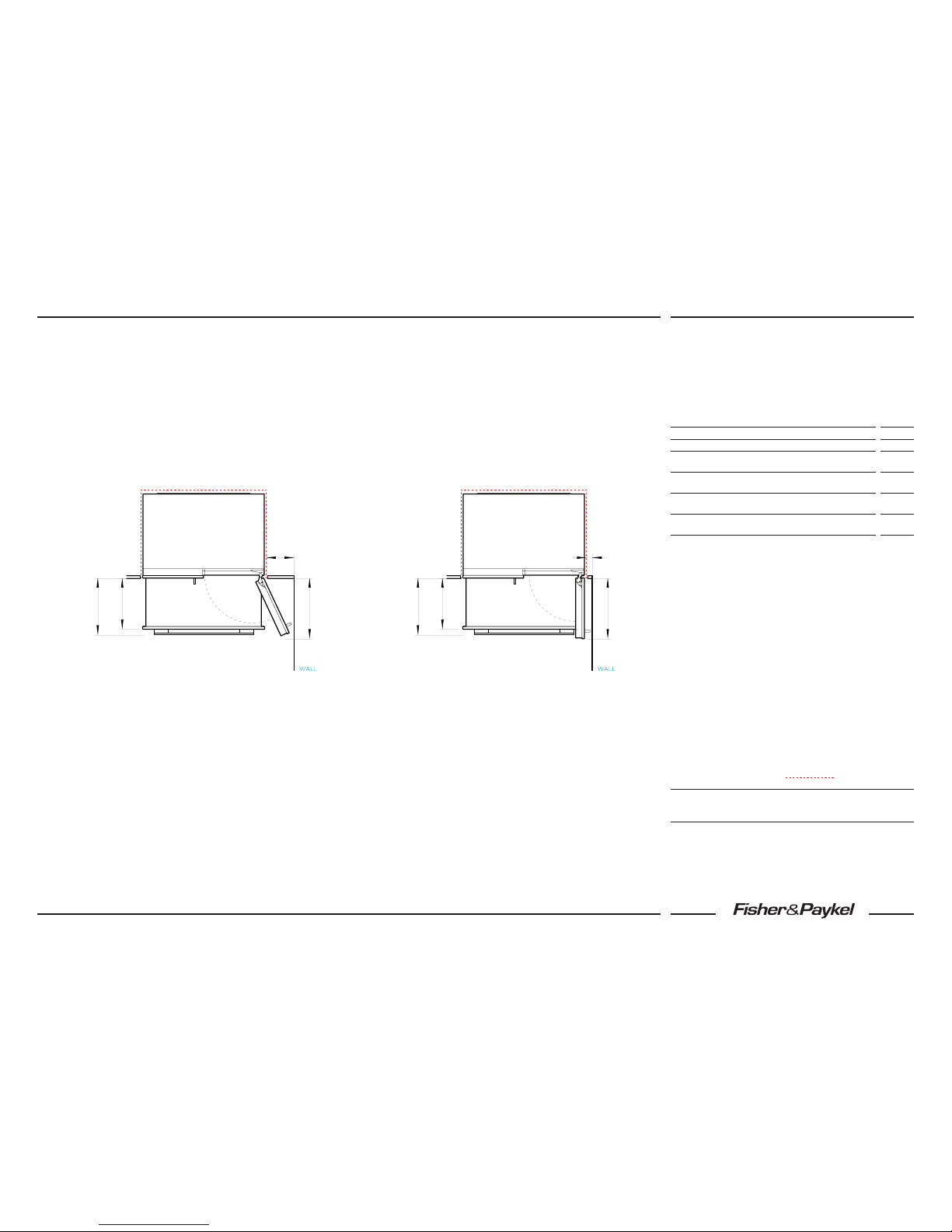

DOOR OPENING & CLEARANCE DIMENSIONS

900mm ActiveSmart™ Slide-in Refrigerator

Model no:

RS90AU1 (with Stainless Steel Door panels PART NO. RD90U)

RS90A1 (with Stainless Steel Door panels PART NO. RD90)

Door Opening & Clearance Dimensions

a Depth of door (widest opening) measured from front of door

445

B Depth of drawer (open) measured from front of drawer,

including handle

400

C Depth of drawer (open) measured from front of drawer,

excluding handle

60

D Minimum door clearance to adjacent wall* (115° – full internal

access)

00

E Minimum door clearance to adjacent wall* (90° – reduced

internal access)

100

* Measured from front cabinetry edge, includes 2mm cabinetry gap.

INDICATES CAVITY CLEARANCES

90° DOOR OPENING115° DOOR OPENING

[FULL ROTATION]

DATE: 20.04.2015

IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm

(/2''). Please read the installation manual for detailed information on

installing the product. www.fisherpaykel.com

PRODUCT & CAVITY DIMENSIONS

900mm ActiveSmart™ Slide-in Refrigerator

Model no:

RS90A1

Cavity Dimensions

a Overall height of cavity

1800

B Overall width of cavity

when adjoining cabinetry can share 4mm door gap

900

when adjoining cabinetry cannot share 4mm door gap

904

c Overall depth of cavity

650

Total front panel width with required gaps at sides = 904mm (Refer custom

panel dimensions page 8 – panel width + 2 x Fcabinetry gaps).

Product Dimensions

D Overall height of product*

1798

E Overall width of product

890

F Minimum cabinetry gap clearance from edge of custom

panels**

G Overall depth of product (excl. front door panels)

606

H Depth of toekick (measured from front of door panels***)

I Height of grill/toekick*

100

J Depth of product front panels (excludes handles)***

* Includes mounted feet and top brackets.

** For custom panel dimensions refer to page 8.

*** Door panels to be manufactured and ﬁtted by cabinetmaker, max thickness

18mm.

INDICATES CAVITY CLEARANCES

PLAN VIEW

FFJ G

FRONT VIEW PROFILE VIEW

DATE: 20.04.2015

IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm

(/2''). Please read the installation manual for detailed information on

installing the product. www.fisherpaykel.com

DOOR OPENING & CLEARANCE DIMENSIONS

900mm ActiveSmart™ Slide-in Refrigerator

Model no:

RS90A1

Door Opening & Clearance Dimensions

a Depth of door (widest opening) measured from front of

cabinetry

445

B Depth of drawer (open) measured from front of cabinetry*

8

C Minimum door clearance** to adjacent wall (115° – full internal

access)*

00

D Minimum door clearance** to adjacent wall (90° – reduced

internal access)*

100

* Does not include the custom door panels or handles to be manufactured and

ﬁtted by cabinetmaker.

** Measured from front cabinetry edge, includes 2mm cabinetry gap.

INDICATES CAVITY CLEARANCES

90° DOOR OPENING115° DOOR OPENING

[FULL ROTATION]

DATE: 20.04.2015

IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm

(/2''). Please read the installation manual for detailed information on

installing the product. www.fisherpaykel.com

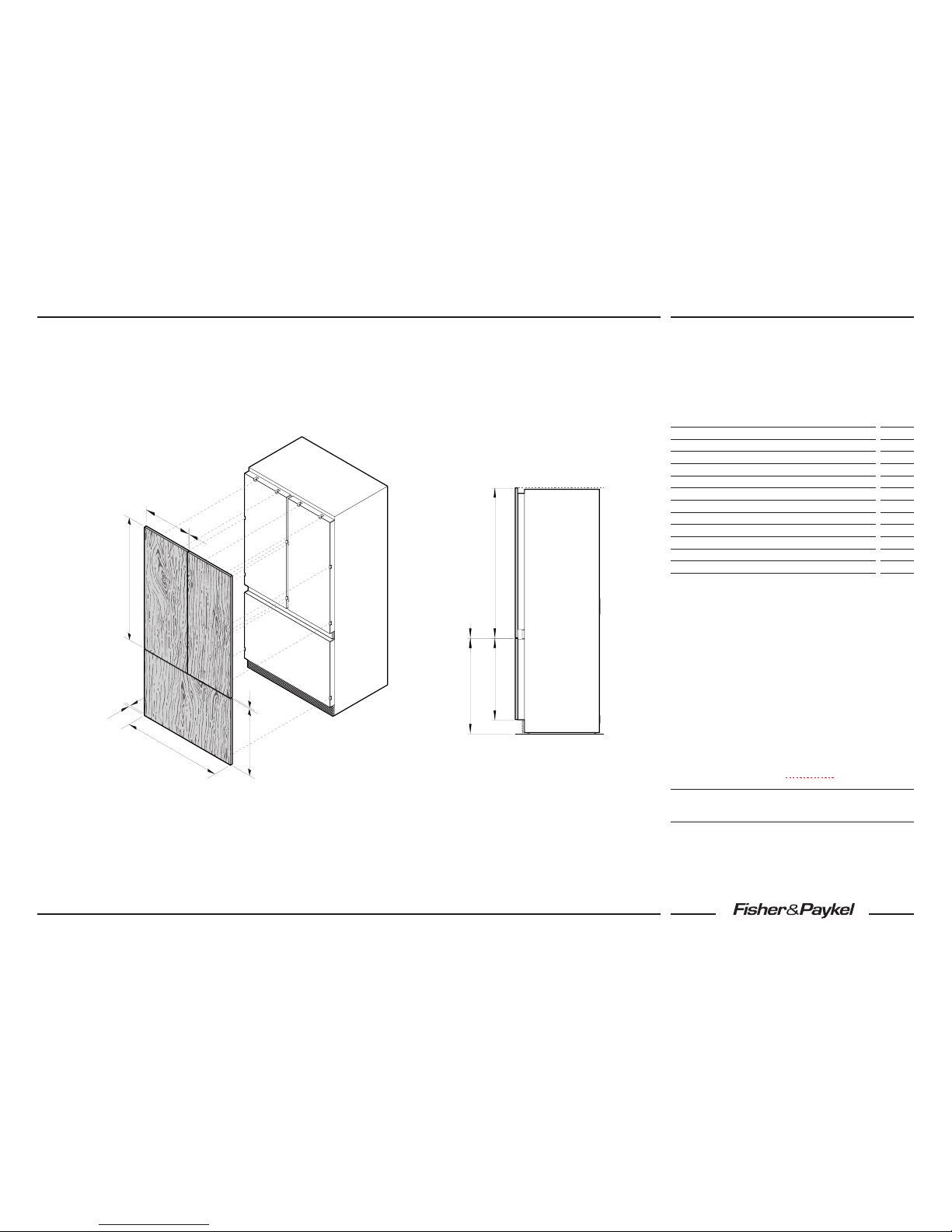

CUSTOM PANEL DIMENSIONS

900mm ActiveSmart™ Slide-in Refrigerator

Model no:

RS90A1

Custom Panel Dimensions

a Height of top door panel

1096

B Width of top door panel

446

C Gap between top door panels

D Height of bottom drawer panel

598

E Height from bottom of product to top of bottom drawer panel

698

F Width of bottom drawer panel

896

G Gap between top door panels and bottom drawer panel

H Maximum depth of custom panels

Maximum weight of an individual top door panel

10kg

Maximum weight of bottom drawer panel

9.5kg

Custom door panels and handles to be manufactured and ﬁtted by

cabinetmaker.

INDICATES CAVITY CLEARANCES

ISO VIEW PROFILE VIEW

DATE: 20.04.2015

IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm

(/2''). Please read the installation manual for detailed information on

installing the product. www.fisherpaykel.com

CUSTOM PANEL PREPARATIONS

900mm ActiveSmart™ Slide-in Refrigerator

Model no:

RS90A1

Custom Panel Preparation

Dimensions are shown in Metric (mm).

Dimensions apply for the preparation and installation of custom panels.

Custom panels are for non-Ice & Water models only.

For the second panel mirror and repeat dimensions using inner bottom corner

as the reference point.

Handles

Ensure handle is mounted 65 mm from inner edge of panel to the centre – this

will avoid interference with brackets. (Refer red dash line).

Dwg & Dxf Files

Dwg and Dxf files of the panel preparation are available within the download

folder for this product and can be found on

http://thekitchentools.fisherpaykel.com.

TOP PANEL – REAR VIEW

DATE: 20.04.2015

IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm

(/2''). Please read the installation manual for detailed information on

installing the product. www.fisherpaykel.com

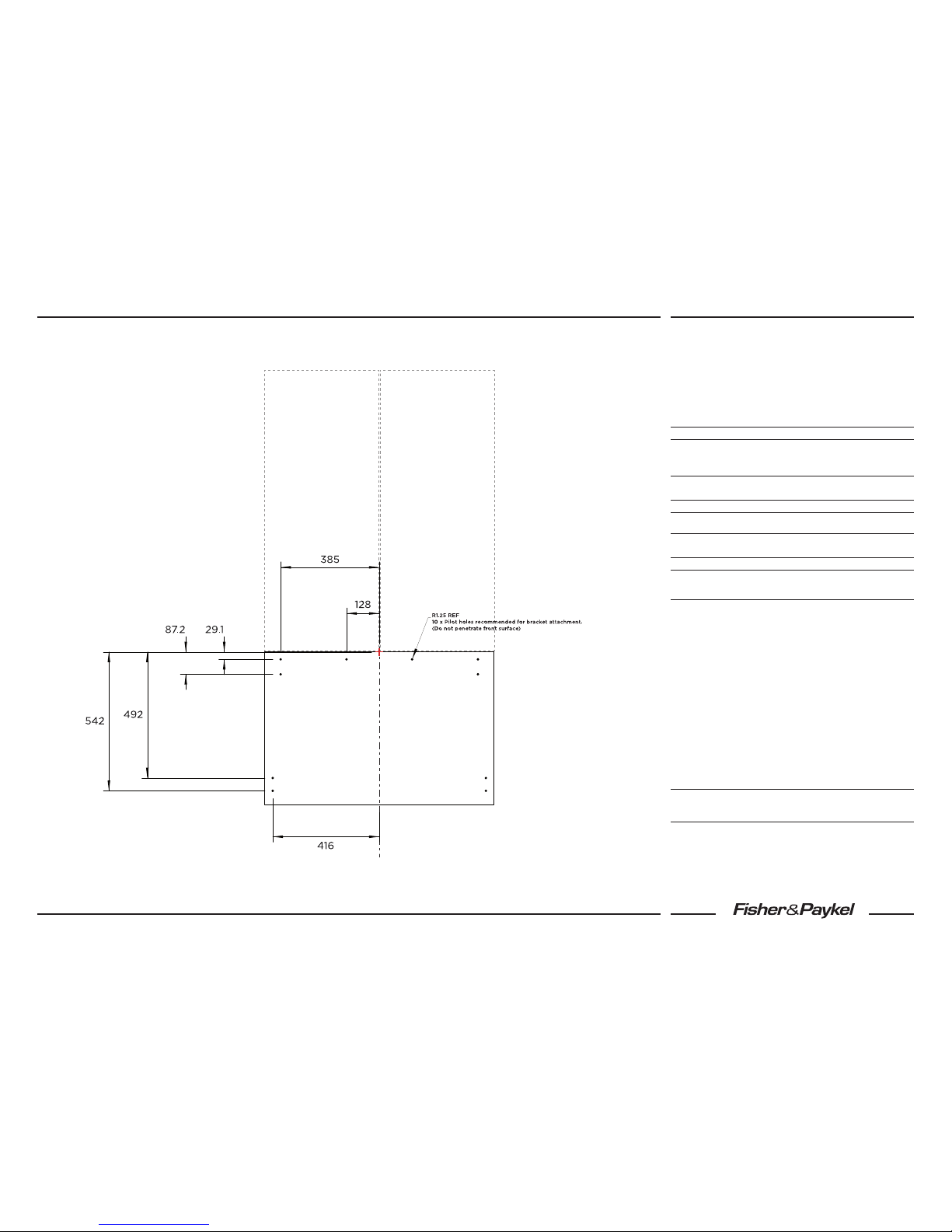

CUSTOM PANEL PREPARATIONS

900mm ActiveSmart™ Slide-in Refrigerator

Model no:

RS90A1

Custom Panel Preparation

Dimensions are shown in Metric (mm).

Dimensions apply for the preparation and installation of custom panels.

Custom panels are for non-Ice & Water models only.

Handles

Ensure handle screw heads are counter sunk into back of panel to avoid

interfering with hanging bracket.

Dwg & Dxf Files

Dwg and Dxf files of the panel preparation are available within the download

folder for this product and can be found on

http://thekitchentools.fisherpaykel.com.

BOTTOM PANEL – REAR VIEW

Autres manuels pour RS90A1

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Fisher & Paykel Réfrigérateur

Fisher & Paykel

Fisher & Paykel RS6121FLJK2 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel RS7621SRK2 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel RS6121W Manuel utilisateur

Fisher & Paykel

Fisher & Paykel RS2484SLK1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel IZONA CoolDrawer RB36S Manuel utilisateur

Fisher & Paykel

Fisher & Paykel ActiveSmart E402B Instructions de montage

Fisher & Paykel

Fisher & Paykel RS2484WLU1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel ActiveSmart E372B Manuel utilisateur

Fisher & Paykel

Fisher & Paykel E522A-21767A Manuel utilisateur

Fisher & Paykel

Fisher & Paykel ActiveSmart E402B Instructions de montage

Fisher & Paykel

Fisher & Paykel RS2484WRU1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel ActiveSmart RF135B Instructions de montage

Fisher & Paykel

Fisher & Paykel RS7621SLK1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel IZONA CoolDrawer RB90S Instructions de montage

Fisher & Paykel

Fisher & Paykel ActiveSmart RF135 Instructions de montage

Fisher & Paykel

Fisher & Paykel RX256 Instructions de montage

Fisher & Paykel

Fisher & Paykel RB2470BRV Manuel utilisateur

Fisher & Paykel

Fisher & Paykel IZONA CoolDrawer RB90S Manuel utilisateur

Fisher & Paykel

Fisher & Paykel E331T Instructions de montage

Fisher & Paykel

Fisher & Paykel RS6121SRK2 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS9120W Manuel utilisateur

Fisher & Paykel

Fisher & Paykel RX256DT4X1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS9120WRJ Manuel utilisateur

Fisher & Paykel

Fisher & Paykel RS90AU Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
