Installation Instructions
Please follow the installation steps below to ensure your appliance operates correctly.
Power
• The appliance must be installed so the plug is accessible.
• To ensure that the appliance is not accidentally switched off, connect your refrigerator to its own power
point. Do not plug in any other appliance at this power point or use extension cords and double adaptors,
as the combined weight of both power cords can pull the double adaptor from a wall outlet socket.
• For power requirements, refer to the information on the serial plate located at the front bottom right-hand
side of the refrigerator when the door is open.
• It is essential that the appliance is properly grounded (earthed).
Location
Your refrigerator should not be located in direct sunlight or next to any heat generating appliance such as a cooktop,
oven or dishwasher.
Ice & Water (Ice & Water Models only)
• Your Ice & Water refrigerator must be installed by an authorized plumber or Fisher & Paykel Authorized
Service Agent as incorrect plumbing can lead to water leaks.
• Fisher & Paykel Appliances does not accept responsibility for damage (including water damage) caused
by faulty installation or plumbing.

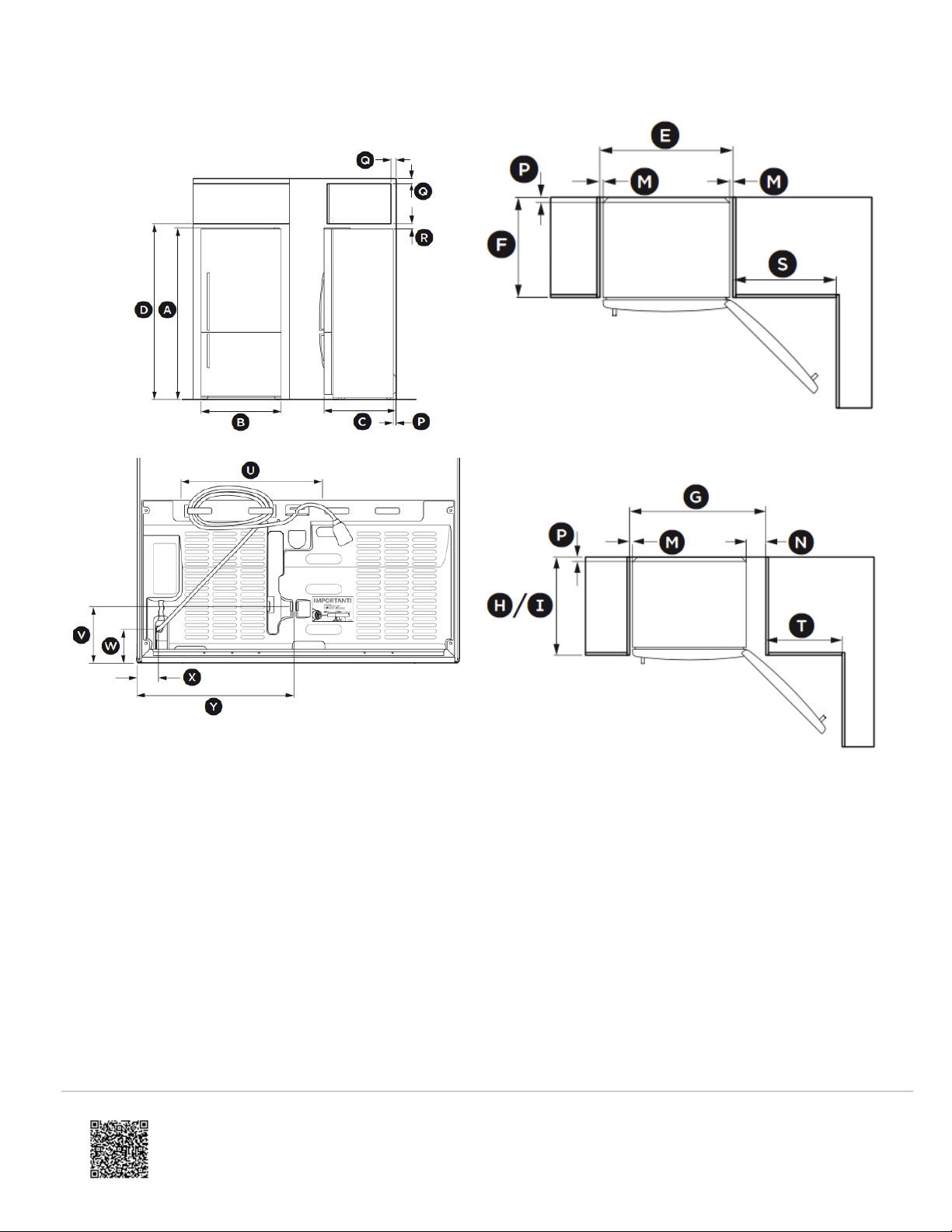

Product and Cabinetry Dimensions
Freezer Door Models (Rf135B, E522B) (Ice & Water and Non Ice & Water)
If integrating your refrigerator, please follow installation instructions provided with the integration kits
https://producthelp.fisherpaykel.com/us/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/13.5_cu_ft/RF135BDRX4/User…
Updated: Tue, 02 Jun 2020 23:55:17 GMT
Powered by
1
110VAC cord and water inlet dimensions
Flush with refrigerator chassis – full door rotation
Flush with refrigerator door – full door rotation
https://producthelp.fisherpaykel.com/us/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/13.5_cu_ft/RF135BDRX4/User…
Updated: Tue, 02 Jun 2020 23:55:17 GMT
Powered by
2
Flush with refrigerator door – 90° door rotation
RF135B E522B
Product Dimensions Inches mm Inches mm
A. Overall height of flat door product 6717/
32 1715 6717/
32 1715
A. Overall height of curved door product - - 66 15/
16 1700
A. Overall height of curved door product - - 67 1/8 1705
B. Overall width of product 25 635 31 3/
32 790
C. Overall depth of flat door product
(excludes handle, includes rear compartment cover) 27 3/8 695 27 3/8 695
C. Overall depth of curved door product. (excludes handle, includes rear
compartment cover) - - 28 5/
32 715
https://producthelp.fisherpaykel.com/us/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/13.5_cu_ft/RF135BDRX4/User…
Updated: Tue, 02 Jun 2020 23:55:17 GMT
Powered by
3
RF135B E522B
Cabinetry Dimensions (Including minimum clearances) Inches mm Inches mm
D. Inside height of cavity 68 5/16 1735 68 5/16 1735
Flush with refrigerator chassis – Full Door Rotation
E. Inside width 26 9/16 675 32 11/16 830
F. Inside depth 24 13/32 620 24 13/32 620
Flush with Refrigerator Door – Full Door Rotation
G. Inside width 31 3/32 790 37 7/32 945
H. Inside depth flush to curved door - - 26 25/32 680
I. Inside depth flush to flat door 27 3/8 695 27 3/8 695

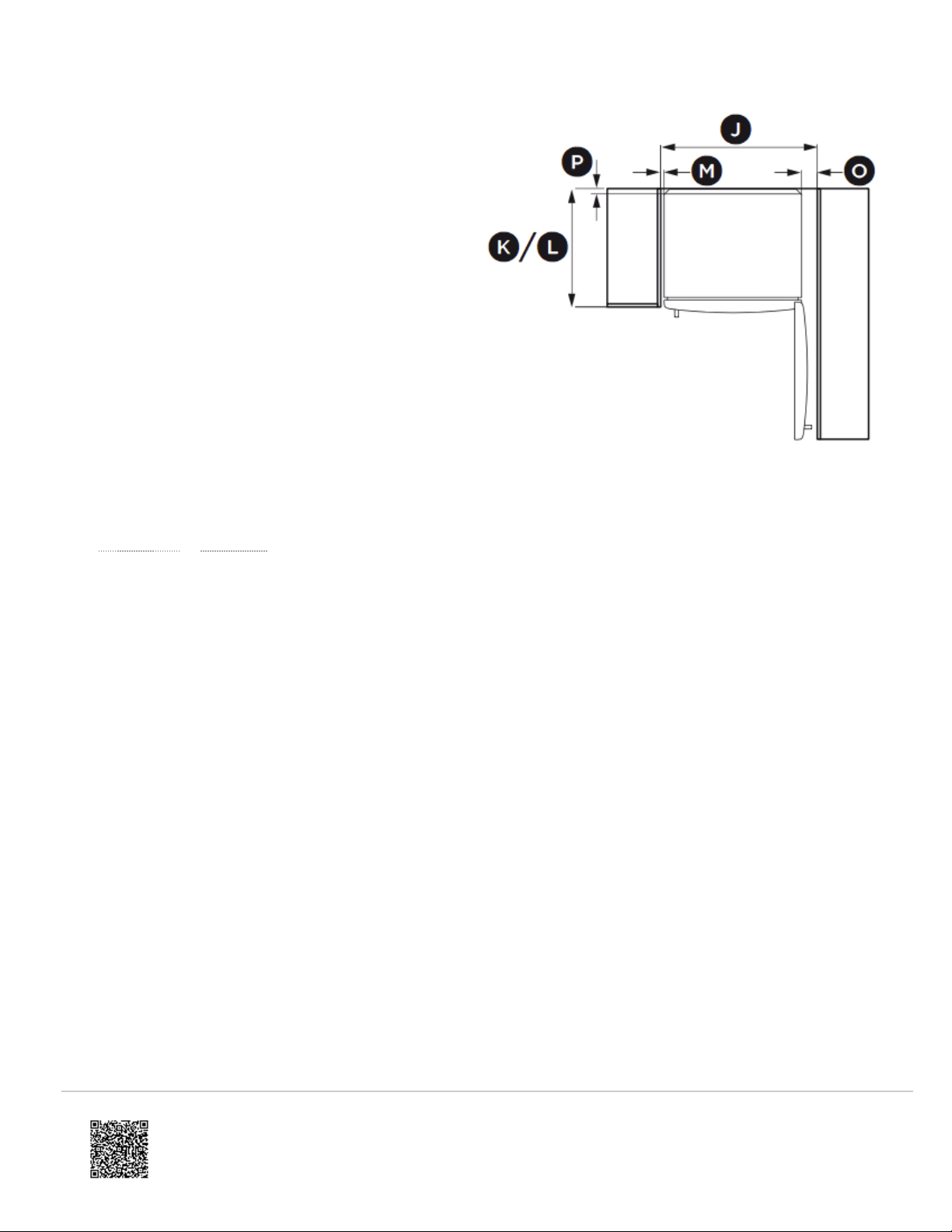

Flush with Refrigerator Door – 90° Door Rotation (for full drawer/shelf access, the doors need to be open
past 90°)
J. Inside width 29 11/32 745 35 7/16 900
K. Inside depth flush to curved door - - 26 25/32 680
L. Inside depth flush to flat door 27 3/8 695 27 3/8 695
RF135B E522B
Minimum Clearances Inches mm Inches mm
M. Side clearance 25/32 20 25/32 20
N. Side clearance – hinge side flush with door – full rotation 5 5/16 135 5 5/16 135
O. Side clearance – hinge side flush with door – 90° rotation 3 17/32 90 3 17/32 90
P. Rear clearance (incl. rear compartment cover) 1 3/16 30 1 3/16 30
https://producthelp.fisherpaykel.com/us/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/13.5_cu_ft/RF135BDRX4/User…
Updated: Tue, 02 Jun 2020 23:55:17 GMT
Powered by
4
Minimum Clearances Inches mm Inches mm
Q. Vent – around top of cupboard (optional) 1 31/32 50 1 31/32 50
R. Top clearance – above refrigerator cabinet 1 31/32 50 1 31/32 50
S. Door clearance – hinge side flush with chassis – full rotation 20 15/32 520 25 13/32 645
T. Door clearance – hinge side flush with door – full rotation 15 15/16 405 20 7/8 530
RF135B E522B
110VAC and Water Inlet Dimensions Inches mm Inches mm
U. Power cord 40 1016 40 1016
V. Water inlet to bottom 5 127 5 127
W. 110VAC to bottom 3 76 3 76
X. 110VAC to edge 2 51 2 51
Y. Water inlet to edge 13 330 16 406
These drawings and dimensions are also true for Ice & Water models.

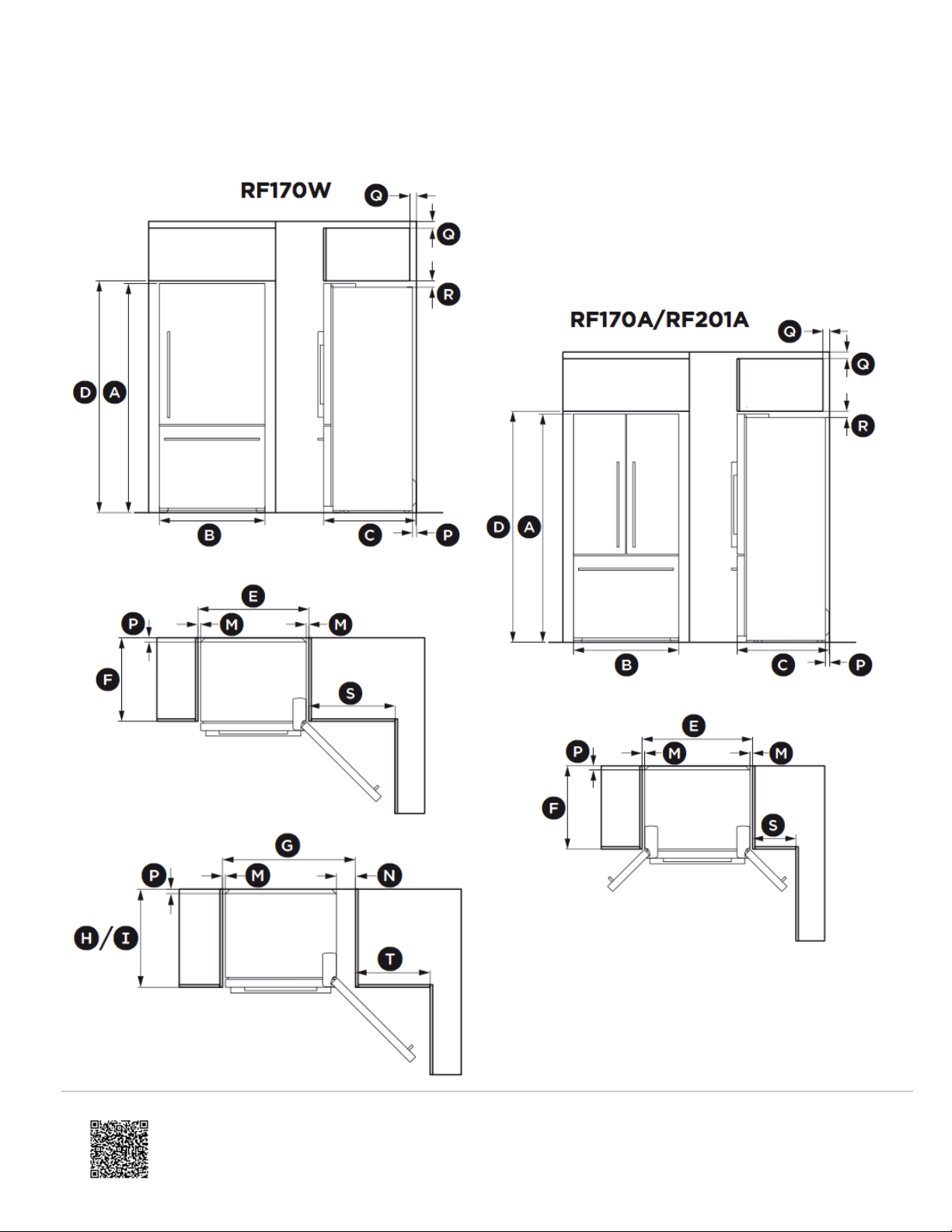

Product and Cabinetry Dimensions
https://producthelp.fisherpaykel.com/us/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/13.5_cu_ft/RF135BDRX4/User…
Updated: Tue, 02 Jun 2020 23:55:17 GMT
Powered by
5
Flush with Refrigerator Chassis – full door rotation
Flush with Refrigerator Door – 90° door rotation
Flush with Refrigerator Chassis – full door rotation
Flush with Refrigerator Door – 90° door rotation
RF170W RF170A RF201A
Product Dimensions Inches mm Inches mm Inches mm
A. Overall height of product 67 17/
32 1715 67 17/
32 1715 70 15/
32 1790
B. Overall width of product 31 3/
32 790 31 3/
32 790 35 7/
16 900
https://producthelp.fisherpaykel.com/us/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/13.5_cu_ft/RF135BDRX4/User…
Updated: Tue, 02 Jun 2020 23:55:17 GMT
Powered by
7
Product Dimensions Inches mm Inches mm Inches mm
C. Overall depth of product (excludes handle, includes rear
compartment cover) 27 3/8 695 27 3/8 695 27 3/8 695
RF170W RF170A RF201A
Cabinetry Dimensions
(including minimum clearances)
Inches mm Inches mm Inches mm
D. Inside height of cavity 68 5/16 1735 68 5/16 1735 71 1/4 1810
Flush with Refrigerator Chassis – full door rotation
E. Inside width 32 11/16 830 32 11/16 830 37 940
F. Inside depth 24 13/32 620 24 13/32 620 24 13/
32 620
Flush with Refrigerator Door – full door rotation
G. Inside width 37 7/32 945 41 23/32 1060 46 1/
16
46 1/
16
H. Inside depth flush to curved door - - - - - -
I. Inside depth flush to flat door 27 3/8 695 27 3/8 695 27 3/8 695
Flush with Refrigerator Door – 90° door rotation (for full drawer/shelf access, the doors
need to be open past 90°)
J. Inside width 35 7/16 900 39 31/32 1015 44 9/
32 1125
K. Inside depth flush to curved door - - - - - -
L. Inside depth flush to flat door 27 3/8 695 27 3/8 695 27 3/8 695
https://producthelp.fisherpaykel.com/us/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/13.5_cu_ft/RF135BDRX4/User…
Updated: Tue, 02 Jun 2020 23:55:17 GMT
Powered by
8
RF170W RF170A RF201A
Minimum Clearances Inches mm Inches mm Inches mm
M. Side clearance 25/32 20 25/32 20 25/32 20
N. Side clearance – hinge side flush with door – full rotation 5 5/16 135 5 5/16 135 5 5/16 135
O. Side clearance – hinge side flush with door – 90° rotation 3 17/32 90 3 17/32 90 3 17/
32 90
P. Rear clearance (incl. rear compartment cover) 1 3/16 30 1 3/16 30 1 3/16 30
Q. Vent – around top of cupboard (optional) 1 31/32 50 1 31/32 50 1 31/
32 50
R. Top clearance – above refrigerator cabinet 1 31/32 50 1 31/32 50 1 31/
32 50
S. Door clearance – hinge side flush with chassis – full
rotation
25 13/
32 645 12 25/
32 325 14 3/8 365
T. Door clearance – hinge side flush with door – full rotation 20 7/8 530 8 9/32 210 9 27/
32 250
These drawings and dimensions are also true for Ice & Water models.
https://producthelp.fisherpaykel.com/us/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/13.5_cu_ft/RF135BDRX4/User…
Updated: Tue, 02 Jun 2020 23:55:17 GMT
Powered by
9

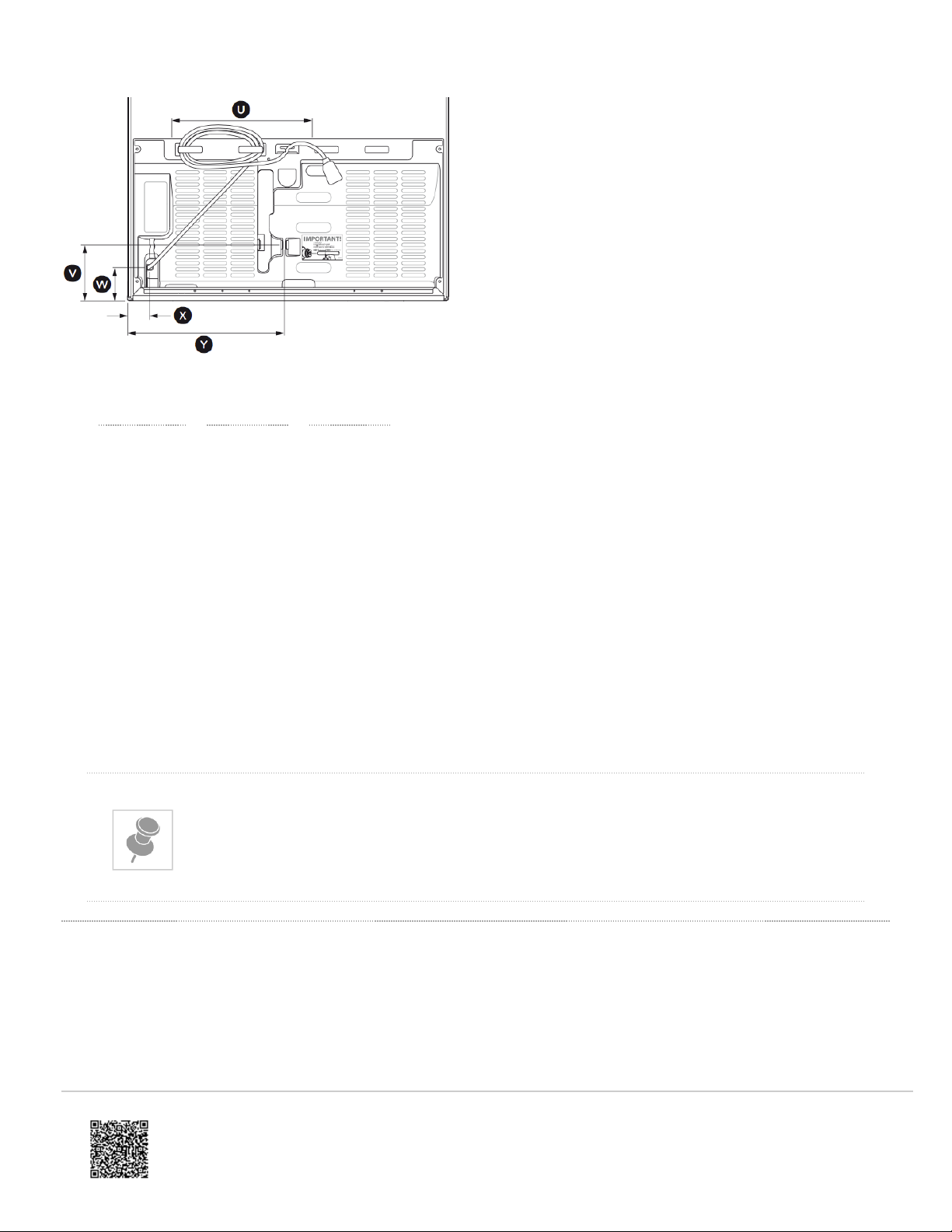

110VAC cord and water inlet dimensions
RF170W RF170A RF201A
110VAC and Water Inlet Dimensions Inches mm Inches mm Inches mm
U. Power cord 40 1016 40 1016 40 1016
V. Water inlet to bottom 5 127 5 127 5 127
W. 110VAC to bottom 3 76 3 76 3 76
X. 110VAC to edge 2 51 2 51 2 51
Y. Water inlet to edge 16 406 16 406 18 457
These drawings and dimensions are also true for Ice & Water models.
Connecting Water (Ice & Water Models Only)
Contents of Filter Kit
1. 13 ft (4 m) white 1⁄4” (6 mm) tubing
2. 1 x 8” (200 mm) blue tubing
3. 1 x pressure reducing valve (PRV)
https://producthelp.fisherpaykel.com/us/Cool/Fridges/Bottom_Freezer/Without_Ice_and_Water/13.5_cu_ft/RF135BDRX4/User…
Updated: Tue, 02 Jun 2020 23:55:17 GMT
Powered by
10
