Fisher & Paykel E522BRX Instructions de montage

Installation instructions

and user guide US CA (EN)

Active Smart™ Refrigeration

US CA

Instructions d’installation et

guide de l’utilisateur US CA (FR)

Réfrigération Active Smart™

Important: This User Guide is to be used for all refrigerator/freezers. It contains all the

general information required for the operation of your refrigerator/freezer.

A User Guide is provided with the Ice & Water refrigerator. This booklet contains additional

specific information about the ice and water functions on the refrigerator

Important : Ce Guide de l’utilisateur est destiné à tous les réfrigérateurs/congélateurs.

Il contient toute l’information générale nécessaire au bon fonctionnement de votre

réfrigérateur/congélateur.

Un Guide de l’utilisateur est fourni avec chaque réfrigérateur Ice & Water. Ce livret contient

des renseignements supplémentaires sur les fonctions du système Ice & Water de votre

réfrigérateur.

The models shown in this user guide may not be available in all markets and are subject

to change at any time. For current details about model and specification availability in

your country, please go to our website www.fisherpaykel.com / www.fisherpaykel.ca or

contact your local Fisher & Paykel dealer.

Les modèles illustrés dans ce guide de l’utilisateur peuvent ne pas être offerts dans

tous les marchés et sont sujets à modification en tout temps. Pour connaître le modèle

et les spécifications applicables à votre pays, veuillez visiter notre site Web à

www.fisherpaykel.com / www.fisherpaykel.ca ou communiquer avec le représentant

Fisher & Paykel de votre région.

Contents

Important Safety Information 4

Installation – Four Essential Requirements 6

Moving or Storing Your Refrigerator 9

Ice & Water Refrigerators – please refer to supplement Ice & Water User Guide 10

Active Smart™ Operating Instructions 10

Active Smart™ Special Features 12

Active Smart™ Maintenance 13

Cleaning Care 14

Storing Food in Your Refrigerator 17

Storing Food in Your Freezer 19

Problem Solving Checklist 21

Limited Warranty 23

Table des matières

Consignes de sécurité importantes 26

Installation – quatre exigences essentielles 28

Déplacement ou entreposage du réfrigérateur 31

Réfrigérateurs Ice & Water

– veuillez consulter le supplément au Guide de l’utilisateur du système Ice & Water 32

Procédures de mise en marche de l’Active Smart™ 32

Caractéristiques spéciales de l’Active Smart™ 34

Entretien de l’Active Smart™ 35

Nettoyage 36

Conservation des aliments au réfrigérateur 39

Conservation des aliments au congélateur 41

Un problème! Que faire? 43

Garantie limitée 45

Important Safety Information

To reduce the risk of fire, electric shock, or injury to persons read the IMPORTANT SAFETY

INSTRUCTIONS before operating this appliance.

Use this appliance only for its intended purpose as described in this User Guide.

Warning

When using this appliance always exercise basic safety precautions including the following:

Danger

This appliance is not intended for use by young children or infirm persons without supervision.

Young children should be supervised to ensure they do not play with the appliance.

Risk of child entrapment. Before you throw away your old refrigerator or freezer:

–Take off the doors

–Leave the shelves in place so that children may not easily climb inside.

Disposal

Extreme care must be taken when disposing of your old appliance to avoid hazards. The

refrigerant gas must be safely removed and for the safety of young children, remove doors.

Your Fisher & Paykel Appliances Authorised Service Center will be able to give advice on

environmentally friendly methods of disposing of your old refrigerator or freezer.

Electrical

This appliance must be properly installed in accordance with the installation instruction before it

is used.

Never unplug your refrigerator by pulling on the power cord.

Always grip the plug firmly and pull straight out from the outlet.

Do not plug in any other appliance at its power point or use extension cords or double adapters.

Repair or replace immediately all electric service cords that have become frayed or otherwise

damaged. Do not use a cord that shows cracks or abrasion along its length or at either the plug

or appliance end.

If the power supply cord is damaged, it must only be replaced by your Fisher & Paykel Appliances

Authorised Service Center because special purpose tools are required.

When moving your appliance away from the wall, be careful not to roll over or damage the

power cord.

Unplug your refrigerator before cleaning or replacing the lightbulb.

Important Safety Information

Storing Food and Drinks

Never store volatile or flammable materials in your refrigerator or freezer as they may explode.

Never freeze liquids in glass containers. Liquid expands during freezing, which may cause the

container to explode.

Never freeze carbonated drinks. They may explode.

Do not consume food if it is too cold. Food removed from the freezer compartment may be cold

enough to cause damage when brought into contact with bare skin e.g. frozen ice cubes.

Power Failure – Food Safety

Do not refreeze frozen foods that have thawed completely. Follow the recommendations below

if you discover food in your freezer has thawed:

1) Ice crystals still visible – food may be refrozen but should be stored for a shorter period than

recommended.

2) Thawed but refrigerator cold – refreezing generally not recommended. Fruits and some

cooked food can be refrozen but use as soon as possible. Meat, fish, poultry – use immediately

or cook then refreeze. Vegetables – discard as they usually go limp and soggy.

3) Thawed but warmer than 4˚C /40˚F. Red meat can be cooked immediately and refrozen but

use as soon as possible. Discard all other frozen foods.

Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

Cleaning

Many commercially available cleaning products contain solvents which may attack plastic

components of your refrigerator or freezer and cause them to crack. Please refer to the cleaning

care section of this booklet for further advice.

SAVE THESE INSTRUCTIONS

Installation - Four Essential Requirements

Please follow the steps for installation to ensure your appliance operates correctly.

1. Power

The appliance must be installed so the plug is accessible.

To ensure that the appliance is not accidentally switched off, connect your refrigerator or freezer

to its own power point. Do not plug in any other appliance at this power point or use extension

cords and double adaptors, as the combined weight of both power cords can pull the double

adaptor from a wall outlet socket.

For power requirements, refer to the information on the serial plate located at the front bottom

right-hand side of the refrigerator when the door is open.

It is essential that the appliance be properly grounded (earthed).

2. Location

Your refrigerator or freezer should not be located in direct sunlight or next to any heat

generating appliance such as a range or dishwasher.

3. Stability

It is important that all four corners of the refrigerator or freezer base are supported firmly on the

floor to eliminate any cabinet movement.

Installing the appliance on a soft or uneven or unlevel floor may result in twisting of the cabinet

and poor sealing of the doors. If the doors do not seal properly, warm air will enter the food

storage areas causing the temperature to increase, resulting in food spoilage and food loss.

Before moving your refrigerator or freezer into its position, ensure that the adjustable front feet

are fully retracted by turning them anticlockwise (counter-clockwise), ie. towards the right of

the cabinet.

Position your refrigerator or freezer. Turn the adjustable feet clockwise, ie. to the left, to lower

the adjustable front feet. Raise the front of the appliance until it is stable and the doors move

towards the closed position, on their own, when open.

The front levelling foot on the hinge side should take the majority of the weight of the cabinet

and the cabinet should be stable, i.e. cabinet should not rock or wobble.

Installation - Four Essential Requirements

4. Ventilation and Installation

To ensure adequate ventilation for your

refrigerator or freezer see recommended

cabinetry dimensions below.

The appliance is intended to be placed against a

wall with a free distance not exceeding 3” (75mm).

If building the appliance into a cupboard, follow

installation instructions provided with the

integration kits.

Flush with refrigerator chassis

– full door rotation

Flush with refrigerator door

– full door rotation

Flush with refrigerator door

– 90˚ door rotation

Cabinetry dimensions (inches / mm) (including minimum clearances)

E522B

A inside height

68 ¾ / 1745

Flush with refrigerator chassis – full door rotation

B inside width

32 ¾ / 830

C inside depth

24 ⁄ / 620

Flush with refrigerator door – 90º door rotation

D inside width

32 ⁄ / 835

E inside depth flush to curved door

26 ⁄ / 675

F inside depth flush to flat door

27 ⁄ / 690

Flush with refrigerator door – full door rotation

G inside width

37 ⁄ / 950

H inside depth flush to curved door

26 ⁄ / 675

I inside depth flush to flat door

27 ⁄ / 690

Minimum clearances

J side clearance

¾ / 20

K side clearance – hinge side flush with door – 90° rotation

1 / 25

L side clearance – hinge side flush with door – full rotation

5 ½ / 140

M rear clearance (incl. evaporator tray)

1 ⁄ / 30

N vent

2 / 50

Installation - Four Essential Requirements

Before Placing Food in the Fresh Food or Freezer Compartments

Remove all packaging. Ensure that all transit clips are removed from the refrigerator. These are

small rubber stops located at the back of the shelves.

Allow the refrigerator and freezer to run empty for 2 – 3 hours to allow each compartment to

cool to the appropriate temperature.

Clean the inside of the appliance with warm water and a little liquid detergent to remove

manufacturing and transportation dust.

The appliance may have an odor on its initial operation, but this will go when the refrigerator

and freezer have cooled sufficiently.

Energy Efficiency

Do not cover your appliances with any material that will prevent air from flowing around the

cabinet sides.

Do not leave the door open for any longer than is necessary.

Allow good clearances in front of the air ducts within the cabinet for maximum cold

air distribution.

Moving or Storing Your Refrigerator

If your refrigerator or freezer is turned off for any reason, wait 10 minutes before turning it back

on. This will allow the refrigeration system pressures to equalise before restarting.

Moving Your Refrigerator

Turn off the appliance and unplug from the power point. Remove all food.

Turn the adjustable feet to the right as far as they will turn (see page 6).

Ease the refrigerator out of its position. Tuck the power cord away and tape the doors closed.

Tape the shelves in place. If the cabinet needs to be placed at an angle or laid down, carefully lay

it on its side (the right hand side when viewed from the front).

Relocate and install. If the appliance has been left on its side for any length of time, leave it

standing upright for at least 10 minutes before turning on.

Storing Your Refrigerator or Freezer

When storing your cleaned appliance, leave the door(s) open. This allows air to circulate and

prevents the build up of bacteria and moulds.

Before using again, clean well using a mixture of warm water and baking soda (add 1 teaspoon

of baking soda to each 1 pint (500 ml) of water). Rinse with clean water.

Vacation Time

We recommend you leave your refrigerator or freezer operating while you are on vacation.

Active Smart™ Operating Instructions

For information on the operation of the Ice & Water control panel please refer to

the Ice & Water User Guide.

Temperature Control

When the refrigerator is first turned on, the powerful cooling system will automatically cool both

refrigerator and freezer compartments to their set temperatures. This will take between 2 – 3

hours depending on the temperature and humidity of the environment.

The two compartment temperatures are accurately and independently controlled and do not

change with the temperature or humidity of the surroundings; whether summer or winter.

If you wish to alter the temperature of either the fresh food compartment or freezer

compartment, this can be easily done by using the Control panel located at the back of the fresh

food compartment.

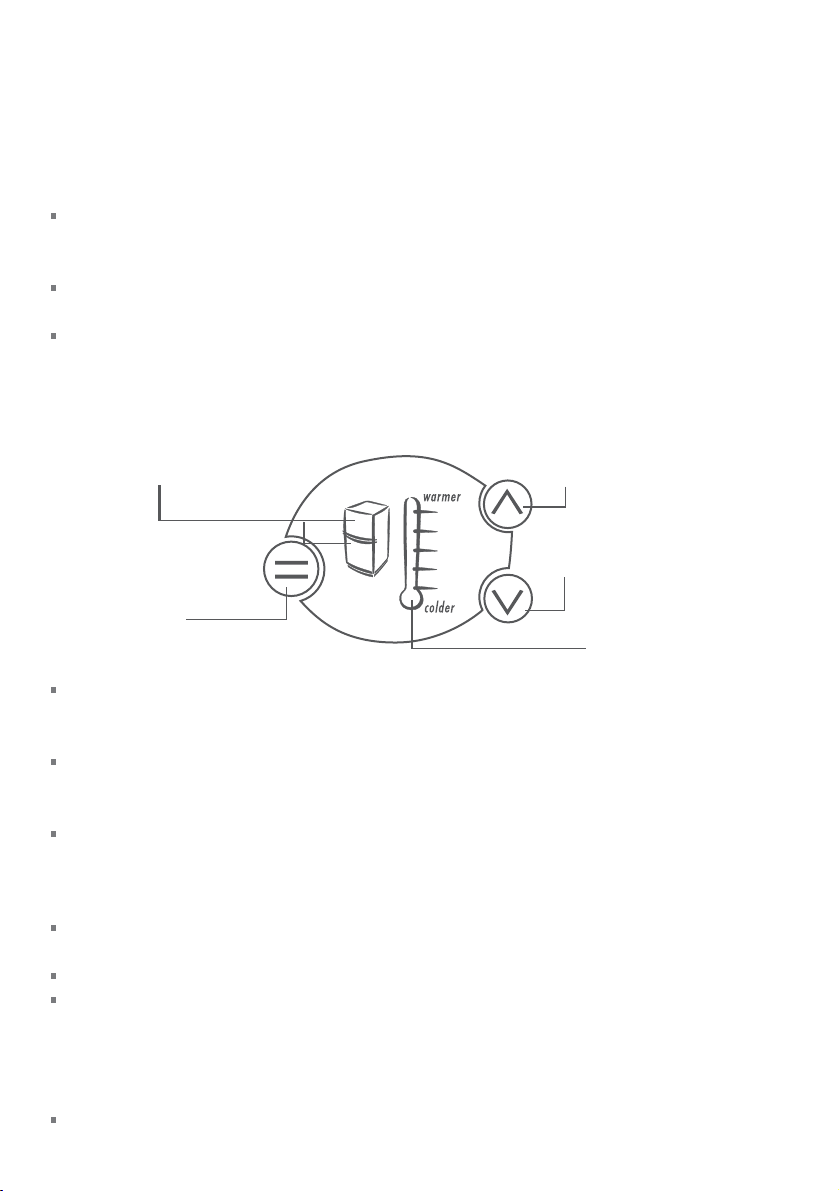

Control Panel To adjust temperatures

Fresh food and freezer

compartment indicator

Compartment

select button

Increase temperature button

Decrease temperature button

Temperature

indicator (thermometer)

Fresh Food Compartment

The fresh food compartment light on the refrigerator diagram will be showing. The temperature

indicator illustrated by a thermometer will show the temperature setting for this compartment as

a series of lights.

The temperature may be altered by pressing the increase temperature or decrease temperature

buttons. One press on either of these buttons will produce a dimmer light which indicates a

small change in temperature.

Pressing either button twice gives a brighter light and indicates a greater change in temperature.

Fewer lights on the thermometer means a cooler temperature for the compartment selected.

Freezer Foods Compartment

To adjust the freezer temperature press the compartment select button until the light flashes on

the freezer compartment indicator.

The freezer temperature can be altered by pressing the increase or decrease temperature buttons.

One press on either of these buttons will produce a dimmer light which indicates a small change

in temperature. Pressing either button twice gives a brighter light and indicates a greater change

in temperature.

Note: Successively pressing the compartment select button will automatically select between the

compartments, a return to the fresh food compartment will be accompanied by a longer beep.

When the door is reopened the control panel will return automatically to the fresh food

compartment setting.

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Fisher & Paykel Réfrigérateur

Fisher & Paykel

Fisher & Paykel RS90A1 Manuel technique

Fisher & Paykel

Fisher & Paykel RS2474BRU Manuel utilisateur

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS9120W Manuel utilisateur

Fisher & Paykel

Fisher & Paykel RS90A Manuel utilisateur

Fisher & Paykel

Fisher & Paykel RS7621SLK2 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel RS7621SLK2 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel E331T Instructions de montage

Fisher & Paykel

Fisher & Paykel DCS RX215 Instructions de montage

Fisher & Paykel

Fisher & Paykel ActiveSmart E402B Instructions de montage

Fisher & Paykel

Fisher & Paykel ActiveSmart RF135 Instructions de montage

Fisher & Paykel

Fisher & Paykel ActiveSmart E402B Manuel utilisateur

Fisher & Paykel

Fisher & Paykel E402BRX4 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel 331T Instructions de montage

Fisher & Paykel

Fisher & Paykel RS4621FLJK2 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel MILANO WHITE AWARD 790 Series Manuel utilisateur

Fisher & Paykel

Fisher & Paykel E522BRXU Manuel utilisateur

Fisher & Paykel

Fisher & Paykel E522BLXU Manuel utilisateur

Fisher & Paykel

Fisher & Paykel RS6019S2 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel ActiveSmart E402B Instructions de montage

Fisher & Paykel

Fisher & Paykel RF331T Manuel utilisateur

Fisher & Paykel

Fisher & Paykel E331T Instructions de montage

Fisher & Paykel

Fisher & Paykel E522BRE2 Manuel de la liste des pièces

Fisher & Paykel

Fisher & Paykel RS2484SLK1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel ActiveSmart E522B Instructions de montage

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
