ActiveSmart™ refrigerator
Ice & Water and Non-Ice & Water
E372B, E402B, E406B, E442B,
E522B, RF522W, RF522A,
RF610A & RF540A models
Installation instructions
and User guide
Important!
It is important that this User Guide is retained with your refrigerator for future reference.
Should the appliance be sold or transferred to another owner, please ensure that the
User Guide is left with the appliance. This will ensure that the new owner can familiarise
themselves with the information and warnings contained within the Guide.
1
Contents
Important!
SAVE THESE INSTRUCTIONS
The models shown in this User Guide may not be available in all markets and are subject to change at any time.
For current details about model and specification availability in your country, please visit our website listed on
the back cover or contact your local Fisher & Paykel dealer. Note that the word “refrigerator”, throughout this
User Guide, refers to combination refrigerator/freezer products.
Introduction 2
Safety and warnings 3
Installation instructions 7
Moving or storing your appliance 21
Door conversion 22
Soft closing refrigerator door feature 22
ActiveSmart™ operating instructions 23
All about the external display (Ice & Water models only) 27
Using your water dispenser (Ice & Water models only) 28
Water filter (Ice & Water models only) 29
Using your ice maker (Ice & Water models only) 31
ActiveSmart™ special features (all models) 33
Cleaning and caring for your refrigerator 36
Storing food in your refrigerator 40
Storing food in your freezer 42
ActiveSmart™ user warnings and sounds 44
Troubleshooting 45
Manufacturer’s Warranty 49
Customer Care 51
European directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE) 53
Filter performance data sheet 54
2
Thank you for buying a Fisher & Paykel ActiveSmart™ refrigerator.
At Fisher & Paykel we are very proud of this refrigerator. This refrigerator combines size and
storage space with the latest features and functions.
Thousands of hours of food care research and 75 years of refrigeration experience has been
programmed into your refrigerator to give you the best possible performance.
We hope you enjoy your new refrigerator.
Note: non Ice & Water models do not have an external water dispenser.

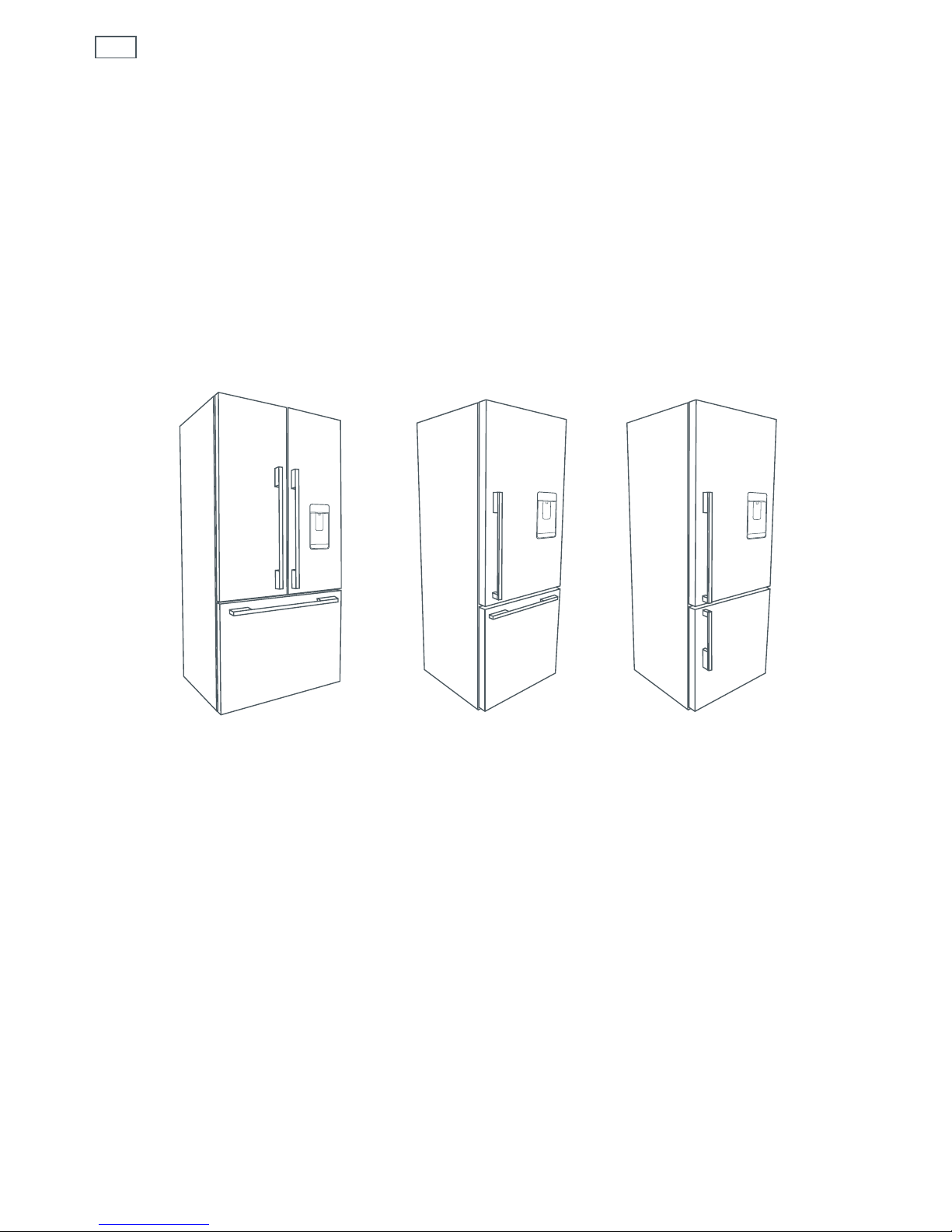

Fig.1 ActiveSmart™ refrigerators
Refrigerator French door
and freezer drawer
Refrigerator door
and freezer door
Refrigerator door
and freezer drawer
Introduction
3
WARNING!
Electric Shock Hazard
Read and follow the SAFETY AND WARNINGS outlined
in this User Guide before operating this appliance.
Failure to do so can result in death, electric shock, fire or
injury to persons.
Use this appliance only for its intended purpose as described in
this User Guide.
Important safety precautions
Warning
When using this appliance always exercise basic safety precautions
including the following:
Danger
Refer to the stability bracket and leaflet supplied to avoid hazard
due to instability of the appliance.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Young children should be supervised to ensure they do not play
with the appliance.
The manufacturer’s installation instructions for product and
cabinetry ventilation must be followed when installing the
appliance.
Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction.
Safety and warnings
4Safety and warnings
Do not use mechanical devices or other means to accelerate the
defrosting process.
Do not damage the refrigerant circuit.
In case of damage to the refrigerant circuit, ventilate the area
by opening all windows. Do not operate electrical equipment or
any other equipment that may produce arcs, sparks or flames
in the area. Contact your Fisher & Paykel Authorised Repairer
immediately to arrange for the appliance to be repaired.
R600a
This refrigerator may contain the flammable
refrigerant isobutane.
().
It is hazardous for anyone other than an authorised service
person to service this appliance. In Queensland the authorised
service person must hold a gas work licence or authorisation for
hydrocarbon refrigerants to carry our service or repairs which
involve removal of covers.
Disposal
Extreme care must be taken when disposing your old appliance to
avoid hazards:
– The refrigerant gas must be safely removed
– The doors should be removed and the shelves left in place so
that children may not easily climb inside.
Your Fisher & Paykel Authorised Repairer will be able to give advice
on environmentally friendly methods of disposing of your old
refrigerator or freezer.
5
Safety and warnings
Cleaning
Many commercially available cleaning products contain solvents
which may attack plastic components of your refrigerator and
cause them to crack. Please refer to the cleaning care section of this
booklet for further advice.
Electrical
This appliance must be installed in accordance with the installation
instructions before use.
Never unplug your refrigerator by pulling on the power cord.
Always grip the plug firmly and pull straight out from the outlet.
Do not plug in any other appliance at the same power point as your
refrigerator or use extension cords or double adapters.
Repair or replace immediately all electric service cords that have
become frayed or otherwise damaged. Do not use a cord that
shows cracks or abrasion along its length or at either the plug or
appliance end.
If the power supply cord is damaged, it must only be replaced by
your Fisher & Paykel Authorised Repairer because special purpose
tools are required.
When moving your appliance away from the wall, be careful not to
roll over or damage the power cord.
Do not use electrical appliances inside the food storage
compartments of the appliance.
Important!
Your refrigerator is designed to operate for many years without
the need for service checks. However, if your refrigerator is
malfunctioning, have it attended to by your Fisher & Paykel
Authorised Repairer as soon as possible. All electrical repairs must
be carried out by an adequately trained service technician or
qualified electrician.
6Safety and warnings
Storing food and drinks
DO NOT store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
Never store volatile or flammable materials in your refrigerator as
they may explode.
Never freeze liquids in glass containers. Liquid expands during
freezing, which may cause the container to explode.
Never freeze carbonated drinks. They may explode.
Do not consume food if it is too cold. Food removed from the
freezer compartment may be cold enough to cause damage when
brought into contact with bare skin, eg frozen ice cubes.
Power failure – food safety
Do not refreeze frozen foods that have thawed completely. Follow
the recommendations below if you discover food in your freezer
has thawed:
1) Ice crystals still visible – food may be refrozen but should be
stored for a shorter period than recommended.
2) Thawed but refrigerator cold – refreezing generally not
recommended. Fruits and some cooked food can be refrozen but
use as soon as possible. Meat, fish, poultry – use immediately or
cook then refreeze. Vegetables – discard as they usually go limp
and soggy.
3) Thawed and warmer than 5°C (41°F) – discard all food.
Do not refreeze frozen foods that have thawed completely. The
food may be dangerous to eat.
SAVE THESE INSTRUCTIONS
7
Installation instructions
Please follow the installation steps below to ensure your appliance operates correctly.
1. Power
The appliance must be installed so the plug is accessible.
To ensure that the appliance is not accidentally switched off, connect your refrigerator to its
own power point. Do not plug in any other appliance at this power point or use extension cords
and double adaptors, as the combined weight of both power cords can pull the double adaptor
from a wall outlet socket.
For power requirements, refer to the information on the serial plate located at the front bottom
right-hand side of the refrigerator when the door is open.
It is essential that the appliance is properly grounded (earthed).
2. Location
Your refrigerator should not be located in direct sunlight or next to any heat generating
appliance such as a cooktop, oven or dishwasher.
3. Ice & Water (Ice & Water models only)
Your Ice & Water refrigerator must be installed by an authorised plumber or Fisher & Paykel
Authorised Repairer as incorrect plumbing can lead to water leaks.
Fisher & Paykel Appliances does not accept responsibility for damage (including water damage)
caused by faulty installation or plumbing.
8Installation instructions
4. Ventilation and installation – Freezer door models
(E372B, E402B, E406B, E442B, E522B) (Ice & Water and non Ice & Water)
For all products with a freezer ‘door’ refer to page 8 – 9 for installation instructions. For all
products with a freezer ‘drawer’ (RF522W, RF522A and RF610) refer to pages 10 – 11 for
installation instructions.

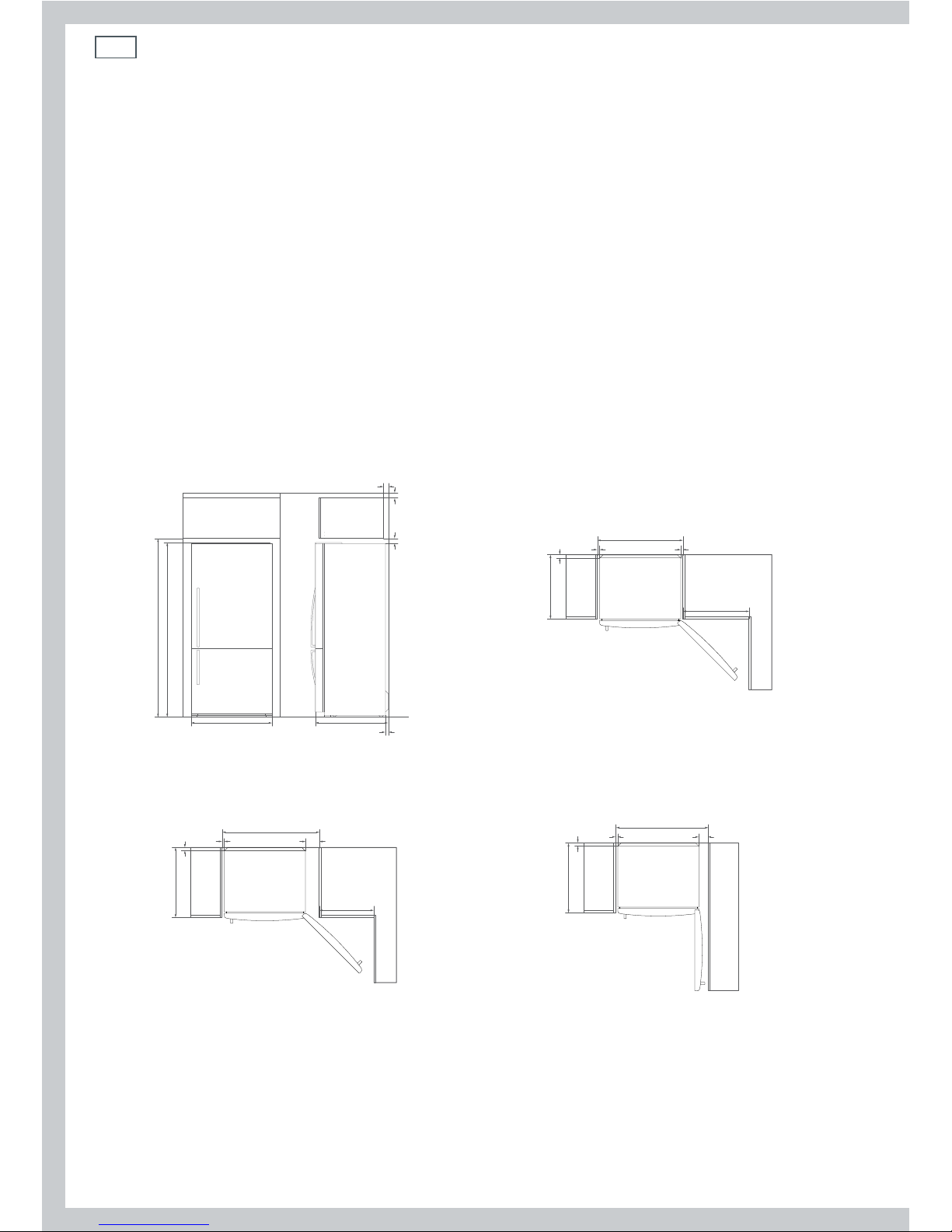

To ensure adequate ventilation for your refrigerator or vertical freezer, see recommended
cabinetry dimensions below.
If integrating your refrigerator, please follow installation instructions provided with the
integration kits.
Flush with refrigerator door – 90° door rotation
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
FRONT VIEW PROFILE VIEW
D A
BC P
R
Q
Q
F
P M M
S
E
H/I
P M N
T
G
P M
K/L
O
J
Flush with refrigerator chassis – full door rotation
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
FRONT VIEW PROFILE VIEW
D A
BC P
R
Q
Q
F
P M M
S
E
H/I
P M N
T
G
P M
K/L
O
J
Flush with refrigerator door – full door rotation
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
FRONT VIEW PROFILE VIEW
D A
BC P
R
Q
Q
F
P M M
S
E
H/I
P M N
T
G
P M
K/L
O
J
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
FRONT VIEW PROFILE VIEW
D A
BC P
R
Q
Q
F
P M M
S
E
H/I
P M N
T
G
P M
K/L
O
J
Note: these drawings and dimensions are also true for Ice & Water models.
Autres manuels pour ActiveSmart E402B
7
Ce manuel convient aux modèles suivants
8
Table des matières
Autres manuels Fisher & Paykel Réfrigérateur
Fisher & Paykel
Fisher & Paykel RS6019B Manuel utilisateur
Fisher & Paykel
Fisher & Paykel RX256DT4X1 Manuel utilisateur
Fisher & Paykel
Fisher & Paykel RS6121SLK2 Manuel utilisateur
Fisher & Paykel
Fisher & Paykel RF201A Instructions de montage
Fisher & Paykel
Fisher & Paykel E402BRX4 Manuel utilisateur
Fisher & Paykel
Fisher & Paykel RS4621FLJK2 Manuel utilisateur
Fisher & Paykel
Fisher & Paykel RS7621WR Manuel utilisateur
Fisher & Paykel
Fisher & Paykel RS90A Manuel utilisateur
Fisher & Paykel
Fisher & Paykel RS2484SLK1 Manuel utilisateur
Fisher & Paykel
Fisher & Paykel RS1884FJ Manuel utilisateur
Fisher & Paykel
Fisher & Paykel RF195 Manuel utilisateur
Fisher & Paykel
Fisher & Paykel RS4621FLJK1 Manuel utilisateur
Fisher & Paykel
Fisher & Paykel RS6121S Manuel utilisateur
Fisher & Paykel
Fisher & Paykel Active Smart Manuel utilisateur
Fisher & Paykel
Fisher & Paykel E331T Instructions de montage
Fisher & Paykel
Fisher & Paykel RS2484SR1 Manuel utilisateur
Fisher & Paykel
Fisher & Paykel active smart series Manuel utilisateur
Fisher & Paykel
Fisher & Paykel ACTIVESMART RF523M Manuel utilisateur
Fisher & Paykel
Fisher & Paykel RS2484WRUK1 Manuel utilisateur
Fisher & Paykel
Fisher & Paykel RD2484L4D Manuel utilisateur
