Dishdrawer®
Integrated panel preparation
NZ AU GB IE
DD60SI and DD60DI models
Important!
Read these instructions completely and carefully.
Ensure the product is not plugged in.
Installation of DishDrawer® panels requires basic mechanical and electrical skills.
Installation must comply with your local building and electricity regulations.
Failure to install the Dishdrawer® panels correctly could invalidate any warranty or liability
claims.
WARNING!
Cut Hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury or cuts.
Safety and warnings
WARNING!
Electrical Shock Hazard
WARNING – To reduce the risk of electric shock, fire, or injury to persons, the
installer must ensure that the DishDrawer® is completely enclosed at the time
of installation.
Before fitting the integrated panel(s) and connecting the integrated badge,
make sure that the DishDrawer® is completely enclosed by cabinetry, and
disconnected from the power supply.
The integrated badge must be electrically connected by a suitably qualified
installer.
Failure to follow these warnings may result in electrical shock, injury or fire.
1
Contents
Double models
Product preparation
2
Single models
Product preparation
4
Panel installation
Badge cut-out, handle, and panel bracket
6
Securing the panel bracket(s)
7
Reconnecting the wires and fitting the
8
panel(s) and a custom toe kick (double models only)
Important!
SAVE THESE INSTRUCTIONS
The models shown in this document may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.
2
(min. 311.5 mm)

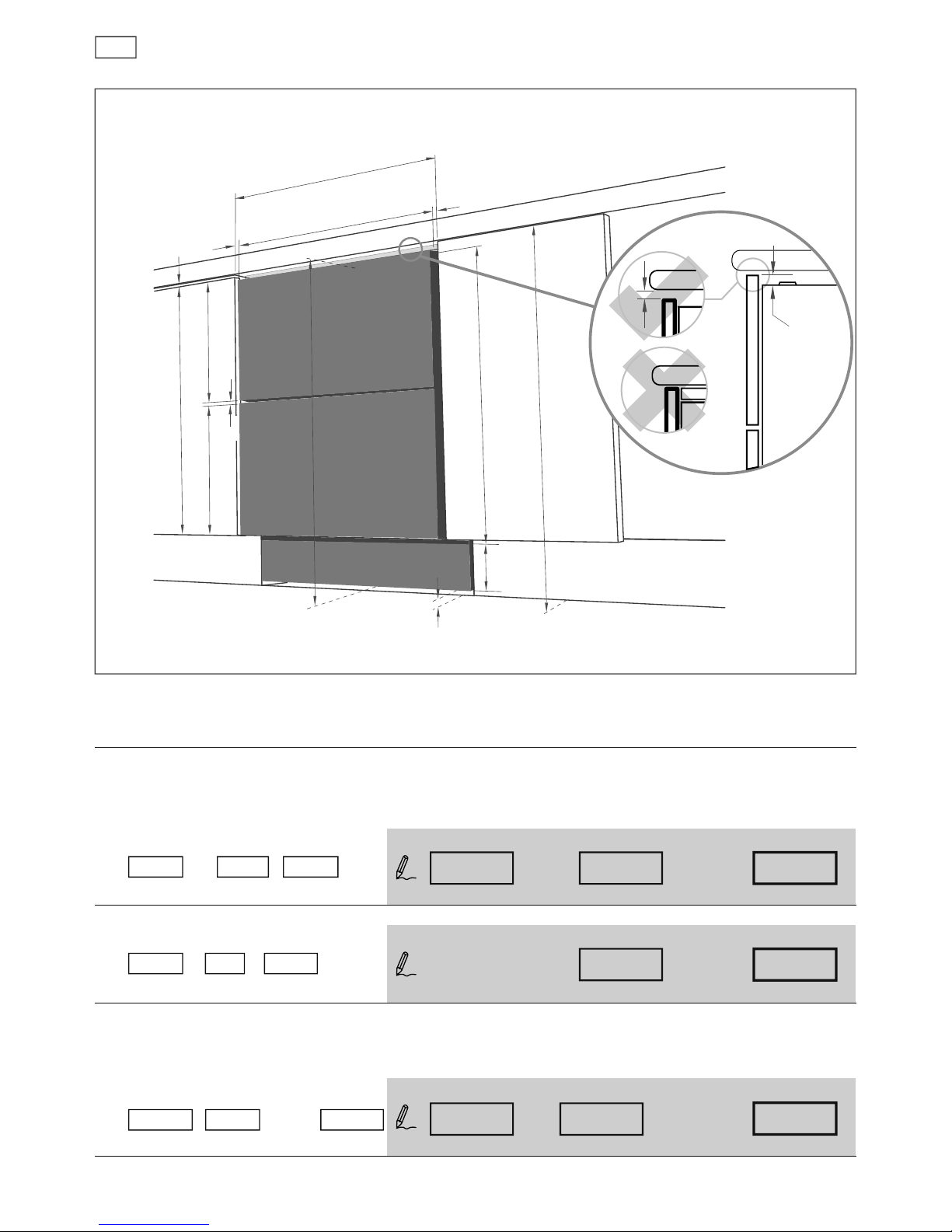

Product preparation
DD60DI models
A
C
Installation diagrams for illustration purposes only
The following calculations assume the top of the upper panel is aligned with the top of the
adjacent cabinetry. The nal panel/cabinetry alignment is achieved by adjusting the feet:
width of ALL panels
Measure
A (
the width between adjacent door/drawer fronts) and write it in the rst box below,
then complete the equation.
eg 600 mm - 2 x 2.5 mm = 595 mm - 2 x =
height of upper panel
eg 398 mm + 0 mm = 398 mm 398 mm + =
height of lower panel
Measure
C (
door/drawer height (or equivalent)) and write it in the rst box below,
then complete the equation.
eg 717.5 mm - 398 mm - 8 mm = 311.5 mm - - 8 mm =
Note: The ‘door extension’
B
allows for the top of the upper panel to be above the DishDrawer® where required.
min. 2.5 mm
width of ALL panels
min. 2.5 mm
min. 2 mm
min.
2 mm
upper
panel
height of
upper panel
Adoor clearance panel width Awidth ALL panelsdoor clearance
(min. 595 mm)(min. 2.5 mm)
Air gap
lower
panel
toe kick panel
B
height of
lower panel
819.5 - 879.5 mm
735 mm
D
height of
toe kick
panel
8 mm
Air gap
Bheight
upper panel
standard height B door extension
(0 mm recommended)
Cheight
upper panel height
lower panel C
(min. 717.5 mm + B)
height upper panel
Air gap
height lower panel
height upper panel
min.
12 mm
3

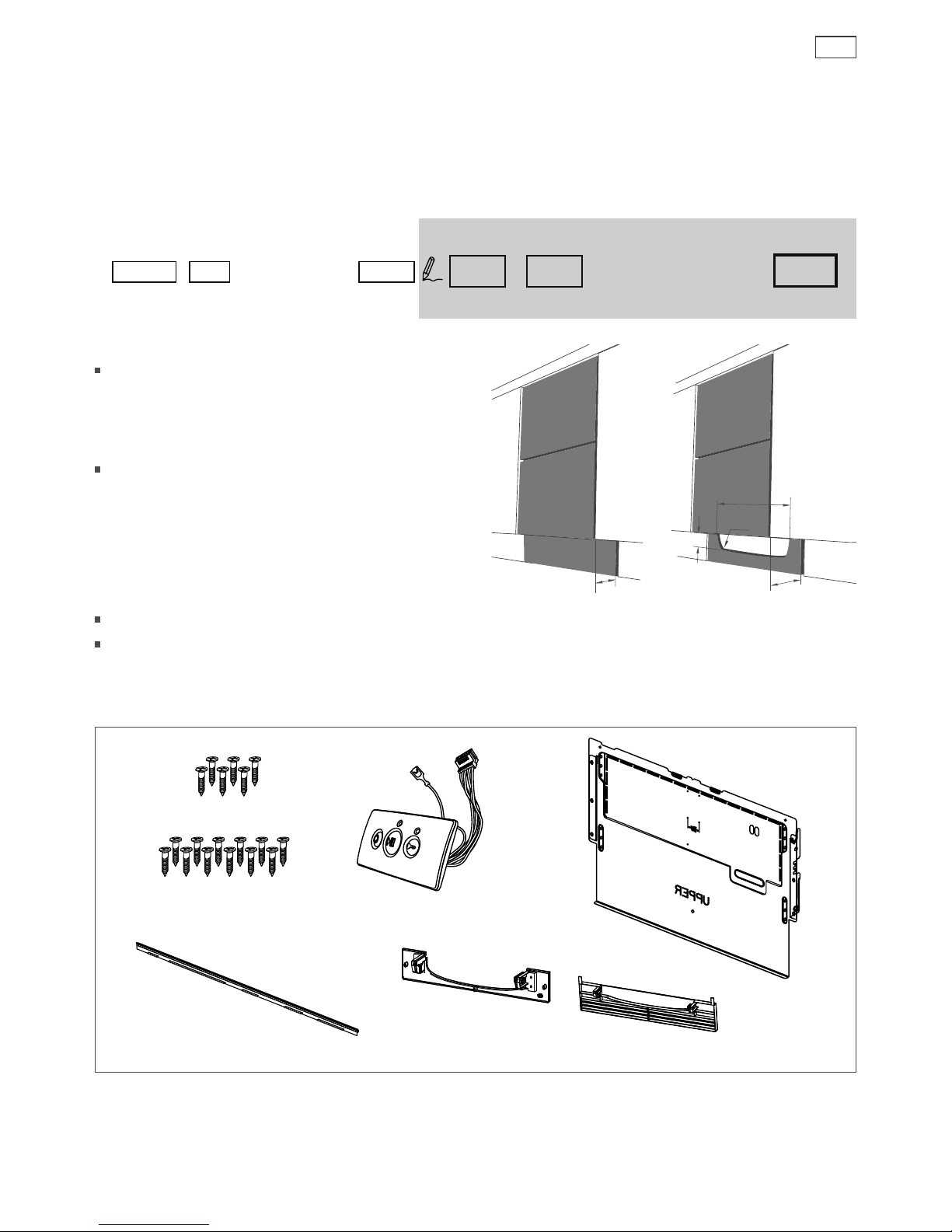

Product preparation
Toe kick preparation
Integrated Panel material
16 -20 mm panel thickness
Adequately sealed to withstand moisture (50
O
C @ 80% RH)
Parts supplied
Panel mounting
screws (12) Integrated rectangular badge (2)
(Satin chrome supplied)
Integrated door seal (2)
Panel bracket (2)
Toe kick
mounting
screws (5)
Toe kick mounting
bracket (1)
(min. 70.5 mm)
height of toe kick panel
Measure
D (
height from the top of adjacent cabinet door fronts to the oor) and write it in the rst
box below, then complete the equation.
eg 817.5 mm - 0 mm - 735 mm - 12 mm = 70.5 mm -- 735 mm - 12 mm =
Dheight
toe kick panel D
min. clearance
height
toe kick panel
B
DishDrawer®
dimension
B
height adjacent
cabinetry door
extension
Toe kick options
The black prefinished toe kick panel is
supplied. This panel can also have a front panel
of your choice attached to it using screws or an
adhesive.
A toe kick panel of any material with thickness
9 - 19 mm can be screwed to the plastic toe
kick mounting bracket (supplied).
max.
67 mm 67-127 mm
55 mm
432 mm
R12.7 mm
Prefinished Toe kick panel (1)
4Product preparation

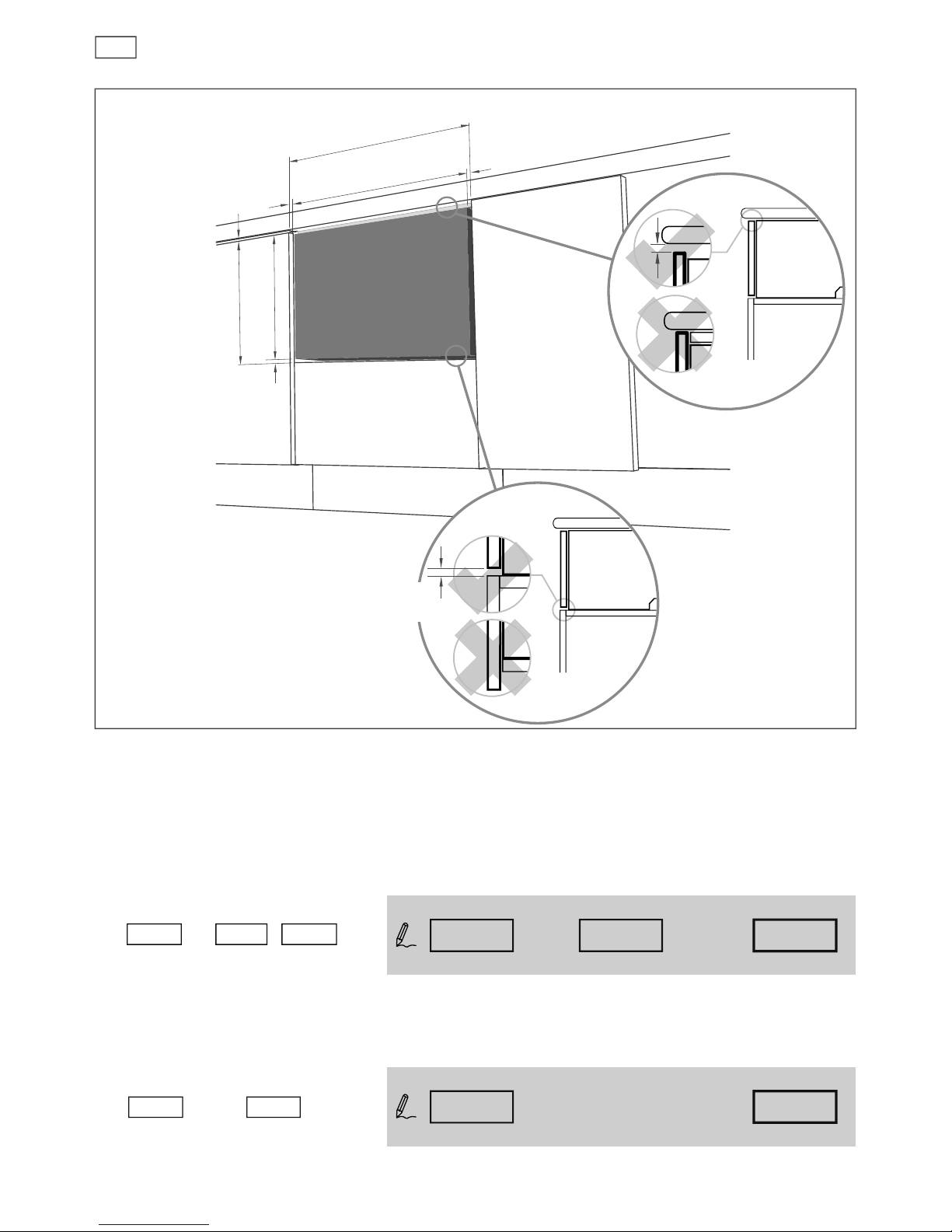

DD60SI models
A
B
Installation diagrams for illustration purposes only
The following calculations assume the top of the panel is aligned with the top of the adjacent
cabinetry:
width of the panel
Measure
A (
the width between adjacent door/drawer fronts) and write it in the rst box below,
then complete the equation.
eg 600 mm - 2 x 2.5 mm = 595 mm - 2 x =
height of the panel
Measure
B (
door/drawer height (or equivalent)) and write it in the rst box below,
then complete the equation.
eg 407 mm - 9 mm = 398 mm - 9 mm Air gap =
Note: when the top of the DishDrawer® has to be lower than the adjacent cabinetry, the panel can be increased
in height.
min. 2.5 mm
width of panel
min. 2.5 mm
9 mm
Air gap
min. 2 mm
min.
2 mm
9 mm
Air gap
panel
height of panel
Adoor clearance panel width Apanel widthdoor clearance
(min. 595 mm)(min. 2.5 mm)
Bpanel height
Air gap
Bpanel height
(min. 398 mm)
5

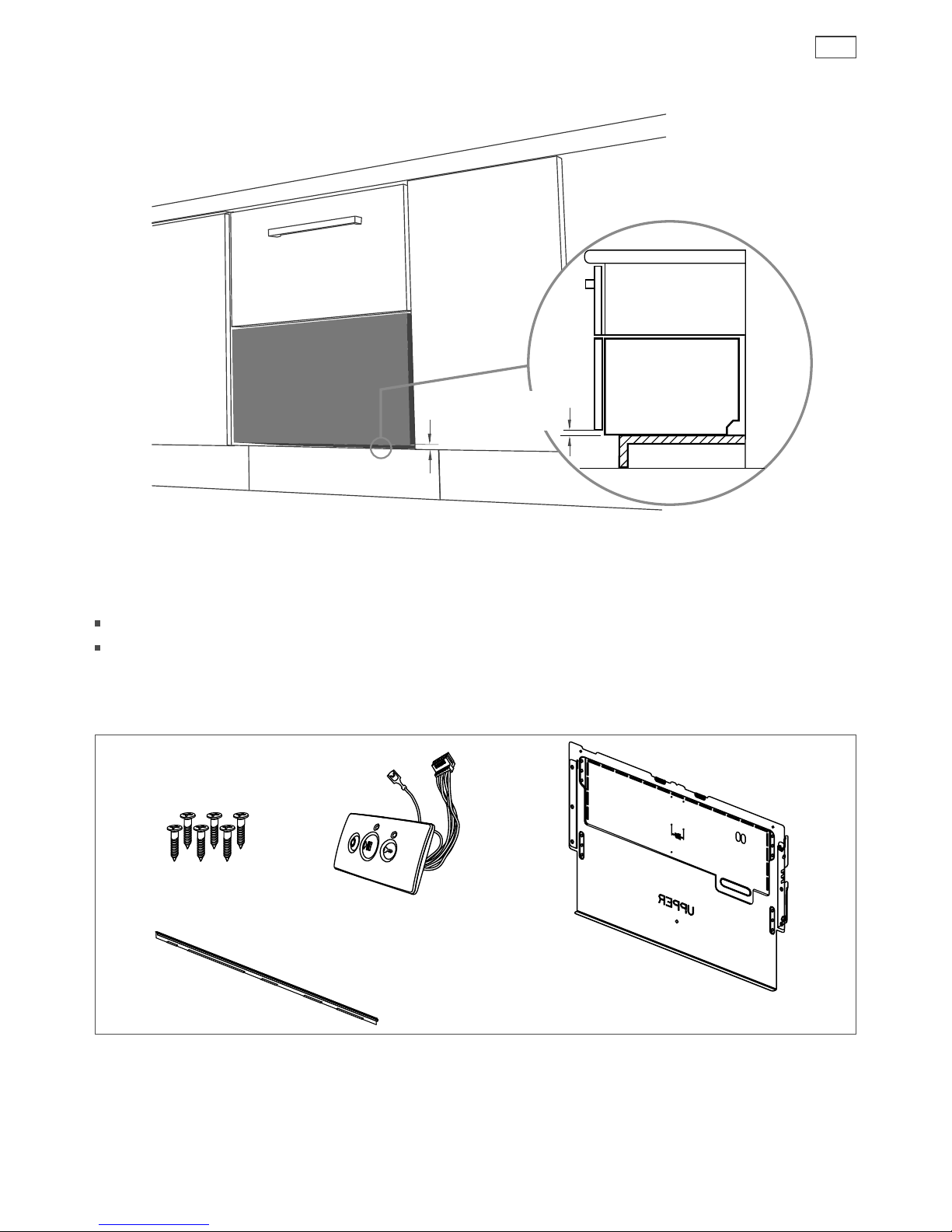

Product preparation
9 mm
Air gap
9 mm
Air gap
panel
Use this diagram if installing the DishDrawer® near floor level.
Integrated Panel material
16 -20 mm panel thickness
Adequately sealed to withstand moisture (50
O
C @ 80% RH)
Parts supplied
Panel mounting
screws (6) Integrated rectangular badge (1)
(Satin chrome supplied)
Panel bracket (1)
Integrated door seal (1)

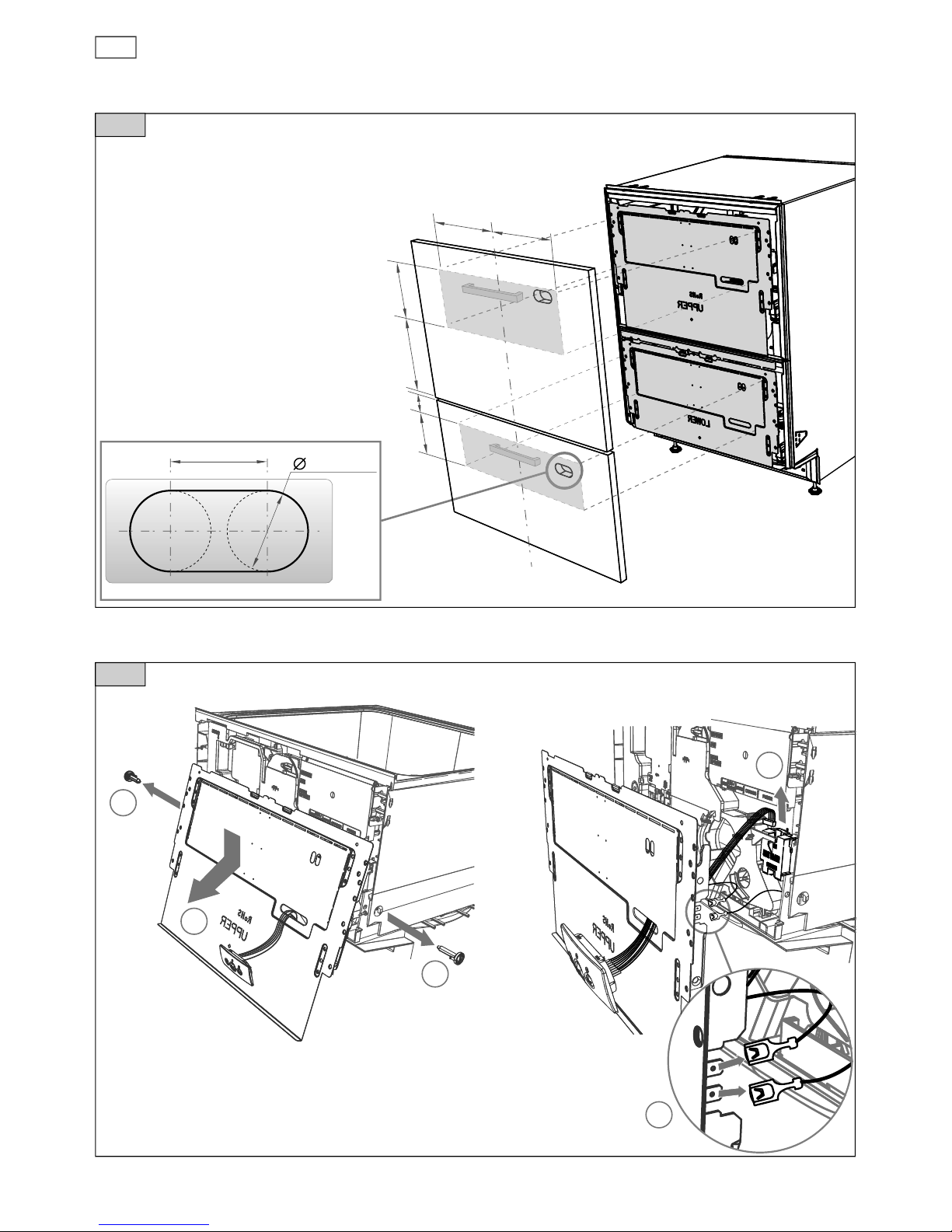

6Badge cut-out, handle, and panel bracket
1
3
4
1
2
228.5 mm 228.5 mm
127 mm
211 mm
54 mm
127 mm
30 mm 25 mm
Important!
Ensure the product is not plugged in.
Installation diagrams feature double models for illustration purposes only
1
2
Badge zone
Badge zone
7

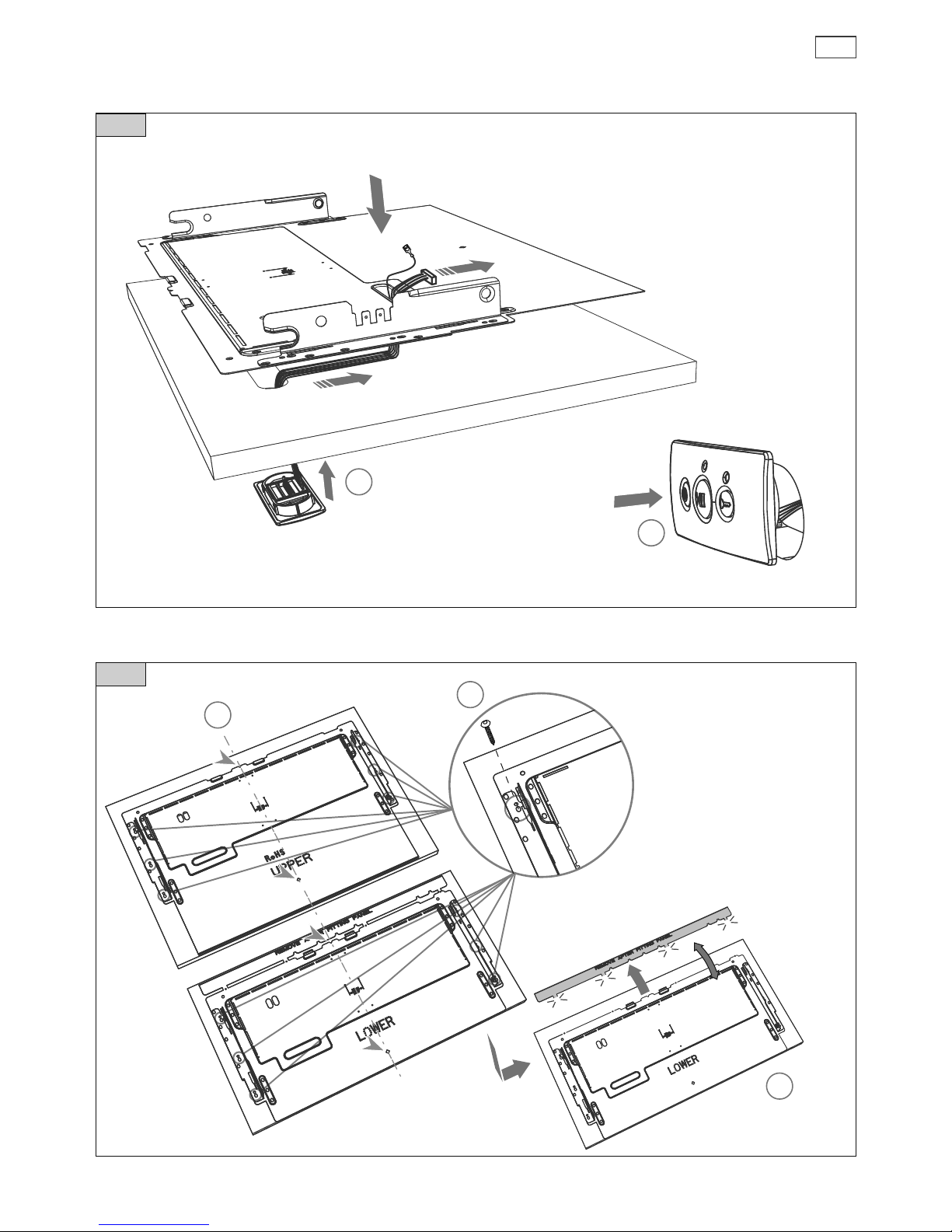

Securing the panel bracket(s)
1
12
3
2
16 mm x6
3
4
Double models only:
Important!
Break off the tab at the top
of the Lower Panel Bracket.
8
1
2

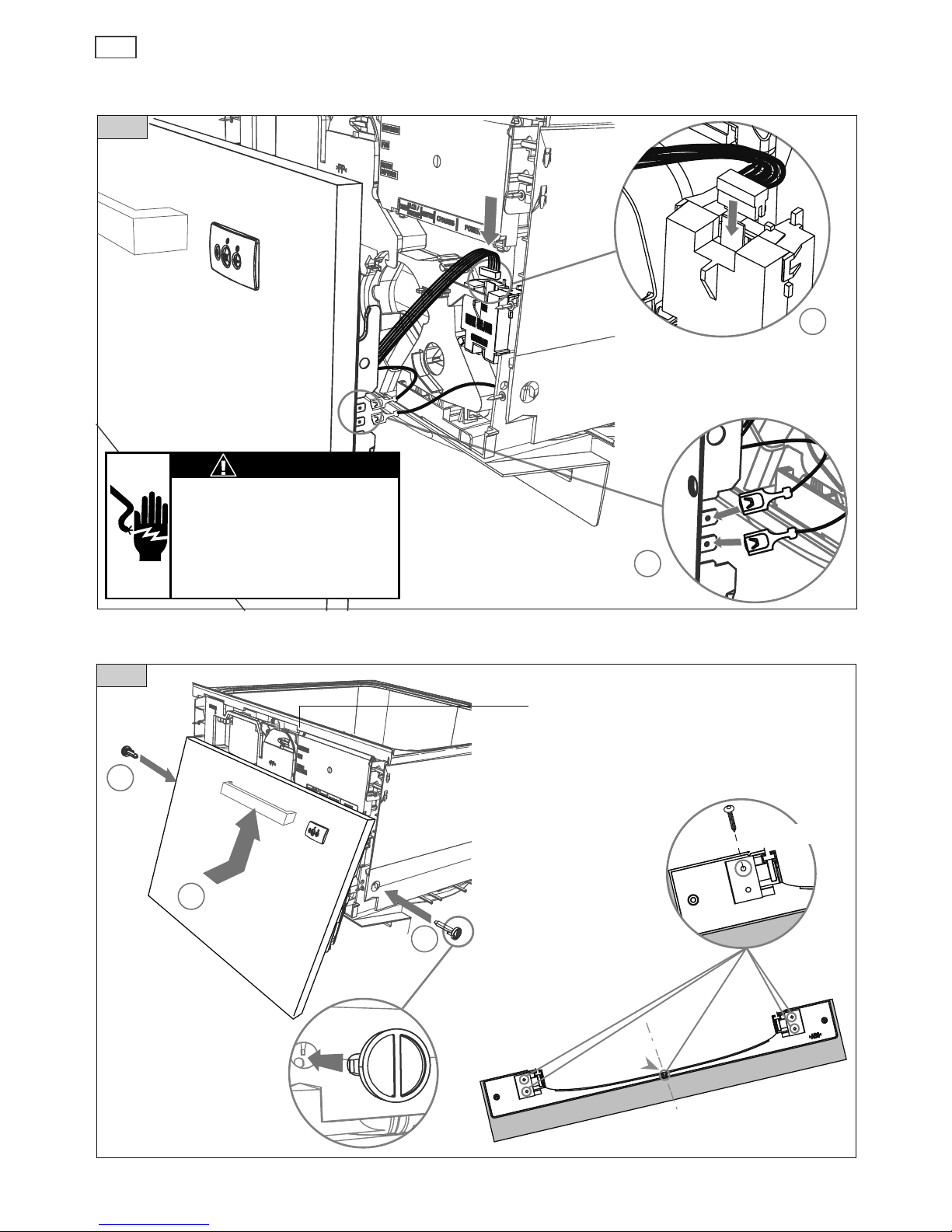

Electrical Shock Hazard
WARNING !
Connect the integrated badge ground (earth)
wire to one of the two tabs provided on this
panel bracket.
To ground (earth) the panel bracket, connect
the ground (earth) wire from the product to
the other tab.
Failure to follow these warnings may result in
electrical shock, injury or re.
Reconnecting the wires and tting the panels
and a custom toe kick (double models only)
2
2
1
16 mm x5
5
6Important!
Ensure the rubber seal between the
drawer and panels is kept in place.
16 mm x 5
