USER GUIDE

US CA

DISHDRAWER™ DISHWASHER

DOUBLE MODELS

DD24DCTW9, DD24DCTX9, DD24DCTB9,

DD24DCHTX9

SINGLE MODELS

DD24SCTW9, DD24SCTX9, DD24SCTB9

USER GUIDE

CONTENTS

Safety and warnings 5

First use 8

Loading suggestions 10

Wash programs 11

Operating instructions 12

Wash modifiers 13

Delay start 15

Keylock & Childlock 16

Detergent 17

Rinse aid 20

Water softener (some models only) 22

Preferences 24

Wi-Fi connection & remote mode 26

Racking features 28

Maintenance 33

Troubleshooting 37

Fault codes 41

Warranty and service 43

Registration

To register your product visit our website: fisherpaykel.com/register

USER GUIDE

READ AND SAVE THIS GUIDE

When using your DishDrawer™ Dishwasher, follow basic precautions,

including the following:

General

z The information in this guide must be followed to minimise the risk of fire or explosion

or to prevent property damage, personal injury or loss of life.

z Use the DishDrawer™ Dishwasher only for its intended function as described in this

user guide.

z This appliance is intended to be used in household and similar applications such as:

z staff kitchen areas in shops, offices and other working environments

z farm houses

z by clients in hotels, motels and other residential environments

z bed and breakfast environments.

z NSF 184-Certified residential dishwashers are not intended for licensed

food establishments.

z Use only detergents or rinse aid recommended for use in a domestic dishwasher and

keep them out of reach of children. Check that the detergent dispenser is empty after

the completion of each wash program.

z When loading items to be washed, locate sharp items so that they are not likely to

damage the internal lid of the DishDrawer™ Dishwasher and load sharp knives with the

handle up to reduce the risk of cut injuries.

z Do not touch the filter plate in the DishDrawer™ Dishwasher base during or immediately

after use, as it may be hot.

z Do not operate your DishDrawer™ Dishwasher unless all enclosure panels are properly

in place.

z Do not tamper with the controls.

z Do not abuse, sit on, stand in or on the drawer or dish rack of the

DishDrawer™ Dishwasher.

z The drawer should not be left in the open position since this could present a

tripping hazard.

z The foldaway cup racks are designed to support cups, glasses and kitchen utensils.

When the foldaway cup racks are in the drawer do not lean on or use them to support

your body weight.

z To reduce the risk of injury, do not allow children to play in or on the

DishDrawer™ Dishwasher.

z Under certain conditions, hydrogen gas may be produced in a hot water heater system

that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the

hot water system has not been used for such a period, before using the DishDrawer™

Dishwasher, turn on all hot water taps and let the water flow from each for several

minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do

not smoke or use an open flame during this time.

z Some dishwasher detergents are strongly alkaline. They can be extremely dangerous

if swallowed. Avoid contact with the skin and eyes and keep children away from the

DishDrawer™ Dishwasher when the door is open.

z Under no circumstances should you open the drawer whilst the DishDrawer™

Dishwasher is in operation.

z Always press to pause and wait until you hear four beeps before opening the drawer.

z The DishDrawer™ Dishwasher must be used with the motor assembly, filter plate, drain

filter and spray arm in place. To identify what these parts are refer to 'Maintenance'.

SAFETY AND WARNINGS

z Take care not to load dishware items so they prevent the internal lid from properly

sealing with the drawer. Items should be placed so they do not protrude above

the drawer.

z Cleaning and maintenance shall not be done by children without supervision.

z Do not allow children to play inside, on or with this appliance or any

discarded appliance.

z If the DishDrawer™ Dishwasher is not being used for long periods of time, turn the

electricity and water supply off.

z Household appliances are not intended to be used by children. Children of less than 8

years old must be kept away from the appliance unless continuously supervised. This

appliance can be used by children aged from 8 years and above, and persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge, if

they have been given supervision or instruction concerning the use of the appliance in a

safe way and they understand the hazards involved.

z If a dishwasher cleaner is used, we recommend running a wash program with detergent

immediately afterward to prevent any damage.

z The DishDrawer™ Dishwasher is designed for washing normal household utensils. Items

that are contaminated by petrol, paint, steel, iron debris, corrosive, acidic or alkaline

chemicals are not to be washed in the DishDrawer™ Dishwasher.

z Do not wash plastic items unless they are marked dishwasher safe or equivalent. For

plastic items not marked, check the manufacturer’s recommendations.

Installation

z This DishDrawer™ Dishwasher must be installed and located in accordance with the

Installation instructions before it is used. If you did not receive Installation instructions

with your DishDrawer™ Dishwasher, you can order them by calling your Authorised

Repairer or download them from our local Fisher & Paykel website, listed on the

back cover.

z Installation and service must be performed by a Fisher & Paykel trained and supported

service technician.

z If the power supply cord is damaged, it must be replaced by a Fisher & Paykel trained

and supported service technician or a qualified trades person in order to avoid

a hazard.

z Ensure the DishDrawer™ Dishwasher is secured to adjacent cabinetry using the brackets

provided. Failure to do so may result in an unstable product, which may cause damage

or injury.

z Do not operate this appliance if it is damaged, malfunctioning, partially disassembled

or has missing or broken parts, including a damaged power supply cord or plug.

z Do not store or use petrol, or other flammable vapours and liquids in the vicinity of

the DishDrawer™ Dishwasher.

z Connect to a properly rated, protected and sized power supply circuit to avoid

electrical overload.

z Ensure the power supply cord is located so that it will not be stepped on, tripped over

or otherwise subject to damage or stress.

z Do not install or store the DishDrawer™ Dishwasher where it will be exposed to

temperatures below freezing or exposed to weather.

z Do not use an extension cord or a portable electrical outlet device (e.g. multi-socket

outlet box) to connect the DishDrawer™ Dishwasher to the power supply.

z This appliance must be grounded. In the event of a malfunction or breakdown,

grounding will reduce the risk of electric shock by providing a path of least resistance

for electric current.

z This appliance is equipped with a cord having an equipment-grounding conductor and

a grounding plug. The plug must be plugged into an appropriate outlet that is installed

and grounded in accordance with all local codes and ordinances. Improper connection

of the equipment-grounding conductor can result in a risk of electric shock. Check with

a qualified electrician or Fisher & Paykel trained and supported service technician if you

are in doubt as to whether the appliance is properly grounded.

z Do not modify the plug provided with the appliance; if it will not fit the outlet, contact

a Fisher & Paykel trained and supported service technician or qualified electrician.

z If the DishDrawer™ Dishwasher is installed as a permanently connected appliance,

this appliance must be connected to a grounded metal, permanent wiring system,

or an equipment-grounding conductor must be run with the circuit conductors and

connected to the equipment-grounding terminal or lead on the appliance.

Maintenance

z Disconnect the appliance from the power supply before any cleaning or maintenance.

z When disconnecting the appliance pull the plug rather than the power supply cord or

junction of cord to avoid damage.

z Do not repair or replace any part of the appliance or attempt any servicing unless

specifically recommended in this guide. We recommend contacting a Fisher & Paykel

trained and supported service technician or Customer Care.

z Keep the floor around your appliance clean and dry to reduce the possibility of slipping.

z Keep the area around/underneath your appliance free from the accumulation of

combustible materials, such as lint, paper, rags and chemicals.

Wi-Fi

z Do not change or modify the wireless communication device in any way. Changes or

modifications not expressly approved by Fisher & Paykel could void the user’s authority

to operate the equipment.

z This device contains licence-exempt transmitter /receiver that comply with Innovation,

Science and Economic Development Canada’s licence-exempt RSS(s). Operation is

subject to the following two conditions:

z This device may not cause interference.

z This device must accept any interference, including interference that may cause

undesired operation of the device.

z WARNING: The incorporated Wi-Fi module in this appliance is to operate only from

channel 1 to channel 11 as per FCC rules.

z This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions:

z This device may not cause harmful interference, and

z this device must accept any interference received, including interference that may

cause undesired operation.

SAFETY AND WARNINGS

FIRST USE

z Ensure the installer has completed the ‘Final checklist’ in the Installation instructions.

z Read this guide, taking special note of the 'Safety and warnings' section.

z Remove all internal and external packaging and dispose of it responsibly. Recycle items

that you can.

*double models only | **water softener models only

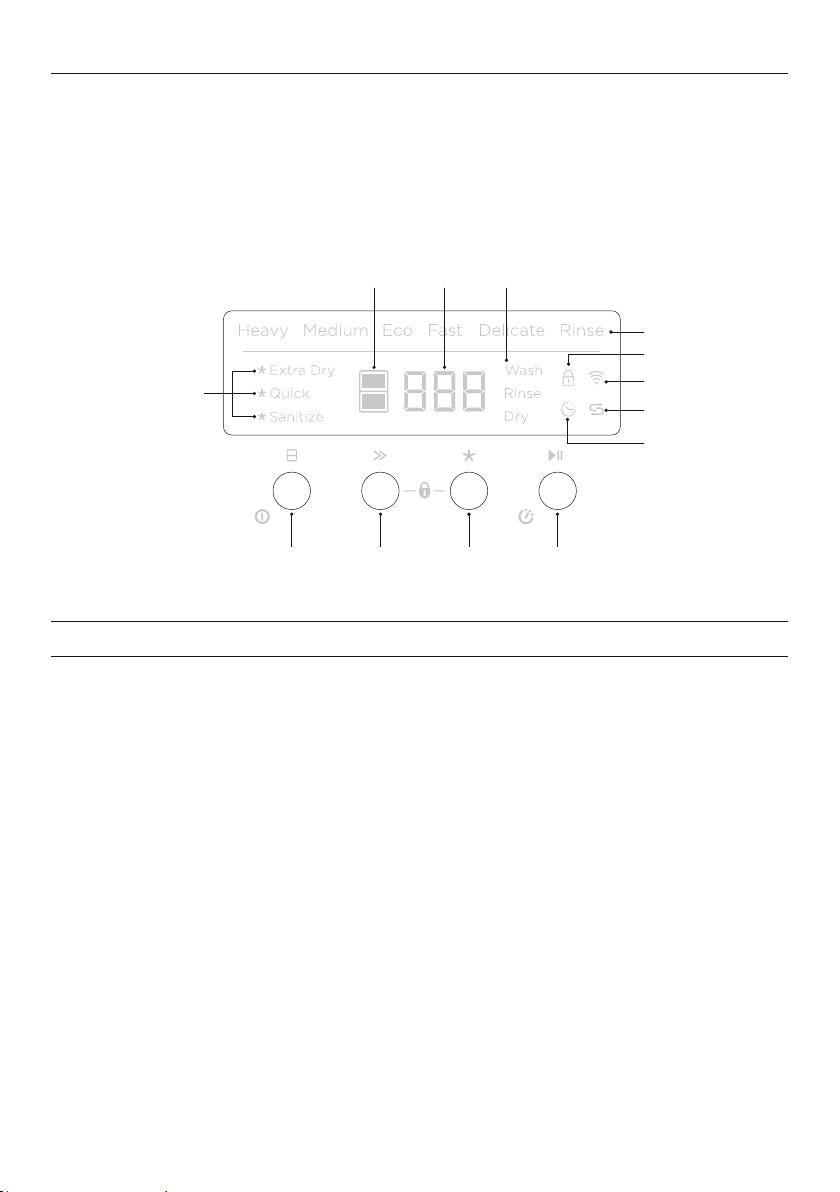

Control panel features

1 On/Off + Drawer selector*

2 Wash program selector

3 Wash modifier selector

4 Start + Delay start

5 Delayed start indicator

6 Salt indicator**

7 Wi-Fi indicator

8 Lock indicator

9 Wash program indicators

!0 Wash modifier indicators

!1 Wash stage indicators

!2 Display

!3 Drawer indicator*

1 2 3 4

!3 !2 !1

Double model illustrated

8 Lock indicator

9 Wash program indicators

!0 Wash modifier indicators

!1 Wash stage indicators

!2 Display

!3 Drawer indicator*

FIRST USE

Cutlery & silverware

All cutlery and silverware should be

rinsed immediately after use to prevent

tarnishing, RINSE cycle is recommended.

Silver should not come into contact with

stainless steel, mixing these can cause

staining. Remove silver cutlery from

the DishDrawer™ Dishwasher and hand

dry immediately.

Aluminium

Aluminium can be dulled by detergent.

The degree of change depends on the

quality of the detergent or aluminium.

Other metals

Iron and cast iron can rust and stain other

items. Copper, pewter and brass tend

to stain.

Woodware

Woodware is generally sensitive to heat

and water. Regular use in the DishDrawer™

Dishwasher may cause deterioration

over time.

Glassware

Most glassware is dishwasher safe. Crystal,

very fine and antique glassware may etch

and will develop a cloudy appearance.

Plastics

Some plastics may change shape or

colour with hot water. Refer to the

manufacturer’s guide. Dishwasher safe

plastic should be weighed down so it

does not flip and fill with water or fall

through the base rack during the wash.

Decorated items

Most modern china patterns are

dishwasher safe. Antique items, those with

a pattern painted over the glaze, gold

rims or hand painted china may be more

sensitive to machine washing.

Glued items

Certain adhesives are softened or

dissolved in machine washing.

If your home has hard water

z Refer to 'Powdered detergent quantity recommendations'.

z Use rinse aid. We recommend you raise the rinse aid setting to 5 to help improve wash

performance. Refer to 'Preferences' for details.

Use a dishwasher cleaner/descaler regularly, or whenever you notice a build-up of limescale

deposits in your DishDrawer™ Dishwasher.

If your home has soft or softened water

z Avoid using too much detergent.

Dishware

The combination of high temperatures and dishwasher detergent may cause damage to

some items. Refer to the manufacturer's guidance or wash by hand if in doubt.

Water hardness

Hard water is water with a high concentration of minerals such as calcium and magnesium.

It can be detrimental to the performance of your DishDrawer™ Dishwasher and parts

can fail over time. Glassware washed in hard water will become cloudy and dishes

will become spotted or covered in a white film over time. Water hardness varies by

geographical location.

If you live in a hard water area, and your DishDrawer™ Dishwasher does not have a built-in

water softener, we recommend fitting a water softener to the household water supply.

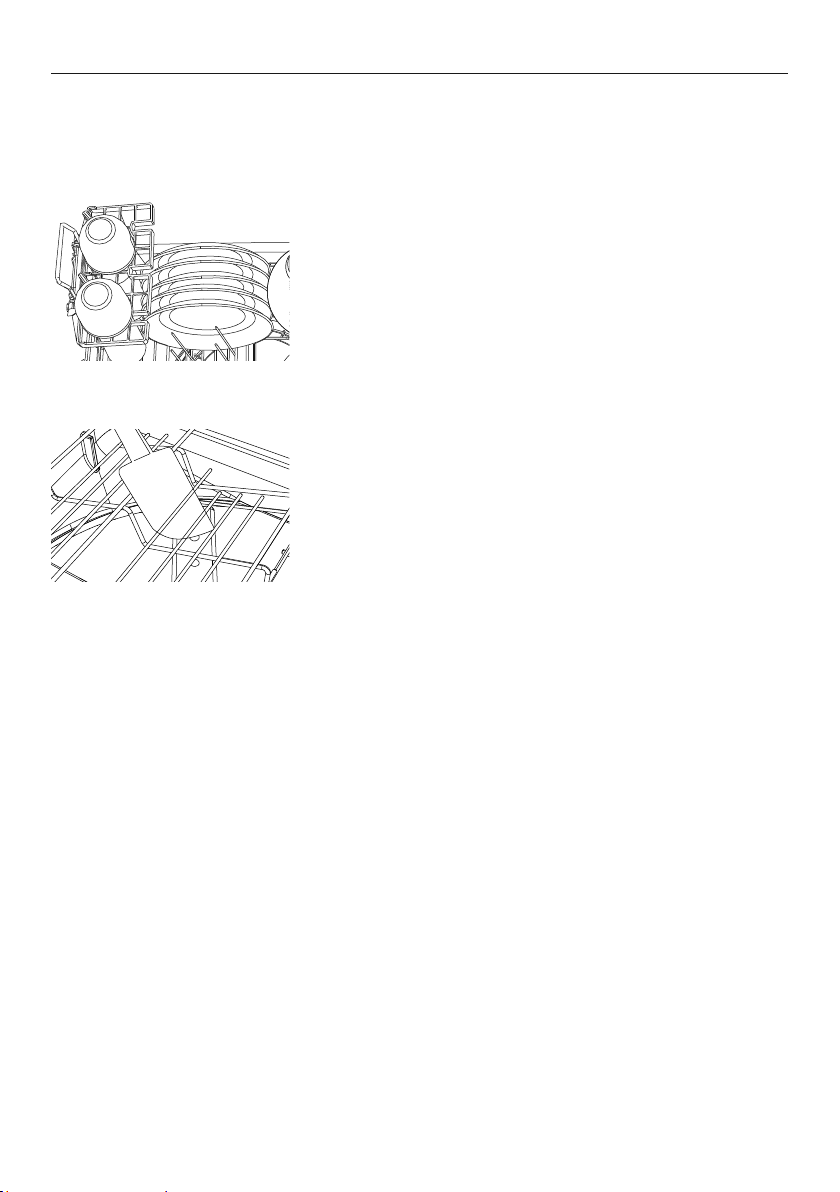

LOADING SUGGESTIONS

Ensure

z Spray arms can rotate freely.

z Glass and other fragile items are stable.

z All dish openings are facing downwards.

z Plates are evenly spaced.

z All sharp objects are located securely to avoid

injury or damage to the product.

Avoid

z Overcrowding.

z Any protrusions below the racks and basket that

may prevent spray arm rotation.

z Any protrusions at the top of the drawer.*

z Blocking water from any items on the foldaway

cup racks.

Remove all food scraps before carefully loading into the drawer. When loading your drawer

ensure items are placed so water coming from the rotating spray arm below can reach all

areas. Wash performance will be reduced if it can't.

*maximum dishware height for standard tub models is 280mm and 310mm for tall tub models.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Fisher & Paykel Lave-vaisselle

Fisher & Paykel

Fisher & Paykel DD60DAW9 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel DD24DTX6I1 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel DD24DAX9 Mode d'emploi

Fisher & Paykel

Fisher & Paykel SINGLE DISHDRAWER DD24SI Manuel utilisateur

Fisher & Paykel

Fisher & Paykel DOUBLE DISHDRAWER DD24DTX6I Manuel utilisateur

Fisher & Paykel

Fisher & Paykel DISHDRAWER DD60DHI9 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel DishDrawer DD60 Series Manuel utilisateur

Fisher & Paykel

Fisher & Paykel DD60DAHW9 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel SINGLE DISHDRAWER DD24SCTX9 Mode d'emploi

Fisher & Paykel

Fisher & Paykel DW60UC4X2 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel DISHDRAWER DD24SI9 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel DD24DC Manuel utilisateur

Fisher & Paykel

Fisher & Paykel DOUBLE DISHDRAWER DD24DDFT9 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel DishDrawer DD603 PREFINISHED Manuel utilisateur

Fisher & Paykel

Fisher & Paykel DishDrawer DD36STI2 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel DishDrawer DD36STI2 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel DishDrawer DS602 Manuel du propriétaire

Fisher & Paykel

Fisher & Paykel DishDrawer DD603I Integrated Manuel utilisateur

Fisher & Paykel

Fisher & Paykel CH Manuel utilisateur

Fisher & Paykel

Fisher & Paykel DD24DCTX6 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel DishDrawer DD60DA Manuel utilisateur

Fisher & Paykel

Fisher & Paykel DW60CE Instructions de montage

Fisher & Paykel

Fisher & Paykel Contemporary DW24UNT2X2 Manuel utilisateur

Fisher & Paykel

Fisher & Paykel DishDrawer DD24DT Series Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

Electrolux

Electrolux ESI5211LOX Manuel utilisateur

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur
