Fishbone Offroad FB22005 Manuel utilisateur

FB22005

Jeep® JK Wrangler

Front Winch Bumper w/ Full Grille Guard

REQUIRED TOOLS

6mm Allen

16mm Wrench

16mm Socket

14mm Wrench

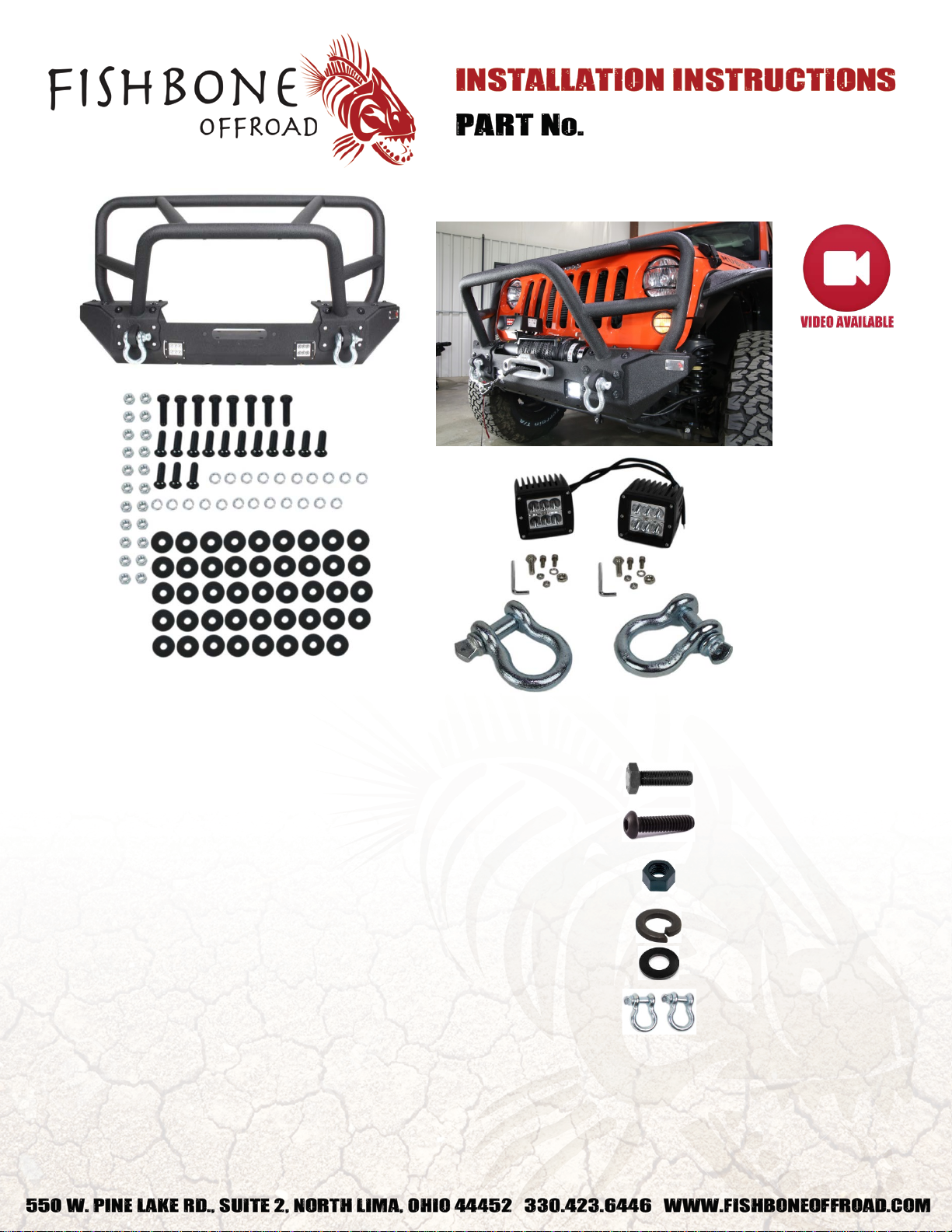

KIT CONTAINS

M10 Hex Bolt

M10 Button Head Screw

M10 Hex Nut

M10 Lock Washer

M10 Flat Washer

D-Rings

Cube Lights

QTY

FB22005

Jeep® JK Wrangler

Front Winch Bumper w/ Full Grille Guard

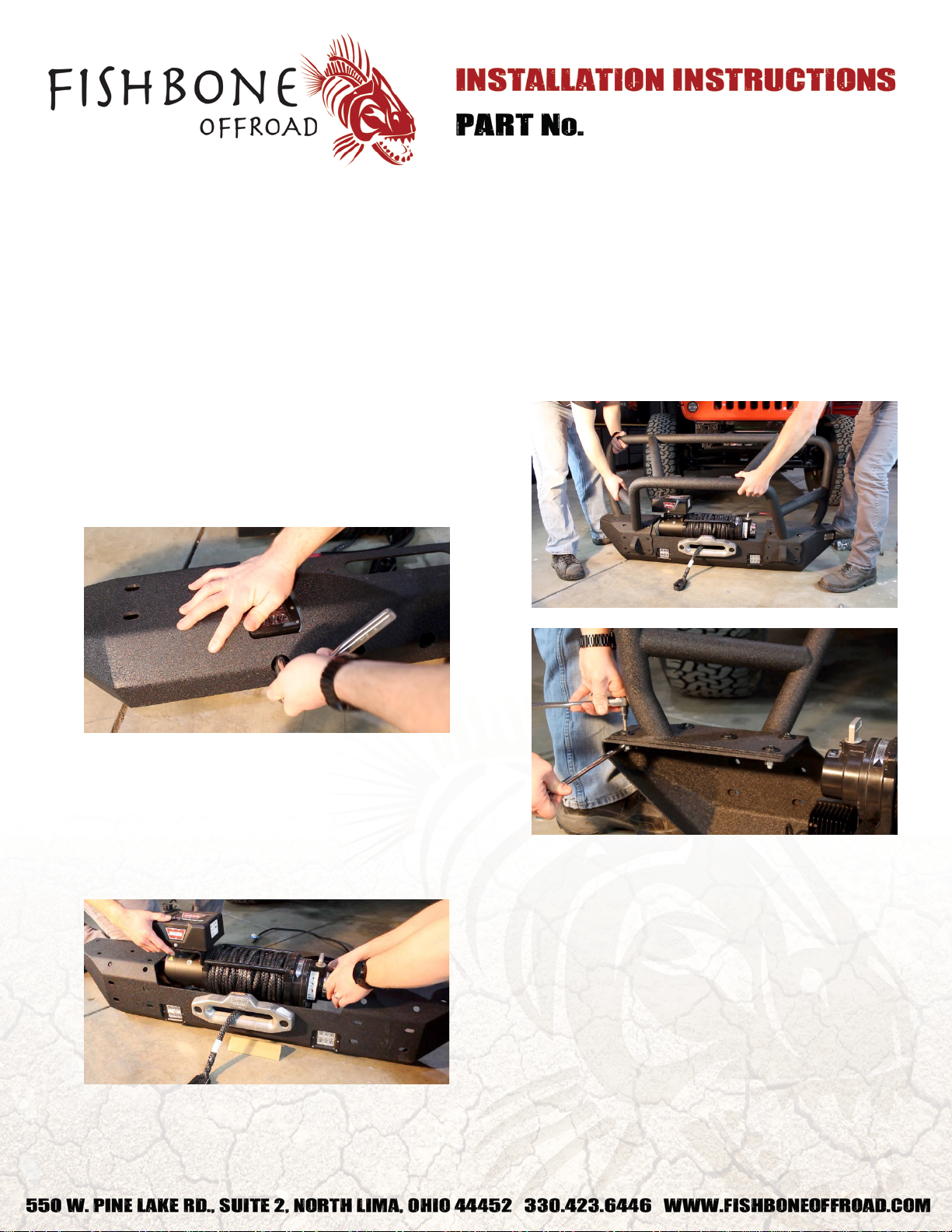

1) REMOVE YOUR FACTORY BUMPER

Begin by removing your factory bumper. Ensure you

disconnect your factory fog lights before you pull

your bumper away.

2) PREP YOUR NEW BUMPER FOR INSTALL

Before installing your bumper on your Jeep, we

suggest attaching your grille guard, lights, winch

and fairlead (if applicable)

INSTALL YOUR CUBE LIGHTS

Using the supplied hardware that came in the LED

kit, secure them to the bumper

INSTALL YOUR FAIRLEAD AND WINCH

We recommend installing the fairlead first as you’ll

have access to the bolts at this time. Follow the

instructions that came with your winch to install the

fairlead and winch body to the pre-drilled holes on

your new bumper.

INSTALL YOUR BOLT-ON GRILLE GUARD

Using one (1) M10 bolt, one (1) M10 lock washer,

two (2) M10 flat washers, and one (1) M10 nut per

hole, secure your grille guard to the top side of your

bumper utilizing the fourteen (14) through holes.

The front face of the guard will be secured when

the bumper is attached to your Jeep.

FB22005

Jeep® JK Wrangler

Front Winch Bumper w/ Full Grille Guard

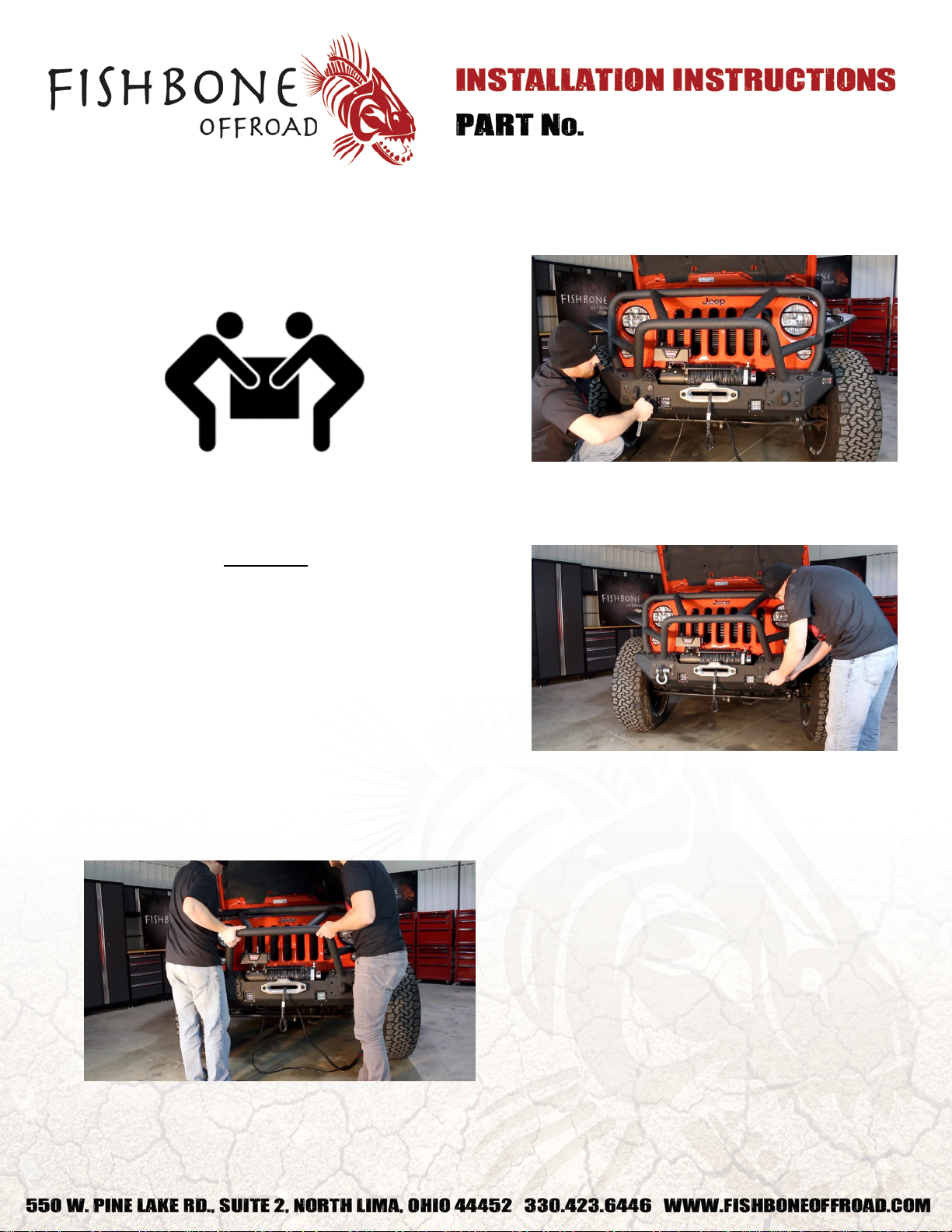

3) INSTALL YOUR BUMPER

2 PERSON LIFT

WITH THE WEIGHT OF THE WINCH AND BUMPER,

IT IS HIGHLY ADVISED TO HAVE HELP WHEN

INSTALLING THE BUMPER!

CAUTION

WITH THE SIZE OF THE GRILLE GUARD, WE

RECOMMEND OPENING THE HOOD OF YOUR JEEP

AND PLACING TOWELS OR RAGS ON YOUR GRILLE

TO PROTECT IT FROM THE GRILLE GUARD AS YOU

BOLT YOUR BUMPER IN PLACE.

With the help from a second pair of hands, lift the

bumper up to the frame of the Jeep. Using the M10

hardware, insert an M10 bolt and washer through

the front of the bumper and into the bumper

bracket on the Jeep frame. Secure each bolt with an

M10 flat washer, M10 lock washer, and M10 nut.

Repeat this for all eight (8) bolts.

Finish the install by mounting the supplied

d-rings to your bumper.

4) RUN YOUR WIRING

Wire in your new LED lights. To utilize your OEM for

light switch, you can splice these into your OEM fog

light harness.

Wire your winch according to the winch

manufacturer’s instructions.

5) ENJOY YOUR NEW FISHBONE OFFROAD BUMPER!
