Firesense PH08-SA Manuel utilisateur

- 1-

Patio Heater

Model: PH08-SA, PH08-SSA

Item #: 60804

Instruction Manual & Parts List

INSTALLER: Please leave this manual for the consumer.

CONSUMER: Please retain this manual for future reference.

MANUFACTURER: Changzhou Wellife Furnace Co., Ltd.

WARNING: For outdoor use only.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. If odor continues, immediately call

gas supplier.

FOR YOUR SAFETY

Do not store or use gasoline or other

flammable vapors or liquids in the

vicinity of this or any other appliance.

An LP-cylinder not connected for

use shall not be stored in the

vicinity of this or any other

appliance.

3177588

- 2-

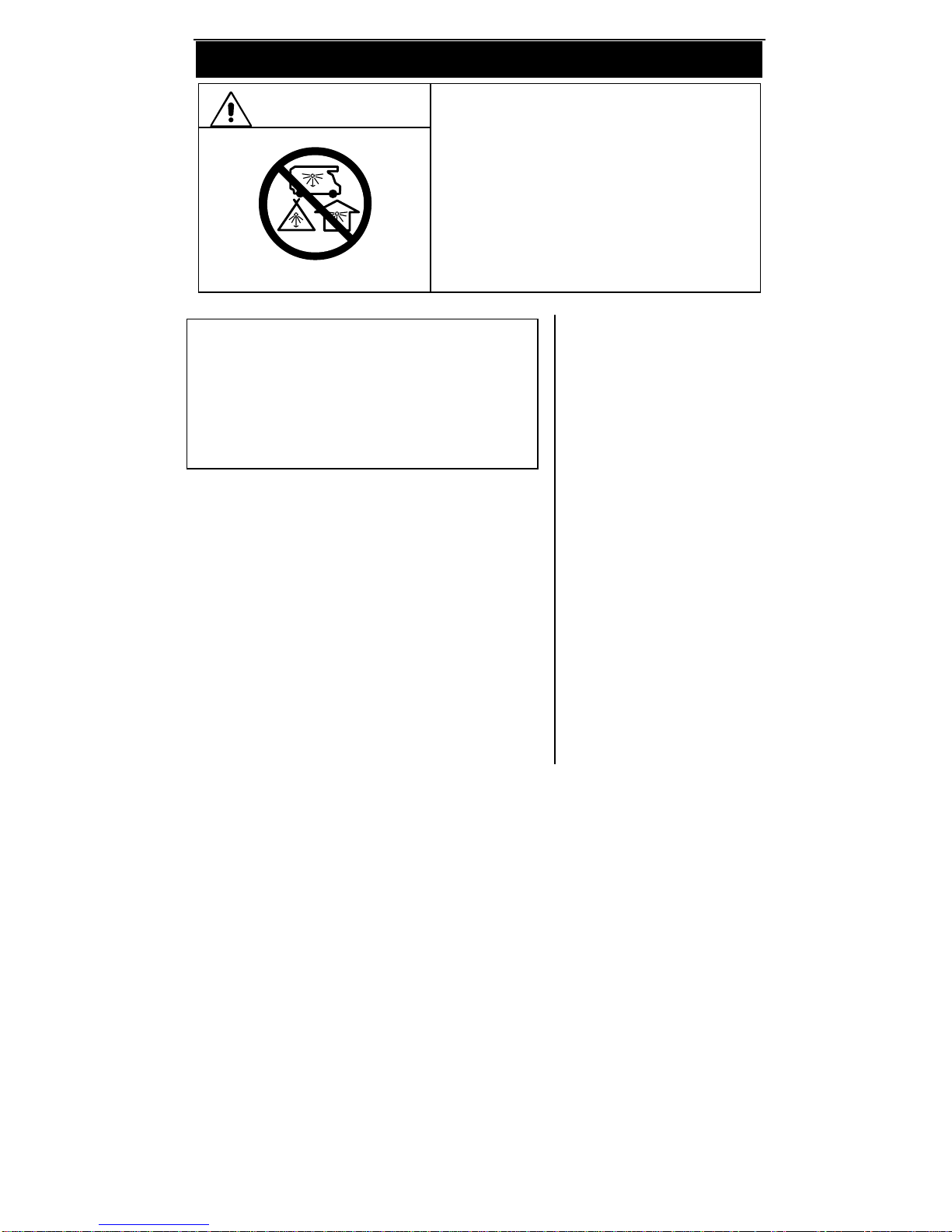

DANGER CARBON MONOXIDE HAZARD

This appliance can produce carbon

monoxide which has no odor.

Using it in an enclosed space can kill you.

Never use this appliance in an enclosed

space such as a camper, tent, car or

home.

WARNING :

For Outdoor Use Only

LPG Cylinders to be used must be constructed and

marked in accordance with US DOT specifications.

Storage of the heater indoors is permissible only

if the gas cylinder is turned off and removed.

NOTE:

Use only 20lb LP-Gas tank with size of

18.1in / 46cm(Height)*12.5in / 32cm

(Width).

Do not use if the environment temperature

is below 40 degrees F / 4.4 degrees C.

WARNING: Improper installation, adjustment,

alteration, service or maintenance can cause injury

or property damage. Read the installation,

operating and maintenance instructions thoroughly

before installing or servicing this equipment.

Tools needed:

●Open end wrench 10 & 13mm

(included)

NOT included:

●Adjustable opening wrench 8’’

long

●Philips screwdriver w/ medium

blade

●Spray bottle of soapy solution

for leak testing

Tools and parts needed for assembly

- 3-

NOTE: PLEASE READ THE FOLLOWING SAFETY RULES

WARNING:

PRECAUTIONS

This heater must only be used outdoors. Using this product in an enclosed area may

cause injury, death or property damage.

Only use in a well-ventilated space. Do not use in a building, garage, or any other

enclosed area.

Read the instructions before use. This heater must be installed in accordance

with local codes or, in the absences of local codes, with the National Fuel Code, ANSI

Z223.1. If applicable, the heater, when installed, must be electrically grounded in

accordance with local codes or, in the absence of local codes, with The National

Electrical Code, ANSI/NFPA70.

Do not use the heater in an explosive atmosphere. Keep the heater away from areas

where gasoline or other flammable liquids or vapors are stored.

Prior to use, check for damaged parts such as hoses, regulators, pilot or burner.

Turn off and disconnect LPG cylinder before moving the heater.

Do not attempt to alter this heater in any manner. EXAMPLE: Using the heater

without the top canopy reflector or radiant screen.

Do not use this heater in basements or below ground level. It must always be placed

on a solid and level surface.

Always ensure there is ample fresh air ventilation. For outdoor use ONLY.

Never replace or substitute the regulator with any regulator other than the factory

suggested replacement.

Do not clean the heater with cleaners that are combustible or corrosive.

Do not paint radiant screen, control panel, or top canopy reflector.

All leak tests should be done with a soapy solution. NEVER USE AN OPEN FLAME TO

CHECK FOR LEAKS.

The LPG cylinder should be turned off when the heater is not in use.

At least once a year, the unit should be inspected for the presence of spiders, spider

webs or other insects.

- 4-

CHECK THE HEATER IMMEDIATELY IF ANY OF THE FOLLOWING

EXIST:

1. The smell of gas in conjunction with extreme yellow colored tips of the burner flames.

2. The heater does not reach temperature.

3. The burner makes a popping noise during use (a slight popping noise is normal when

the burner is extinguished after using).

Children and adults should be aware of the hazards of high surface temperature, and

should stay away to avoid burns or clothing ignition.

Young children should be carefully supervised when they are in the area of the heater.

Clothing or other flammable material should not be hung from the heater, or placed on

or near the heater.

Any guard or other protective device removed for servicing the heater must be

replaced prior to operating the heater.

Installation and repair should be done by a qualified service person. The heater should

be inspected before use and cleaning may be required at least once a year, or as

necessary. It is imperative that the control compartment, burner and circulating

passageways of the heater are kept clean.

Keep the heater area clear of combustible materials such as gasoline and other flammable

vapors and liquids.

Do not obstruct the flow of combustion and ventilation air.

Keep the ventilation opening of the LPG cylinder enclosure free and clear of debris.

Storage of a heater indoors is permissible only if the LPG cylinder is turned off,

disconnected and removed from the heater.

Cylinders must be stored outdoors in a well-ventilated area out of the reach of

children. Disconnected cylinders must have threaded valve plugs tightly installed,

and must not be stored in a building, garage or any other enclosed area.

。

PRECAUTIONS

- 5-

1. Base assembly with

tank and control

housing

2. 2pcs wheels

3. Handle

4. 2pcs glass tube fixed

parts (one for top, one

for bottom)

5. 2pcs glass tube

6. Glass tube connector

7. 4pcs lower support

8. 4pcs upper support

9. 4pcs support connector

10.8pcs mesh guard

11.Upper plate

12.Top reflector

13.4pcs mesh fixed parts

(see exploded view

below)

14.3pcs gas cylinder fixed

parts and 3pcs

M8x25mm bolts (to

secure LPG cylinder on

base)

15.4pcs M12 screws

16.4pcs M5x10mm bolts

17.4pcs M6x12mm bolts

18.6pcs M6x12mm bolts

19.3pcs 3/16’’ screws

20.3pcs M4x8mm screws

21.3pcs M4x8mm screws

22.4pcs M4x8mm screws

23.8pcs M6x18mm bolts

24.8pcs M6 nuts

ASSEMBLY

# 13 (exploded view)

- 6-

WARNING: This appliance requires installation by a competent

person. Proper assembly is the responsibility of the installer.

Step 1

Attach the wheels (2) to the base assembly

(1)with 8pcs M6x18mm bolts (23) and

8pcs M6 nuts (24).

Step 2

Attach the handle (3) to the back

panel of the base assembly(1) with

4pcs M6x12mm bolts (17).

ASSEMBLY

- 7-

Step 3

Attach one of the glass tube fixed

parts (4) on the base assembly (1)

with 3pcs M4x8mm screws (20).

Step 4

Screw the 4pcs lower support (7)

into the holes located on the top

of the base assembly (1).

ASSEMBLY

- 8-

Step 5

Put the 4pcs of the support

connector (9) onto the tops

of the 4 lower supports (7).

Step 6

Screw the 4 upper supports (8)

onto the 4 lower supports (7).

ASSEMBLY

- 9-

Step 7

Fit one piece of the glass tube (5)

into the glass tube fixed part (4)

on top of the base assembly (1).

Insert the glass tube connector (6)

into the glass tube piece already

attached to the base assembly and

then lower the second piece of

glass tube over the glass tube

connector.

Step 8

Attach the other glass tube fixed

part (4) to the upper plate (11)

with 3 pcs M4x8mm screws (21).

ASSEMBLY

- 10-

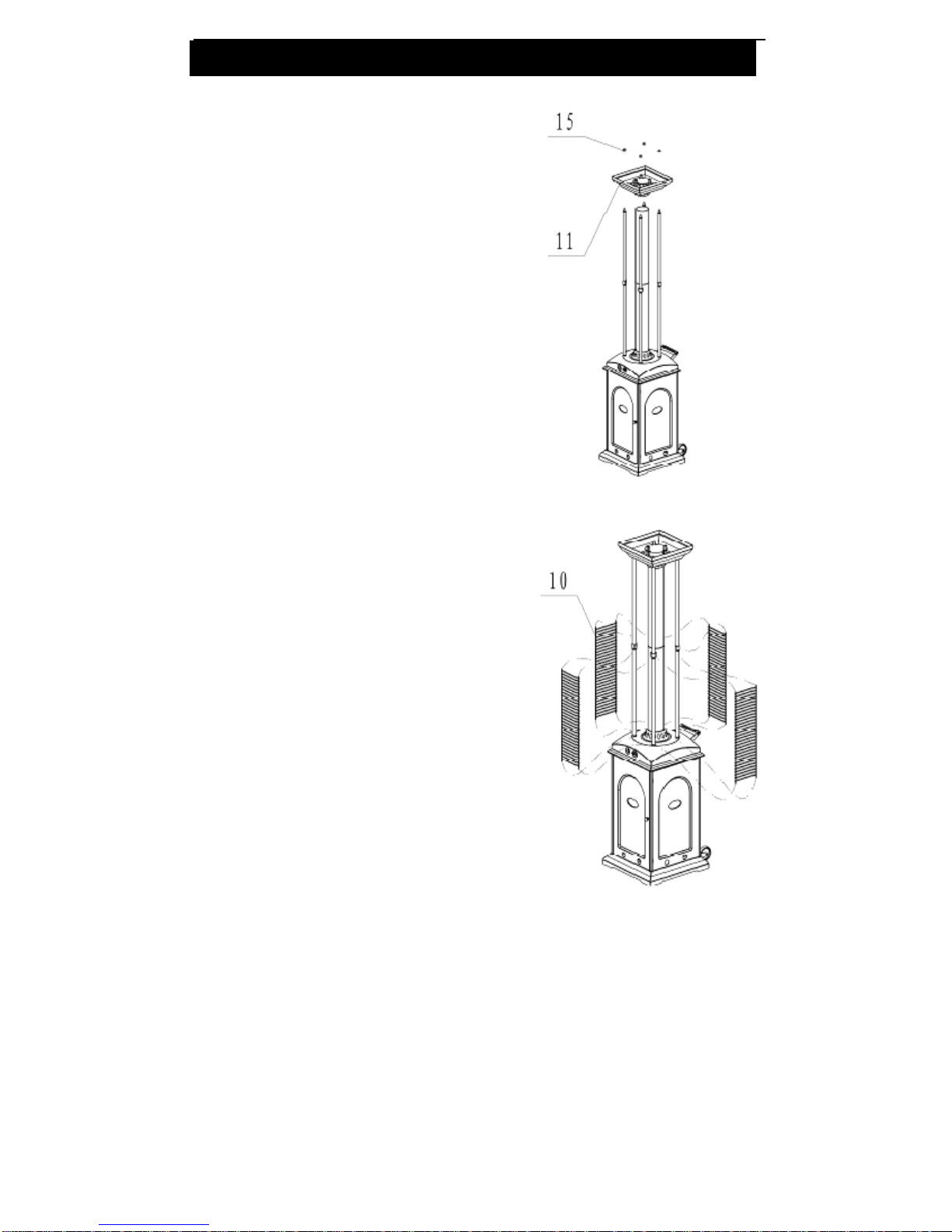

Step 9

Put the assembled upper

plate from Step 8 on top

of the assembled support

connectors and use 4pcs

M12 screws (15) to secure it.

Step 10

Attach 4pcs mesh guard (10)

on the lower support connectors.

NOTE: The long side will connect

with the base assembly.

ASSEMBLY
