Firesense PH01-S Manuel utilisateur
- 1 -

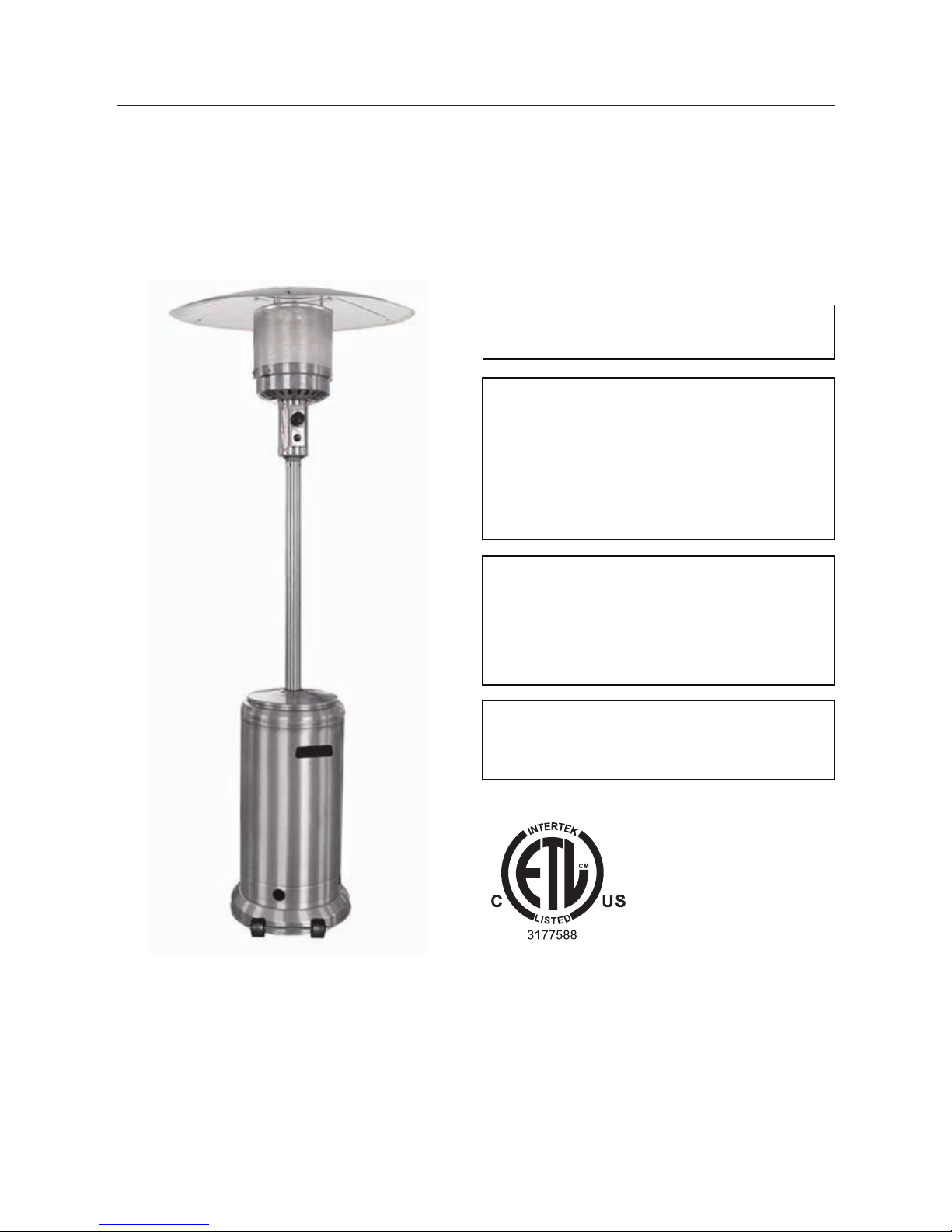

Patio Heater
Model: PH01-S PH01-SS
Item numbers: 02411,02412,
60755, 60786, 60788
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, immediately
call gas supplier.
PLEASE retain this manual for
reference.
FOR YOUR SAFETY
Do not store or use gasoline or
other flammable vapors or liquids
in the vicinity of this or any other
appliance.
Instruction Manual & Parts List
INSTALLER: Please leave this manual for the consumer.
CONSUMER: Please retain this manual for future reference.
Manufacturer: Changzhou Wellife Furnace Co., Ltd.
WARNING: For outdoor use only.
CERTIFICATE TO ANSI
STD.Z83.26-2007
CONFORM TO CSA
STD.2.37-2007
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.
WARNING :
For Outdoor Use Only
LPG Cylinders to be used must be constructed and
marked in accordance with US DOT specifications.
Storage of the heater indoors is permissible only
if the gas cylinder is turned off and removed.
NOTE:
Use only 20lb LP-Gas tank with size of 18.1in
/ 46cm(Height)*12.5in / 32cm (Width).
Do not use if the environment temperature is
below 40 degrees F / 4.4 degrees C.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause injury
or property damage. Read the installation,
operating and maintenance instructions thoroughly
before installing or servicing this equipment.
Tools needed:
●Open end wrench 10 &
13mm (included)
NOT included:
●Adjustable opening wrench
8’’ long
●Philips screwdriver
w/ medium blade
●Spray bottle of soapy
solution for leak testing
Tools and parts needed for assembly
- 2 -
NOTE: PLEASE READ THE FOLLOWING SAFETY RULES
WARNING:
PRECAUTIONS
This heater must only be used outdoors. Using this product in an enclosed area may
cause injury, death or property damage.
Only use in a well-ventilated space. Do not use in a building, garage, or any other
enclosed area.
Read the instructions before use. This heater must be installed in accordance
with local codes or, in the absences of local codes, with the National Fuel Code, ANSI
Z223.1. If applicable, the heater, when installed, must be electrically grounded in
accordance with local codes or, in the absence of local codes, with The National
Electrical Code, ANSI/NFPA70.
Do not use the heater in an explosive atmosphere. Keep the heater away from areas
where gasoline or other flammable liquids or vapors are stored.
Prior to use, check for damaged parts such as hoses, regulators, pilot or burner .
Turn off and disconnect LPG cylinder before moving the heater.
Do not attempt to alter this heater in any manner. EXAMPLE: Using the heater without
the top canopy reflector or radiant screen.
Do not shorten the burner post assembly.
Do not use this heater in basements or below ground level. It must always be placed on
a solid and level surface.
Always ensure there is ample fresh air ventilation. For outdoor use ONLY.
Never replace or substitute the regulator with any regulator other than the factory
suggested replacement.
Do not clean the heater with cleaners that are combustible or corrosive.
Do not paint radiant screen, control panel, or top canopy reflector.
All leak tests should be done with a soapy solution. NEVER USE AN OPEN FLAME TO
CHECK FOR LEAKS.
The LPG cylinder should be turned off when the heater is not in use.
At least once a year, the unit should be inspected for the presence of spiders, spider
webs or other insects.
- 3 -
be replaced prior to operating the heater.
Young children should be carefully superv
CHECK THE HEATER IMMEDIATELY IF ANY OF THE FOLLOWING
EXIST:
1. The smell of gas in conjunction with extreme yellow colored tips of the burner flames.
2. The heater does not reach temperature.
3. The burner makes a popping noise during use (a slight popping noise is normal
when the burner is extinguished after using).
Children and adults should be aware of the hazards of high surface temperature,
and should stay away to avoid burns or clothing ignition.
ised when they are in the area of the heater.
Clothing or other flammable material should not be hung from the heater, or placed
on or near the heater.
Any guard or other protective device removed for servicing the heater must
Installation and repair should be done by a qualified service person. The heater should
be inspected before use and cleaning may be required at least once a year, or as
necessary. It is imperative that the control compartment, burner and circulating
passageways of the heater are kept clean.
Keep the heater area clear of combustible materials such as gasoline and other
flammable vapors and liquids.
Do not obstruct the flow of combustion and ventilation air.
Keep the ventilation opening of the LPG cylinder enclosure free and clear of debris.
Storage of a heater indoors is permissible only if the LPG cylinder is turned
off, disconnected and removed from the heater.
Cylinders must be stored outdoors in a well-ventilated area out of the reach
of children. Disconnected cylinders must have threaded valve plugs tightly
installed, and must not be stored in a building, garage or any other enclosed
area.
PRECAUTIONS
- 4 -

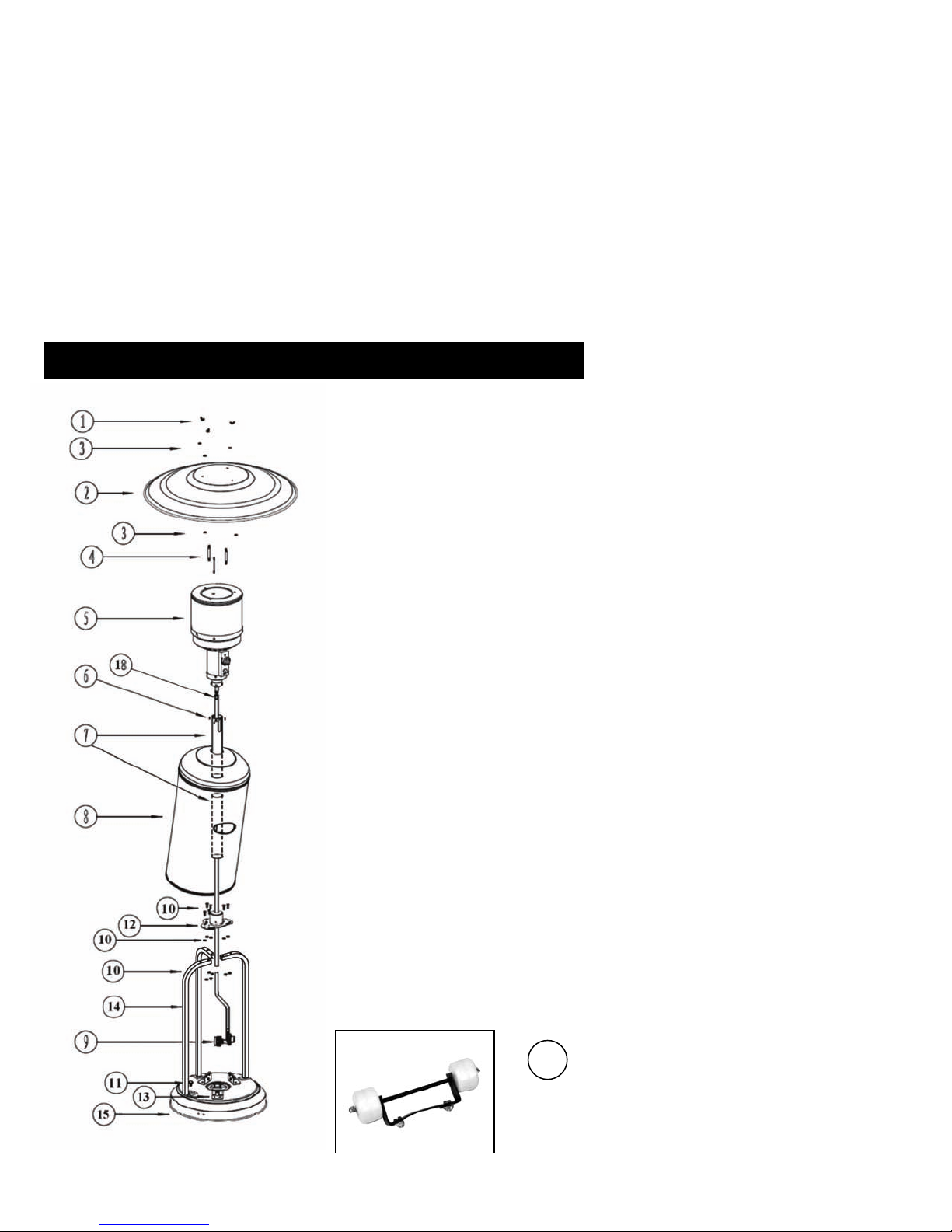

ASSEMBLY
1. 3 pcs castle nuts
2. Reflector
3. 6 pcs 8mm washers for pins
support
4. 3 pcs 90mm (L) pins for
reflector support
5. Head assembly
6. 4 pcs M6x10mm bolts
7. 2 pcs Post assembly
8. Tank housing
9. Regulator
10. 6 pcs M6x30mm bolts and
6mm nuts for connection of
post support and support
legs
11. 3 pcs M8x16mm bolts for
connection of support
legs and base
12. Post support
13. 6pcs M6x12mm bolts and 6pcs
M6 screw for connection LPG
cylinder fixed parts with base,
6pcs M8x25mm bolts for
securing the cylinder
14. 3 pcs Support legs
15. Base
16. 1 pc open end wrench
(10&13mm) NOT PICTURED
17.
18. Wheel assembly
Gas hose
(attached to head assembly)
17
- 5 -

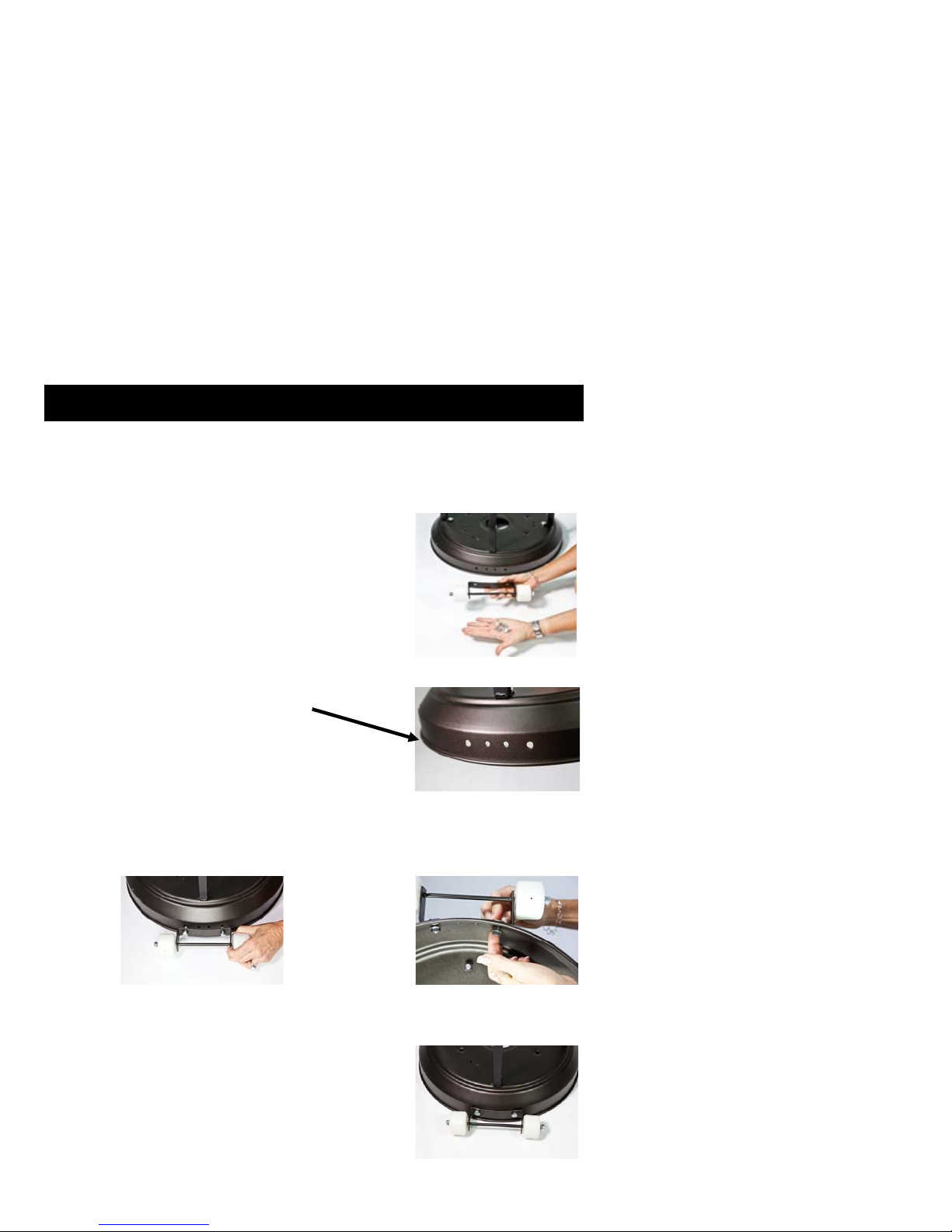

ATTACHING WHEEL ASSEMBLY
Step 1
1-1. Locate Wheel Assembly (17) and 2 nuts/bolts
contained in plastic bag with Wheel Assembly
(Fig. 1).
Step 2
2-1. Turn Base (15) so that holes for attachment of
Wheel Assembly are facing you (Fig. 2).
2-2. Align holes in Wheel Assembly (17) with
holes on Base (15) (Fig. 3).Insert bolts through both sets of holes
and secure nuts on end of bolt (Fig. 4).
Step 3
3-1. Wheel Assembly (17) should now be attached to Base (15)
as shown (Fig. 5).
ASSEMBLY
Fig. 1
Fig. 2
Fig. 3 Fig. 4
Fig. 5
- 6 -
WARNING: This appliance requires installation by a competent person.
Proper assembly is the responsibility of the installer.
Step 1
1-1. Attach 3pcs LPG cylinder fixed parts on the
base with 6pcs M6x12mm bolts.
1-2. Position the 3 pcs support legs on the base as
shown in the picture to the right.
1-3. Use 3 pcs M8x16mm bolts to affix the support
legs to the base.
Step 2
2-1. Put the post support on top of the 3 pcs support
legs.
2-2. Use 6 pcs M6x30mm bolts and nuts to connect
the post support to the 3 pcs support legs.
2-3. Use 4 pcs. M6X10mm bolts to connect the first
piece of the post assembly to the post support.
ASSEMBLY
- 7 -
-8 -
Step 3
3-1. Connect the second piece of the post assembly
to the first piece of the post assembly and screw on
clockwise.
Step 4
4-1. Place the tank cover on the base.
Step 5
5-1. Secure the 3 pcs 90mm pins(reflector
support bolts) on the cap of emitter screen.
5-2. Route the gas hose down through the post and
out of the bottom.
5-3. Connect the regulator with gas hose.
5-4.Fix the head unit collar to the post with 4 pcs.
M6x10mm bolts.
ASSEMBL
Y

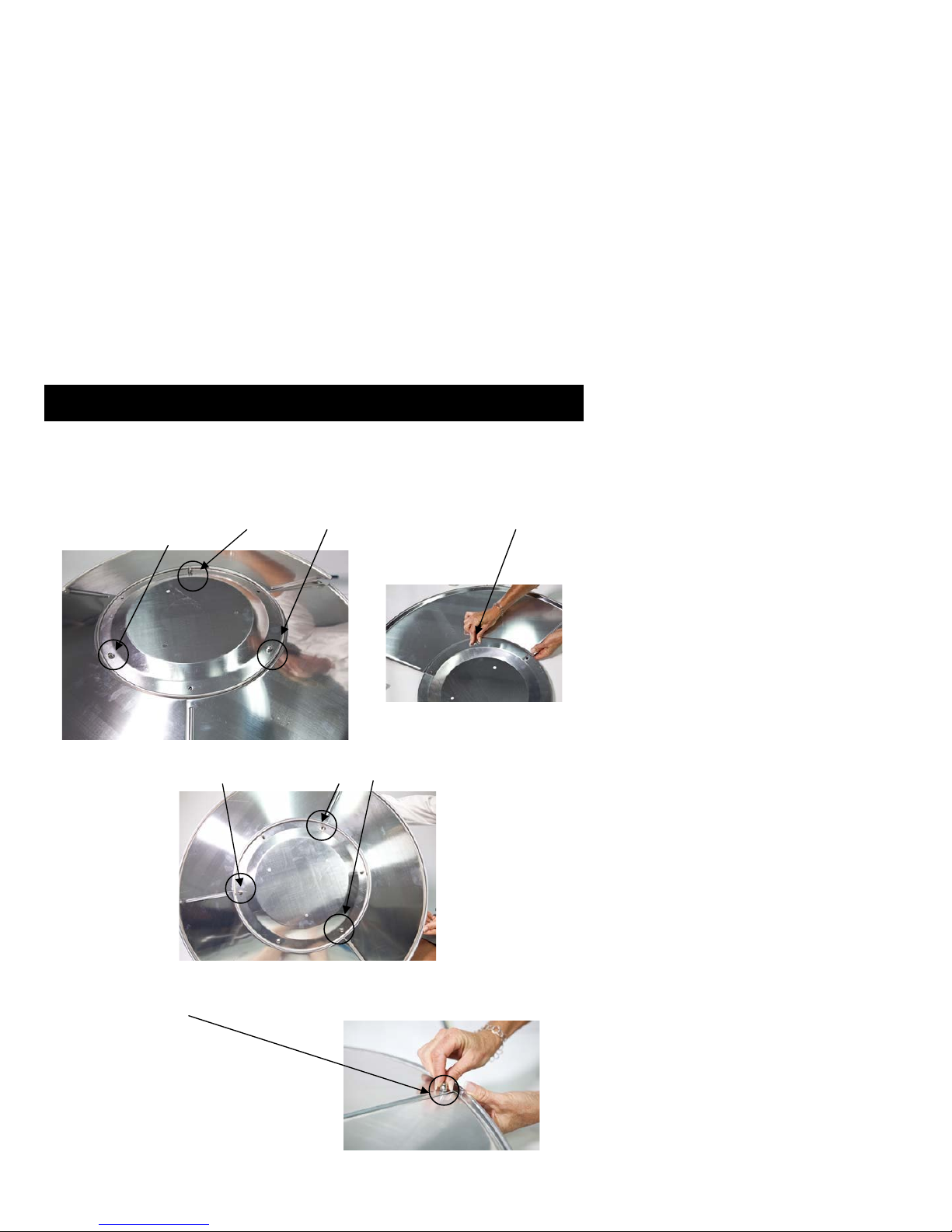

Reflector (#2) is comprised of 3 – outer pieces and 1 – center piece. Locate all 4
pieces of Reflector (#2) which are wrapped in bubble wrap. Unwrap and remove
all pieces and peel off the protective blue plastic on each piece. Locate 9 bolts and
9 cap nuts in the plastic bag. Align the 3 – outer pieces with the 1 – center piece
and place a bolt through the center hole on each piece as shown below. Tighten
castle nut on each bolt.
ASSEMBLY
Next, align the sides of each outer piece and the center piece and insert the
next 3 bolts through both holes. Tighten castle nuts on bolts.
Finally, insert bolt through holes located at outside edge of adjoining panels
of the reflector side pieces (3 bolts required) and tighten castle nuts on bolts.
- 9 -

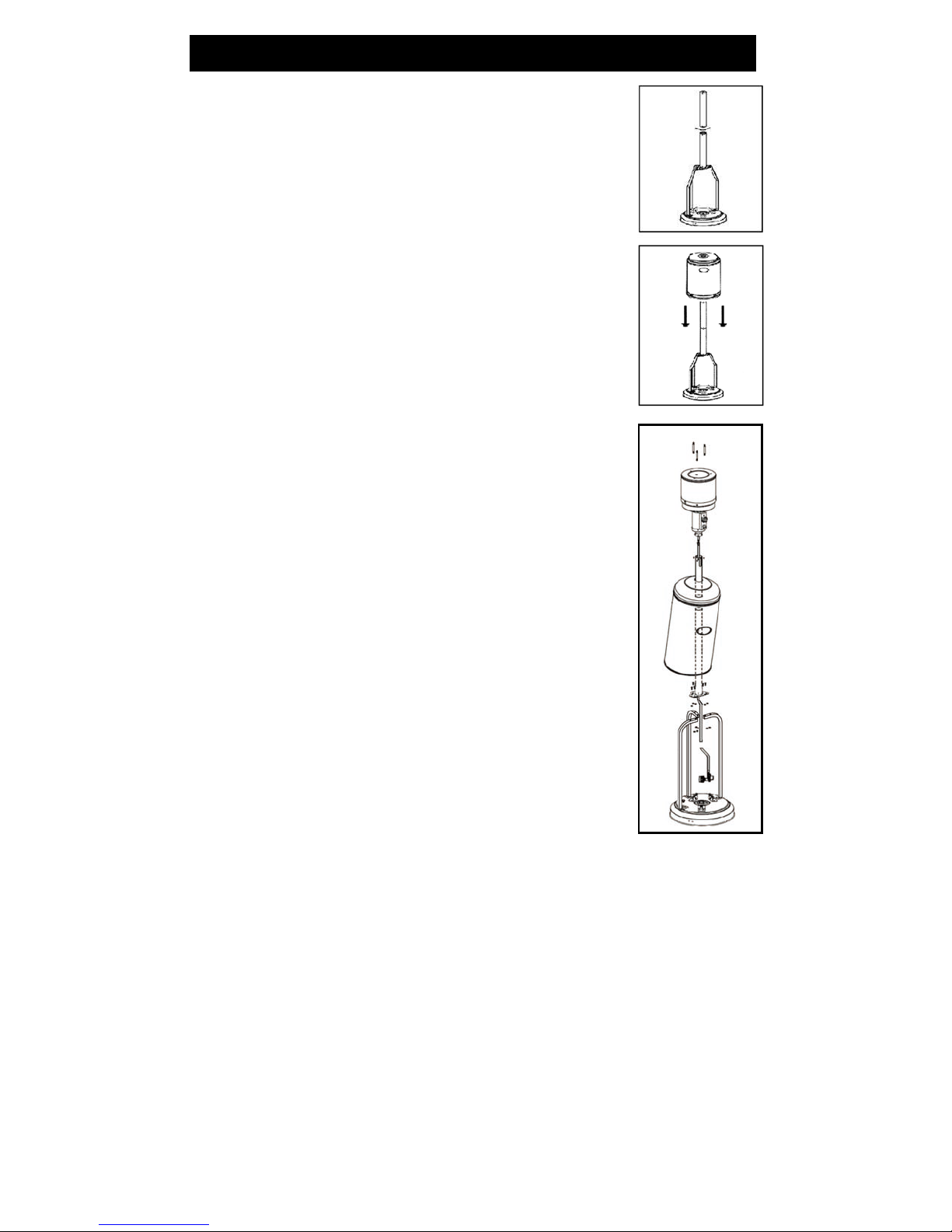

Step 6
6-1. Put 8mm washer on each reflector support
bolt.
6-2. Fasten the reflector with 3 pcs washers
and 3 pcs M8 mm castle nuts.
Step 7
7-1. Lift the tank cover and rest it on the post flange.
7-2. Connect the end of gas hose to
the regulator hose. Connect the regulator
to the gas cylinder.
Warning: When connecting the gas cylinder and regulator, make sure the
connection is tight and always check for any leaks. Please see page 11
“Check for Leak” for full instructions.
7-3. Put gas cylinder on the base.
ASSEMBLY
- 10 -
