Fire Pro FPC-2 Manuel utilisateur
Fire Control Panel –FP-C2
SYSTEM ISOLATION
Rev 1.0
fp_c2_isol_1.0.docx Page 1 of 2
Fire Control Panel for FirePro Aerosol Systems
Isolation Procedure
1. Introduction
All FirePro Fire Extinguishing Aerosol Generators use the latest generation FPC solid compound. Upon activation,
the solid compound is transformed into a rapidly expanding, highly efficient gas, based on Potassium salts. It does
not deplete oxygen levels. The FirePro Aerosol Generators have a certified life of 15 years, with minimal
maintenance required.
Ozone Depletion Potential (O.D.P.) = 0
Atmospheric Life Time (A.L.T.) = 0
Global Warming Potential (G.W.P.) = 0
Non-corrosive & Non-toxic
Self Activation Temperature
FirePro Condensed Aerosols have a built-in fail-safe activation system ensures operation of the generators when
required, even if everything else fails.
When the temperature of the Aerosol units reaches 300°C the unit will activate
DO NOT Carry out any welding or grinding work in the vicinity of the aerosol units.
Handling and Storage - Condensed Aerosol Generators do not:
•Disassemble the unit
•Carry out any welding or grinding work in
the vicinity of the fire extinguishing
system components.
•Exert force or impact which creates
physical or mechanical damage to the
casing.
STORAGE and OPERATIONAL CONDITIONS
•Temperature: –54 and +54°C
•Humidity: maximum 98% RH
•Service life: 15 years (date of manufacture appears on each generator)
Fire Control Panel –FP-C2
SYSTEM ISOLATION
Rev 1.0
fp_c2_isol_1.0.docx Page 2 of 2

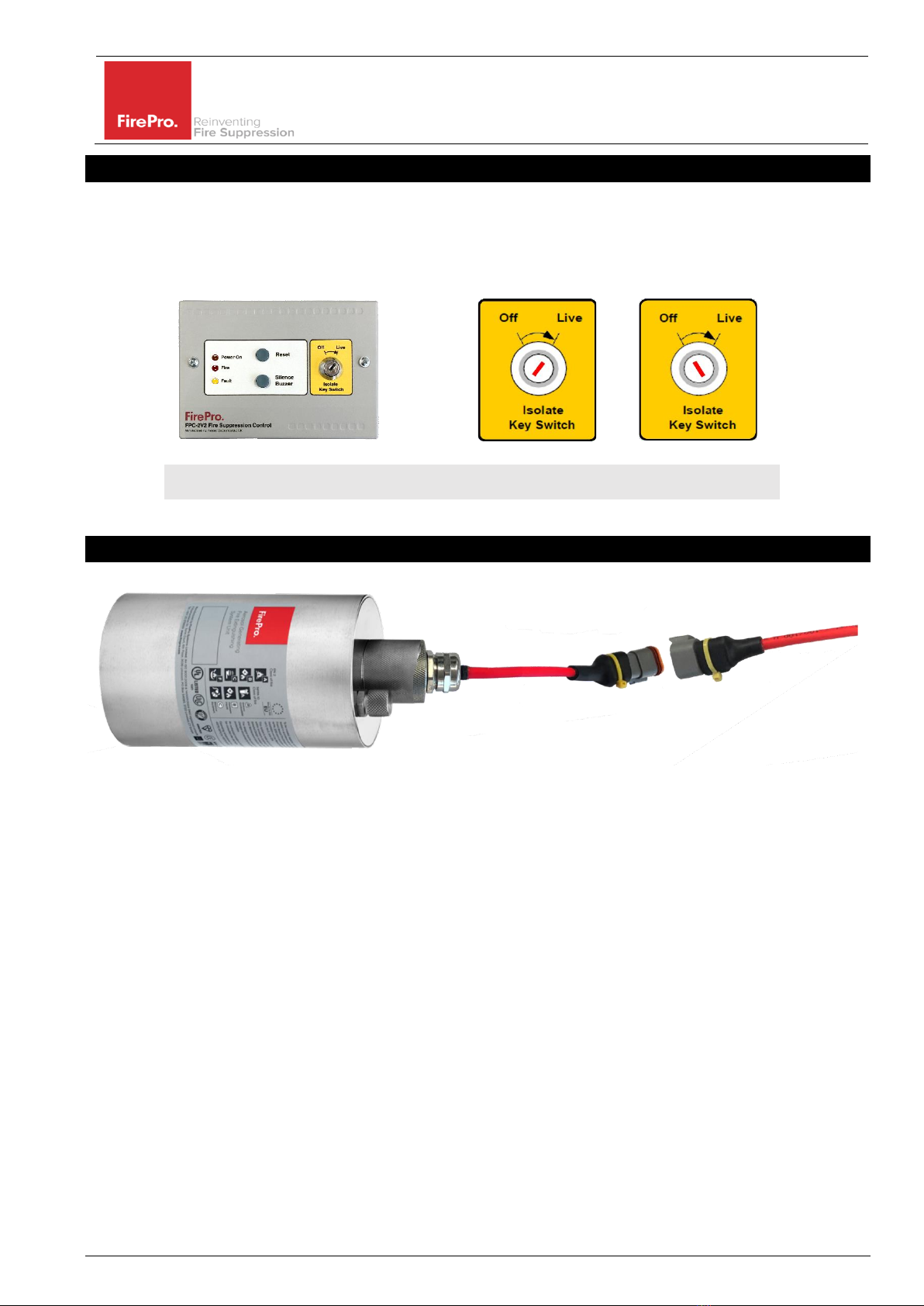

2. Isolation using the Control Panel
Operating the Isolate key-switch by turning the key from ‘Live’ to ‘Off’ isolates the extinguishant outputs thereby
preventing discharge. This mode should only be used for service, maintenance, or temporary purposes. When in
the ‘Off’position a fault will be created –the fault LED and the internal busser will operate.
With the Isolate key-switch in the ‘Off’ position and where the detection circuit is activated, the volt free contact
will continue to operate. The Reset and Buzzer Silence buttons will continue to be operational, when pressed.
FP-C2 Panel
Live
Off
Switch must be returned to ‘Live’
3. Isolation by Unplugging the FirePro Units
All FirePro Aerosol Generators are fitted with a Deutsch Plug. Unplugging the unit it will remove it from the System.
Ensure that all units are unplugged in the system as remaining units WILL BE operational.
This will create a fault and operate internal busser in panel. The fault will be communicated to any connected
devices.
