Finecom Co., Ltd. FLM-520 Manuel utilisateur

finecom

FLM-520 User’s Guide

TFT LCD monitor TFT LCD monitor TFT LCD monitor TFT LCD monitor TFT LCD monitorTFT LCD monitor TFT

FLM-520

User’s Guide

FLM-520 LCD Monitor

Finecom Co., Ltd.

Fine B/D. 673-5 Dungchon-dong,

Kangseo-ku, Seoul 157-030, Korea.

Tel : 82-2-3662-5811

Fax : 82-2-3663-0987

Web site : http://www.finecom.co.kr

fine&good fine&good fine&good fine&good fine&good fine&good fine&good fine&good fine&good fine&good fine&good

finecom

FLM-520 User’s Guide

Index

FCC Notice 4

1. Outline 5

1-1) Introduction to FLM-520 5

1-2) Features 5

2. Components & parts name 6

2-1) Components 6

2-2) Front & Rear View 6

3. Installation 7

4. Speaker 8

5. External Keypad 9

5-1) External Keypad 9

5-2) Function of Push-button 9

6. OSD Overview 10

6-1) Power On Default Settings 10

6-2) Value Controls 10

6-3) LED Active Source Indicator 10

6-4) Warning Message 10

7. OSD Menu Items 11

7-1) RGB Menu 12

7-1-1) Brightness 12

7-1-2) Red and Blue Controls 12

7-1-3) Green... 12

7-1-4) Blue ... 12

7-1-5) Color Temp 12

7-1-6) Sharpness 12

finecom

FLM-520 User’s Guide

7-2) Geometry Menu 13

7-2-1) Auto-Adjustment 13

7-2-2) H. Position 13

7-2-3) V. Position 13

7-2-4) H. Total 13

7-2-5) Auto Phase 13

7-2-6) Delay 13

7-3) Contrast Menu 14

7-3-1) Auto-Balance 14

7-3-2) Contrast 14

7-3-3) Red 14

7-3-4) Green 14

7-3-5) Blue 14

7-4) Info 15

7-5) Input Type 15

7-6) Speaker Volume 16

7-7) Auto Config 16

7-8) NVRAM Init 16

7-9) Power Down 16

7-10) Revert 16

7-11) Save 16

8. Windows Driver installation 17

9. Specification 18

10. Problems and Check Points 19

Table1: Analog RGB Input Port Signal Description 19

Table2: Supported RGB PC Graphics Input Formats20

finecom

FLM-520 User’s Guide

FCC NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interferences to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit difference from that to which the receiver

is connected.

•Consult the dealer of an experienced radio/TV technician for help.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by

unauthorized modifications to this equipment. Such modifications could void the user’s

authority to operate the equipment.

NOTE: This unit was tested with shielded cables on the peripheral devices. Shielded cables

must be used with the unit to insure compliance.

finecom

FLM-520 User’s Guide

1. Outline

1-1) Introduction to FLM-520

FLM-520 is a display device which transforms analogue signals of Graphic inputs

(Video signals of VGA, SVGA and XGA) into digital signals and displays them on

LCD panel. The user can select OSD Menu items by using external keypad to adjust

Brightness, Contrast, Color, Position and etc.for best working condition.

Digital/NTSC/PAL is optionally supported

1-2) Features

FLM-520 (15 inch) is the best choice at any applications of financial, industry,

government in which working pace, weight and reliance should be thought. This 15

inch LCD monitor provides a viewing area equivalent to a 17 inch CRT monitor.

Imbedded 1.5W 2 speakers, displays bright and sharp screen of 200 cd/m2. To provide

optimized working environment it can be tilted forward 5 degrees and backward 10

degrees, and swiveled left/right 45 degrees each.

finecom

FLM-520 User’s Guide

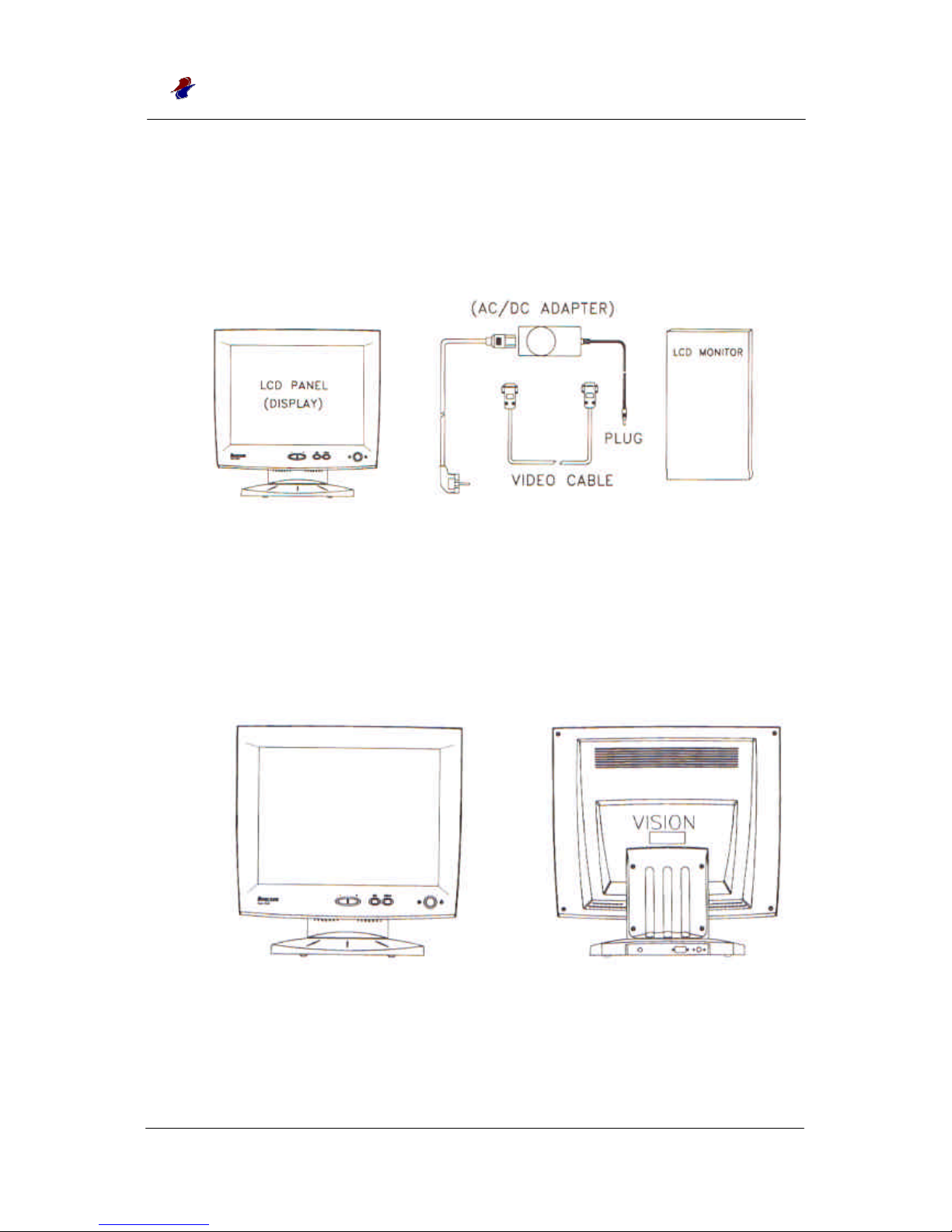

2.Components & Parts names

2-1) Components

Figure 2-1) : Components

2-2)Front & Rear View

Figure 2-2) Front View Figure 2-3) Rear View

finecom

FLM-520 User’s Guide

3. Installation

1) Connect the input plug to FLM-520 LCD monitor.

(Connect 15 pin RGB connector, for analogue RGB input, to FLM-312 as shown Figure

2-3).

2) Connect the 12V Adapter to FLM-520.

(When you turn on power switch, LED on the board will light Red, Green in turn and

then green will remain.)

3) Adjust parameters of OSD Menu by using External keypad.

(Automatic Configuration is convenient to use; When power on or screen mode changes,

optimized conditions are made automatically)

4) If there is something wrong with Video Cable or PC power is off, the message of “No

Sync”is displayed on the screen. When this condition continues 10 seconds, LED on the

board lights red and then the power of LCD panel is automatically cut off. Once Video

cable is connected or PC power turns on, LED lights Green and LCD panel power is

restored.

finecom

FLM-520 User’s Guide

4. Speaker

A speaker plug is ready at the rear of this LCD monitor. It is installed as follows;

1) Connect the PC Audio jack to FLM-520 Speaker plug.(1.5W 8Ohm, Stereo)

2) Select Speaker volume at OSD initial Menu and then adjust the volume.

( After adjusting the volume, it shall be saved at the Initial Menu in order to keep

the setup volume when power on and off.

3) Decrease the volume when it is not used.

( 1.5 W Dual Amplifier is imbedded and it can bring noise when volume is too high)

finecom

FLM-520 User’s Guide

5. External Keypad

5-1) External Keypad

AT the rear left side External Keypad is ready for user’s interface, it is configured as

below :

Figure 5-1) External Keypad Block Diagram

If MENU button is pressed, the OSD MENU is displayed. The user can select the Menu

item by pushing SEL button, and then adjust the selected values and or move to below

Menu by using +(Right) and –(Left) buttons. Adjusted value shall be saved at OSD

Menu in order to keep it during power on and off.

5-2) Function of Push button

There are 4 buttons to do following functions.

MENU :To start or terminate Menu or move to upper Menu.

SEL (Down):To move to the item’s position to be selected.

LEFT (-):To decrease the selected parameter value or to move to below Menu.

RIGHT (+):To increase the selected parameter value or to move to below Menu.

-(Left)

+(Right)

Sel(Down)

LED

Power Switch

finecom

FLM-520 User’s Guide

6. OSD Overview

6-1) Power On Default Settings

FLM-520 devices are initialized during power-on to the last saved conditions.

During OSD all parameters are saved only when the user select SAVE at the Menu.,

In case the user exits the menus without selecting SAVE at Menu, the parameters are

applied only at present conditions and when Power on/off, it is returned to the last saved

value.

6-2) Value Controls

Many parameters value of Tree-type Menu can be adjusted by using the

+(Right) and –(Left) buttons. SEL button is pressed to move to the next item.

In order to move to the upper Menu, Menu button may be used or “Main Menu”

item is selected.

6-3) LED Active Source Indicator

When the LED lights Green, the monitor is ready to use normally.

When the LED lights Red, Power may be cut off because there is something wrong with

Video Input and or LCD panel power may be off when the user selected ‘Power Down’

at OSD Menu.

6-4) Warning Message

A warning message as in Figure 6-1 is displayed when the system detects that an RGB

Video cable is not connected to the FLM-520 monitor. The message is displayed for a

maximum of 10 seconds until the cable is connected.

A message in Figure 6-2 is displayed in case of not-supported Video Mode. Please refer

to Table 2 for supportable Video Modes.

Figure 6-1) No RGB Warning Message Figure 6-2 ) Unsupported Input Warning

Message

No Sync Video Change Mode
