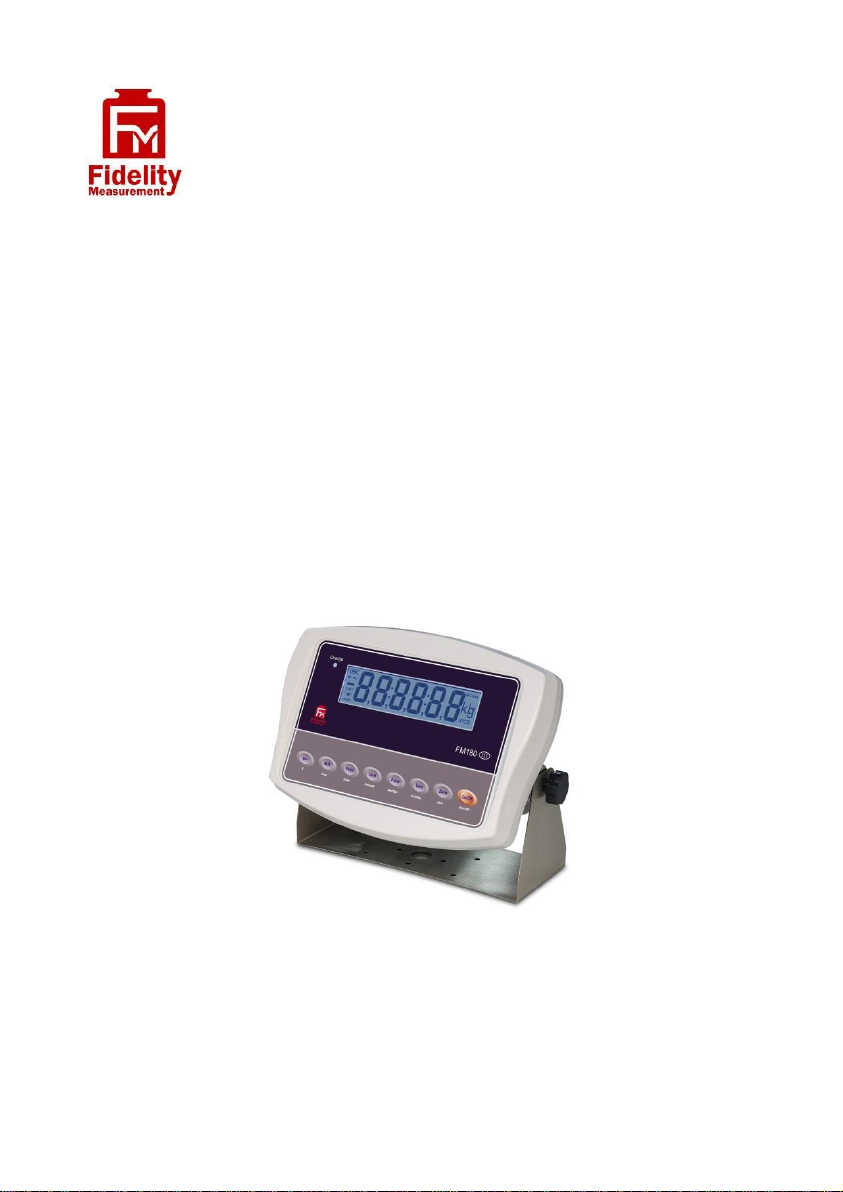

FM180

DIGITAL WEIGHING INDICATOR

OPERATION MANUAL

PLEASE READ THIS MANUAL VERY CAREFULLY BEFORE

ATTEMPT TO OPERATE THIS INSTRUMENT

Specifications subject to change without prior notice

V100 December 2012



Content

Before Started........................................................................................... 5
1 Metrological Legislation...................................................................... 5
2 Seal & Serial Number. ........................................................................ 5
3 Warm up time ..................................................................................... 5
4 In case when in Doubt........................................................................ 5

Specifications............................................................................................ 6

Keys, Display & Connections.................................................................... 6

Getting Started.........................................................................................11
1 Built-In Rechargeable Battery ...........................................................11
2 Power Adaptor ...................................................................................11
3 Connection with Weighing Platform or Load Cell Junction Box ........11
4 Connecting RS232 To Computer...................................................... 12
5 Connecting RS232 to Printer (DB25) ............................................... 12

Initial Setup ............................................................................................. 13
1 Internal Settings................................................................................ 13
2 How to Enter & Select Internal Function .......................................... 13
3 Key Function During Internal Function Mode................................... 14
4 Internal Function Table ..................................................................... 14

Instruction for Use................................................................................... 19
1 Power On.......................................................................................... 19
2 Start Weighing .................................................................................. 19
3 About Weigh Unit Conversion .......................................................... 19
4 Tare off the Weight of a Container.................................................... 20
5 Memory Accumulation Function ....................................................... 22



6 Piece Count Function ....................................................................... 23
7 Sampling Process ............................................................................ 23
8 Shift among Quantity, Average Piece Weight and Weight Info ........ 24
9 To quit Piece Count Function ........................................................... 24

RS232 Data Output Mode ...................................................................... 24
1 Auto Weight Format String  ............................................................. 24

Ticket / Receipt Printing .......................................................................... 25
1 Standard Print Output Format  ........................................................ 25
2 Custom Print Output Format  ........................................................... 27

Label Printing (LP-50 or Compatible) ..................................................... 30
1 Label Format Groups & Label File Names....................................... 30
2 Label Programming .......................................................................... 31

Battery Power & Recharging ................................................................ 34
1 Symbols And Remaining Power: -.................................................. 34
2 Battery Operation Time .................................................................. 34
3 Recharge Battery ........................................................................... 34

Error Codes........................................................................................... 35

Daily Care & Maintenance .................................................................... 36

Appendix A: - Bi-Directional Communication Commands .......................... 37


1. Before Started

1.1 Metrological Legislation

Because of metrological legislation, installation and some metrological

parameter settings / changings are limited to be done by authorized

personnel only. Do not attempt to change any of the built-in parameters.

Contact your dealer for installation and technical assistance.

1.2 Seal & Serial Number.

This instrument is legal for trade only when it is sealed (and/or stamped) and

bearing a serial number. Do not attempt to break the seal (or stamp) or serial

number affixed to this instrument. Contact your dealer for more information

and after sales service.

1.3 Warm up time

a. Allow warm up period of not less than 60 seconds before calibration.

The higher the setup resolution of the scale, the longer the warm up

period is required. In most cases, 120 seconds is a safe warm up

period for all applications.

b. This warm up period is needed to energy all components to reach a

stable status.

c. The internal count value is deemed stable when the internal AD

count varies less than 3 counts within 2 seconds.

d. To read the internal AD count value, enter internal function F1. The

internal AD count value of a not yet fully energized PCB will go up

continuously.

1.4 In case when in Doubt

Always contact your dealer for more information, after sales service and

questions when in doubt.

2. Specifications

3. Keys, Display & Connections

1. On/Off Key

Press this key to turn this instrument on or off.

2. Zero Key

Press this key to set weight displayed to zero when an empty scale has

drifted away from a true zero reading.

3. Tare Key

Press this key to tare off the weight of a container.

4. Function Key

Press this key to shift between weighing, percentage and piece count

mode.

5. Unit Key

Press this key to shift among various weight units (if weight unit

conversation is enabled).

6. Print Key

Press this key to print the results to a computer or a printer through the

RS-232 output.

7. MR Key

Press this key to recall total stored transactions.

8. M+ Key

Press this key to accumulate current weight to memory manually.

9. Battery Power / Level Indicator

Visible to show: -

•This instrument is being powered by the built-in rechargeable

battery,

•Remaining battery level.

This key is also used to accumulate the current weight value to memory when internal

function F17 is set to ON.

10. W1 Indicator

(When under dual weighing range mode

) Visible when this instrument

is in the first weighing range (W1).

11. W2 Indicator

(When under dual weighing range mode) Visible when this instrument is

in the second weighing range (W2).

12. Minus Sign

Visible when a negative value is displayed.

13. Gross Indicator

Visible when gross weight reading is displayed.

14. Net Indicator

Visible when the tare function is in effect. Weight reading shown is net

value.

15. Stable Indicator

Visible when weight reading is stable.

16. Zero Indicator

Visible when instrument is at true zero weight status.

17. M+ Indicator

Visible when memory contains of accumulated data.

18. MR Indicator

Visible when the total accumulated weight value is displayed.

This indicator will not appear when this instrument is in single range mode.

This instrument can support two weighing ranges with different maximum capacities (Max)

and different scale intervals (d), each range extending from zero to its maximum capacity.

This indicator will not appear when this instrument is in single range mode.

19. Weight Units and Functions

•kg = kilogram,

•PCS = Pieces (Piece Count Mode in function),

•kg/PCS and g/PCS = Weight per piece (when Piece Count Mode in

function),

•lb = pound.

20. Charge Status Indicator

•Red color: Recharging battery,

•Green color: Charging completed

A. DC Jack Input for Indicator

External power adaptor is plugged in here.

Output requirements of the power adaptor: -

•DC9 ~ 12V 800mA,

•Polarity: - Any kind.

B. Blank

No Function

C. Load Cell Connector (7-Pin)

Signal from load cell (or junction box) is connected here.

D. Blank

No function

E. Blank

No function

F. RS232 (Serial) Comport

RS232 (Serial) communication comport.
