Fetco CBS-11H Manuel de service

NUMBER

TECHNICAL

BULLETIN 18

www.fetco.com

email : techsupport@fetco.com

FETCO ♦600 Rose Road ♦Lake Zurich, IL 60047 USA ♦Tel. (800) 338-2699 or (847) 719-3000 ♦Fax: (847) 719-3001

Subject: Spray Cutters and Flow Discs Date: September 14, 2005

Applies to: All Handle Operated Coffee Brewers Rev. October 3, 2005

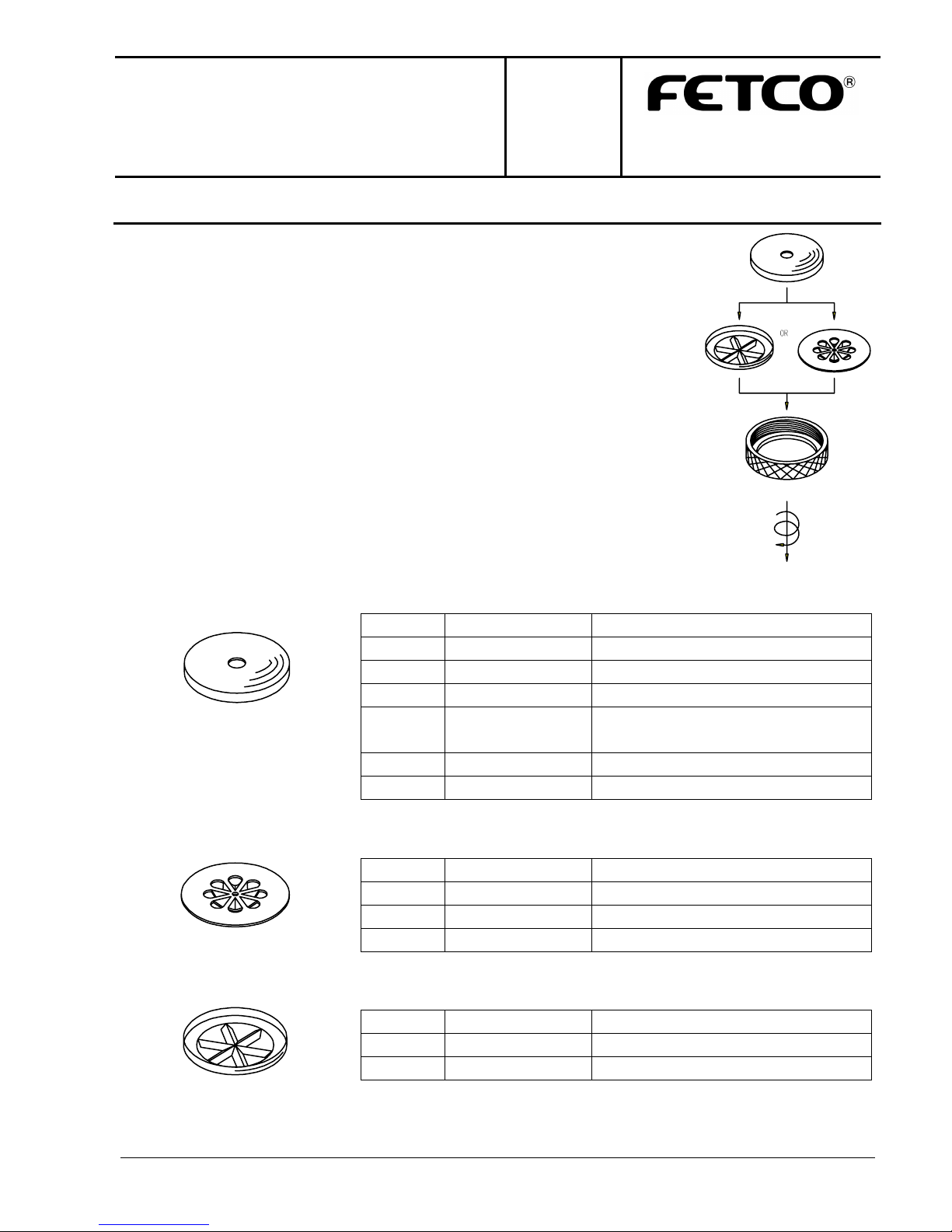

This is a list of all the available spray cutters and flow discs for our handle

operated coffee brewers. If not assembled correctly as shown at right, the

brew volume and spray pattern will be incorrect.

Flow disc: The size of the hole controls how fast water flows into the brew

basket. A larger hole results in faster flow and a shorter brew cycle. The

brew timer must be adjusted whenever the flow disc is changed to achieve

the desired volume. The hole size also affects the spray pattern and

turbulence.

Spray cutter: This controls the pattern of the spray over the coffee grounds,

providing even saturation. The size of the center hole affects how much

water is delivered to the center of the coffee bed and affects the spray

pattern and turbulence.

Part # Hole Size Standard on Models

05023 0.175”

05025 0.187”

05018 0.198”

05017 0.219” CBS-51H10

05002 0.240” CBS-11H, 12H,

CBS-51H15, 52H15, 52H20

05016 0.281” CBS-61H, 62H

Spray Cutter Flow Disc

05005 0.312”

Part # Center Hole Size Standard on Models

05014 0.075” All except CBS-51H10

05019 0.100”

05020 0.125”

Spray Cutter, 8+1 hole

05021 0.141”

Part # Center Hole Size Standard on Models

05001 none CBS-51H10

05013 0.075”

05006 0.094”

Spray Cutter, 6 or 6+1 hole

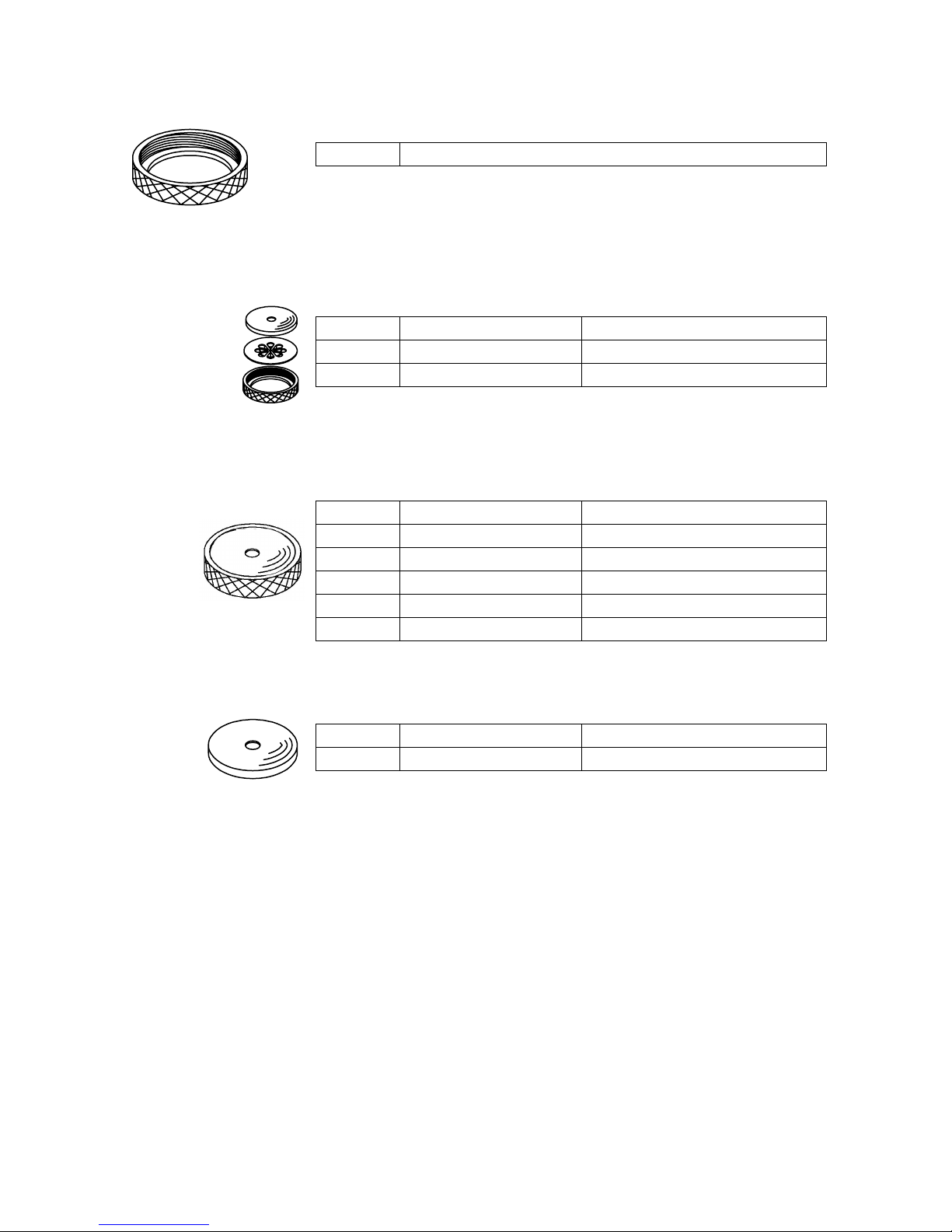

Part #

31015 Standard on all models.

Spray Cutter Locknut

Part # Includes Flow Disc # Includes 8+1 Spray Cutter #

102063 05017 (0.219”) 05014 (0.075”)

102054 05002 (0.240”) 05014 (0.075”)

102064 05016 (0.281”) 05014 (0.075”)

Spray Cutter Assemblies

Includes flow disc,

8+1 spray cutter,

and locknut as a set

of three separate

parts.

Part # Includes Flow Disc # Includes 8+1 Spray Cutter #

102243 05023 (0.175”) 05014 (0.075”)

102304 05018 (0.198”) 05019 (0.100”)

102073 05017 (0.219”) 05014 (0.075”)

102074 05002 (0.240”) 05014 (0.075”)

102137 05002 (0.240”) 05019 (0.100”)

1-Piece Welded Assemblies

Includes flow disc,

8+1 spray cutter,

and locknut,

welded

together.

102075 05016 (0.281”) 05014 (0.075”)

Part # Includes Flow Disc # Includes 6+1 Spray Cutter #

002053 05023 (0.175”) 05013 (0.075”)

002075 05025 (0.187”) 05013 (0.075”)

1-Piece Welded Assemblies

Includes flow disc

and 6+1 spray

cutter, welded

together.

Locknut must be ordered

separately.

For current pricing, please go to www.fetco.com.
