Festool CT MINI Manuel utilisateur

708449_001

Festool GmbH

Wertstraße 20

73240 Wendlingen

Germany

www.festoolusa.com

Instruction manual

Mobile dust extractors

Page 6

IMPORTANT:

Read all instructions before using.

Guide d’utilisation

Aspirateurs

Page 15

IMPORTANT:

Lire toutes les instructions avant de démarrer les travaux.

Manual de instrucciones

Sistemas móviles de aspiración

Página 25

IMPORTANTE:

Lea todas las instrucciones antes de usar.

Instruction manual

Guide d’utilisation

Manual de instrucciones

CT MINI

CT MIDI

1-2

1-1

1-3

1-4

1-5

1-10

1-11

1-9

1-8

1-6

1-7

Original operating manual

About this manual

Save these instructions

It is important for you to read and understand this manual. The information it contains relates to protecting

your safety

and

preventing problems

. The symbols below are used to help you recognize this information.

Symbols

About this manual................................ 6

Symbols................................................ 6

Safety instructions ............................... 7

Technical data ...................................... 9

Functional description ......................... 9

Intended use ........................................ 10

Operation ............................................. 10

Settings................................................ 11

Working................................................ 12

Service and maintenance .................... 13

Environment ........................................ 14

DANGER Description of imminent haz-

ard and failure to avoid hazard

will result in death.

WARNING Description of hazard and

possible resulting injures or

death.

CAUTION Description of hazard and

possible resulting injuries.

NOTICE Statement including nature of

hazard and possible result.

HINT Indicates information, notes,

or tips for improving your suc-

cess using the tool.

W watt

hhour

min minutes

sseconds

kg kilograms

Pa pascal

dB decibel

Vvolts

A amperes

Hz hertz

a.c.

alternating current

d.c.

direct current

no load speed

Class II construction

rpm

min

-1

revolutions per minute

’’ inch

lbs. pound

diameter

hint, tipp

Warning of general danger

Risk of electric shock

Read the Operating Instructions/Notes!

Wear a dust mask.

WARNING!

The machine may

contain hazardous dust!

Do not throw in the household waste.

Climbing prohibited

Safety instructions

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basis precautions should always be followed, in-

cluding the following:

READ ALL INSTRUCTIONS

BEFORE USING THIS DUST EXTRACTOR

WARNING

To reduce the risk of fire, electric shock, or injury

–Do not leave the dust extractor when plugged in. Unplug from outlet when not

in use and before servicing.

– Use indoors only.

– Do not allow to be used as a toy. Close attention is necessary when used by or near

children.

– Use only as describes in this manual. Use only manufacturer's recommended at-

tachments.

– Do not use with damaged cord or plug. If the dust extractor is not working as it

should, has been dropped, damaged, left outdoors, or dropped into water, return it

to a service center.

– Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord

around sharp edges or corners. Do not run dust extractor over cord. Keep cord away

from heated surfaces.

– Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

– Do not handle plug or dust extractor with wet hands.

– Do not put any object into openings. Do not use with any opening blocked; keep free

of dust, lint, hair, and anything that may reduce air flow.

– Keep hair, loose clothing, fingers, and all parts of body away from openings and

moving parts.

– Turn off all controls before unplugging.

– Use extra care when cleaning on stairs.

– Do not use to pick up flammable or combustible liquids, such as gasoline, or use in

areas where they may be present.

– Connect to a properly grounded outlet only. See Grounding instructions.

– Do not pick up anything that is burning or smoking, such as cigarettes, matches, or

hot ashes.

– Do not use without dust bag and/or filters in place.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or breakdown, grounding

provides a path of least resistance for electric current to reduce the risk of electric

shock. This vacuum cleaner is equipped with a cord having an equipment-grounding

conductor and grounding plug. The plug must be inserted into a appropriate outlet

that is properly installed and grounded in accordance with all local codes and ordi-

nances.

WARNING

- Improper connection of the equipment grounding conduc-

tor can result in a risk of electric shock. Check with a qualified electrician or ser-

vice person if you are in doubt as to whether the outlet is properly grounded. Do not

modify the plug provided with the dust extractor - if it will not fit the outlet, have a

proper outlet installed by a qualified electrician.

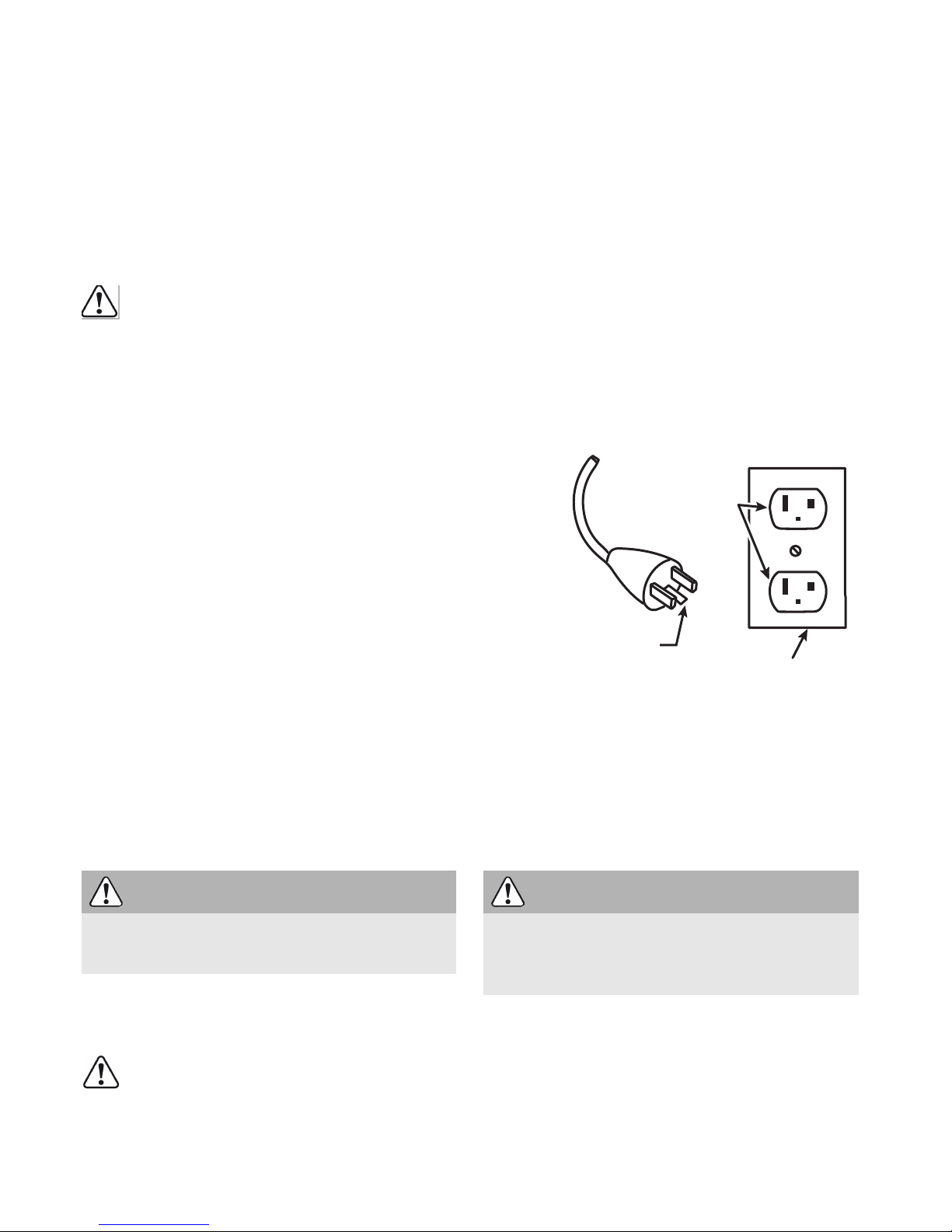

This appliance is for use on a nominal 120-V circuit

and has a grounding attachment plug that looks like

the plug illustrated in sketch A in Figure beside.

Make sure that the appliance is connected to an out-

let having the same configuration as the plug. No

adaptor should be used with this appliance.

Further safety instructions

– This device is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge.

Children

should always be supervised to ensure that they do not play with the de-

vice.

Health hazard by dust

WARNING!

Various dust created by power sanding, sawing, grinding,

drilling and other construction activities contains chemicals known (to the State

of California) to cause cancer, birth defects or other reproductive harm. Some exam-

ples of these chemicals are:

GROUNDED

OUTLET BOX

GROUNDED

OUTLET

GROUNDING METHODS - SKETCH A

CAUTION

This machine is for indoor use only.

This machine shall be stored indoors only.

WARNING

Risk of injury



The receptacle is energized when the dust ex-

tractor is turned on.

• lead from lead-based paints,

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically treated lumber.

The risk from these exposures varies, depending on how often you do this

type of work. To reduce your exposure to these chemicals: work in a well

ventilated area, and work with approved safety equipment, such as dust

masks that are specially designed to filter out microscopic particles. Wash hands af-

ter handling.

Technical data

Functional description

The pictures for the functional description are on a

fold-out page at the beginning of the instruction

manual. When reading of the manual you can fold

out this page for having always an overview of the

machine.

WARNING

TO REDUCE THE RISK OF INJURY, USER MUST

READ INSTRUCTION MANUAL.

Mobile dust extractors

Power consumption 400 - 1200 W

Maximum appliance socket connected load 1200 W

Max. suction capacity (air), extractor/turbine 95 m³/h / 222 m³/h

Max. vacuum, turbine 24000 Pa

Filter surface area 5000 cm²

Suction hose D 27/32 mm x 3,5 m-AS

Length of the net cable 7,5 m

Sound pressure level as per EN 60704-2-1 / Uncertainty K 72 dB(A) / 3 dB

Protection category IP X4

Container capacity

CT MINI

10 l

CT MIDI

15 l

Dimensions L x W x H

CT MINI

430 x 330 x 420 mm

CT MIDI

430 x 330 x 470 mm

Weight

CT MINI

8,8 kg

CT MIDI

9,1 kg

[1-1]

Suction power adjuster

[1-2]

Appliance socket

[1-3]

SysDoc

[1-4]

Handle

[1-5]

Intake opening

[1-6]

Hose store

[1-7]

T-LOC latch for Systainers

[1-8]

Dust container

[1-9]

Locking clip

Intended use

Mobile dust extractor suitable for

– Extracting non-hazardous dust, dirt, sand and

chips,

–Extractingwater,

– Increased loads during commercial use,

according to IEC/EN 60335-2-69.

The filtering performance of the overall unit, which

is fitted with a HEPA filter element, corresponds to

HEPA quality H 13 (medium degree of filtration

99.95%).

The user is liable for improper or non-in-

tended use.

Operation

Consider the pictures on the fold-out page.

Extension Cord

If an extension cord is required, it must have suffi-

cient cross-section to prevent an excessive drop in

voltage or overheating. An excessive drop in voltage

reduces the output and can lead to failure of the

motor. The table below shows you the correct cord

diameter as a function of the cord length for this

tool.

Use only U.L. and CSA listed extension cords.

Never use two extension cords together. Instead,

use one long one.



The lower the AWG number, the stronger the

cord.

Connecting the mobile dust extractor

The switch

[1-10]

serves as an on/off switch.

Switch position "0"

Appliance socket

[1-2]

is disconnected from the

power, mobile dust extractor is switched off.

"MAN" switch position

Appliance socket

[1-2]

is connected to the power,

the mobile dust extractor starts.

"Auto" switch position

Appliance socket

[1-2]

is connected to the power,

the mobile dust extractor starts when the connect-

ed tool is switched on.



Insert the plug into an earthed socket.

Pull the plug from the socket when the ma-

chine is not in use and prior to maintenance

and cleaning work.

[1-10]

Switch

[1-11]

Brake

WARNING

Unauthorised voltage or frequency!

Risk of accidents



Observe the specifications on the machine’s

name plate.



Observe country-specific regulations.

Total Extension Cord

Lenght (feet)

25 50 100 150

Cable size (AWG) 14 12 not recom-

mended

WARNING

Risk of injury from tools starting up unexpectedly



Before setting the switch to the "AUTO" or

"MAN" position, make sure that the connected

tool is switched off.

Autres manuels pour CT MINI

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Festool Aspirateur

Festool

Festool CLEANTEC CTLC MIDI I Manuel utilisateur

Festool

Festool CLEANTEC CTLC SYS I Manuel utilisateur

Festool

Festool CLEANTEX Series Instructions d'installation

Festool

Festool CTL MINI Manuel utilisateur

Festool

Festool CTM 22 E SG Manuel utilisateur

Festool

Festool CTL SYS Instructions d'installation

Festool

Festool CTL 44 E Manuel utilisateur

Festool

Festool CLEANTEX CTH 26 E/a Instructions d'installation

Festool

Festool SRM 45 E-LHS 225 Planex Manuel utilisateur

Festool

Festool CTM 48 E LE AC Instructions d'installation

Festool

Festool CT MINI Manuel utilisateur

Festool

Festool CTL SYS Instructions d'installation

Festool

Festool CT 33 E Manuel utilisateur

Festool

Festool CTM 26 E Manuel utilisateur

Festool

Festool CTM 26 E AC Instructions d'installation

Festool

Festool CTL 48 E LE EC/B22 R1 Instructions d'installation

Festool

Festool CTL 22 E SG Instructions d'installation

Festool

Festool CLEANTEC CTL SYS Manuel utilisateur

Festool

Festool CT MINI Manuel utilisateur

Festool

Festool CTM 22 E SG Manuel utilisateur

Festool

Festool CTL Series Instructions d'installation

Festool

Festool cleantex ct 17 e Manuel utilisateur

Festool

Festool CTLC SYS I Manuel utilisateur

Festool

Festool CLEANTEX CT 36 E AC Instructions d'installation

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur
