Festool CT 33 E Manuel utilisateur

AIR TOOLS ASSEMBLY MANUAL

Supplementary guidelines for adapting the CT 33 E dust extractor in

order to operate air tools with it.

Parts list:

• CT 33 E dust extractor (1)

• Handle (2)

•Serviceunit(3)

• Compressed air module (4)

• IAS 2 adapter (5)

• IAS 2 hose (antistatic) 11.5’ (6)

• Suction hose holder (7)

• 3/8” adapter (8)

(1) (2)

(3) (4)

(5) (6)

(7)

FIG 1

(8)

SETUP:

FIG 2

STEP 1: Begin by opening the CT dust

extractor (vacuum) and removing the

lid completely (FIG 2).

#MAM0704

FIG 3

STEP 2: Place the lid on a flat surface

with internal components facing up

(FIG 3).

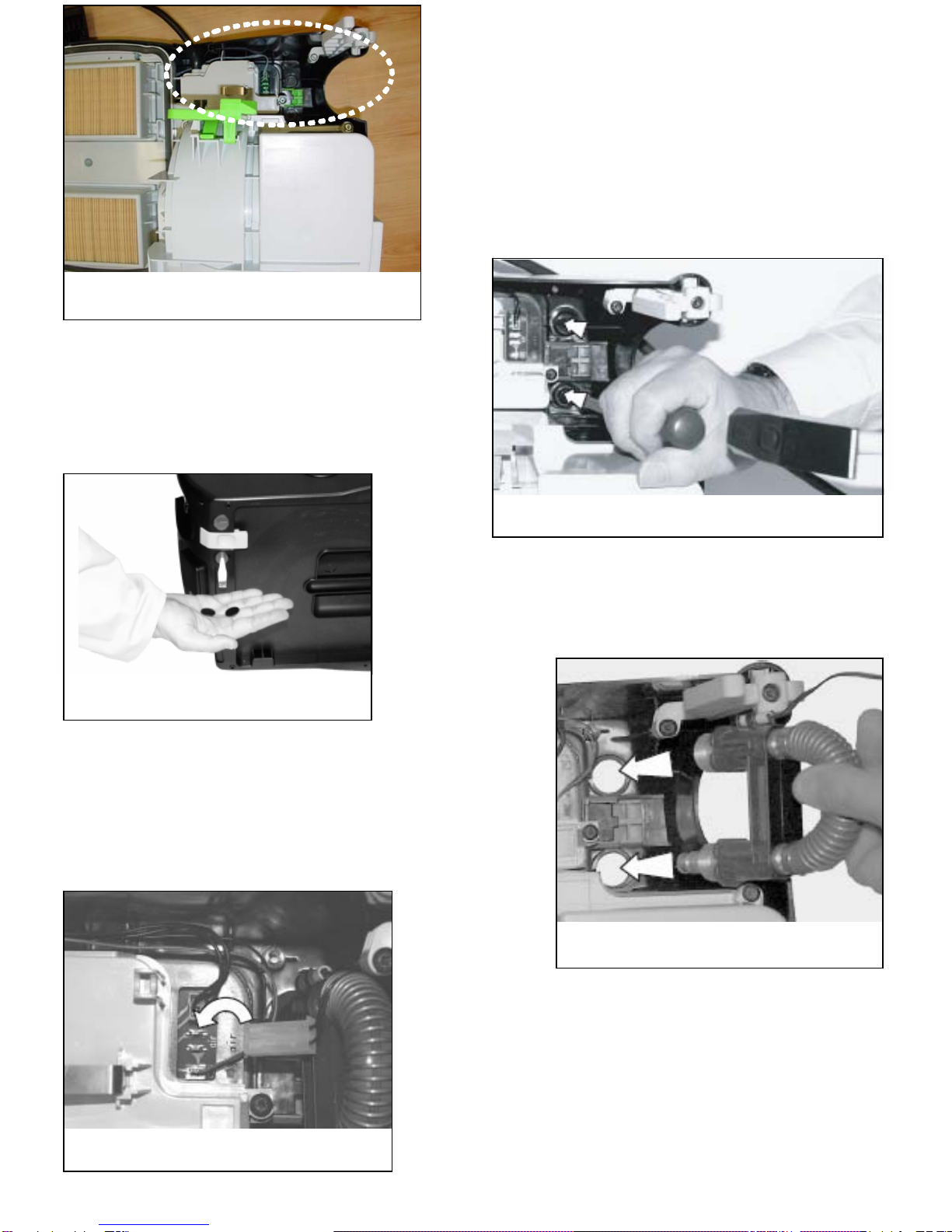

STEP 3: Using a screw driver and a

hammer, remove the two round

plastic inserts from the lid.

FIG 4

STEP 4: Discard the two plastic inserts.

FIG 6

FIG 5

STEP 5: Place the compressed air module

through the two ends where the plastic

inserts were removed.

STEP 6: Plug the cable in on the designated

pins of the electronics board. The pins are

labeled “air.”

FIG 7

FIG 8

STEP 7: Affix the

compressed air module on

the outside with washer and

screw.

FIG 9

STEP 8: Tighten both sides with a wrench.

STEP 9: Close the lid.

FIG 11

FIG 10

STEP 10: Assemble the service unit onto

the handle with 2 black screws.

STEP 11: Slide the handle on the back

of the vacuum.

FIG 12

FIG 13

STEP 12: Place two nuts into the slots on

the black part of the handle.

STEP 13: Using two of the silver

bolts, screw the handle onto the

vacuum.

FIG 14

STEP 14: Use two black screws to

secure the service unit to the bottom

of the vacuum.

FIG 15

FIG 16

STEP 15: Slide one silver nut into

each of the four slots on the

vacuum.

STEP 16: Swing the handle brackets to align

with the holes.

FIG 17

STEP 17: Fasten the gray bracket onto the handle.

FIG 18

STEP 18: Secure the bracket to the vacuum

with four silver bolts.

FIG 19

STEP 19: Slide a nut into each of the

bracket’s slots.

FIG 20

STEP 20: Use two silver bolts to screw the

cord holders onto the handle.

FIG 21

STEP 21: Insert the IAS-2 adaptor into the

hose port.

FIG 22

STEP 22: Connect the compressed air module

with the IAS 2 adaptor.

FIG 23

STEP 23: The air pressure hose that connects the

service unit to the compressed air module must be

shortened by nine inches.

FIG 24

FIG 25

STEP 24: Connect one end of the hose to the

service unit.

STEP 25: Tighten the nut with a wrench.

STEP 26: Clamp the hose to the handle.

FIG 27

FIG 26

STEP 27: Use the silver-spring hooks to clamp

the hose to the front of the vacuum.

FIG 28

FIG 29

STEP 28: Attach the side

of the hose with the

vacuum symbol to the IAS

2 adaptor.

FIG 30

STEP 29: Remove the plastic cap on the

air tool.

FIG 31

STEP 30: Connect the air tool to the hose.

STEP 31: Remove the ISO air coupling on the service unit and attach the 3/8”

ISO to 3/8” NPT adapter. Then attach a 3/8” or larger male air coupling of your

choice to the 3/8” NPT thread.

If you have questions call the Festool service hotline at 1-800-554-8741
