FESLEY FED200 Manuel utilisateur

FED200

Electric Drum

To connect directly with our support team,

please email [email protected]

INSTRUCTION MANUAL

TO LEAD A NEW COOL

Note!

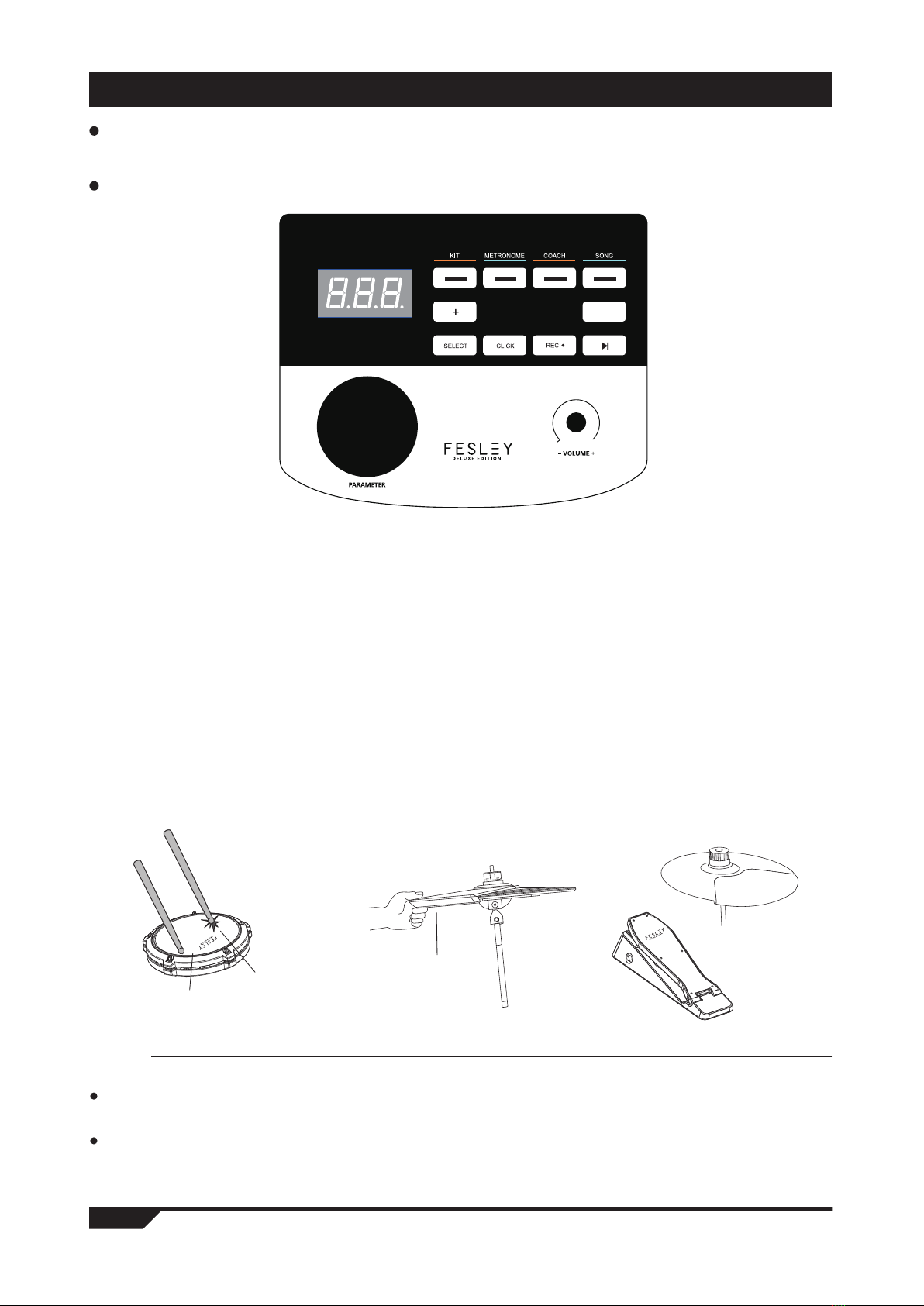

FUNCTION INTRODUCTION

Stop the sound

wave by grabbing the cymbal

Surface

Edge

Step Cymbal

Combo

● The maximum number of pronunciations is 32, with 6 layers

● 15 drum sets, 165 timbres

● 30 songs

● Support the adjustment of the sensitivity parameters of each drum

● Three teaching modes

nim/staeb052~03:lortnocdeepS●

● Metronome: 1 to 4 types

● Other functions: parameter storage, reset, recording

● Three-digit LED display

● Interface: power supply DC, USBMIDI, earphone, audio input, audio output

Thank you for choosing the Fesley electronic drum. The elegant and delicate Fesley electronic drum is the

perfect combination of modern and new electronic technology. It is strongly recommended that you read this

instruction before using it.

Please store this instruction in a safe place for future reference.

This product is an electro-acoustic instrument product. Normally, there is a little current sound in

the speaker or earphone after power-on.

Keep away from "radio, TV, antenna receiver, router, refrigerator, TV, motor and other RF electrical

interference sources" during use.

CONTENTS

FUNCTION INTRODUCTION

------------------------------------------------------------

CONTENTS

-----------------------------------------------------------------------------

INSTALLATION GUIDE

------------------------------------------------------------------

Check the attached items

-------------------------------------------------------------------------

lron pipe holder-----------------------------------------------------------------------------------

Drum pan installation --

---------------------------------------------------------------------------

Install a bracket and drum tray-------------------------------------------------------------------

Install cymbals, module place pedals ----------------------------------------------------------

Plug in the striking part connection ----------------------------------------------------------

HOST BOX SOCKET DIAG RAM ----------------------

--------------------------------

Power cord connection -------------------------------------------------------------------------

USB MIDI socket --------------------------------------------------------------------------------

Audio output socket ----------------------------------------------------------------------------

Audio input socket -- ---------------------------------------------------------------------------

Earphone socke--------- ------------------------------------------------------------------------

Operation guide ---------------------------

-------------------------------------------

Power on ----------------------------------------------------------------------------------------

Drum group selection

--------------------------------------------------------------------------

Metronome -------------------------------------------------------------------------------------

Coach mode -----------------------------------------------------------------------------------

Song mode -----------------------------------------------------------------------------------

Drum parameters ------------------------------------------------------------------------------

Recording function ----------------------------------------------------------------------------

Save/Reset ------------------------------------------------------------------------------------

USBMIDI ---------------------------------------------------------------------------------------

APPENDIX

----------------------------------------------------------------------------

Drum timbre-----------------------------------------------------------------------------------

Preset drum group ----------------------------------------------------------------------------

User defined drum group ---------------------------------------------------------------------

Demonstration music- -------------------------------------------------------------------------

PRODUCT MAINTENANCE -

---------------------------------------------------------

SAFETY PRECAUTIONS ----

----------------------------------------------------------

WARRANTY CARD

-------------------------------------------------------------------

INSTALLATION GUIDE

Check the attached items

After opening the package, please check whether it contains all the items immediately.

If there are any missing, please contact us.

Module Module Bracket Hi-hat Ride

Tor-Tom

(3pcs)

SnareCymbal Arm

(2pcs)

Cymbal Arm

(Short)

Hi-hat Pedal Kick Drum Pedal

Signal Connection Line

Drum Stick

Power Adapter Drum Key Drum Stool

Headphone

Crash

Note！

Please follow the instructions and read the "safety precautions" in the instruction manual carefully before

using.

This product must be installed by an adult, please do not install by the minor independently, don't let the

minor install it independently.

INSTALLATION GUIDE

Drum pan installation

●Please be careful to pinch your fingers when insalling.

lron pipe holder

●The stand is located in a small individual package

inside the box.

tom1 tom2

tom3

snare

INSTALLATION GUIDE

Insert the bracket and drum tray into

the corresponding positions, and then

tighten the screws.

Note: (tom, Snare) The functions are

different, you must refer to the accessories

logo for correct installation!

Install a bracket and drum tray

●The bracket must be inserted into place and the screws should be tightened to avoid dropping.

INSTALLATION GUIDE

Install the cymbal and the main case on the bracket as shown in the picture

Note: The function of each cymbal is different, you need to refer to the

accessory logo for correct installation!

Install cymbals, module, place pedals

●Don't tighten the cymbals, leave some room for them to bob up and down.

module

INSTALLATION GUIDE

Plug in the striking part connection cable

Hi-hat

Crash Ride

●Please insert the connection cable in place to avoid poor contact and insert it correctly as

shown in the diagram.

Mode A: mechanical

Please check the drum for sound,If there is

no sound, please turn the switch,

Switch in A: mechanical kick drum mode,

Switch in B: pedal mode.

Mode B: pedal

*This product adopts mode B

kick drum

Drun Module

Tom1 Tom2

Tom3

Snare

Hi-hat Control Kick drum pedal

Note！

●To prevent damage the equipment, make sure to turn down the volume and shut down all the

equipment before making any connection.

●Additional cymbals, speakers, headphones, and peripherals are not standard accessories, if necessary

you must purchase separately.

1. When in use, connect the power terminal according to the diagram, and insert the power outlet of the

module box at one end and the 100-240V household power outlet at the other end. (Fig. 1)

2. If you do not use this product for a long time, please pull out the power plug and keep it properly.The use of

an electronic drum MIDI USB interface can interact with music devices with MIDI.

1POWER TERMINAL CONNECTION

Connecting headphones monitor the details of percussion and do not disturb others when playing without

connecting speakers. (Fig.5)

5EARPHONE SOCKET

Audio output port can be connected with active speaker (special electronic drum speaker) and large audio

equipment. (Fig. 3)

3AUDIO OUTPUT SOCKET

The audio input port can connect the sound source playback device to the module box for playback(such as

MP3. mobile phone and other audio signal input). (Fig. 4)

4AUDIO INPUT SOCKET

The use of electronic drum MIDI USB interface can interact with music devices with MIDI.

1. Through the pre-installed Music software on computers and mobile phones, we can learn to

play,compose music, store and other functions. (Fig. 2)

2. When connected to a computer or mobile phone, the audio output of the device needs to be connected

to the audio input socket of the module box in order to synchronize the sound effects on the device. (Fig. 5)

22 USB MIDI SOCKET

MOUDLE SOCKET DIAGRAM

MANU

MP3

SONG

The audio output port can be connected with an active speaker (special electronic drum speaker) and large

audio equipment. (Fig.3)

6ADD CYMBAL SOCKET

45231

OPERATION GUIDE

2DRUM GROUP SELECTION

1. Turn the switch on, the display will light up and the host will be turned on.

2. Turn the switch off , the display goes out and the host is turned off.

1POWER OFF

3METRONOME

4COACH MODE

1. Press the < click > key to play the metronome, and press the < click > key again to stop playing.

2. Press the < metronome > button, and the Indicator light jumps to the "metronome" button on the second

left to enter the metronome mode, and the screen displays 120 (speed value). Turn the data wheel or< + >

< - > button to change the metronome speed.

3. Press the < Select > key in metronome mode, and the screen will jump to the metronome

parameter adjustment interface. You can press the < + > < - > button to select the parameters you want

to adjust: r.4 (beat type), B04 (beat number), L25 (metronome volume), and then turn the data wheel to

adjust the parameters.

4. After parameter adjustment, press the < Select > key to confirm and exit the parameter interface (the

metronome speed value is associated with "coach" mode and "song" mode).

The "coach" training mode of this product can help establish speed, accuracy and endurance and cultivate the

practice function of a better sense of rhythm,Make progress under the supervision of "coach" mode!

Press the "coach" button to enter the coach mode. In this mode, there are three practice modes.

Press the data wheel or . < + > < - > Button to select the practice mode.

1. Exercise mode 1: C-1 beat detection exercise: beat the drum at a fixed speed to train the accuracy of the blow.

2. Press the "coach" button to enter the coach-mode. In this mode, there are three practice modes. Press the

data wheel. < + > < - > Button to select the practice mode.

3. Practice mode 3: C-3 speed strike practice, the metronome will automatically change the speed from the slowest

to the fastest, and then from the fastest Express speed is reduced to the slowest speed to practice combat

endurance.

4. Press the < coach > button, the indicator light will jump to the left three "coach" buttons, and the screen wil

display C-1 (practice mode 1) when hitting Value practice, turn the coding wheel to switch the other two practice

modes C-2 and C-3.

1. Start up and enter the default drum group selection 01 (drum group No. 01). Use the data wheel to

select the addition and subtraction of the drum group.

2. Or press the < kit > key directly, the screen will jump to 01 (drum group number), and then use the data

wheel or < + > < - > button to select the drum group.
