Fenton 351.1833 Manuel utilisateur

351.1833 CCTV Security 4 Cam Wireless

NVR kit. User Manual

User Manual

Handleiding

Betriebsanleitung

V2.0

1. Statement

Thanks for purchasing our products, please contact us for any question or requirement.

This manual is meant only for FENTON wireless network video recorder kit.

2. Safety Cautions

1. Please do not put any container with liquid on the device(like vase with water).

2. Please put the device at a ventilated place and prevent clogging the ventilation hole.

3. Please check the power voltage, to avoid any damage to device caused by wrong voltage.

4. The NVR should work under the technical standard temperature and humidity.

5. Please place the device horizontally and keep it away from sharp pounding environment.

6. Moisture and dust on the unit may cause short circuit, for long-term use, please remove the dust on the

unit, connector by brush periodically.

7. Battery replacement by yourself is not suggested, since incorrectly operation may cause burst. Please

contact professional person for battery replacement.

8. Please install the device according to safety norms, you could take the national or local standard as

reference.

3. Package Inspection

Please check the device and all accessories according to packing list. Please contact the distributor timely

in case of any damage or lack of accessory.

1. Product Features & Specification

1.1 Wireless NVR Features

2.4GHz transmission technology 4CH 720P wireless NVR.

Embedded Linux operation system.

Standard H.264 video compression.

Main Chip: Professional industrial processor Hi3520.

4CH 720P real-time recording & synchronous playback.

Auto code matching realizes convenient real P2P application.

More stable wireless signal, Max. 35M transmission distance.

SSID technology guarantees the safety of use.

Motion detection, privacy masking, email alert.

Multiple simultaneous viewing by web browser or smart phone.

Support HDMI/ VGA video output.

Support HDD, USB flash driver storage & backup.

Reserved 3 Ethernet ports for wired IP camera connection.

1 * Standard RJ45 Port, 2*USB 2.0 Port

Network Protocol: UPnP, SMTP, PPPoE, DHCP, FTP, ETC.

1* SATA, Max. 4TB HDD.

Power: DC 12V 2A.

Wireless NVR Technical Parameters

Operating System

Embedded Linux OS

Main Chip

Hi3520

Video Input

4 channel bandwidth 20Mbps

Video Output HDMI

1024*768, 1336*768, 1440*900, 1920*1080

Video Output VGA

1024*768, 1336*768, 1440*900, 1920*1080

Video Playback

4channel synchronous playback 720P / 960H / D1 optional

Recording Mode

Auto / Manual / Motion Detection / Alarm

Playback Mode

Multiple slow / fast playback, real time, routine, event

Backup Mode

Support HDD, USB flash driver, E-cloud storage & backup

HDD Type

1*SATA, Max.4TB

External Interface

4*LAN port (1* adaptable RJ45 10M/100M WAN port

3*reserved LAN port for wired IP camera)

Network Protocol

Upnp(play & plug), SMTP(email service), PPPoE(dial-up),

DHCP(automatically obtain an IP address), etc.

Power Supply

DC 12V/2A

Power Consumption

<= 5W

Working Environment

Temperature -10°--50°, Humidity 10%--90%

Size

257(L) * 210(W) * 45 (H)mm

Weight

1 KG

1.2 Wireless IP Camera Features

2.4GHz wireless transmission technology.

Standard H.264 video compression.

Enhanced wireless module, more stable signal.

Up to 25M transmission distance.

1.0 Megapixels/ 720P wireless IP camera.

Sensor: 1/4” Progressive Scan CMOS Sensor.

Main Chip: Professional industrial processor.

Solution: OV9712+Hi3518E.

Fixed 3.6mm/ 6mm lens optional.

Main stream 1280x720@30fps.

Min. illumination 0.01Lux (0Lux IR Led on).

Smart IR-cut, auto switch day& night vision.

F5* 36pcs IR Leds, 25M effective visual range.

Auto white balance, high sensitivity.

Power: DC12V 1A.

Wireless IP Camera Technical Parameters

Operating System

Embedded Linux OS

Main Chip

Professional industrial processor

Image Sensor

1/4’’ Progressive scan sensor

Solution

OV9712+Hi3518E

Image Resolution

1.0 megapixel, 1280x720P

S/N Ratio

>48dB

Minimum Illumination

Color: 0.1 Lux, B/W: 0.01 Lux

Lens

Fixed 3.6mm

IR Leds

36pcs Leds

Effective Range

Night vision 25M

OSD

Optional (Date Time & Title)

White Balance

Auto

Day & Night

Auto / Color / B&W

3D-DNR

Auto

Mirror / Flip

On / Off

Privacy Masking

4 zones selectable

Frame Specification

Dual Stream: H.264 128x720@30fps or lower

Sub Stream: H.264 640x480@30fps or lower

Anti-thunder Level

Standard IEC6100-4-5

Interface

RJ45/WIFI 802.11b/g/n

Working Environment

Temperature -10°--50°, Humidity 10%--90%

Size

180(L) * 62(W) mm

Weight

500Gr

2. Hardware Operation

2.1 Front Panel

1．PWR：Power indicator light

2．HDD：Hard disk indicator light

2.2 Rear Panel

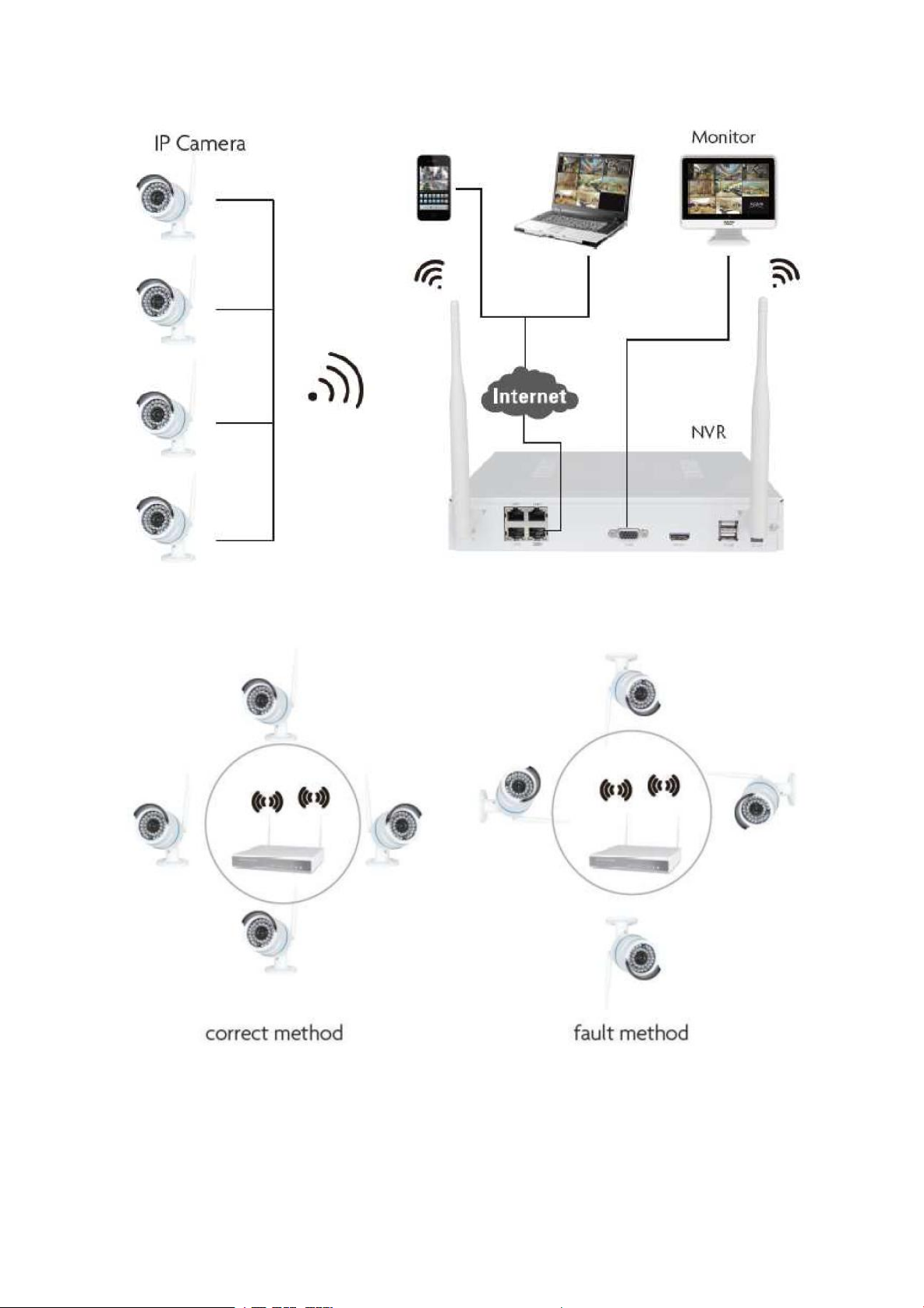

2.3 Connection Diagram

2.4 Antenna Direction

2.5 Hard Drive Installation

Please note the NVR recorder was pre-installed 1TB HDD inside.

1.Hard drive storage capacity measurement conversion

1 B = 8 b

1 MB = 1000 KB

1 GB = 1000 MB

1 TB = 1000 GB

2. How to calculate recording consumption of HDD capacity

--1. One channel recording file size in one hour: A= B / 8 / 1000 *3600

--2. “N” channels recording file size in 24 hours: A= B / 8 / 1000 *3600 *24 *N

--3. “N” channels recording file size in D days: A= B / 8 / 1000 *3600 *24 *D *N

A: Required memory ; B: Code rate ; N: Channels ; D: Recording days

2.6 Packing List

3. System Software Operation

3.1 Turn on/off

1. Make sure the access AC voltage is stable during NVR configuration and use.

2. Connect NVR to monitor by HDMI / VGA video output cable.

3. Apply power to boot up the device, the [power] indicator will be on. When entering the system, it’s a

normal status if the status indicator flashes. The system booting as shown below.

No.

Items

Quantity

Wireless NVR

1 pcs

Wireless IP camera

4 pcs

USB mouse

1 pcs

1TB HDD (pre-installed)

1 pcs

1M network cable (for IP camera code

1 pcs

DC 12V/2A power adapter (for NVR)

1 pcs

DC 12V/1A power adapter (for IP

4 pcs

FENTON User Manual

1 pcs

CD disk

1 pcs

Screw bag

4 pcs

3.2 Login

After system is turned on and initialized，it will pop up the login interface automatically as shown below.

1. Left click and enter user name to login. (default users name is “admin” by factory setting)

2. Left click and enter the logging password.(default password is blank by factory setting)

3.Click the “OK” to complete login.

Note: Password can be numbers, operators or */ #, for no longer than 10 characters.

3.3 Logout

Right click mouse to get main menu, go to Exit system (System logout)→ Logout/ Reboot/ System

shutdown.

If users need to logout automatically, steps are below:

Right click mouse to get main menu→ System setup→ General setting→ enable logout automatically→

device logged off without operation in 1 minute→ Re-enter user name & password to login.

3.4 Rebooting

Right click mouse go to main menu, select “ System logout”, click the “rebooting”

4. Setup Wizard

After Logging in, the system will automatically open ” Setup wizard” to help user to complete basic settings.

4.1 Setup wizard

Scan QR-code to download the APP by mobile phone viewing. Check “Enable boot wizard”. (If users do not

click “Enable boot wizard”, all setup wizards steps below will not be prompted at next restarting)

4.2 General setup

Change the time zone/ date / time / language etc, click next to go to HDD setup as below.

4.3 HDD setup

Users can check Hard drive’s model number, capacity, status,etc as below. Also users can format HDD.

And click next to go to record setup.

4.4 Record Setup

Users can choose different record mode. Preset record plan based on channels, weekdays, and schedule,

user can set 4 schedule in the weekday selected for each channel. Or only recording by time / motion /

sensor as shown below.

4.5 Network setup

Users can choose auto DHCP, or edit IP address / gateway / subnet mask / PPPoE etc. click “Done” to

complete all setting as shown below.
