Fenton Shift N Step Manuel utilisateur
FENTON MOBILITY PRODUCTS, 26 Center Street, Randolph NY 14772 - Shift N Step Operators Manual
1
OPERATORS MANUAL
FENTON MOBILITY PRODUCTS, 26 Center Street, Randolph NY 14772 - Shift N Step Operators Manual
2
Table of Contents
1. Basic System Description and Operation –Page 3
2. Safety –Page 4
3. Routine Maintenance –Page 6
4. Normal Operation –Pages 7 & 8
5. Electronic Operator Override –Pages 9 & 10
6. Manual Operator Override –Pages 11 thru 15
FENTON MOBILITY PRODUCTS, 26 Center Street, Randolph NY 14772 - Shift N Step Operators Manual
3
BASIC SYSTEM DESCRIPTION AND OPERATION
System Description The Shift-N-Step is a dual access entry system which allows a wheelchair lift to be “shifted”
sideways (re-positioned relative to the vehicle door opening) to allow access by either ambulatory or non-
ambulatory passengers through the same door opening. Shifting the lift fully back toward the rear wheels can
provide up to a 30 inch wide walkway to the right side of the lift for ambulatory passengers. Shifting the lift fully
forward toward the front of the vehicle allows a full size (34” Platform) ADA compliant, dual parallel arm
commercial quality wheelchair lift to be deployed through the same door opening. This eliminates the need for
two doorways and extensive, expensive vehicle modifications. The Shift-N-Step has been designed as much as
possible to be a “bolt in” system and, depending on the vehicle, the Shift-N-Step can be installed with very few
(if any) structural modifications. Other optional components are available that, when combined with the Shift-N-
Step system, provide a complete package for the ultimate in safe, convenient, economical and easy
transportation solutions for ambulatory as well as non-ambulatory passengers. These optional features include
integrated grab bars, bus style steps, automatic door openers and more and, although the Shift-N-Step system
can “stand alone”, it was designed to integrate perfectly with the AbiliTrax flooring and seating systems.
System Operation The Shift-N-Step consists of two basic components; A stationary mounting base platform that
is attached securely to the vehicle structure and a sliding platform “carriage” which is allowed to move “sideways”
(relative to the door opening) within the stationary platform. The Shift-N-Step is designed to be low profile to
minimize height issues while providing a strong and sturdy platform which is FMVSS compliant. All materials,
components and finishes are designed to provide maximum strength, durability, dependability and safety, while
also minimizing maintenance requirements. A standard, dual parallel arm platform wheelchair lift base is attached
to the “carriage” platform. This carriage platform glides on a high strength, low friction rail system. The carriage
platform is also electro-mechanically driven by rack and pinion gearing powered by an electric motor and gear
box.
FENTON MOBILITY PRODUCTS, 26 Center Street, Randolph NY 14772 - Shift N Step Operators Manual
4
SAFETY FIRST
Safety First….is the key to avoiding dangerous conditions and situations to personnel and equipment. Always
use “situational awareness” and be alert to your own position and the position of other persons or other
obstructions. Look before you press a button or turn a key. Do not operate this device unless you have
thoroughly read and understand these instructions and have received adequate training by qualified personnel.
Keep hands, feet, hair, clothing, jewelry, etc. away from moving parts.
Keep area around equipment clean, well-lit and unobstructed.
Make sure all equipment is well maintained and kept in peak operating condition. Report and have repaired any
unusual sounds, motion, loose, damaged or missing parts.
Operate only as intended and described in these instructions. Do not bypass or render inoperable any safety
device or system. Do not modify, alter or deviate from original design without prior written authorization.
Keep all guards, safety devices and warning labels in place and in good repair.
WARNING –Never leave the Manual Override tool in position with the gear teeth engaged when using the push
buttons. Sudden and violent movement of the tool will occur.
The Shift-N-Step is provided with sensors that limit both the left and right travel of the carriage. To insure full
travel, continue pressing the “normal operation” left or right push buttons until the carriage stops on its own.
In the event of an emergency, the stairway must not be obstructed. Only move the Shift-N-Step to the full right
(deploy) position when it is necessary to load or unload a wheelchair passenger. Always return the Shift-N-Step
to the full left (stowed) position after use. There is an arrow label on the right end of the lift base and a label
stating “Full Left Shift” on the right side of the Shift-N-Step base. When these two arrows align, it indicates that
the lift is fully stowed. This is a visual guide only and it is not critical that the arrows be perfectly aligned.
However, if there is a large discrepancy (more than ¼” of misalignment) and the “Left Shift” pushbutton has
been held until the unit stops on its own, it may indicate an electrical or mechanical issue requiring attention.
Do not move the vehicle with the lift obstructing the stairway.
FENTON MOBILITY PRODUCTS, 26 Center Street, Randolph NY 14772 - Shift N Step Operators Manual
5
Before deploying the lift through the door opening, make sure that the door is fully opened and the Shift-N-Step
has moved the lift to the full right (deployable) position. Failure to do so may result in a collision between the
lift and the door or door opening causing damage to the vehicle and/or lift. There is an arrow label on the left
end of the lift base and a label stating “Arrows Must Align to Deploy Lift” nearer the left end of the Shift-N-Step
base. When these two arrows align, it indicates that the lift is shifted fully right and is safe to deploy. This is a
visual guide only and it is not critical that the arrows be perfectly aligned but if there is a discrepancy of ¼” or
more in the arrow alignment (and the “Right Shift” pushbutton has been held until the unit stops on its own), it
may indicate an electrical or mechanical issue requiring attention and care should be taken that the lift will
safely pass thru the door opening.
If the Shift-N-Step does not move adequately to deploy the lift or if it makes “hard contact” at either end of its
travel, the sensor(s) may require adjustment, repair or replacement.
The Shift-N-Step may also be equipped with (optional) photoelectric sensors. These sensors project an invisible
beam across both the inboard and outboard sides of the ambulatory passenger pass through area. If one of
these beams is “broken” by a person’s leg, hand, or some other obstruction, the movement of the carriage will
immediately stop regardless of button actuation. The carriage will move again only when the obstruction is
removed from the path of the beam and a button is being pressed. (CAUTION - Operator override key switch
disregards these sensors).
FENTON MOBILITY PRODUCTS, 26 Center Street, Randolph NY 14772 - Shift N Step Operators Manual
6
ROUTINE MAINTENANCE
Most maintenance and repair will be the responsibility of the Technicians, mechanics, etc. and is covered in the
“Maintenance Manual” (separate publication). Maintenance must be performed every 1,500 “shifts”(as
indicated by the shift counter located on the unit, near the LED illumination light on the “B” Pillar Stabilizer
Plate).
As an operator, be observant of any obstructions or other foreign matter (large stones, wrappers or
other debris) that may accumulate around moving parts or create a tripping / slipping hazard and remove them.
Also be observant of any unusual movement, sounds, loose parts, etc. which may indicate a problem and bring
them to the immediate attention of the proper personnel. Lubrication of the Slides / Skis is not required.
An occasional small amount of grease or oil on the Rack and Pinion gear teeth is the only lubrication
necessary. Do not over lubricate and wipe off any excess.
If it ever becomes necessary to use either the electronic OR manual bypass to move the “carriage”, it
indicates a problem with the Shift N Step unit that requires immediate service and / or repair. It should never be
considered “normal” to operate the Shift-N-Step unit by use of the key operated override or the manual back-up
handle.
FENTON MOBILITY PRODUCTS, 26 Center Street, Randolph NY 14772 - Shift N Step Operators Manual
7
NORMAL OPERATION
Normal Operation. The Shift-N-Step is powered by the vehicles electrical system. It activates when the lift door

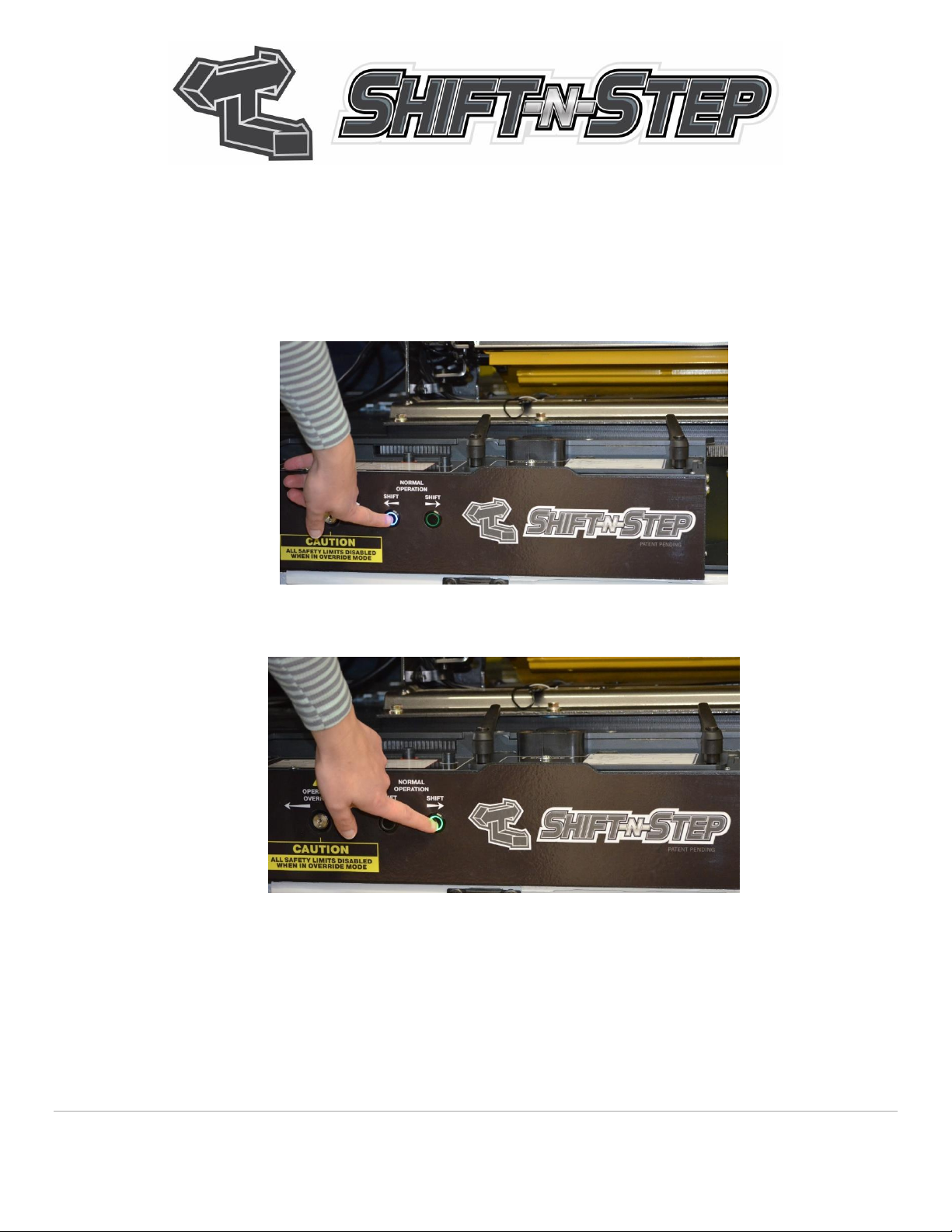

is open. Pressing the “Normal Operation” push buttons will move the carriage left (Left Button)
or right (Right button). As long as the button is held in, the carriage will continue to move until it is detected by
a sensor (at each end of the carriage travel) at which point movement will stop.
(NOTE- Operator override key switch disregards these sensors). If the button is released at any time during
movement, the carriage will immediately stop. In the event of an emergency situation in which the carriage
must be stopped or reversed, immediately release the button to stop movement or press the opposite button to
reverse movement.
FENTON MOBILITY PRODUCTS, 26 Center Street, Randolph NY 14772 - Shift N Step Operators Manual
8
The Shift-N-Step may also be equipped with (optional) photoelectric sensors. These sensors project an invisible
beam across both the inboard and outboard sides of the ambulatory passenger pass through area. If one of
these beams is “broken” by a person’s leg, hand, or some other obstruction, the movement of the carriage will
immediately stop regardless of button actuation. The carriage will move again only when the obstruction is
removed from the path of the beam and a button is being pressed. (CAUTION - Operator override key switch
disregards these sensors).
FENTON MOBILITY PRODUCTS, 26 Center Street, Randolph NY 14772 - Shift N Step Operators Manual
9
ELECTRONIC OPERATOR OVERRIDE
Electronic Operator Override mode –If normal operation cannot be established by use of the push buttons, it
may indicate a problem with a sensor, certain circuit board problems, or some other electrical or mechanical
failure. If this should occur, it may be possible to temporarily move the carriage in an emergency or other “as
needed” situation by use of the operator override key switch. This switch bypasses most electronic devices and
all safety switches and provides a direct power supply to the drive motor. This mode is intended only as a
temporary bypass and the Shift-N-Step should never be operated using this override on a routine basis. Should
it become necessary to use this feature, it would indicate a problem exists somewhere in the normal operating
system. This problem must be investigated and resolved as quickly as possible.
To activate this mode, insert the key into the switch
Rotate the switch clockwise to move the carriage right
or counter-clockwise to move the carriage left.
FENTON MOBILITY PRODUCTS, 26 Center Street, Randolph NY 14772 - Shift N Step Operators Manual
10
Movement of the carriage will stop when key is released. If the key is held beyond full mechanical movement
capabilities, the carriage can “hard stop” against the ends of its travel. If the key is held in this position, an
electronic overload protection device will cut power to the system to prevent overheating and damage to
electrical circuits and devices. If this overload should occur, release the key switch and allow several seconds for
the overload to cool down and reset. A mechanical malfunction which would prevent carriage movement may
also cause this overload to occur. Remove the key when not in use to prevent unauthorized use. Never leave
the key in the switch. In some applications, the vehicle door may contact the key when closing, thus damaging
the key. WARNING –Never leave the Manual Override tool in position with the gear teeth engaged when using
the override key switch. Sudden and violent movement of the tool will occur. As a precaution, remove the key
from the switch before using the manual override tool.
