Your new Acoustasonic™ Ultralight stereo loudspeaker features two 8"

(20.3 cm) Eminence® woofers with neodymium magnets and two 1"

(2.5 cm) soft dome tweeters with neodymium magnets, handling

up to 250 watts of power. Designed to complement the Fender®

Acoustasonic™ Ultralight amplifier, the Ultralight speaker cabinet is

constructed from quality Italian poplar plywood. Please read these

instructions and your amplifier manual before making connections.

Ultralight Connections

To connect the Acoustasonic™

Ultralight speaker to an Ultralight

amplifier, use the Speakon® cable

included with the amplifier. Rotate

the Speakon® connector to align it

with the input slots, then fully insert

the connector.

Rotate the connector clockwise until it

locks into place.

Disconnecting

Slide the locking tab back on the

connector while rotating the connector

counter-clockwise. Pull the connector out

from the input socket.

Non-Speakon® Connections

If your amplifier does not have a

Speakon® speaker output, you will need

the appropriate speaker cable or adapter

to connect the Acoustasonic™ Ultralight

loudspeaker. Speaker cable should be

4-conductor, 18–gauge minimum with

the Speakon® connector wired:

1+ pin = Right [+]

1– pin = Right [–]

2+ pin = Left [+]

2– pin = Left [–]

SPECIFICATIONS

PART NUMBER 2271700000

SPEAKERS Two 8" (20.3 cm) drivers with 2" (5.1 cm) voice coils

and Neodymium magnets;

Two 1" (2.5 cm) soft dome tweeters

with Neodymium magnets

CROSSOVER

3kHz, 12dB/octave low-pass filter, 18dB/octave high-pass

filter, using metallized polyester film capacitors and

low loss inductors

CABINET 5/8" (1.6 cm) Italian poplar plywood

SENSITIVITY 91 dB, 1 watt - 1 meter

POWER HANDLING 125 watts per side

IMPEDANCE 4 ohms per side

CONNECTIONS 4-Pole Speakon® connector

ENCLOSURE VOLUME VB = 0.43 ft3 (12 L) per side

DIMENSIONS

Height: 15 in (38.1 cm)

Width: 20.25 in (51.4 cm)

Depth: 10 in (25.4 cm)

WEIGHT 22 lb (10.0 kg)

Product specifications are subject to change without notice.

A PRODUCT OF:

FENDER MUSICAL INSTRUMENTS CORPORATION

CORONA, CALIFORNIA USA

Fender® and Acoustasonic™ are trademarks of FMIC.

Other trademarks are property of their respective owners.

P/N 069327 REV A

FENDER® ACOUSTASONIC™ ULTRALIGHT STEREO LOUDSPEAKER ENCLOSURE

Ce manuel convient aux modèles suivants

Autres manuels Fender Intervenants

Fender

Fender Acoustasonic Junior Manuel utilisateur

Fender

Fender PASSPORT Manuel utilisateur

Fender

Fender Passport Executive PR 692 Manuel utilisateur

Fender

Fender ACE Series Manuel utilisateur

Fender

Fender FORTIS F-12BT Manuel utilisateur

Fender

Fender PASSPORT P250 Manuel utilisateur

Fender

Fender Super Sonic 60 Manuel utilisateur

Fender

Fender PASSPORT Manuel utilisateur

Fender

Fender Bass Speaker Cabnets Manuel utilisateur

Fender

Fender Passport PD-150 Manuel utilisateur

Fender

Fender PASSPORT P150 Manuel utilisateur

Fender

Fender Passport mini Manuel utilisateur

Fender

Fender PASSPORT PD-150 PLUS Manuel utilisateur

Fender

Fender Frontman 25R Manuel utilisateur

Fender

Fender FIGHTER 10 Manuel utilisateur

Fender

Fender PASSPORT Manuel utilisateur

Fender

Fender PASSPORT 1270P Manuel utilisateur

Fender

Fender PASSPORT 1270P Manuel utilisateur

Fender

Fender Passport PD-250 Manuel utilisateur

Fender

Fender PASSPORT 1270P Manuel utilisateur

Fender

Fender FORTIS F-10BT Manuel utilisateur

Fender

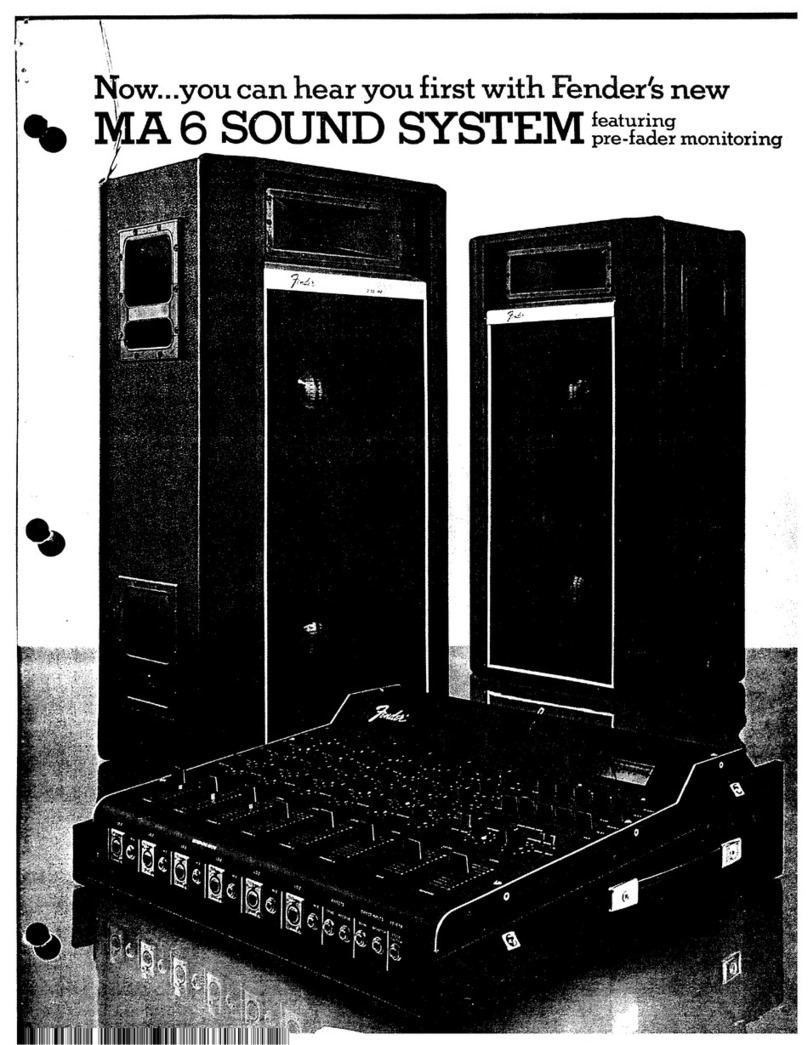

Fender MA6 Manuel utilisateur
