USER MANUAL

fencee mini DUO MD03

fencee mini DUO MD06

fencee mini DUO MD10

230V ~ /12 V

STORED

ENERGY

OUTPUT

ENERGY

OUTPUT

VOLTAGE

OUTPUT

VOLTAGE 500 Ω

SWITCHING

ON / OFF

fencee mini DUO MD03 0,5 J 0,3 J 9 000 V 3 000 V

fencee mini DUO MD06 0,9 J 0,6 J 9 500 V 3 500 V

fencee mini DUO MD10 1,4 J 1 J 10 000 V 4 000 V

12 km 5 km 3 km 0,5 km

21 km 7 km 5 km 1 km

30 km 12 km 7 km 2 km

Electric fencing

In Lanškroun July 14th, 2022

Ing. Jan Horák

Executive Head of the Company

Tel.: +420 730 893 828

info@fencee.eu

www.fencee.eu

DECLARATION OF CONFORMITY

ENERGIZERS FOR ELECTRIC FENCES

fencee mini DUO MD03, fencee mini DUO MD06

fencee mini DUO MD10

Test Report No.:

40 745

Manufacturer:

VNT electronics s.r.o.

Dvorská 605, 563 01 Lanškroun

IČO: 64793826

declares that the below listed products:

are in accordance with requirements of standards

and regulations relevant for given type of devices:

Products are safe under condition of their conventional use

in accordance with instructions for use. Declaration

of conformity is issued pursuant to these materials

Issued by accredited Státní zkušebnou strojů a.s.,

Třanovského 622/11, 163 00, Praha 6.

This declaration is issued at explicit responsibility of the manufacturer.

2014/35/EU

2014/30/EU

Thank you for purchasing the product of the company VNT electronics s.r.o.

The equipment conforms to safety regulations in accordance with

valid legislation as well as relevant EU (CE) regulations.

We also ask you to read these instructions for use before using the device

carefully and to keep it for possible application in the future.

Electric fence must be constructed so that persons are protected against

unintentional contact with pulses conductors under normal operating conditions.

From the point of view of legislation, especially the standard ČSN EN 60335-2-76 ed.2

(Electric appliances for domestics and similar purposes – Safety – Part 2-76: Special

requirement on energizers for electric fences) and norm 2014/35/EU - 2014/30/EU.

1. CONTENT

1Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2Important recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3Package contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

4Function electric fence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

5Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

6Product description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

7Ready to use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

8Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

9Explanation of LED indicating lights and bargraph indicator . . . . . . . . . . . . . . . . . . . . 10

10 Safety guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

11 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

12 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

13 Technical parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

We recommend that this manual is read thoroughly and fully

understood before using the device and that it is retained for

future reference!

2. IMPORTANT RECOMMENDATIONS

•

The energizer will provide better protection for your animals and land.

Local conditions and surroundings always aect the device function and for that reason the

manufacturer is not able to guarantee full protection against damage to the fence system.

• Use only the original adapter to supply the energizer – 14 V / 1 A. The supply voltage must

not exceed 16 V. 12 V controller must be used if the solar panel is used as the energizer must

not be connected directly to the panel.

• Switch o the energizer before carrying out any work on the electric fence system.

• Read thoroughly the Safety Guidelines paragraph.

• Strictly observe all safety guidelines during installation work.

• Do not connect the device on one fence system to another appliance.

Damage to all connected devices and appliances may occur in the event of lightning strike.

• The device may only be repaired by the manufacturer’s qualied personnel.

• Please dispose all waste in accordance with your country’s code of practice.

• Do not let the unconnected battery cable hang freely as the short circuit and the consequent

destruction of the energizer may take place.

3. PACKAGE CONTENTS

• Energizer fencee mini DUO MD

• Earthing cable

• Connecting cable to the fence system

• 14 V/1 A power supply adapter for mains connection

• Battery cable

• Warning sign

• 1 piece - installation self-tapping screws and rawlplugs

• User Manual

4. FUNCTION ELECTRIC FENCE

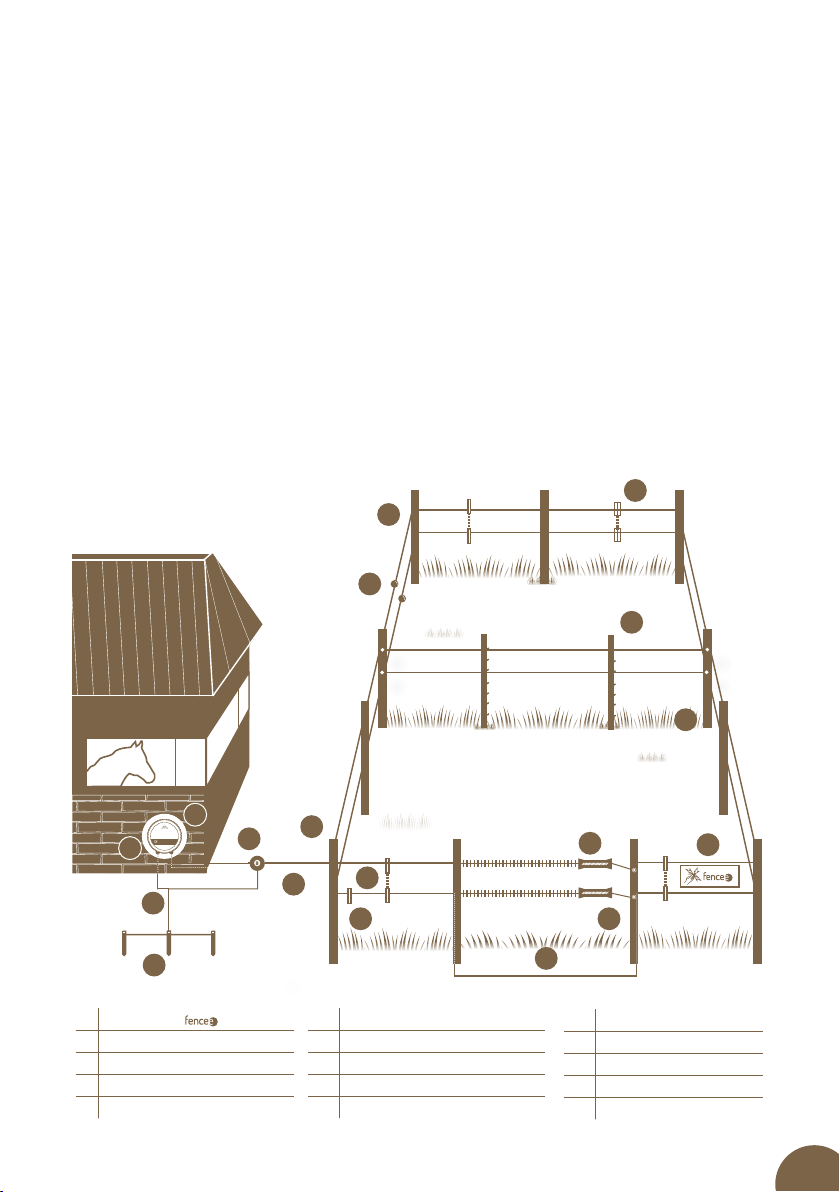

How the electric fence works?

Electric fence system consist from the energizer and fencing marked with posts and

conductors. The energizer creates regular high-voltage impulses that generate a voltage

between the conducting material and the ground. When an animal (or a person, vegetation

or similar) creates a connection between the ground and the conducting material, the circuit

is completed. Generated impulses are unpleasant, but not dangerous to people or animals as

they only act for a short period of time and results in the desired deterrent eect. The impulse

lasts for a matter of milliseconds. These fences serve not only to enclose an area, but also act

as a deterrent e.g. to protect against wild boars.

Beneﬁts of electric fence systems:

• Electric fences are long-lasting, simple to put up and great value for money compared with

normal fences.

• It is easy to assembly and exible for using.

• Designed for guarding and protecting dierent animals.

• Compared to other fences, such as barbed wire, it does not cause any damage to the animals.

6High-voltage connecting cable

7Conductor

8Line connector

9Fixed post

10 Tensioner

11 Insulators

12 Flexible post

13 Warning sign

14 Gate

15 Insulator of gate

1Energizer

2ON/OFF button

3Earthing cable

4Anticorrosive earthing rod

5Lightning diverter

5. INTRODUCTION

fencee energizers mini DUO MD are suitable for short and vegetation unburdened fences.

Thanks to their power they can secure sucient tension along the entire length. An

integrated microprocessor operates the whole operation and he secures optimal power, due

to the condition of the fence system.

Combined energizers fencee mini DUO MD can be powered from mains 230 V, with use of

enclosed 14 V adapter or by suitable 12 V battery. Energizer can be runned only on one of the

listed power sources. Not on both at the same time.

During the operation of the fence, there is a continuous measurement of the fence load.

The output power of the fencee mini DUO MD is then automatically adjusted to maintain

the desired output voltage over the largest possible load range. This regulation signicantly

helps to save energy during using a quality fence with a low load. The LED indicator on the

front side of the energizer shows the operation of the source and also signals a possible fault

on the energizer.

The energizers fencee mini DUO MD oer a special Power save mode. You can switch the

energizer to a slower mode, the frequency of the pulses will be approximately twice as long,

and thanks to this you will signicantly save the battery. It is convenient to use for example,

when the animals are used to the energizer and respect it. Thanks to this mode, the energizer

can run on the battery for almost twice longer.

6. PRODUCT DESCRIPTION

Explanations of symbols shown on energizer

Earthing connection. Connect this connection to your earthing system.

Fence output with full voltage. Connect this connection to your fence system.

1Connector for connecting adapter ( 14 V /1A) or battery (12 V)

2LED control of connecting energizer and status indication

3ON / OFF switch button

4Earthing (black)

5Connection to fence system (red)

7. READY TO USE

Choose a place suitable for installation of energizer.

• Where you can achieve a good earthing.

• Which is distant enough from children and animals.

• Where energizer is well accessible.

• Where permanent water stream is avoided.

To mount energizer on wall, use attached screws, on which you can hang the energizer easily.

Assembly of energizer by using DIN rail

Energizer can be easily and practically mounted by using DIN rail and mounting bracket.

Set for assembly on DIN rail can be ordered as separate accessories.

Energizer min. 20 cm

above the ground

MIN.

Min. 10 metres from

next earthing point 3m

1. 2. 3.

•Energizers must be installed in a dry place.

•Never put energizer on ground – in moist or wet environment.

•Fasten energizer by means of hanging screw or DIN rail with mounting bracket

in vertical position – at least 20 cm above ground.

•Never expose energizer to continuous water stream.

ON THE GROUND - IN A PUDDLE ON THE GROUND - UPSIDE DOWN

NEGATIVE

ANGLE

NEVER EXPOSE TO A

CONTINUOUS STREAM

OF WATER!

VERTICAL ON THE WALL

IDEALLY WITH A CANOPY

We recommend mounting on

DIN rail 80 mm (Art.No. 8043)

EARTHING

Correct earthing is very important because total function of the fence system is

dependent on it!

Beat earthing rod with corrosion protection into ground completely at place with maximum

and permanent humidity. On dry pieces of land or in case of soils with lower electric

conductivity, use one or several supplementary earthing rods (with length of minimum

of 1 m) and place them at distance of approximately 3 meters from each other.

Exceptions are fence system powered by battery energizer or working with low output.

Here minimum length of earthing rod of 50 cm is recommended.

Distance of at least 10 meters must be between earthing rod of the fence system and another

earthing system, for example earthing of a house, protective earthing of electric supply system

or earthing of violation alarm.

Do not connect the energizer to already existing earthing or to the the earthing

of another energizer. Each energizer must have its own earthing.

Connection of connectors

The mini DUO MD models have only one input connector to connect the power source.

Either for powering with an adapter from the mains or using a battery cable from 12 V battery.

Connection of the output terminals

Connect the black earthing clip with the earthing cable to the earthing rod.

Connect the red clip with the connecting cable to the fence.

Connector for connect

the adapter or battery.

8. CONTROL

POWER SWITCHING  ON/OFF SWITCH BUTTON

The large switch button is used for basic control. This button turns the energizer on and o

and it can be used to activate the Power save mode, i. e. to extend the interval between pulses.

After switching o and then switching on, the energizer remembers the last set power.

IN SWITCHEDOFF CONDITION OF THE ENERGIZER

long press of button (>2 s)

switching energizer on.

short press of button

no reaction.

IN SWITCHEDON CONDITION OF THE ENERGIZER

long press of button (>2 s)

manual switching between basic and Power

save mode (approximately 2x longer delay) – selectable by the user, for

example if it is necessary to save the battery

short press of button turning off the energizer.

9. EXPLANATION OF THE LED INDICATOR SIGNALS

LIGHT/FLASHING

FLASHING

It signals the operation and ashes in interval of the individual pulses.

RAPID DOUBLE FLASHING (red)

The battery voltage has dropped below 12 V.

RAPID SHORT FLASHING (red)

The energizer is switched o and the battery voltage is lower than 11,4 V.

COLOR

Blue

Operation in normal mode.

Purple

Power save mode, extended time between pulses.

Red

Indicates warning and error condition (for example battery voltage drop below 12 V)

or a fence voltage drop below 2.5 kV.

When the battery voltage drops below 11,6 V, a warning siren (beeping) is switched on. If the

voltage drops below 11,4 V, the fence system switched o. The Energizer will only ash rapidly

red and will not give an impulse. The reason is to protect the battery from deep discharge

(battery destruction).

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Fencee Alimentation

Fencee

Fencee power energy PE60 Manuel utilisateur

Fencee

Fencee Energy DUO RF EDX80 Manuel utilisateur

Fencee

Fencee GW100 Manuel utilisateur

Fencee

Fencee power DUO PD10 Manuel utilisateur

Fencee

Fencee energy Smart DUO EDW100 Manuel utilisateur

Manuels Alimentation populaires d'autres marques

Monacor

Monacor PS-12CCD Manuel utilisateur

VOLTIMA

VOLTIMA MagicBox 15 Manuel utilisateur

Agilent Technologies

Agilent Technologies 6032A Manuel utilisateur

Miller

Miller Auto Deltaweld 452 Manuel utilisateur

BCP

BCP PUOUBK Feuille d'instructions

HC 2210 Manuel utilisateur

Puls

Puls CT5.241 Manuel utilisateur

OCZ

OCZ ZX1250W Manuel utilisateur

iseg

iseg ECH 238 Manuel utilisateur

Power

Power XXL A Series Manuel utilisateur

Agilent Technologies

Agilent Technologies 6631B Manuel utilisateur

Renogy

Renogy PHOENIX 300 Manuel utilisateur

HP 6200B Manuel de service

Epson

Epson Stylus Scan 2500 Manuel d'utilisation

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Manuel utilisateur

Puls

Puls MiniLine ML50.100 Manuel utilisateur

Puls

Puls AS-Interface SLA4.100 Manuel utilisateur

Kenwood

Kenwood PS-60 Manuel utilisateur

Fencee mini DUO MD03 Manuel utilisateur

Manuels Alimentation populaires d'autres marques
