ID ISC.ANT1400/760

Type A, B and C

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C

FEIG ELECTRONIC GmbH Page 3 of 50 M50700-4e-ID-B.doc

Note

FEIG ELECTRONIC GmbH

Lange Strasse 4

D-35781 Weilburg-Waldhausen

Tel.: +49 6471 3109-0

http://www.feig.de

With the edition of this document, all previous editions become void. Indications made in this manual may be

changed without previous notice.

Copying of this document, and giving it to others and the use or communication of the contents thereof are

forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved

in the event of the grant of a patent or the registration of a utility model or design.

Composition of the information in this manual has been done to the best of our knowledge.

FEIG ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this

manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,

despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.

The installation instructions given in this manual are based on advantageous boundary conditions.

FEIG ELECTRONIC GmbH does not give any guarantee promise for perfect function in cross environments.

FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this

manual and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does

not convey any license under its patent rights nor the rights of others.

OBID®and OBID i-scan®are registered trademarks of FEIG ELECTRONIC GmbH.

my-d® is a registered trademark of Infineon Technologies AG

I-CODE®and mifare®are registered trademarks of Philips Electronics N.V.

Tag-itTM is a registered trademark of Texas Instruments Incorporated.

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C

FEIG ELECTRONIC GmbH Page 4 of 50 M50700-4e-ID-B.doc

Contents

1 Safety Instructions / Warning - Read before Start-Up ! 6

2 Performance Features of the ID ISC.ANT1400/760 Antennas 7

2.1 Available Antenna Types..............................................................................................7

3 Installation and Wiring 8

3.2 Mounting preparation...................................................................................................9

3.3 Installing the Antenna Base .......................................................................................11

3.3.1 Drilling the Mounting Holes ...........................................................................................11

3.3.2 Installing the Antenna Base and Antenna Body............................................................13

3.3.3 Connecting the Components.........................................................................................14

3.4 Installing the Cover Plates..........................................................................................15

4 Typical Antenna Configuration (Gate Antenna with two Antennas) 19

4.1 Project Notes ...............................................................................................................19

4.2 Configuration and Setup using Antennas Type -A and -B......................................21

4.2.1 Required Components ..................................................................................................21

4.2.2 Configuration of a Gate Antenna...................................................................................22

4.2.3 Setting the Power Splitter..............................................................................................23

4.2.4 Setting the Antenna Tuner ............................................................................................23

4.2.5 Reader Configuration ....................................................................................................24

4.2.6 Tuning the Gate Antenna ..............................................................................................26

4.3 Configuration and Setup using Antennas Type -C and -B......................................27

4.3.1 Required Components ..................................................................................................27

4.3.2 Configuration of the Gate Antenna, Antenna Type -C and -B.......................................28

4.3.3 Setting the Multiplexer...................................................................................................29

4.3.4 Setting the Antenna Tuner ............................................................................................30

4.3.5 Reader Configuration ....................................................................................................31

4.3.6 Tuning the Gate Antenna ..............................................................................................33

4.4 Testing the Gate Antenna...........................................................................................34

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C

FEIG ELECTRONIC GmbH Page 5 of 50 M50700-4e-ID-B.doc

4.4.1 Checking the Noise Level..............................................................................................34

4.4.2 Reading a Serial Number..............................................................................................35

4.4.3 Testing the performance ...............................................................................................35

4.5 Connecting and Setting the Alarm Kit (optional) .....................................................37

4.5.1 Installing the Alarm Indicators.......................................................................................37

4.5.2 Connecting the Indicators..............................................................................................39

4.5.3 Reader Setting for Indicators.........................................................................................40

4.5.4 Programming a Transponder with the AFI Byte ............................................................42

4.6 Activating Buffered Read Mode.................................................................................44

4.7 Configuring the Reader in accordance with national RF regulations....................45

5 Technical Data 47

5.1 Antenna ID ISC.ANT1400/760- Type A, B and C ......................................................47

5.2 Approval.......................................................................................................................50

5.2.1 Europe (CE) ..................................................................................................................50

5.2.2 USA (FCC) ....................................................................................................................50

5.2.3 USA (UL).......................................................................................................................51

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C

FEIG ELECTRONIC GmbH Page 6 of 50 M50700-4e-ID-B.doc

1 Safety Instructions / Warning - Read before Start-Up !

•The device may only be used for the intended purpose designed by for the manufacturer.

•The operation manual should be conveniently kept available at all times for each user.

•Unauthorized changes and the use of spare parts and additional devices which have not been

sold or recommended by the manufacturer may cause fire, electric shocks or injuries. Such

unauthorized measures shall exclude any liability by the manufacturer.

•The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid

for the device. The manufacturer shall not be held legally responsible for inaccuracies, errors,

or omissions in the manual or automatically set parameters for a device or for an incorrect

application of a device.

•Repairs may only be executed by the manufacturer.

•Installation, operation, and maintenance procedures should only be carried out by qualified

personnel.

•Use of the device and its installation must be in accordance with national legal requirements

and local electrical codes .

•When working on devices the valid safety regulations must be observed.

•Please observe that some parts of the device may heat severely.

•Before touching the device, the power supply must always be interrupted. Make sure that the

device is without voltage by measuring. The fading of an operation control (LED) is no indica-

tor for an interrupted power supply or the device being out of voltage!

•For installation and dismantling you should wear suitable safety gloves, because parts of an-

tenna housing could be sharp-edged.

CAUTION! The Antenna-Tuner and the Antenna conductor carry voltages up to

1000V.

Special advice for wearers of cardiac pacemakers:

•Although this device doesn't exceed the valid limits for electromagnetic fields you should keep

a minimum distance of 25 cm between the device and your cardiac pacemaker and not stay in

an immediate proximity of the reader’s antennas for any length of time.

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C

FEIG ELECTRONIC GmbH Page 7 of 50 M50700-4e-ID-B.doc

2 Performance Features of the ID ISC.ANT1400/760 Antennas

The ID ISC.ANT1400/760 Type A antenna is the version with Reader and Power-Splitter. The

ID ISC.ANT1400/760 Type C includes the Reader and Multiplexer. The Reader and Power-Splitter

or Multiplexer are mounted inside the antenna base.

The ID ISC.ANT1400/760 Type B antenna is the same antenna without Reader, Power-Splitter or

Multiplexer.

Up to

-two antennas (Qty. 1 Type A or C and Qty. 1 Type B or BL) as a single gate,

-three antennas (Qty. 1 Type A or C and Qty. 2 Type B or BL) as a double gate, or

-4 - 8 antennas (Qty. 1 Type A or C and Qty. 3 - 7 Type B or BL) as a multiple gate

can be operated.

Depending on the antenna configuration, one, two or all three read orientations of the Smart Tags

and various antenna spacing (gate widths) are possible.

The ID ISC.ANT1400/760 Type A, B and C are „figure-of-eight“ antennas with tuner and have been

optimized as transmitting and receiving antennas for the ID ISC.LR2000 Reader. It is however also

possible to operate them with other Readers at a transmission frequency of 13.56 MHz and an

output impedance of 50 Ω. The read ranges indicated in this document and the tuning procedures

may however then vary.

The antennas comprise the electrical antenna conductor, the housing, the ID ISC.DAT Dynamic

Antenna Tuner and the connection cable.The antennas are factory tuned to an impedance of 50 Ω

in a magnetically neutral environment at a distance of 95 cm. When installing in different ambient

conditions the antenna can be retuned using the “DATuningTool“ PC software. After tuning the

antennas will retain their settings as long as the ambient conditions remain unchanged.

The antennas can be used for detecting both product and persons. It is suitable for installation

indoors or outdoors if weather-protected.

2.1 Available Antenna Types

The following Antennas are currently available:

Antenna Type Description

ID ISC.ANT1400/760-A Antenna with reader ID ISC.LR2000, Power Splitter and Light bar

ID ISC.ANT1400/760-B Antenna only with Light bar dummy without LED strip

ID ISC.ANT1400/760-BL Antenna only with Light bar and LED strip

ID ISC.ANT1400/760-C Antenna with reader ID ISC.LR2000, Multiplexer and Light bar

ID ISC.ANT1400760-AK Audio Sounder with mounting accessories

Table 2-2: Available Antenna Types

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C

FEIG ELECTRONIC GmbH Page 8 of 50 M50700-4e-ID-B.doc

3 Installation and Wiring

3.1 Dimensions of antenna

The outside dimensions of the antenna are shown in Fig. 1

Fig. 1: Antenna outside dimensions

All dimensions are in mm with general tolerance to ISO 2768 m (mean).

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C

FEIG ELECTRONIC GmbH Page 9 of 50 M50700-4e-ID-B.doc

3.2 Mounting preparation

For assembly the antenna must be carefully unpacked and disassembled into its main

components. This is done as described in the following steps:

1. Place the packed antenna on the floor with the top side facing up. Carefully open the box and

remove the side cover plates. Then remove the antenna and at last the side panels.

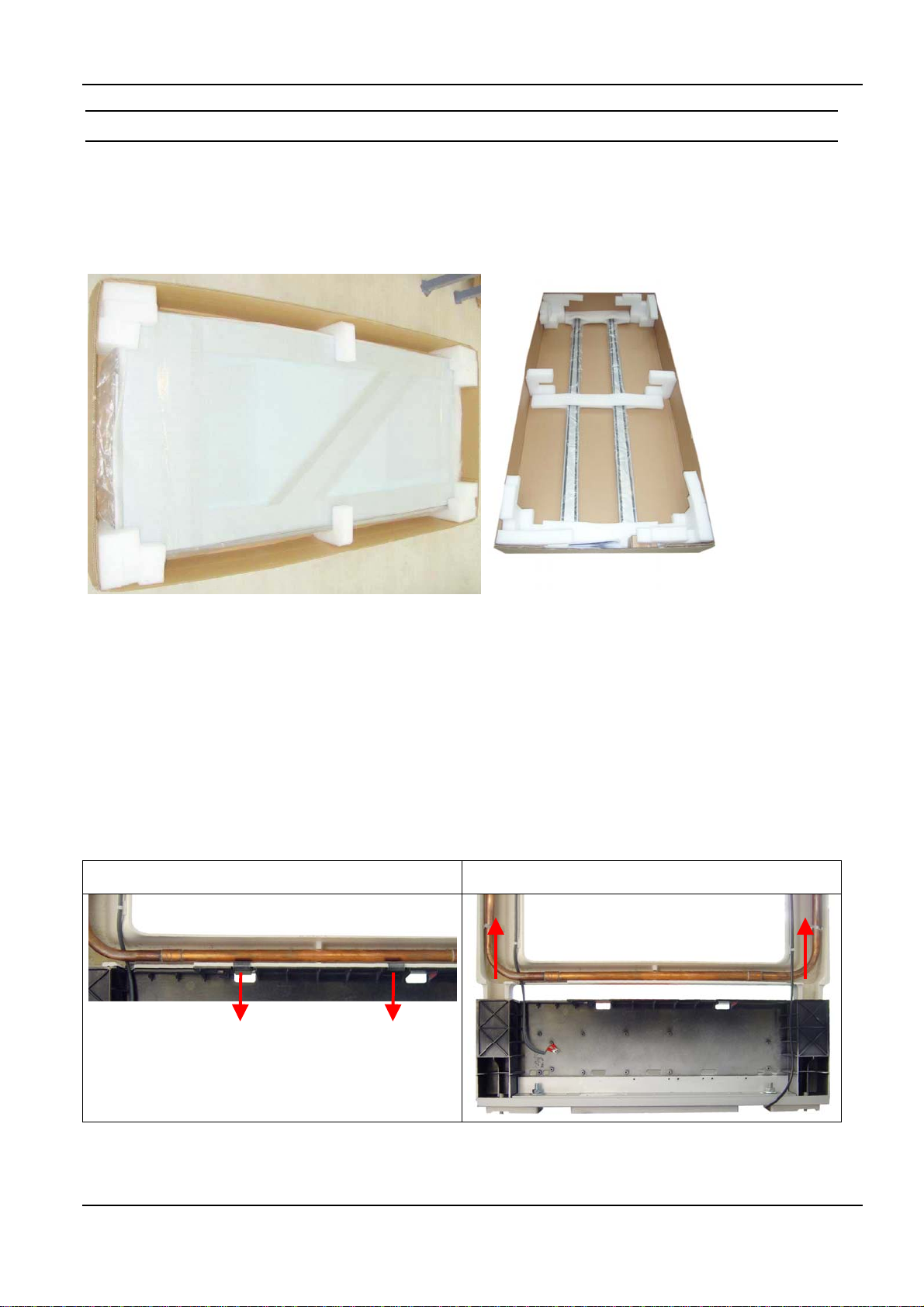

Fig. 2: Antenna in its packaging Fig. 2a: Side panels in its packaging

2. Carefully put the antenna down again and remove the two fastening brackets in the antenna

foot (Fig. 3). Disconnect the antenna cable from the Multiplexer (Type C) or Power Splitter

(Type A) and disassemble the cable for the alarm light in the antenna foot. Then the antenna

body can be separated from the antenna foot.

Step 1 Step 2

Fig. 3: Separating antenna body from antenna foot

Fastening brackets

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C

FEIG ELECTRONIC GmbH Page 10 of 50 M50700-4e-ID-B.doc

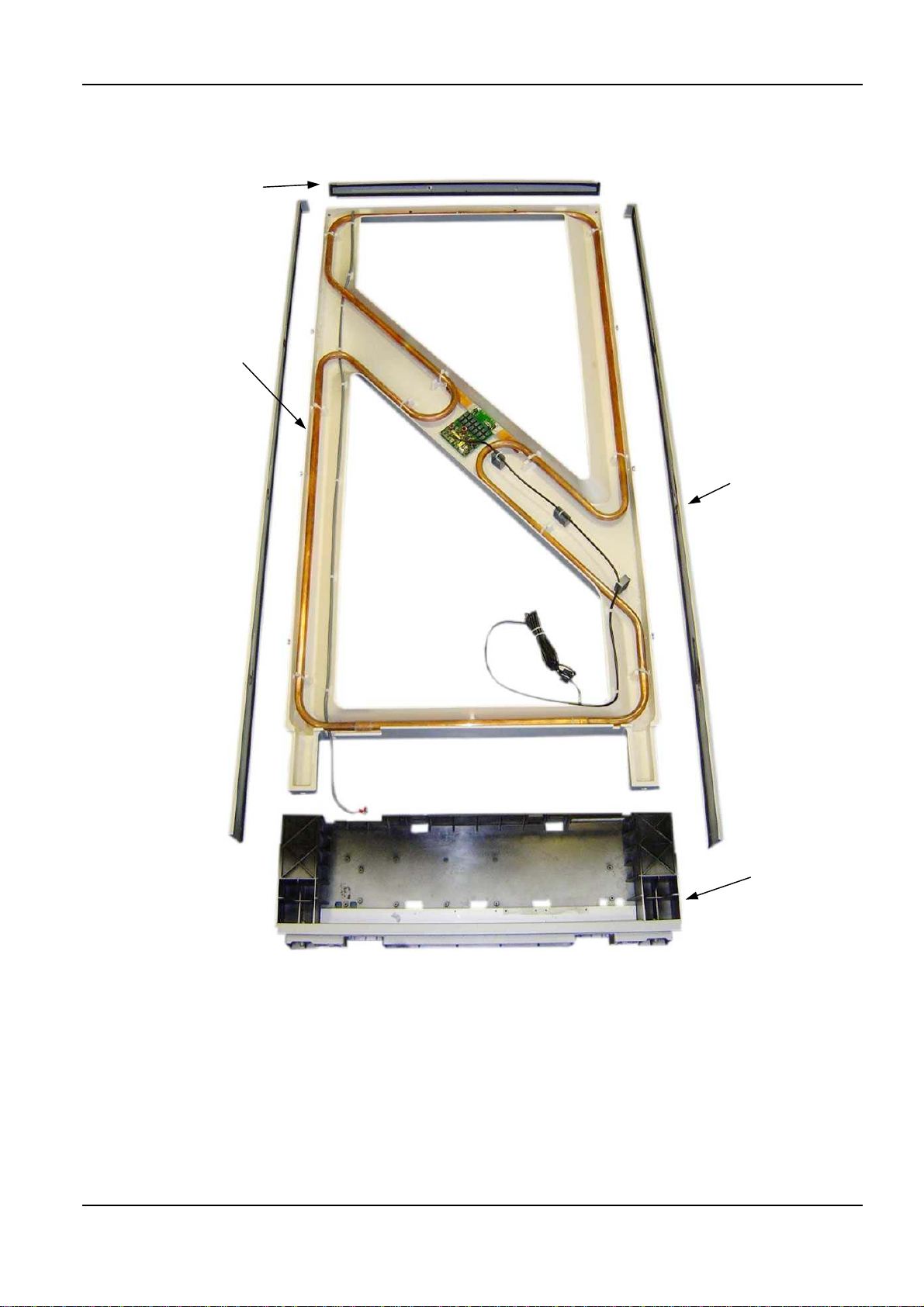

Fig. 4: Antenna construction with frame side panels without cover plates

Additionally, at antenna Type A and Type C, some ring cores are added to mount on the cabling

(See manual reader).

dSide panels

Antenna body with

antenna conducto

fUpper frame section

(optional with LED-Strip)

cAntenna base

(hole template)

OBID i-scan®Installation ID ISC.ANT1400/760-A/B/C

FEIG ELECTRONIC GmbH Page 11 of 50 M50700-4e-ID-B.doc

3.3 Installing the Antenna Base

Notes:

Before installing the antennas please read 4.1 Project Notes .The spacing of the antennas

comprising a gate depends on the antenna configuration.

If multiple antennas or gates are connected to different Readers, a minimum separation of

8 m must be kept between the antennas or gates. For shorter distances (1 m – 8 m) the

Readers must be multiplexed. Below a distance of 1.5 m the antennas must also be shielded

from each other. Otherwise the Reader range will be significantly reduced. The antennas

must have a minimum distance of 20 cm from all larger metal parts! At a distance of less

than 50 cm between the antenna and metal parts the Reader range will be significantly

reduced.

3.3.1 Drilling the Mounting Holes

If the position of the antennas has been marked or determined, the antenna foot c, which is to be

used as a hole template, can be used to mark and drill the mounting holes and the holes for the

cable entry. The dimensions are shown in Fig. 5:

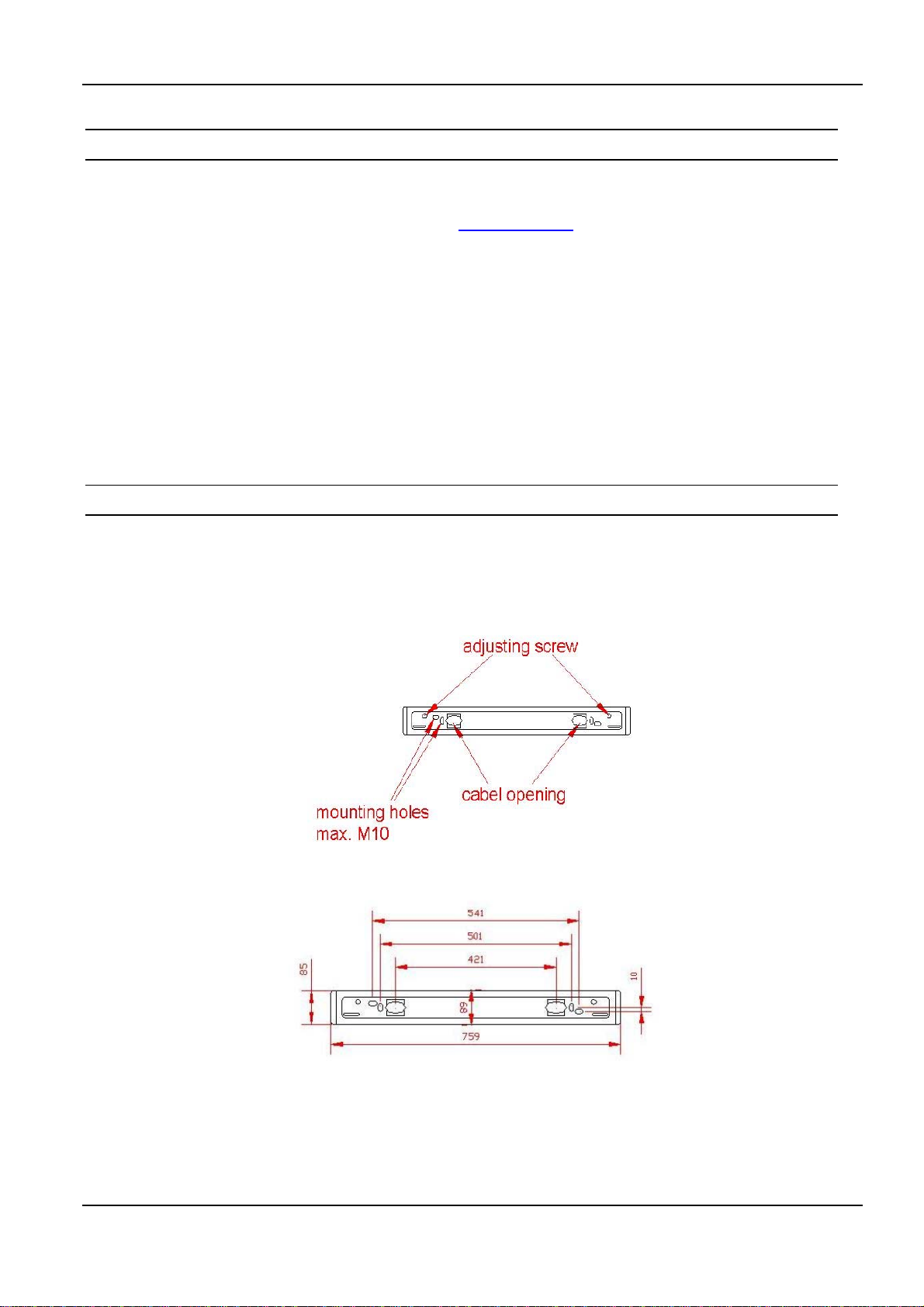

Fig. 5: Floor plate dimensions c

All dimensions are in mm with general tolerance to ISO 2768 m (middle).

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Feig Electronic Antenne

Feig Electronic

Feig Electronic ID ISC.ANT600-DA Instructions d'installation et d'utilisation

Feig Electronic

Feig Electronic ID ANT.U290/290-FCC Manuel utilisateur

Feig Electronic

Feig Electronic ID ANT.U580/290-FCC Manuel utilisateur

Feig Electronic

Feig Electronic ID ANT.U290/290-EU Manuel utilisateur

Feig Electronic

Feig Electronic OBID i-scan ID ISC.ANT.U170/170 Manuel utilisateur

Feig Electronic

Feig Electronic OBID ID ANT.BS.100-A Manuel utilisateur

Feig Electronic

Feig Electronic ID ISC.ANT800/600 Guide de démarrage rapide

Feig Electronic

Feig Electronic ANT.U580/290-EU Manuel utilisateur

Feig Electronic

Feig Electronic OBID i-scan ID ISC.ANT.U600/270 FCC Manuel utilisateur

Feig Electronic

Feig Electronic OBID i-scan ID ISC.ANT.U170/170-EU Manuel utilisateur

Feig Electronic

Feig Electronic OBID i-scan ID ISC.ANT.U170/170-FCC Manuel utilisateur

Feig Electronic

Feig Electronic OBID i-scan ID ISC.ANT.U270/270 FCC Manuel utilisateur

Feig Electronic

Feig Electronic ID ANTRW.8060-A Manuel utilisateur

Feig Electronic

Feig Electronic OBID i-scan ID ISC.ANTU250/250 Manuel utilisateur

Feig Electronic

Feig Electronic ID ISC.ANTH200/200 Series Manuel utilisateur

Feig Electronic

Feig Electronic OBID i-scan ID ISC.ANT800/600-DA Manuel utilisateur

Feig Electronic

Feig Electronic OBID ID RW24-A Manuel utilisateur

Feig Electronic

Feig Electronic ID ISC.ANTH200/200-A Manuel utilisateur

Feig Electronic

Feig Electronic ID ISC.ANT1520/680 Manuel utilisateur

Feig Electronic

Feig Electronic ID ISC.ANTS370/270 Manuel utilisateur

Feig Electronic

Feig Electronic OBID ID ISC.ANT340/240-A Manuel utilisateur

Feig Electronic

Feig Electronic OBID i-scan ID ISC.ANT300 Manuel utilisateur

Manuels Antenne populaires d'autres marques

Alfa Network

Alfa Network APA-L01 Manuel utilisateur

Naval

Naval PR-422CA Manuel utilisateur

TERK Technologies

TERK Technologies TV44 Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE2324LYRMK Manuel utilisateur

HP J8999A Manuel utilisateur

MobilSat

MobilSat MSP-S Manuel utilisateur

Steren

Steren ANT-UHF 13 Manuel utilisateur

Novatel

Novatel 600-G Manuel d'utilisation

Radio Shack

Radio Shack Amplified VHF/UHF/FM Indoor Antenna Manuel utilisateur

TRENDnet

TRENDnet TEW-AO12O Manuel utilisateur

Radio Shack

Radio Shack 15-1837 Manuel utilisateur

CommScope

CommScope CMAX-OMFX-43M-I53 Manuel utilisateur

Ramsey Electronics

Ramsey Electronics DAP25 Manuel utilisateur

COBHAM

COBHAM SAILOR 800 VSAT Manuel d'utilisation et d'entretien

Trango Systems

Trango Systems AD900-9 Manuel utilisateur

Steren

Steren ANT-100 Manuel utilisateur

Proxim

Proxim 5054-PA-23 Manuel utilisateur

IWCS

IWCS iriBelt II Guide de configuration
