FDS FD102CV-C-1 Manuel utilisateur

Document Number:

MAN –FD102CV-C-1

Rev:

Revision Date:

04/27/2017

Page 1 of 13

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Installation and Operation Manual

FD102CV-C-1

10.2” Widescreen LCD

Document Number:

MAN –FD102CV-C-1

Rev:

Revision Date:

04/27/2017

Page 2 of 13

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Table of Contents

General Information.................................................................................................................3

Front View..................................................................................................................................3

Additional Information ...........................................................................................................3

Specifications.............................................................................................................................4

Installation Instructions ..........................................................................................................4

Power...........................................................................................................................................5

Wiring Suggestions ..................................................................................................................5

S-Video/Composite...................................................................................................................5

VGA Wiring ...............................................................................................................................6

Power/Video...............................................................................................................................7

Operation Instructions.............................................................................................................8

Monitor Control Buttons .........................................................................................................8

Remote Control Buttons ..........................................................................................................9

Technical Drawing..................................................................................................................10

Technical Support...................................................................................................................11

Instructions for Continued Airworthiness ........................................................................11

Warranty ...................................................................................................................................12

Log of Revisions......................................................................................................................13

Document Number:

MAN –FD102CV-C-1

Rev:

Revision Date:

04/27/2017

Page 3 of 13

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

General Information

The FD102CV-C-1 is a special mission high resolution 10.2” widescreen LCD. The LCD

features NVG technology which can be switched to Day or Night mode using the rocker

switch. The FD102CV-C-1 will support composite video, s-video, VGA and DVI-D single

link.

Front View

Additional Information

The FD102CV-C-1 can be connected to existing video switchers and can take a

composite video input from a selector interface box. Multiple input sources can be

selected and displayed on the monitor.

The FD102CV-C-1 is made of all metal components. DO-160 testing has been

completed and is available upon request.

The LCD is protected with a .060” Lexan lens to prevent scratching of the LCD.

Document Number:

MAN –FD102CV-C-1

Rev:

Revision Date:

04/27/2017

Page 4 of 13

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Specifications

Display Type

10.2” Widescreen TFT Color LCD

Pixel Pitch

0.072 mm X 0.220 mm

Screen Resolution

1024x600

Supported Resolution

Up to 1600x1200

Brightness

300 cd/ m²

Contrast

500 : 1

Display Dimension

9.8”(W) x 6.32” (H) x 1.23” (D)

Display Size

8.70”(W) x 5.215” (H)

Weight

2 lbs. 7oz

Power

28VDC @ 0.5 Amp

Operating Temperature

-20°C/60°C

Storage Temperature

-30°C/70°C

PC & Video Input

VGA (Analog RGB 15 pin D-sub)

Composite Video, S-Video, DVI-D

Single Link

Video Type Supported

NTSC/PAL

Screen Control

On Screen Display Menu

Remote Control

IR, included

Materials

Aluminum

Aspect Ratio

16:9

Installation Instructions

All cabin entertainment equipment, such as the FD102CV-C-1, should be installed on a

non-essential bus and have a dedicated circuit breaker. It is a requirement that a switch

be installed in the cockpit so that the pilot can de-energize the entertainment system

should it become necessary.

It is recommended that you leave approximately ¼ inch of space above and below the

display to have circulating air.

Document Number:

MAN –FD102CV-C-1

Rev:

Revision Date:

04/27/2017

Page 5 of 13

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Power

This is a 28V DC monitor that requires .5 Amps of power to operate. The unit turns on

automatically upon power application.

Wiring Suggestions

All shields should be grounded to the connector at the source, and floating at the display.

Avoid routing video wiring parallel to:

AC wiring

Strobe wiring

DC motor supply cables

Inverter cabling

Or any other potential noise source.

S-Video/Composite and Audio Wiring

Recommended cable for s-video/composite and audio purposes is PIC 75 Ohm Coax,

P/N V76261. This is a lightweight, flexible, and low signal loss cable which meets FAA

flammability requirements of FAR 23.1359(d), FAR 25.853(a) and FAR 25.869(a)(4).

Similar aviation coaxial cable can be used from other vendors, as well.

Some aircraft are prone to AC noise –we recommend adding to the composite source a

75Ohm video isolation transformer such as Deerfield Laboratory, Inc. Part No. 162-1

(www.deerfieldlab.com, (650) 632-4090). In most cases this should be added to the video

output of the source.

Document Number:

MAN –FD102CV-C-1

Rev:

Revision Date:

04/27/2017

Page 6 of 13

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

VGA Wiring

Recommended cable for VGA purpose is ECS P/N 453005. This is a single shielded

cable containing 5 separate coaxial cables, color-coded to match the functions of the

wires.

Coax cables should be terminated using solder sleeve coaxial cable terminators,

Raychem P/N: CWT-4174-W122-5/9

Document Number:

MAN –FD102CV-C-1

Rev:

Revision Date:

04/27/2017

Page 7 of 13

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

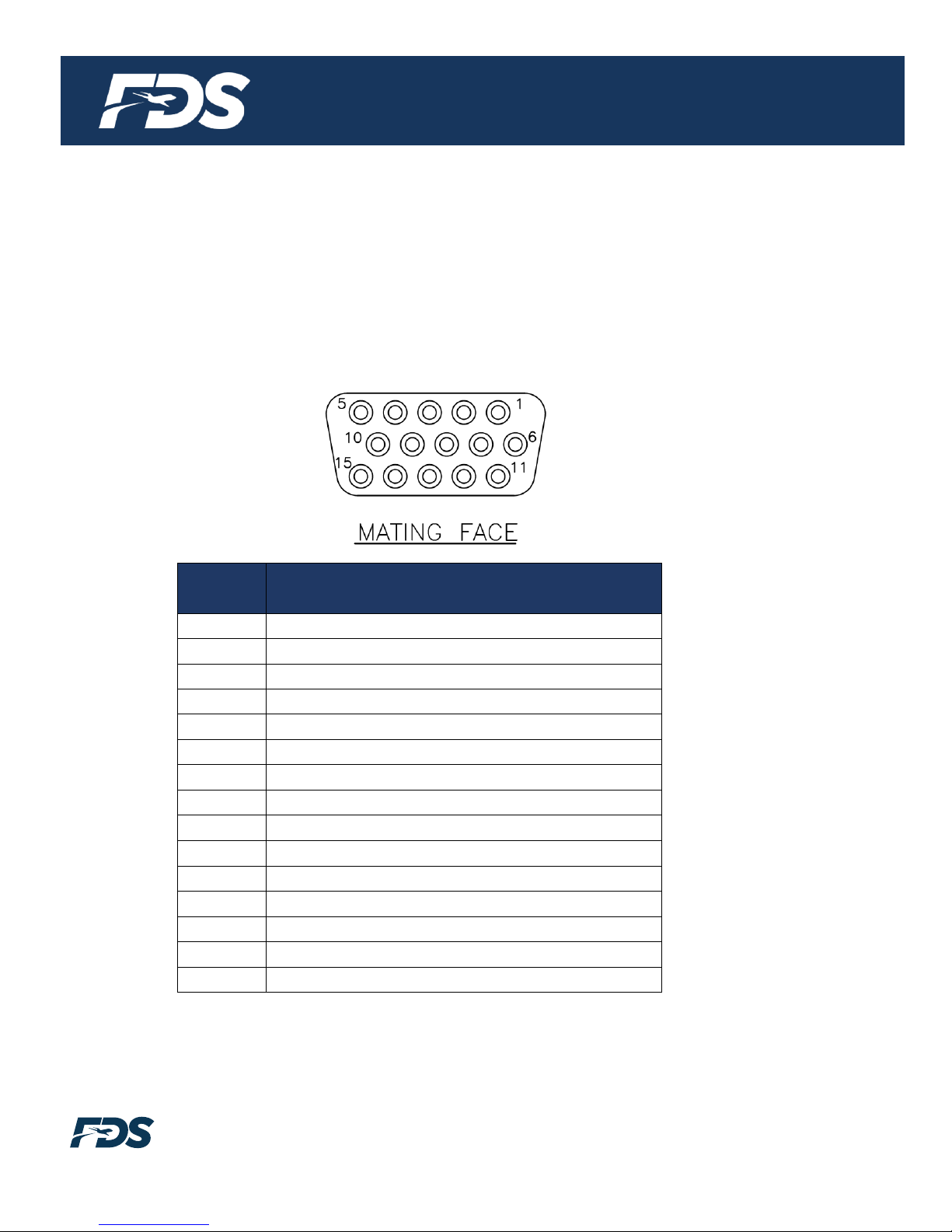

Power/Video

Pin out for High Density HD-15 Receptacle (supplied)

Connector P/N: M24308/2-286 or Equivalent

Crimp Contacts P/N: M39029/57-354 or Equivalent

Number

Description

28VDC Power

28VDC Ground

Composite Video 1 –Signal

Composite Video 1 –Shield

S-Video Y - Signal

S-Video Y - Shield

S-Video C - Signal

S-Video C - Shield

Red Video (Pin 1 on Standard VGA)

Green Video (Pin 2 on Standard VGA)

Blue Video (Pin 3 on Standard VGA)

Red Ground (Pin 6 on Standard VGA)

Green Ground (Pin 7 on Standard VGA)

Horizontal Sync (Pin 13 on Standard VGA)

Vertical Sync (Pin 14 on Standard VGA)

Document Number:

MAN –FD102CV-C-1

Rev:

Revision Date:

04/27/2017

Page 8 of 13

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Operation Instructions

The FD102CV-C-1 is continuously on but can be de-energized by removing power from

the entertainment system.

Monitor Control Buttons

Button

Function

Description

Document Number:

MAN –FD102CV-C-1

Rev:

Revision Date:

04/27/2017

Page 9 of 13

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Remote Control Buttons

The remote control included with the FD102CV-C-1 contains the same functionality

available on the display buttons, to include power, source, menu, and directional arrows.

Document Number:

MAN –FD102CV-C-1

Rev:

Revision Date:

04/27/2017

Page 10 of 13

TECHNICAL SUPPORT

470-239-7421 or FDSAvionics.com

Technical Drawing
