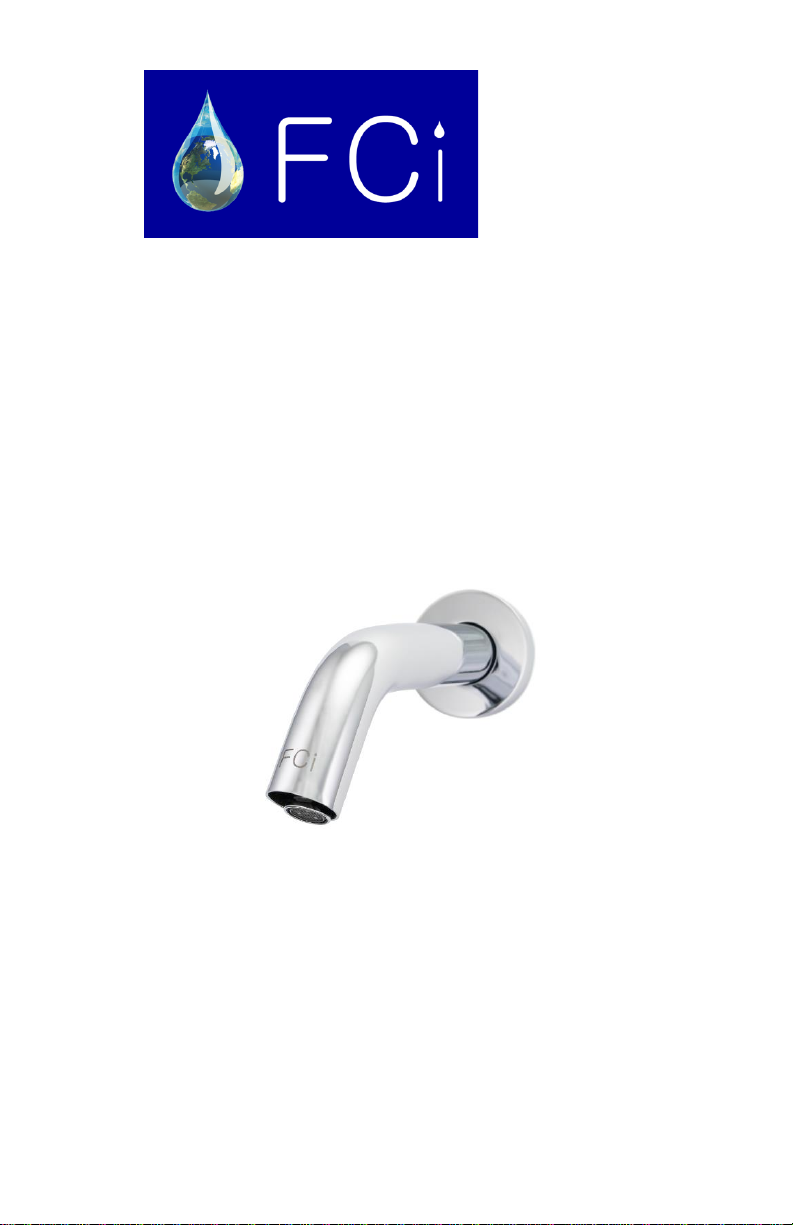

WallMount Curve Automatic
Faucet
ASF-0010
Installation Manual
Quality Guarantee
*Thank you for choosing the automatic wall mount faucet. Please read the
instruction carefully before installation. This manual is for your reference
only.
P a g e | 2
Features
•Hands free sensor operation.
•Strategic location of sensor at tip of spout
for instant response time.
•Easy installation and low-cost
maintenance
Specifications
Power
6V (4 x Alkaline AA) or 120 V
50 Hz AC
Sensing Range
12 –15 cm
Water Pressure
0.05 –0.8 MPa
Water
Temperature
0.1 –60 oC
Response Time
0.5 Secs
Plumbing
Fittings
G ½”, G3/8”, 9/16-24
P a g e | 3
Before Installation
•Observe all local and plumbing codes.
•Check the cold and/or hot water supply
pressure.
oThe recommended working
pressure range is 20 psi - 70 psi
(138 kPa - 551 kPa).If the supply
pressure is higher than 80 psi (551
kPa), reduce to within
recommended range by using a
pressure reducing valve (sold
separatery).
•Check the temperature of the water
supply.
oThe recommended supply
temperature range is 39°F - 104°F
(4°C - 40°C) Never use steam as a
hot water supply.
•Flush all water lines prior to installation.
Other precautions before you begin:
•Pay special attention so that the sensor
surface is not flawed or scratched during
the installation process.
•Make sure that all pipework, stop valves,
and connection lines are installed
according to local codes.
P a g e | 4
•Do not place other devices that use an
inverter or infrared sensor near the faucet,
as this may cause the faucet to
malfunction.
•Optional: For hot / cold water installation,
mixing valve MV-0001 and two ½’ F to 3/8
F FH-0001FF flex hoses are required.
Tools You will Need
•Adjustable wrench
•Power drill
•Phillips screwdriver
•Flat head
P a g e | 5

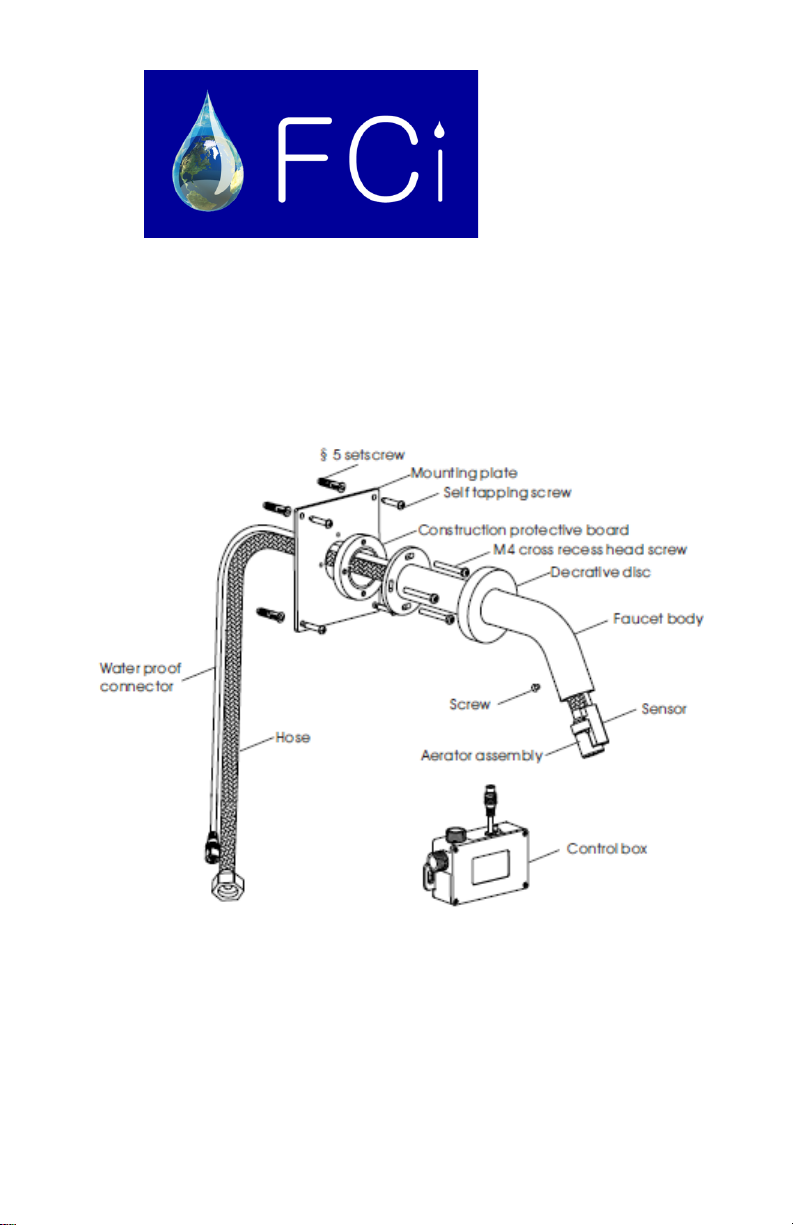

Parts List
P a g e | 6
Construction /
Installation Diagram

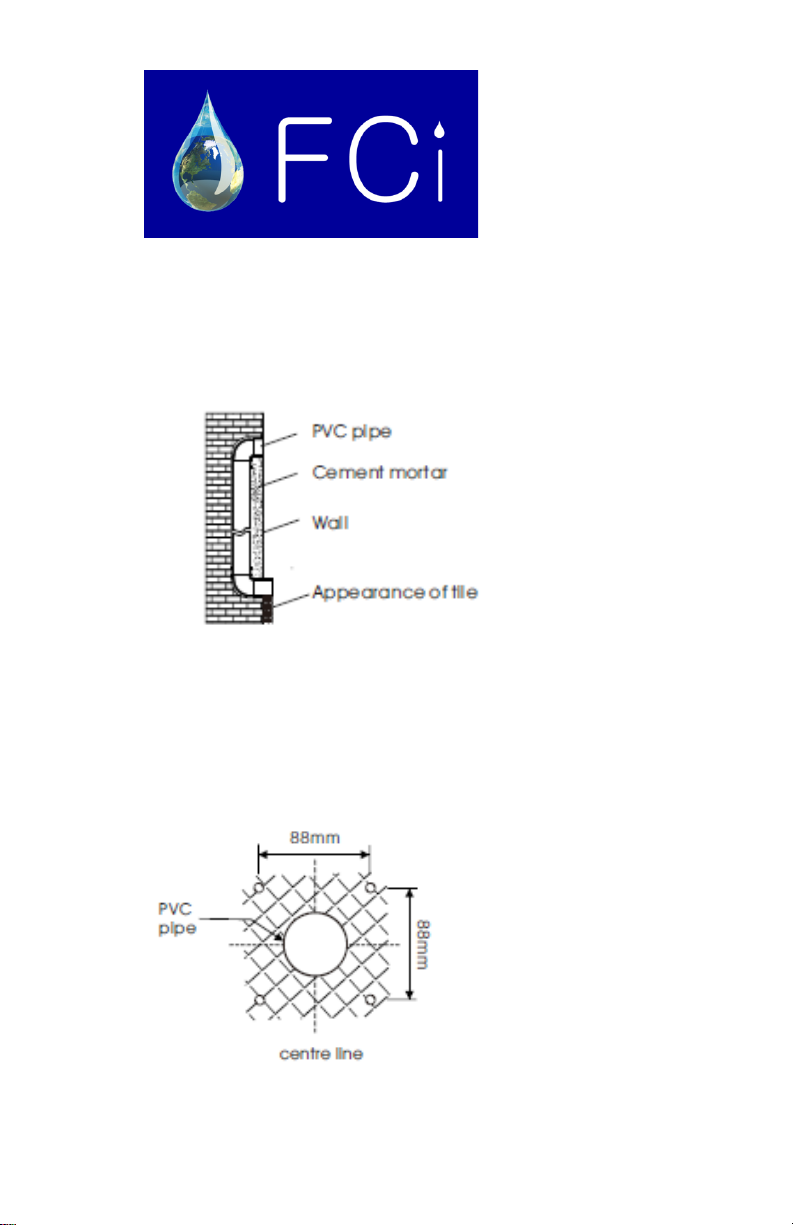

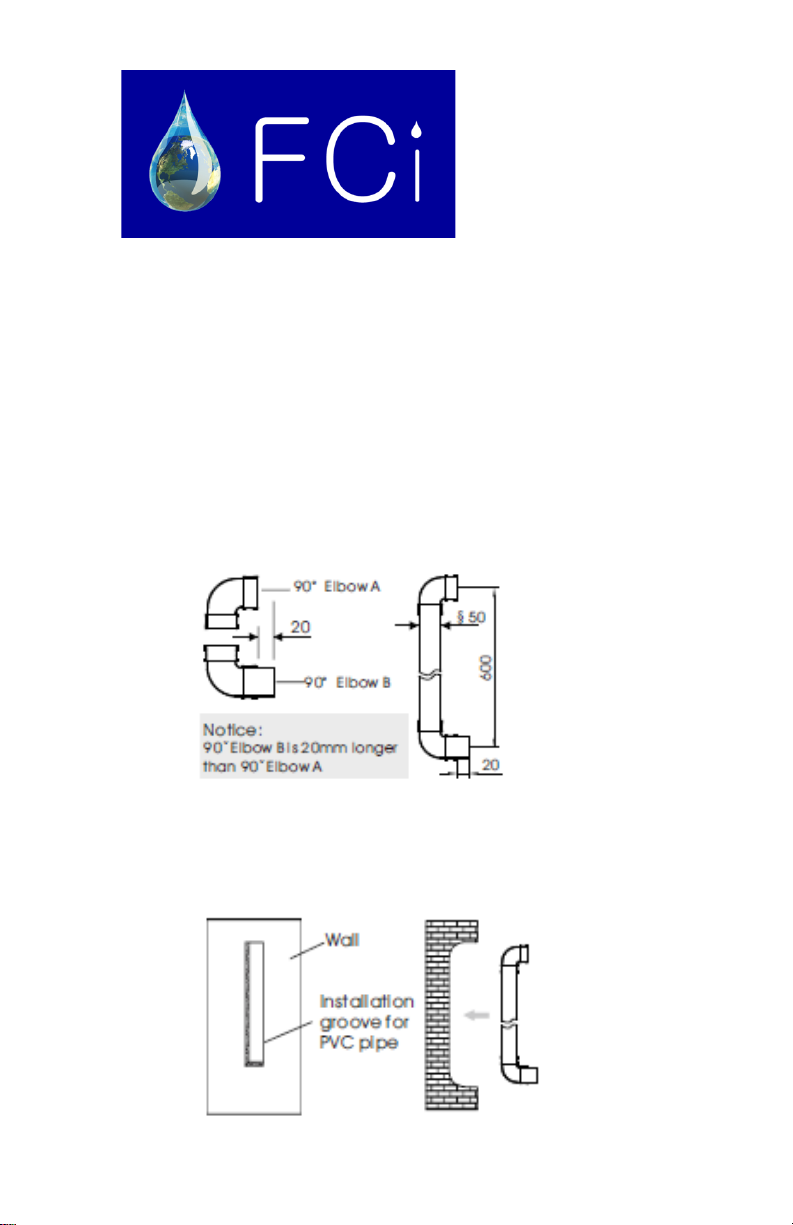

1. Cut 600 mm straight PVC and connect
both ends of the straight pipe with two
90 degrees elbow pipe per the
dimensions on the right.
2. Cut away a section of the wall and
place the PVC assembly above onto
the wall.
P a g e | 7
3. Cover the PVC with drywall or mortar
or tile

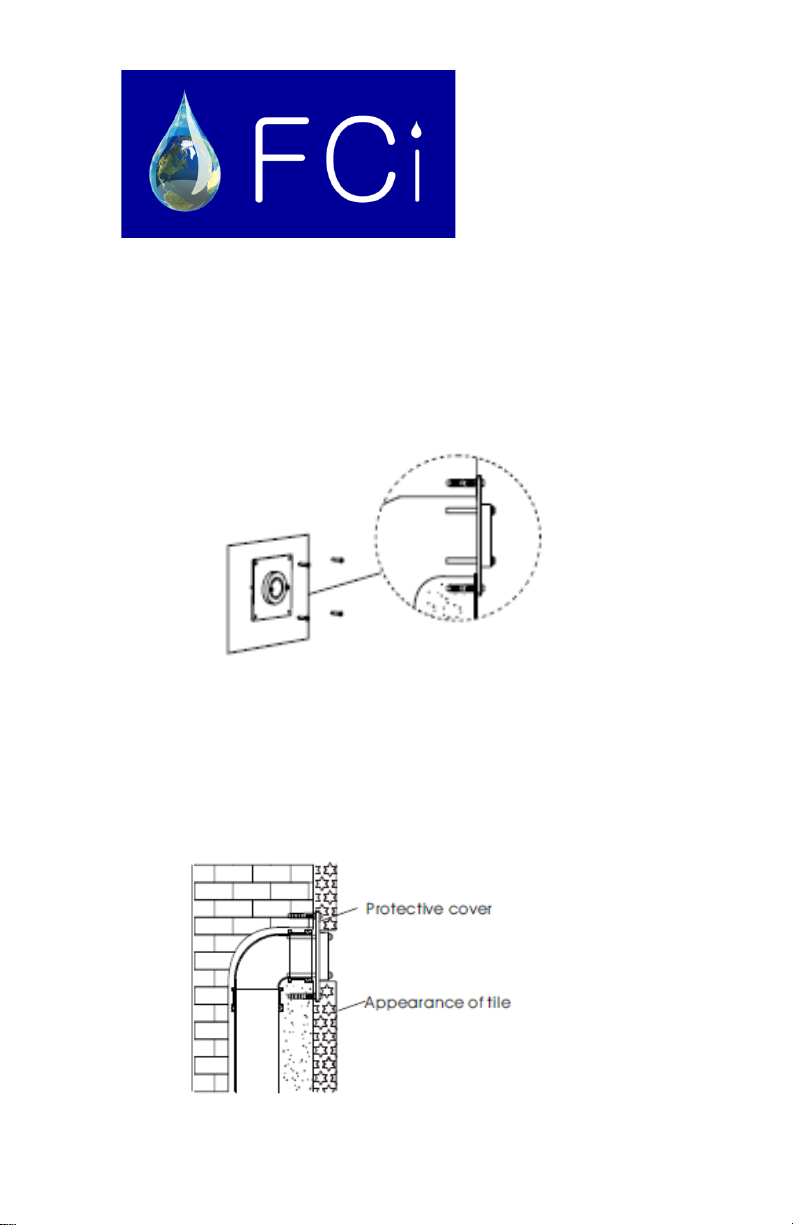

4. Assemble the mounting plate and the
protrective cover with two M4 cross
recess head screws
P a g e | 8
5. Drill 4 6 mm holes inot the wall. Using
4 6 mm set screws fasten the mounitn
plate onto the wall.
6. Cut out a 54 mm diameter hole and
cover
P a g e | 9

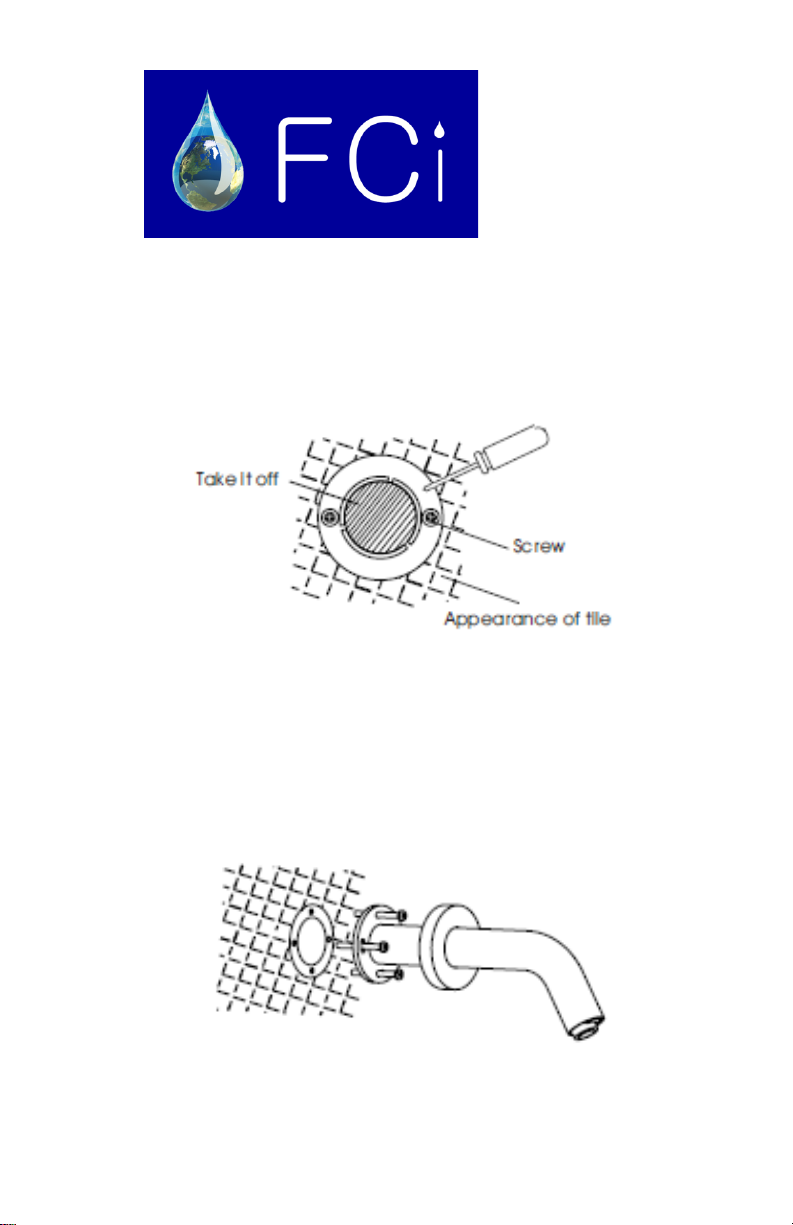

7. Using a flat head screwdriver remove
the protective cover. Remove the two
screws from the cover
8. Install the rubber seal & the flex hose
onto the faucet. Fasten the faucet onto
the wall and slide the decorative cover
towards the wall.
P a g e | 10
9. Connect the inlet end and faucet
fittings of the flex hose to the control
box.

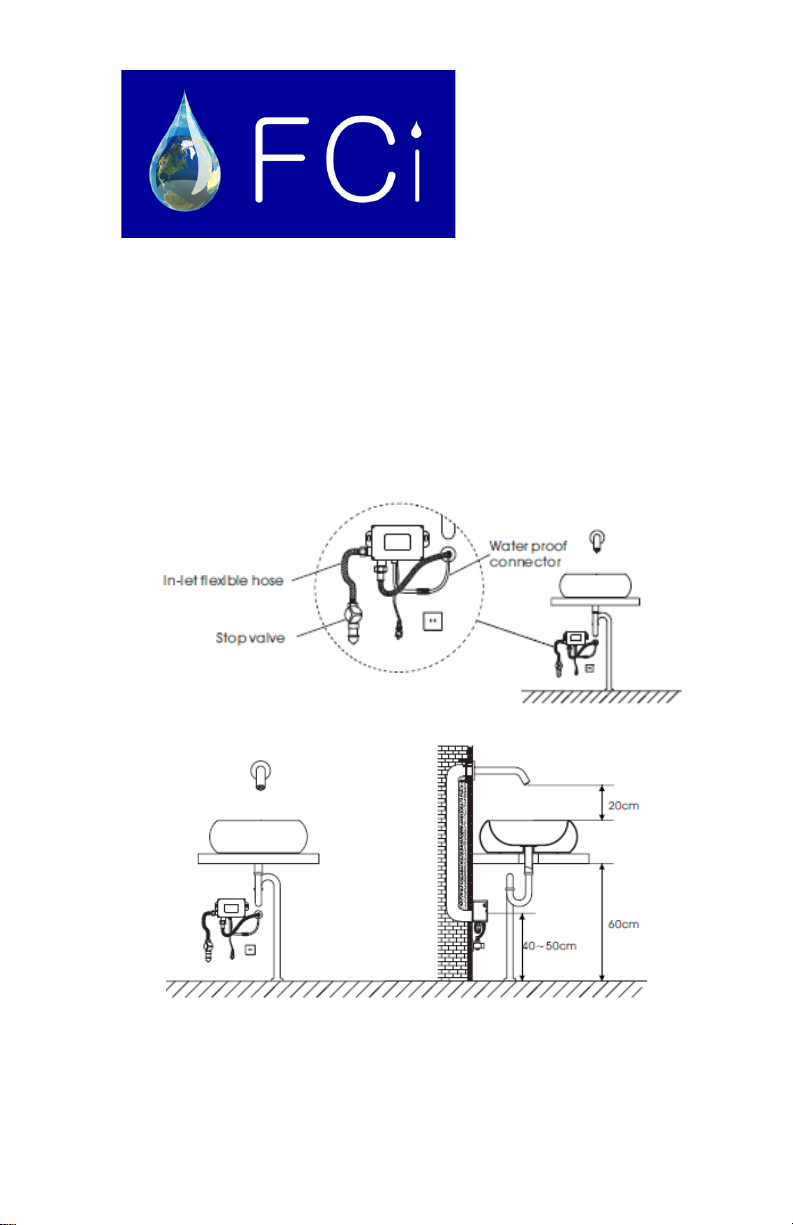

Dimensions for reference
