FCC Sidekick Smoker Mode d’emploi

FOROUTDOORUSEONLY

READTHEOPERATINGINSTRUCTIONS

BEFOREUSINGTHEAPPLIANCE!

USER MANUAL AND MAINTENANCE

Sidekick SMOKER

Sare  u  cookin!

FCC-G-19999

SIDEkick SMOKER

Parts List and Hardware ................................................................................4

Exploded Drawing..............................................................................................5

Assembly Instructions.......................................................................................6

Prepare Smoker for use ....................................................................................1 1

Maintenance ........................................................................................................12

Tips when Cooking ...........................................................................................13

Consumer Contact .........................................................................................14

Table of content

WARNING

FOR YOUR SAFETY:

• IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION,

SERVICE OR MAINTENANCE CAN CAUSE INJURY OR

PROPERTY DAMAGE.

• READ THE INSTALLATION, OPERATION, AND

MAINTENANCE INSTRUCTIONS THOROUGHLY BEFORE

INSTALLING, USING OR SERVICING THIS APPLIANCE.

• FAILURE TO FOLLOW THESE INSTRUCTIONS COULD

RESULT IN FIRE OR EXPLOSION, WHICH COULD CAUSE

PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.

• FOR OUTDOOR USE ONLY (DO NOT USE UNDER ANY

OVERHEAD ENCLOSURE).

Read carefully

SIDEkick SMOKER

DELELISTE

Read carefully

1. Always follow the information in this manual. Failure to follow the operation and safety

instructions may result in a ﬁre or explosion that could cause property damage, personal injury

or death.

2. The Sidekick Smoker is designed ONLY for use on a gas BBQ side burner.

3. The Sidekick Smoker is not intended to be used with any other heat source.

4. Do not use indoors.

5. Ensure you gas BBQ has a CSA approved side burner and that your gas BBQ can support the

weight of the Sidekcik Smoker and it’s contents. The Sidekick Smoker weights 8,6 kg and is

designed to hold up to 2,7 kg of food. Total maximum weight is 11,3 kg).

6. The Sidekick Smoker is designed with magnetic legs. However, it is recommended that the lock

down bolt be used to ensure the Sidekick Smoker is securely fastened to the side burner of

your gas BBQ.

7. Do not store items of interest to children near the Sidekick Smoker as it is very hot during

operation and afterwards until the Sidekick Smoker suﬃciently cooled.

8. Never use the Sidekick Smoker for storage purposes.

9. Allow the Sidekick Smoker and all components to cool completely before handling.

10. Always wear dry oven mitts or protective gloves when using the Sidekick Smoker, as moist cloth

can cause burns from heat or steam.

11. Use care when opening the door, let hot air, steam and smoke escape before removing or

replacing food.

12. Use caution when reaching into or around the Sidekick Smoker as it will become very hot during

normal operation.

13. Never leave the ashes from the wood chips unattended. Make sure ashes are completely

extinguished before moving or handling the Sidekick Smoker.

14. To extinguish ashes, place ashes in a steel bucket full of water. Deposit ashes into a steel bucket

and continue to ﬁll with water until bucket is full. Let ashes soak for 3 hours to ensure that all

ashes are extinguished.

15. Always store the Sidekick Smoker in a safe area away from pets or children.

16. Carefully attend Sidekick Smoker and ensure combustible materials are never placed inside,

paper, plastic, rubber etc.

17. Never paint the inside of the Sidekick Smoker. Should a rust spot appear, simply buﬀ lightly and

wipe with warm soapy water.

18. Always place racks in the desired location before turning Sidekick Smoker on.

19. Do not wear loose-ﬁtting or hanging garments as they could catch ﬁre.

20. If items in the Sidekick Smoker should ignite, keep the door closed, turn gas valve oﬀ and

disconnect the gas from the barbecue.

21. Clean out all grease after use.

22. Do not spray the inside of the Sidekick Smoker with any kind of appliance cleaner

23. Do not use corrosive chemicals or vapours in the Sidekick Smoker.

24. Never use the Sidekick Smoker for other things than it’s intended use.

25. The Sidekick Smoker is not intended for commercial applications.

26. Never leave the Sidekick Smoker unattended and always keep children or pets away from the

smoker.

27. Do not use while it is raining, hailing or snowing.

28. Use caution when operating the Sidekick Smoker in windy conditions. Wind can extinguish the

ﬂames from the side burner and cause a dangerous and unsafe operating condition.

29. Should the ﬂame from your side burner become extinguished for any reason, always turn the gas

supply to the OFF position, open the Sidekick Smoker door and allow to cool and ventilate for 5

minutes prior to relighting your side burner.

PART DESCRIPTION QTY

1Body Main 1

2Door 1

3Guide 8

4Vent 3

5Grids 2

6Water Tray 1

7Wood Chip Tray lid 1

8Wood Chip Tray 1

9Lifter 1

10 Heat Shield 1

11 Magnetic Legs 4

12 Securing Bolt 1

13 Heat Indicator 1

14 Logo 1

15 Door Handle 1

16 Door Latch 1

DELEOVERSIKT

Parts list and hardware

PART DRAWING DESCRIPTION QTY PART DRAWING DESCRIPTION QTY

Small phillips

head bolt

M4x10

27 F Small hex nut 27

BSmall washer

M4 4 G Medium hex

nut 1

CMedium washer

M4 1 H Large hex nut 10

DLarge washer

M4 10 I Door spring 1

E Logo clips 2

SIDEkick SMOKER

MONTERING

Phillips Screwdriver and a Small Adjustable Wrench

TOOLS REQUIRED FOR ASSEMBLY (not provided)

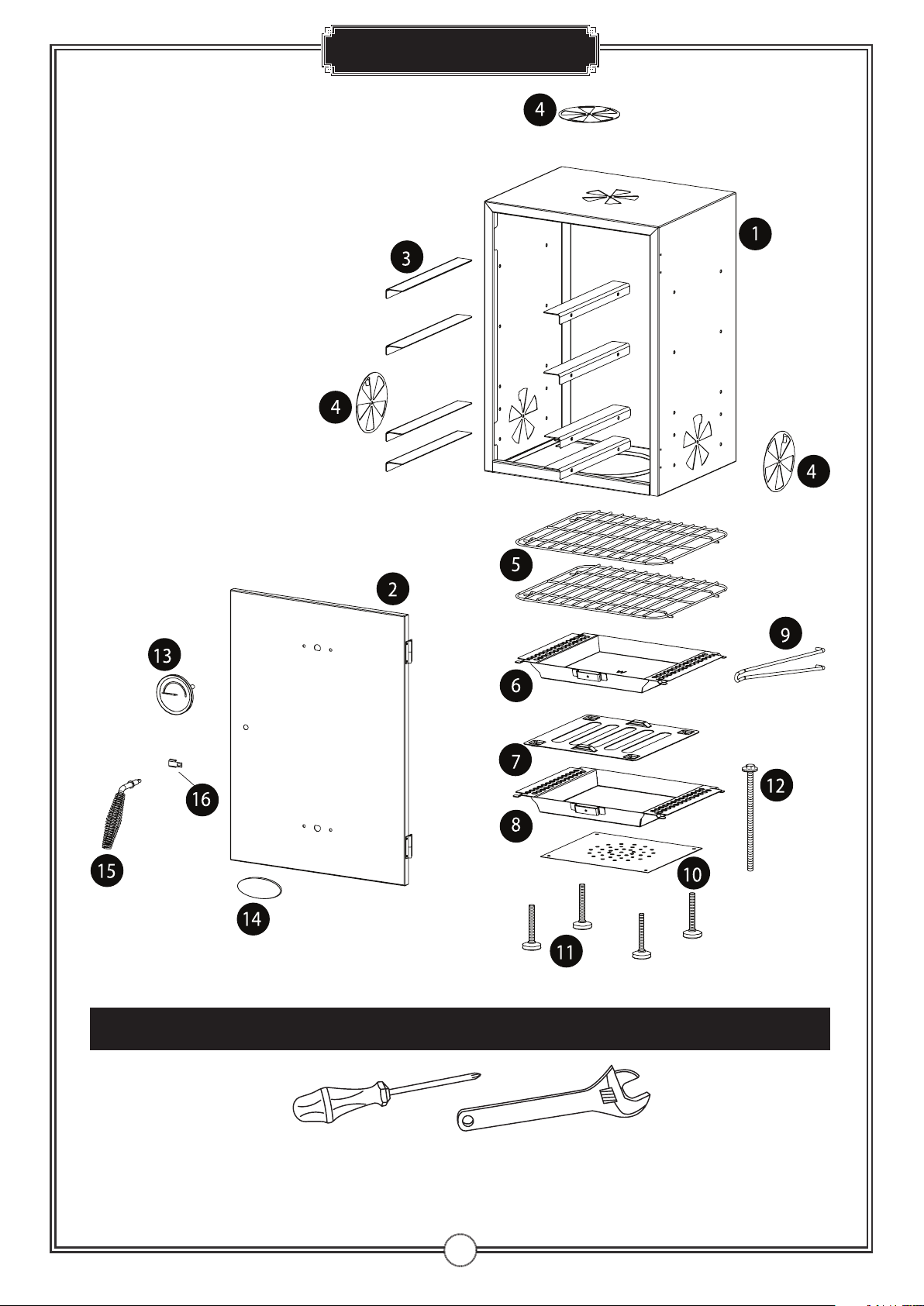

Exploded Drawing

MONTERING

Assembly

Determine Left or

Right Opening DoorThe

Sidekick Smoker ships with a right-

hand door opening.

If you prefer a left-hand opening

door, unfasten the 2 bolts in each

of the hinges fastened to the

Sidekick Smoker main body (Part

1). The door is designed to ﬁt

either right-handed or left-handed.

Rotate the door and reattach the

hinges to the right side of the main

body (1) (See Fig 1).

Mounting Heat Indicator

and Logo

1. Mount Heat Indicator (13) in the top set

of holes in the door. (See Fig 2). Tighten

with the nut supplied with the Heat

Indicator.

2. Mount Sidekick Smoker Logo (14) in the

bottom set of holes in the door. Tighten

with the logo clips (E) (See Fig 2).

Mounting the Door Handle

Take the Door Handle (15) and insert into door (2) (See Fig 3 or 4). Slide the door spring (I) onto the door handle

so it rests against the door bracket. Position the Door latch (16) over the door handle until it snaps into place as

shown in Fig 3. Add a medium washer (C) before tightening with the Hex Nut (G). Ensure that the Door latch is

in the position to lock the door when the Door Handle is at the “resting position” (see Fig 3 or 4).

SIDEkick SMOKER

MONTERING

Assembly

Heat Shield

Find the Heat Shield (10) and mount to the bottom of the

Sidekick Smoker with small bolt (A), small washer (B) and small

hex nut (F) (see Fig. 5). Do not over tighten the Heat Shield as

you may damage the porcelain ﬁnish (See Fig 3 or 4).

Vents

Using a small bolt (Part A), small washer (Part B) and small

hex nut (F) fasten the Vents (4) to the left, right and top of

the main body (See Fig 6).

Adjustable Feet

1. Take a magnetic leg (11) and screw a large nut (H) and

slide a large washer (D) 2” (50 mm) onto the magnetic

leg. Insert the magnetic leg (11) into the “L” shaped slot

in the bottom of the Sidekick Smoker (See Fig 7).

2. Add a large washer (D) onto the magnetic leg on the

inside of the Sidekick Smoker (See Fig 7). Hand tighten

a large nut (H) to secure to main body.

3. Repeat in the other 3 feet positions and adjust the

feet to the same height – approx. 2” (50 mm).

4. It is likely that the Adjustable Feet will have to be

lowered or heightened and moved along the “L” slot

for the Sidekick Smoker to ﬁt properly on your side

burner.

MONTERING

Assembly

Choosing Securing

Bolt Position

1. Set the Sidekick Smoker on your side burner.

Position the magnetic legs (11) on the side burner so

that the Sidekick Smoker is level. You may need a

small level for accuracy (See Fig 8). If the Sidekick

Smoker position is not level, move the magnetic legs

along the “L” slot and/or adjust the height of the legs

until the Sidekick Smoker sits level.

2. The Securing Bolt is used to secure your

Sidekick Smoker to the side shelf of your gas BBQ.

It replaces one of the magnetic legs. Some side

shelves have access in the shelf that allows the bolt

to mount through the side shelf and allow it to be

secured. If there is no access, choose a location

(preferibly to the rear of the BBQ).

Remove the Sidekick Smoker and drill

a 8 mm (5/16”) diameter hole.

Securing the Sidekick Smoker

with Securing Bolts

1. Screw a large nut (H) and slide a large

washer (D) on the securing bolt (12)

(See Fig 10 a).

2. Insert the securing bolt (12) through the

hole in the side burner shelf. Add a large nut

(H) and slide a large washer (D). Hand tighten

(see Fig. 10 b.).

3. Move the Sidekick Smoker into position

on the Sidekick by inserting the securing bolt

through the appropriate “L” shape channel.

Slide a large washer (D) and a large nut (H)

and hand tighten (see Fig. 11.). Adjust the Hex

Nuts on both ends of the securing bolt until

the Sidekick Smoker is level and secure.

NOTE:

DO NOT DRILL

THE HOLE NEAR

MOUNTING

BRACKETS, GAS

VALVES OR GAS

HOSES.

SIDEkick SMOKER

MONTERING

Assembly

Smoker Box and Lid

1. Slide wood chip tray (8) onto the lowest guides (3). (See Fig

12). The wood chip tray lid (Part 7) is set on top of the wood chip

tray using the positioning indents to secure in place.

2. The wood chip tray and lid can be removed with the lifter (9).

Water Pan

1. Slide water tray (6) onto the 2nd Guides (3).

(See Fig 13)

2. The water tray can be removed with the lifter (9).

NOTE:

ALLOW THE SIDEKICK SMOKER

SMOKER AND ALL COMPONENTS

TO COOL COMPLETELY BEFORE

HANDLING

NOTE:

USE CAUTION WHEN REACHING INTO

OR AROUND THE SMOKER AS IT WILL

BECOME VERY HOT DURING NORMAL

OPERATION. NEVER LEAVE THE ASHES

FROM THE WOOD CHIPS UNATTENDED.

MAKE SURE ASHES ARE COMPLETELY

EXTINGUISHED BEFORE MOVING OR

HANDLING THE SMOKER.

Cooking Grids

1. Slide Cooking Grids (5) onto the 2 upper Guides

(3). (See Fig 14).
