Fatar TP/9S Manuel utilisateur

TP/9S

SYNTHESIZER ACTION KEYBOARD

TABLE OF CONTENTS

REVISIONHISTORY...................................................... 2

DEVICESELECTIONTABLE ................................................. 2

FEATURES ........................................................... 2

DESCRIPTION ......................................................... 2

BLOCKDIAGRAM ....................................................... 2

MECHANICALCHARACTERISTICS ............................................. 3

TABLE1-1 PRESSFORCEOFKEY........................................... 5

TABLE1-2 CONTACTTRAVEL............................................. 5

TABLE1-3 ENTIRETRAVEL .............................................. 6

TABLE1-4 EXTRATRAVEL............................................... 6

ELECTRICALCHARACTERISTICS.............................................. 7

TABLE2-1 CONTACTRESISTANCE.......................................... 7

TABLE 2-2 INSULATION RESISTANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

TABLE 2-3 RATED VOLTAGE/CURRENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

TABLE2-4 AFTERTOUCH ............................................... 8

ELECTRICALSCHEMATICS ................................................. 9

CONNECTORS......................................................... 14

COSMETICINSPECTION................................................... 15

TESTCONDITIONS.................................................... 15

APPEARANCECRITERIA ................................................. 16

QC–INCOMINGINSPECTION................................................ 16

SAMPLINGPLAN ..................................................... 16

INCOMINGINSPECTIONTEST ............................................. 16

QC–ASSEMBLYLINEINSPECTION ............................................ 16

ASSEMBLYLINEQC ................................................... 16

CERTIFICATIONS ....................................................... 17

TP/9S 6509xxxx

REVISION HISTORY

REV DATE MAJOR CHANGE

0.1 05/05/2009 First Draft

0.2 14/09/2010 Standard specifications

0.3 10/02/2014 New specs with Spring n.109

0.4 09/03/2018 Removed right AFT ledge

0.5 04/02/2019 Mechanical specs revision

0.6 24/11/2020 Drilling pattern 44

DEVICE SELECTION TABLE

Part DESCRIPTION

6509xxxx TP/9S

C(DF) Contact Board with Forward Diodes

P Semi-weighted

AFT n.1 Mono-Aftertouch strip

FEATURES

•25-37-44-49-61-76 Synth action keyboard

•Universal keyboards appliance

•Keyboard endurance: 1 million times at fortissimo

level

•Temperature range:

–Operation: -5°to +45 °C

–Storage: -25°to +65 °C

DESCRIPTION

The TP/9S keyboard produces a quick and light feel and

works well for certain types of music and for playing a

wide range of sounds.

Due to its features, TP/9S is a universal keyboard for

any kind of instrument: Synthesizers, Organs, Arrangers,

Workstations and Controllers.

The keyboard is available in various configurations: 25,

37, 44, 49, 61 and 76 weighted or unweighted keys, dy-

namic rubber contacts and Monophonic aftertouch.

BLOCK DIAGRAM

Below is the block diagram of TP/9S keyboard where all

its parts are showed.

789

Figure 1: TP/9S Block Diagram

With reference to the Figure 1 above, below are terms

and definitions:

1. White key

2. White key weight

3. Black key

4. Black key weight

5. White key rubber travel guide

6. Black key rubber travel guide

7. Aftertouch locker

8. Aftertouch sensor + felt-foam pack

9. PCB

10. Rubber contact strip

11. Frame (plastic + metal core)

12. Spring

TP/9S 6509xxxx

MECHANICAL CHARACTERISTICS

The TP/9S keyboard produces a quick and light feel and

is very comfortable for a wide range of music styles. The

keyboard is made of plastic keys and uses springs to let

the key return to its initial position. The frame is made by

a special over-molding process to get a solid body with

the flexibility of the polymer materials and the stability

of the metal core. The TP/9S keyboard with his features

comes in a compact size and it is adaptable to different

uses in various types of cabinets.

Figure 2: TP/9S Side View

(a) 25 keys (b) 37 keys

(e) 61 keys

(f) 76 keys

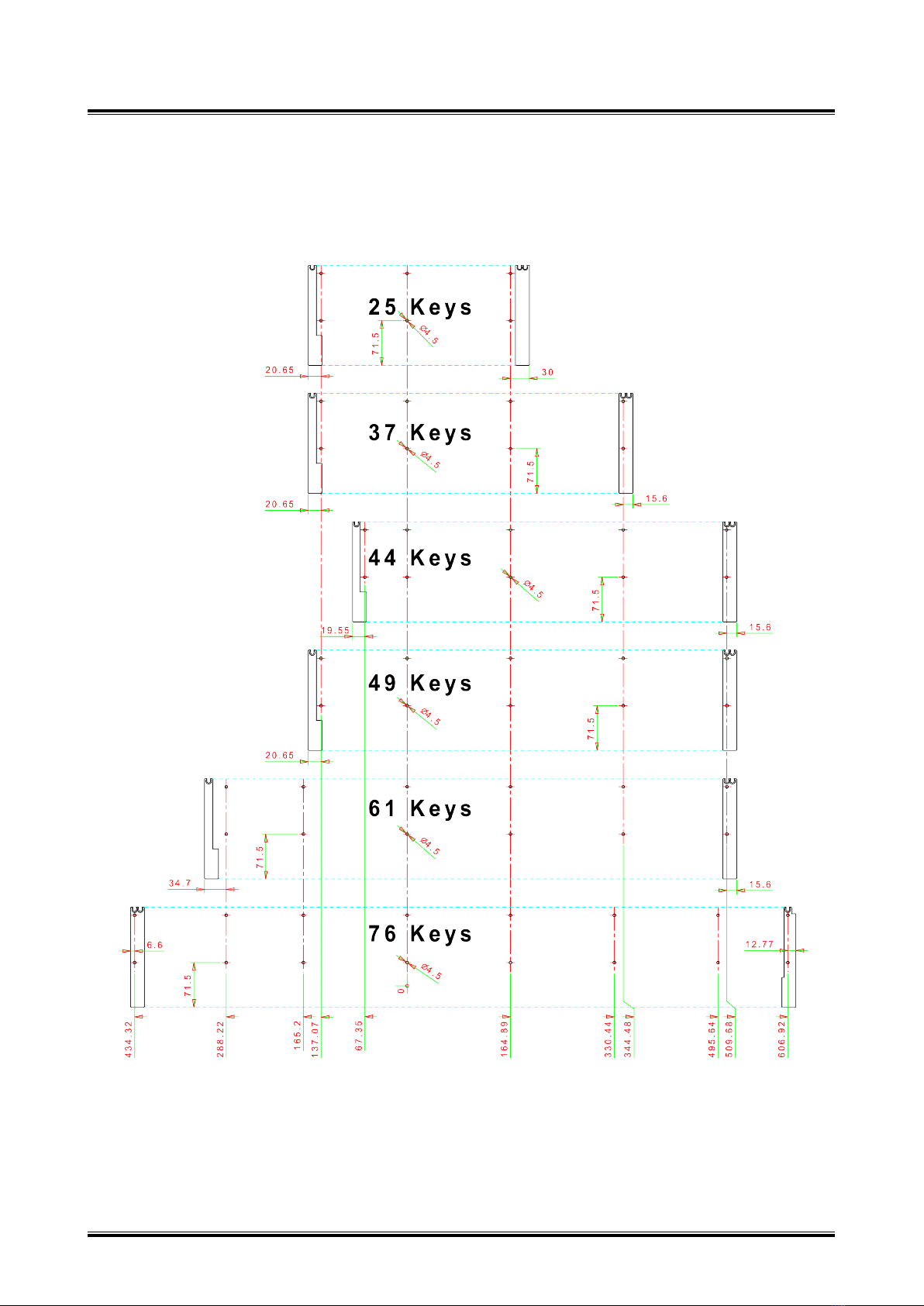

Figure 3: TP/9S top view

TP/9S 6509xxxx

Figure 4: TP/9SDrilling pattern

TP/9S 6509xxxx

TABLE 1-1 PRESS FORCE OF KEY

ITEM CONDITION STANDARD

Measured force on white key

after 1mm of travel at 5mm

depth from the front.

1 (mm)

5(mm)

F= 50 +/- 7 gr

Measured force on black key

after 1mm of travel at 10mm

depth from the front.

1 (mm)

10 (mm)

F = 65 +/- 7 gr

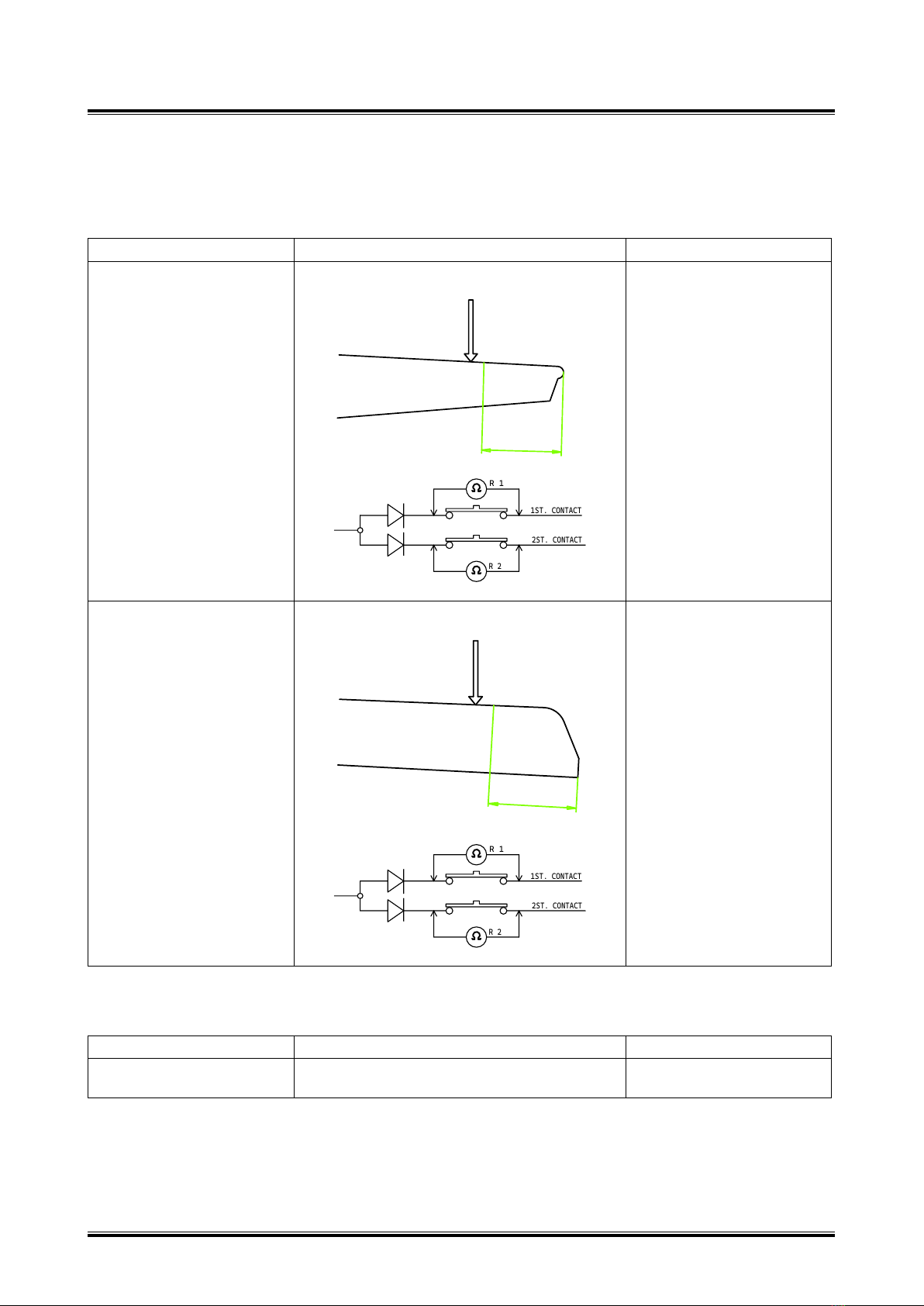

TABLE 1-2 CONTACT TRAVEL

ITEM CONDITION STANDARD

WHITE KEY

A: Travel at first contact

B: Travel at second contact

B-A: Gap between 1st and

2nd contact

FIRST CONTACT

SECOND CONTACT

5(mm)

A= 3.5 +/-0.8 mm

Weight at A = 70 +/- 7 gr

B = 6.5 +/- 0.8 mm

Weight at B = 85 +/- 7 gr

B – A = 3.0 +/- 0.5 mm

BLACK KEY

A: Travel at first contact

B: Travel at second contact

B-A: Gap between 1st and

2nd contact

FIRST CONTACT

SECOND CONTACT

10 (mm)

A= 1.8 +/-0.8 mm

Weight at A = 80 +/- 7 gr

B = 3.8 +/- 0.8 mm

Weight at B = 105 +/- 7 gr

B – A = 2.0 +/- 0.5 mm

TP/9S 6509xxxx

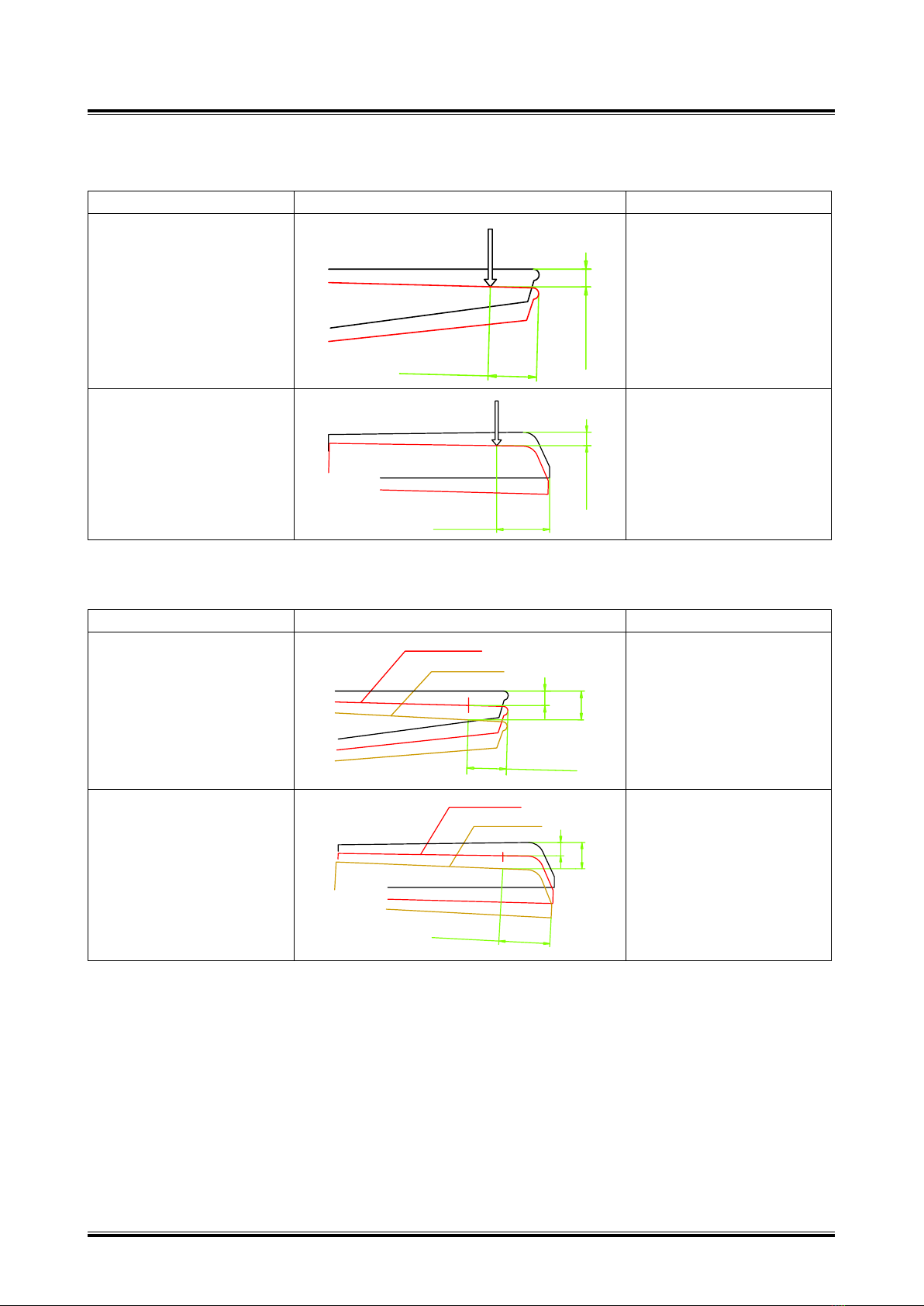

TABLE 1-3 ENTIRE TRAVEL

ITEM CONDITION STANDARD

WHITE KEY

F: Applied force on white key

to go at maximum travel

A: Measured travel of white

key

F220 (gf)

5(mm)

A = 10.0 +/- 1.0 mm

BLACK KEY

F: Applied force on black key

to go at maximum travel

A: Measured travel of black

key

F220 (gf)

10 (mm)

A = 5.7 +/- 1.0 mm

TABLE 1-4 EXTRA TRAVEL

ITEM CONDITION STANDARD

WHITE KEY

F: Applied force on white key

to go at maximum travel

A: Measured travel of white

key

F2400 (gf)

5(mm)

A = 15.0 +/- 1.0 mm

BLACK KEY

F: Applied force on black key

to go at maximum travel

A: Measured travel of black

key

F2400 (gf)

10 (mm)

A = 7.0 +/- 1.0 mm

TP/9S 6509xxxx

ELECTRICAL CHARACTERISTICS

TABLE 2-1 CONTACT RESISTANCE

ITEM CONDITION STANDARD

WHITE KEY

F: Applied force on white key

to go at maximum travel

R1: Measured resistance of

the first contact

R2: Measured resistance of

the second contact

220 (gf)

10(mm)

R 1

R 2

1ST. CONTACT

2ST. CONTACT

R1: less than 100 ohm

R2: less than 100 ohm

BLACK KEY

F: Applied force on black key

to go at maximum travel

R1: Measured resistance of

the first contact

R2: Measured resistance of

the second contact

F220 (gf)

10(mm)

R 1

R 2

1ST. CONTACT

2ST. CONTACT

R1: less than 100 ohm

R2: less than 100 ohm

TABLE 2-2 INSULATION RESISTANCE

ITEM CONDITION STANDARD

Resistance of the open con-

tacts At 500 VDC More than 100Mohm

TP/9S 6509xxxx

TABLE 2-3 RATED VOLTAGE/CURRENT

ITEM CONDITION STANDARD

Rated voltage/current 5V

10mA per line

TABLE 2-4 AFTERTOUCH

ITEM CONDITION STANDARD

WHITE KEY

Resistence of the AFT

sensor, measured after 10

sec. while keeping pressing

the key with a force F.

5(mm)

F= 800gr

Rsensor= 600 +/-50%

F= 1600gr

Rsensor= 200 +/-50%

F= 2400gr

Rsensor= 180 +/-50%

BLACK KEY

Resistence of the AFT

sensor, measured after 10

sec. while keeping pressing

the key with a force F.

5(mm)

F= 800gr

Rsensor= 1500 +/-50%

F= 1600gr

Rsensor= 350 +/-50%

F= 2400gr

Rsensor= 250 +/-50%

TP/9S 6509xxxx

ELECTRICAL SCHEMATICS

T 1

T 2

T 3

T 4

T 5

T 6

T 7

BR4

MK4

BR3

MK3

T 0

BR1

MK1

MK2

BR2

MK2

BR3

MK3

BR4

MK4

BR1

MK1

Figure 5: 25 notes, 2 switches contact board.

TP/9S 6509xxxx

BR0

MK0

BR1

MK1

BR2

MK2

BR3

MK3

BR4

MK4

D74

MK0

BR0

BR1

MK1

BR2

MK2

BR3

MK3

BR4

MK4

T 6

T 7

T 5

T 4

T 3

T 2

T 1

T 0

Figure 6: 37 notes, 2 switches contact board.

BR1

MK1

BR2

MK2

BR3

MK3

BR0

MK0

BR4

MK4

BR5

MK5

MK0

BR0

BR1

MK1

BR2

MK2

BR3

MK3

BR4

MK4

BR5

MK5

T 7

T 6

T 5

T 4

T 3

T 2

T 1

T 0

Figure 7: 44 notes, 2 switches contact board.
